Беспроводная 1080P HD видеокамера для видеоконференций

Описание и отзывы

Трекер стоимости

Характеристики

Wireless 1080P HD video conference camera

Wireless    ACC  multi power supplier

 wireless video conference camera  |    wireless conference microphone for camera   wireless conference camera



• Interface
  Support wired network and wireless WIFI video transmission, easily cope with various occasions applications.


• Lithium battery powered
  Built-in detachable large-capacity lithium battery, the battery can work for up to 6 hours.


• Low illumination
  The brand-new CMOS image sensor with ultra-high signal-to-noise ratio can effectively reduce image noise under low illumination conditions, while applying 2D and 3D noise reduction algorithms,
  The image noise is greatly reduced, even in the case of ultra-low illumination, the image is still kept clean and clear, and the image signal-to-noise ratio is as high as 55dB or more.


• 10× optical zoom
  Using high-quality telephoto lens, optical zoom reaches 10X.

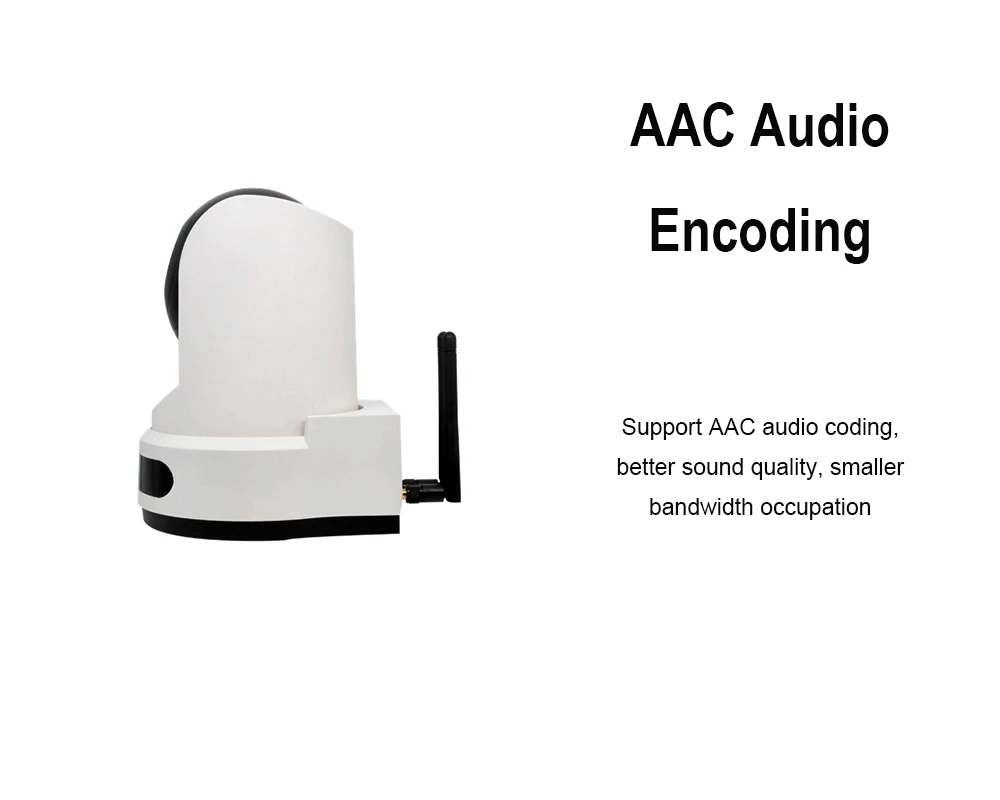

• AAC audio coding
  Supports AAC audio encoding, with better sound quality and smaller bandwidth usage.


• 1080P Full HD
  The high-quality HD CMOS sensor with 2.07 million effective pixels can achieve high-quality images with a maximum resolution of 1920x1080.


• Multiple power supply methods
  At the same time, it supports DC5V power supply, POE power supply and lithium battery power supply to meet the power supply requirements in various usage scenarios.

•  Video camera

iTEM	Secification	ITEM	Secification
sensor	1/2.8 inch, CMOS, 2.07 million pixels	scanning method	progressive scan
Lens focal length	10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8	Horizontal field of view	58.5° ~ 6.5°
Minimum illumination	0.5Lux @ (F1.8, AGC ON)	shutter	1/30s ~ 1/10000s
White balance	Automatic, indoor, outdoor, one-button, manual, specified color temperature	BLC	support
Digital noise reduction	2D&3D digital noise reduction	Signal-to-noise ratio	≥55dB
Horizontal rotation range	±170°	Vertical field of view	35.1° ~ 3.6
Vertical rotation range	-30° ~ +90°	Pan speed range	2.7° ~ 47°/s
Vertical rotation speed range	3.4° ~ 30°/s	Flip horizontally and verticall	support
Image freeze	support	PoE power supply	support

• General specification

iTEM	Secification	ITEM	Secification
Input voltage	DC 5V/PoE (802.3af)	Input Current	1.0A(max)
Operating temperature	-10 ~ 40°C	stored temperature	-40 ~ 60℃
Power consumption	5W(max)	size	141.3*153*163.6
weight	1.153Kg	Mean time between failures	> 30000 hours

• Network characteristics

ITEM	Secification	ITEM	Secification
Video coding standard	H.264 / MJPEG	Video stream	The first stream, the second stream
Video bitrate	32kbps~2048000kbps	Rate control	Variable bit rate, fixed bit rate
Resolution of the first stream	1920*1080,1280*720,1024*576 ETC.	Resolution of the second stream	720x576, 720x480, 320x240 ETC.
frequency	50Hz: 1fps~25fps, 60Hz:1fps~30fps	Audio compression standard	AAC,
Audio bit rate	48Kbps,	supporting agreement	TCP/IP, HTTP, RTSP, RTMP,Onvif, DHCP, multicast, etc.



•  Input and output interface



ITEM	Secification	ITEM	Secification
audio port	1 channel, 3.5mm, Audio In; 1 way, Line Out;	Network Interface	1 channel, RJ45: 10M/100M adaptive Ethernet;  1 channel, 2.4G,Dual frequency WIFI



• Wireless features

ITEM	Secification	ITEM	Secification
Wireless method	IEEE802.11a/b/g/n/ac	Transmit power	16dBrn
Antenna method	2*2MMO,Beamforming	Channel bandwidth	20/40/80Channel width selection
Transmission data rate	11b:11Mbps;  11g:54Mbps;  11n: 150Mbps(max)	RF range	2.400GHz-2.497GHZ,4.9GHZ 5.845gHZ
Transmission distance	20m ( ideal surroundings)





FAQ

1. Q: Are you Manufacturer or Trading company?
A: Manufacturer with more than 10 years experience.

2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.

3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.

4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Baoan Airport.

5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.

6. Q: What is your delivery time?
A: For samples, within 2 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
