Автоматическая машина для изготовления винтов на болтах M5 холодной резки высокая
- Категория: Metal Forging Machinery >>>
- Поставщик: Guangzhou,Innor,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10115.23 $* | 10621.59 $* |
| Aug-16-2025 | 10030.56 $* | 10532.72 $* |
| Jul-16-2025 | 8415.58 $* | 8836.2 $* |
| Jun-16-2025 | 9860.96 $* | 10353.57 $* |
| May-16-2025 | 8585.30 $* | 9014.1 $* |
| Apr-16-2025 | 9690.72 $* | 10175.36 $* |
| Mar-16-2025 | 9605.89 $* | 10085.4 $* |
| Feb-16-2025 | 9520.54 $* | 9996.38 $* |
| Jan-16-2025 | 9435.49 $* | 9907.48 $* |
Характеристики
Product Overview

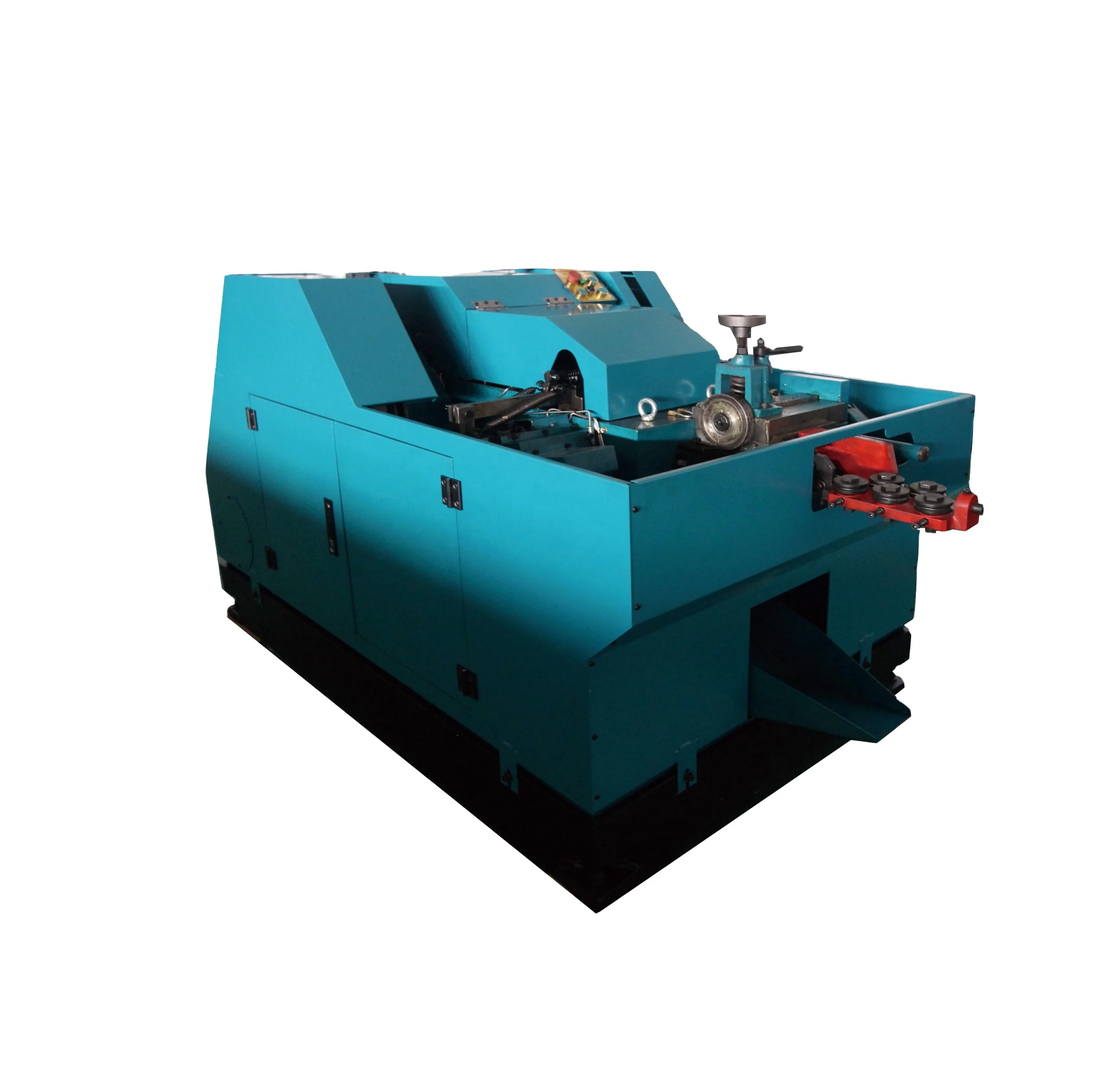

Cold heading machine for M5 screws
1-die 2-blow cold heading machine is used for the production of various types of ordinary fasteners, forming the head and cutting the screw to required length. This machine is suitable for making screws which sizes are under 5x65 mm. Standard screws such as drywall screws, chipboard screws, roof screws, machine screws can be produce by this machine, along with the thread rolling machine to complete the screw forming.
FEATURES AT A GLANCE
-1 die 2 blow design: wire calibration, accessing wires, sending wires to the main mold, first punching will initial forging, and second punching will form blank materials and withdraw.
-Maximum wire diameter 5mm.
-Suitable for various material: carbon steel, stainless steel, copper, alloy steel, aluminum etc.

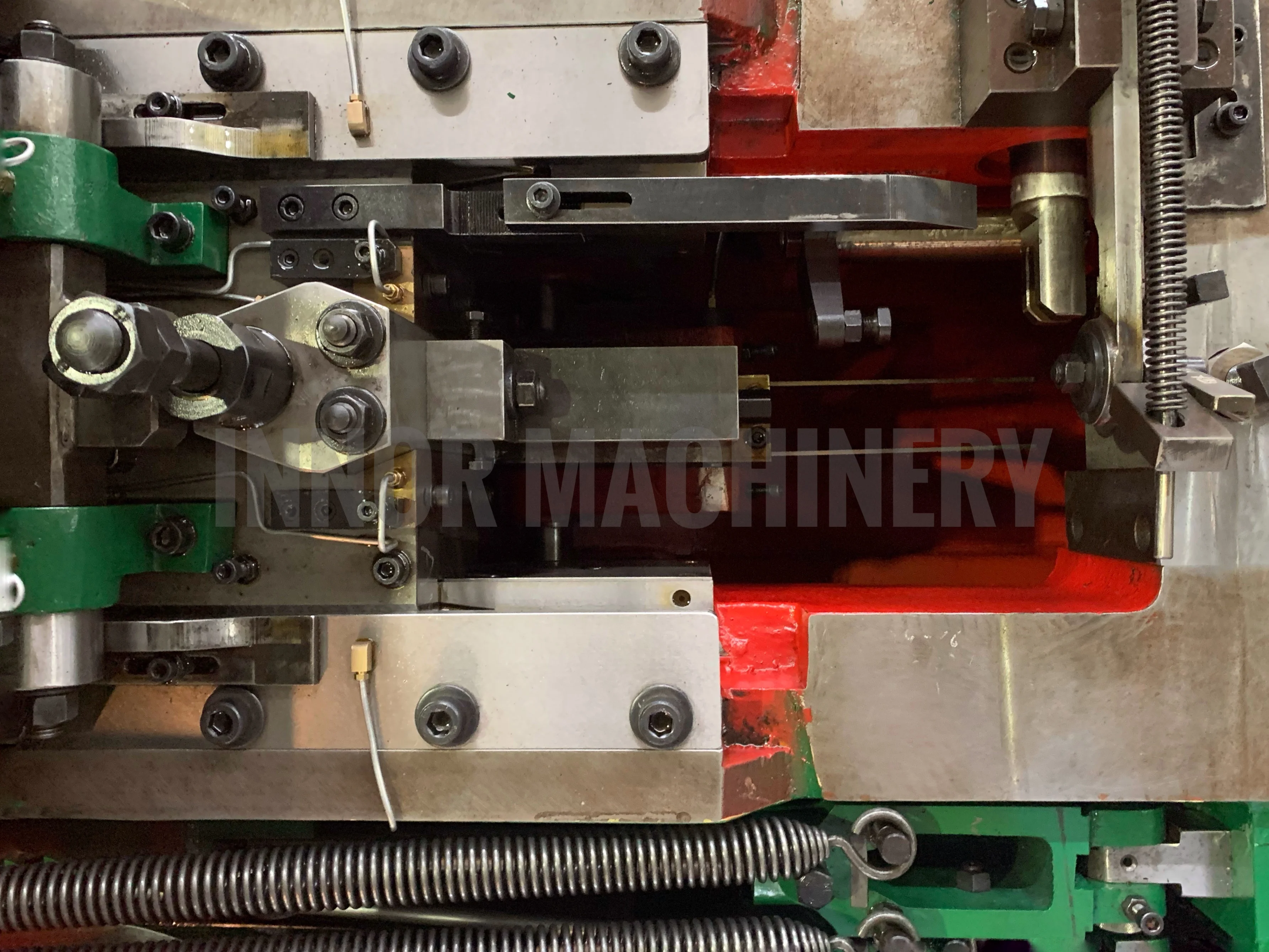

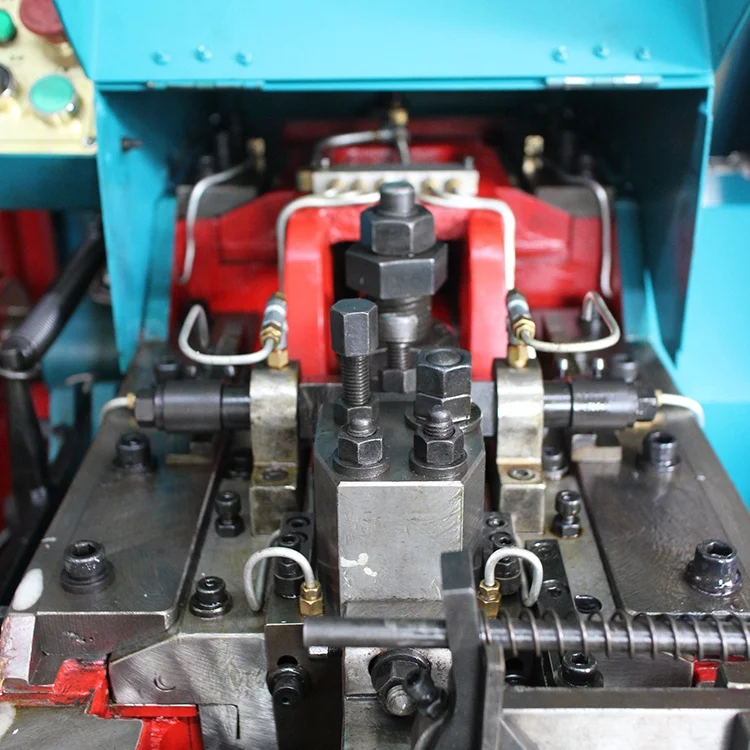

die holder
feeding control design
electrical component
PRODUCT SPECIFICATIONS
MODEL | ID5X65 |
Forging Station (Nos.) | 1 |
Max. Cut-off Dia.(mm) | 5 |
Max. Cut-off Length (mm) | 85 |
Static Die Ejection Length (mm) (K.O Stroke) | 90 |
Dynamic Die Ejection Length (mm) (P.K.O Stroke) | 7 |
Shear Size (T *W *L mm) | 9*32*65 |
Static Die Holder Size / Main Die Size.(mm) | Φ34.5*80 |
#1,#2 Punch Die Holder Size | Φ31*60 |
Cut-off Die Size (mm) | Φ19 |
Main Slider Stroke (mm) | 92 |
Screw Max. Length can be made(mm) | 65 |
Screw Min. Length can be made(mm) | 12 |
Max.Output (Pcs/min.) | 120-140 |
Main Motor (kW) | 2.2 |
Oil Pump Motor (HP) | 1/4 |
Weight (Kg) | 1800 |
Dimensions(m) | 1.85*1.1*1.22 |

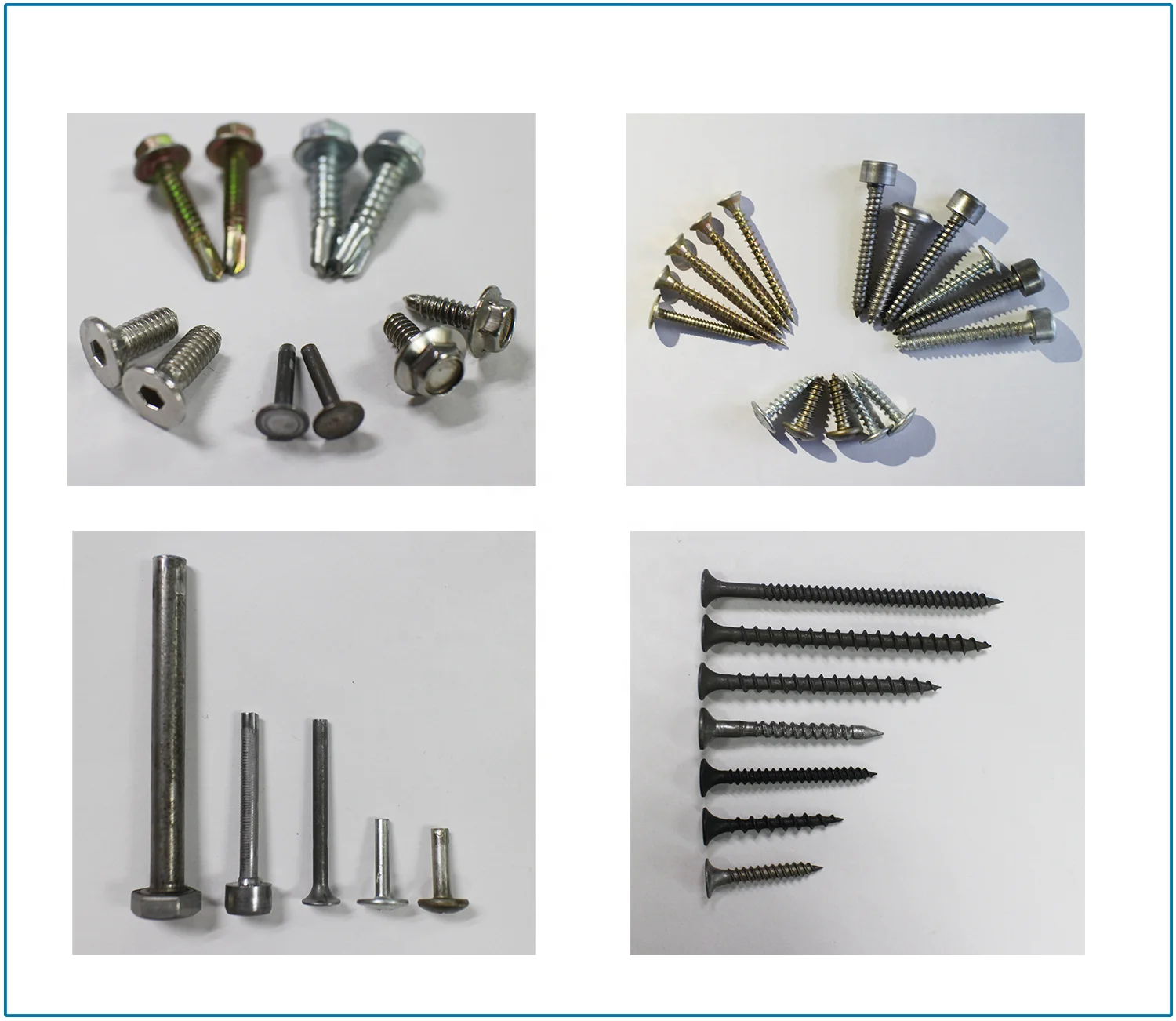

Sample product
Allen-key screws
Drywall screws
Roof screws
Pre-sales Service
- Proposal Designing
A most appropriate solution will be supplied according to the plant’s requirements, production capacity, automation set-ups, and cost efficiency.
-Selecting & Purchasing
According to the requirements of quantity and quality, equipment with its best production performance and highest performance-price ratio will be provided for customers’ selection.
- Commissioning
Professional technicians on site, quick response and optimum service attitude can help to finish the installation in the shortest time.
-Technical support
Customize design of machines up to your preference; provide technical support in any possible form.
After-sales Service
- 12 months warranty after machine arrival.
- Assistance on purchasing related equipment/products, and store in our warehouse for free
- Free training course in our factory, one-to-one teaching.
- Engineers are available for overseas service.
- Technical support at any stage via any communication form
Packaging and Shipping
Certifications
SIMILAR PRODUCTS
FAQ
1. What is your MOQ?
1 set of any machines.
2. Where is your company located? Can we visit before placing an order?
Yes, you can visit us during business hours (Monday-Friday 08:30-17:30), factory is located in Guangzhou, Guangdong Province.
3. What is your delivery time?
This is depending on your order quantity, however, we aim to deliver your order within 10-15 working days.
6. Can we do a sample test before purchasing a larger quantity of machines?
Yes, all you have to pay is mold and material cost, then we will use our machine to make the sample product you require, you can check the samples that made from our machines before you make purchases.
1 set of any machines.
2. Where is your company located? Can we visit before placing an order?
Yes, you can visit us during business hours (Monday-Friday 08:30-17:30), factory is located in Guangzhou, Guangdong Province.
3. What is your delivery time?
This is depending on your order quantity, however, we aim to deliver your order within 10-15 working days.
4. We are based in EU countries, do you have CE certificate for our import?
Yes, we have CE certification on all our models, and we are experienced in exporting to any EU countries.
Yes, we have CE certification on all our models, and we are experienced in exporting to any EU countries.
5. Do you have user instruction for machines?
Yes, we have detailed user manual in English for each models.
Yes, we have detailed user manual in English for each models.
6. Can we do a sample test before purchasing a larger quantity of machines?
Yes, all you have to pay is mold and material cost, then we will use our machine to make the sample product you require, you can check the samples that made from our machines before you make purchases.
