20 дюймов по индивидуальному заказу для системы очистки воды завод лечебой фильтра PP мелтблаун
- Категория: Water Filter >>>
- Поставщик: Suzhou,Runmo,Water,Treatment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.18 $* |
| Aug-16-2025 | 0.60 $* | 0.26 $* |
| Jul-16-2025 | 0.11 $* | 0.39 $* |
| Jun-16-2025 | 0.34 $* | 0.37 $* |
| May-16-2025 | 0.41 $* | 0.80 $* |
| Apr-16-2025 | 0.17 $* | 0.97 $* |
| Mar-16-2025 | 0.22 $* | 0.80 $* |
| Feb-16-2025 | 0.13 $* | 0.22 $* |
| Jan-16-2025 | 0.9 $* | 0.29 $* |
Характеристики
Product Description
Specification

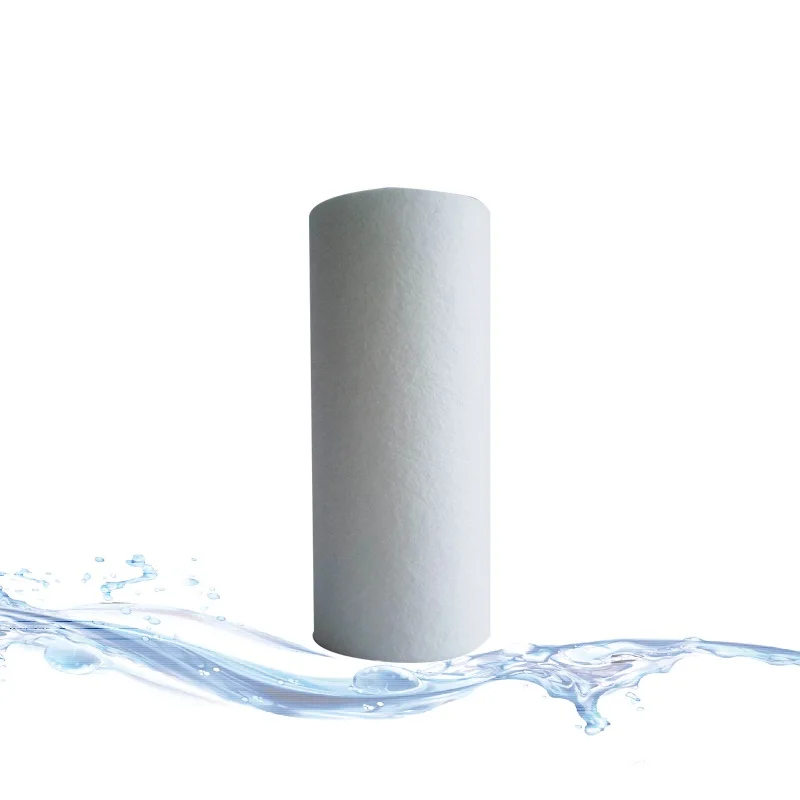

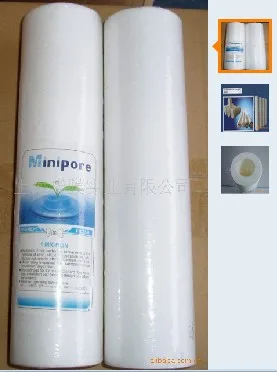

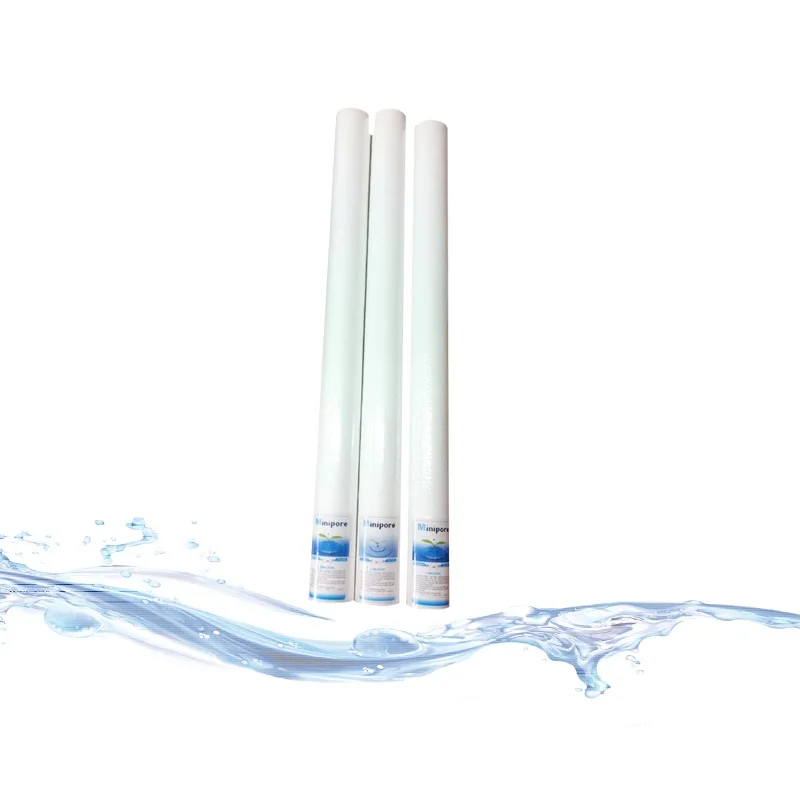

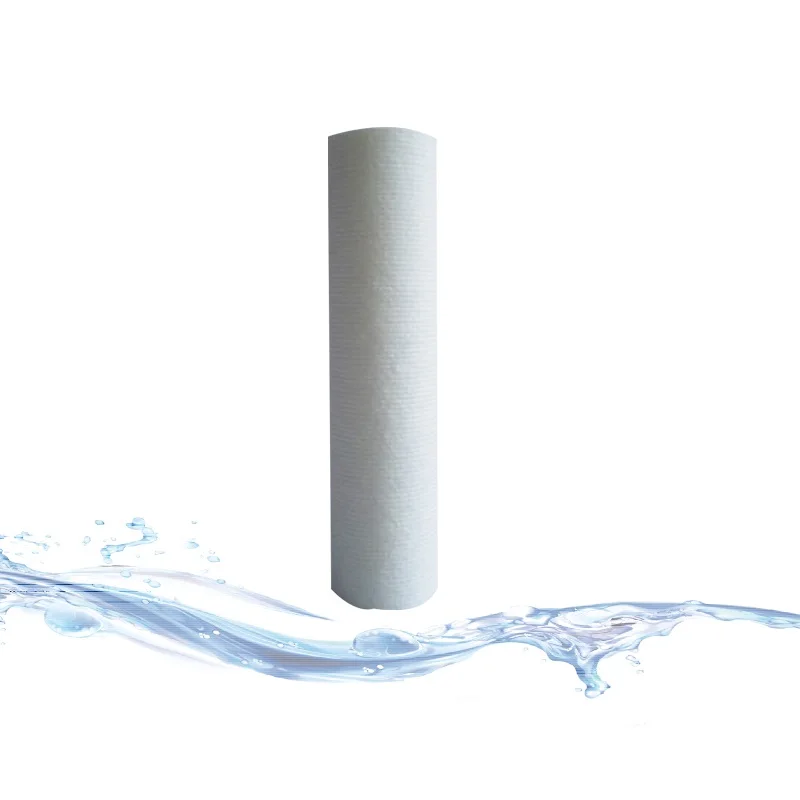

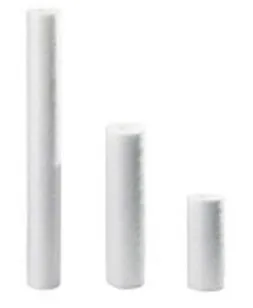

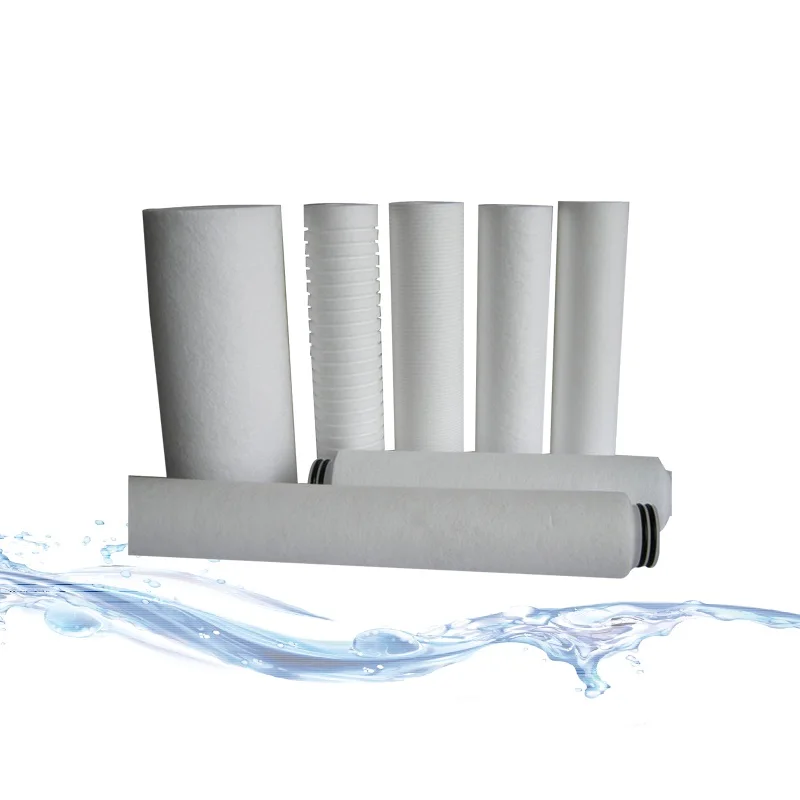

PP polypropylene melt blown filter
Filter Cartridge Description
1.Brief introduction and Technical Specification
high performance PP Melt Blown Filter Cartridges are constructed from high-tech and precisely automatic controlled machines. The cartridges are 100% made of FDA grade polypropylene resin which is ideal for most general filtration requirements. The fiber matrix of the filter cartridge has been engineered to provide structural integrity throughout the long service life and stable pressure drop. Excellent character of non-fiber releasing provides optimum fluid purity and eliminates foaming.
*100% polypropylene construction provides excellent chemical compatibility with a variety of process fluids and applications.
*Graded pore construction provides optimum particle retention and prevents media migration, ensuring consistent filtration performance.
Free of binders, additives and lubricants.
*Low pressure drop, high dirt holding capacity and long service life.
*Manufactured by FDA grade polypropylene resin.
Type：Melt-Blown Filter Cartridges
Filter Media：Polypropylene
Nominal Length：10'',20'',30'',40''
Micron Rating：1, 5, 10, 25, 50, 75, 100 μm
End Cap：DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin
Operating Conditions：3.0 bar at 21℃, 2.0 bar at 40℃, 1.0 bar at 60℃
Applications：Plating Solutions, Pre RO/DI, Chemicals, Petrochemical Process, Food & Beverage, Electronics
Material of construction
Filter media ：Polypropylene
Support layers：Polypropylene
Micron rating：0.1,0.2,0.45,0.65,1.0,2.0,3.0,5.0,10,30,50,70,100 um
Inner core：Polypropylene
outer cage, end cape：Polypropylene
Seal method：Thermal bonded, no adhesives
O-ring/Gaskets：EPDM, slicone, buna, viton
Cartridge dimensions
Outer diameter：69mm
Inner diameter：28 mm
Length (based on DOE end Cap)：10''-254mm,20''-508mm
30''-762mm,40''-1016mm
Filtration Area：0.65m2 per 10 ''
Operating conditions
Normal operating temperature：Up to 65 ℃
Max.operating temperature ：90 ℃ at p ≤1.0 bar
Forward flow direction：4.2 bar at 25 ℃
Reverse flow direction：2.1 bar at 25 ℃
Ph value compatibility：1-14
Sterilization temperature time：Steam sterilization for 30 minutes at 121 ℃,100 cycle, autoclave 30 minutes
Cartridge safety
Endotoxin：<0.25 EU/ml
Extractables：0.03g/10''
Specification of pp spun washable water filter
Material of Construction
• Filter Media: Polypropylene
• Core: Polypropylene or not
• Seal Material:Silicone,EDPM,Buna,Viton,
• Micron Rating: 1µm, 3µm, 5µm, .. 100µm
Dimensions Industrial PP melt blown filter cartridge:
• Outside diameter: 2.5” (62-65mm),4.5"(110-115mm)
• Inside diameter:28mm or 30’’
• Length: 5", 10", 20", 30", 40"
Recommended Operating Conditions
Max. Operating Temperature: 80°C
Max. Differential Pressure: 2.0 bar @ 21°C
1.Brief introduction and Technical Specification
high performance PP Melt Blown Filter Cartridges are constructed from high-tech and precisely automatic controlled machines. The cartridges are 100% made of FDA grade polypropylene resin which is ideal for most general filtration requirements. The fiber matrix of the filter cartridge has been engineered to provide structural integrity throughout the long service life and stable pressure drop. Excellent character of non-fiber releasing provides optimum fluid purity and eliminates foaming.
*100% polypropylene construction provides excellent chemical compatibility with a variety of process fluids and applications.
*Graded pore construction provides optimum particle retention and prevents media migration, ensuring consistent filtration performance.
Free of binders, additives and lubricants.
*Low pressure drop, high dirt holding capacity and long service life.
*Manufactured by FDA grade polypropylene resin.
Type：Melt-Blown Filter Cartridges
Filter Media：Polypropylene
Nominal Length：10'',20'',30'',40''
Micron Rating：1, 5, 10, 25, 50, 75, 100 μm
End Cap：DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin
Operating Conditions：3.0 bar at 21℃, 2.0 bar at 40℃, 1.0 bar at 60℃
Applications：Plating Solutions, Pre RO/DI, Chemicals, Petrochemical Process, Food & Beverage, Electronics
Material of construction
Filter media ：Polypropylene
Support layers：Polypropylene
Micron rating：0.1,0.2,0.45,0.65,1.0,2.0,3.0,5.0,10,30,50,70,100 um
Inner core：Polypropylene
outer cage, end cape：Polypropylene
Seal method：Thermal bonded, no adhesives
O-ring/Gaskets：EPDM, slicone, buna, viton
Cartridge dimensions
Outer diameter：69mm
Inner diameter：28 mm
Length (based on DOE end Cap)：10''-254mm,20''-508mm
30''-762mm,40''-1016mm
Filtration Area：0.65m2 per 10 ''
Operating conditions
Normal operating temperature：Up to 65 ℃
Max.operating temperature ：90 ℃ at p ≤1.0 bar
Forward flow direction：4.2 bar at 25 ℃
Reverse flow direction：2.1 bar at 25 ℃
Ph value compatibility：1-14
Sterilization temperature time：Steam sterilization for 30 minutes at 121 ℃,100 cycle, autoclave 30 minutes
Cartridge safety
Endotoxin：<0.25 EU/ml
Extractables：0.03g/10''
Specification of pp spun washable water filter
Material of Construction
• Filter Media: Polypropylene
• Core: Polypropylene or not
• Seal Material:Silicone,EDPM,Buna,Viton,
• Micron Rating: 1µm, 3µm, 5µm, .. 100µm
Dimensions Industrial PP melt blown filter cartridge:
• Outside diameter: 2.5” (62-65mm),4.5"(110-115mm)
• Inside diameter:28mm or 30’’
• Length: 5", 10", 20", 30", 40"
Recommended Operating Conditions
Max. Operating Temperature: 80°C
Max. Differential Pressure: 2.0 bar @ 21°C
Ordering guide of PP melt blown filter cartridge:
Ordering guide of PP melt blown filter cartridge:
Model PPF | Support Cor | Dimension | Micron Rating | End Adaptor | Seal | Length Inch |
PPF-A Standard PPF-B Thin groove PPF-C Broad groove | P- PP N- None | A- ID28mm OD2.5" B-ID28mm OD4.5" C- ID30mm OD2.5" D-customize | 1:1μm 3:3μm 5:5μm 10:10μm ........ ........ 100:100 μm | 0-DOE 1 - 226/Fin 2 - 222/Fin 3- 222/Flat closed | E-EPDM N-Buna S-Silicone V-Vito | 5: 5" 10: 10" 20: 20" 30: 30" 40: 40" 50:50” |
