SOMPOM уличный DC 24V 12.5A 300WIP67 Водонепроницаемый 60W 100W 150W 200W 300W 400W импульсный источник
- Категория: >>>
- Поставщик: Guangdong,Province,Sompom,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 19.15 $* | 20.16 $* |
| Aug-15-2025 | 19.29 $* | 20.42 $* |
| Jul-15-2025 | 16.22 $* | 17.5 $* |
| Jun-15-2025 | 19.75 $* | 20.11 $* |
| May-15-2025 | 16.71 $* | 17.91 $* |
| Apr-15-2025 | 18.95 $* | 19.28 $* |
| Mar-15-2025 | 18.44 $* | 19.56 $* |
| Feb-15-2025 | 18.81 $* | 19.13 $* |
| Jan-15-2025 | 18.56 $* | 19.24 $* |
Характеристики
Products Description
DC Output | DC Voltage: 24v |
DC Current: 12.5A | |
Ripple & Noise: 80MV | |
DC Adjustable Range: ±10% Rated Voltage | |
Voltage Tolerance: ±2.0% | |
Line Regulation: ±0.5% | |
Load Regulation: ±1% | |
Load Regulation: ±1% | |
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
AC Input | AC Voltage Range: 180-240VAC |
Frequency Range: 47-63Hz | |
Efficiency:85% | |
AC Current: 0.4A/230V | |
AC Inrush Current: 40A/230V | |
Leakage Current< 0.5mA /240VAC | |
Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
Over-temp. : Shut down O/P voltage, Auto-recovery | |
Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
Working Humidity:20 ~ 90% RH, non-condensing | |
Storage Temp.: -10~ +60C° | |
Storage Humidity: 10 ~ 95% RH | |
Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Safety standards: CE,RoHS,FCC,ISO9001 |

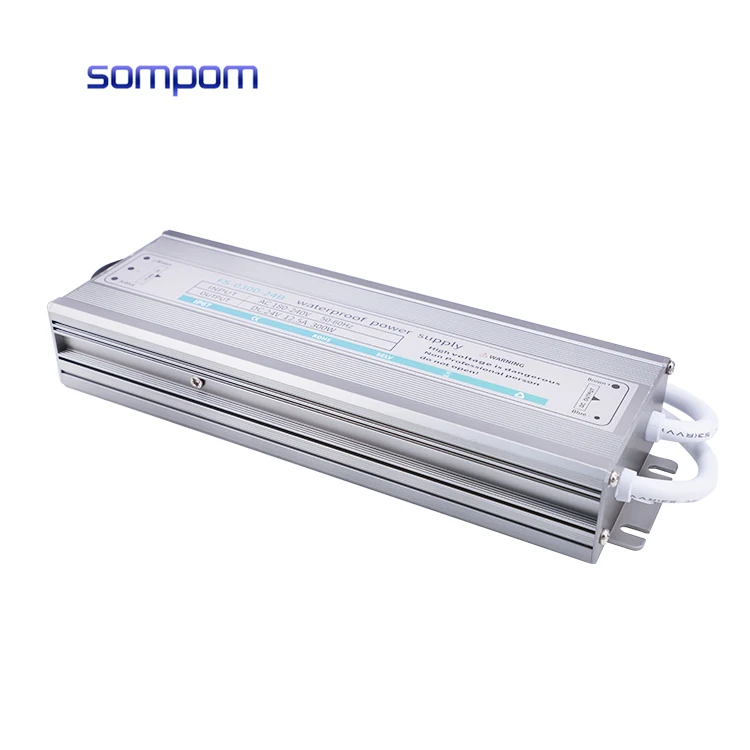

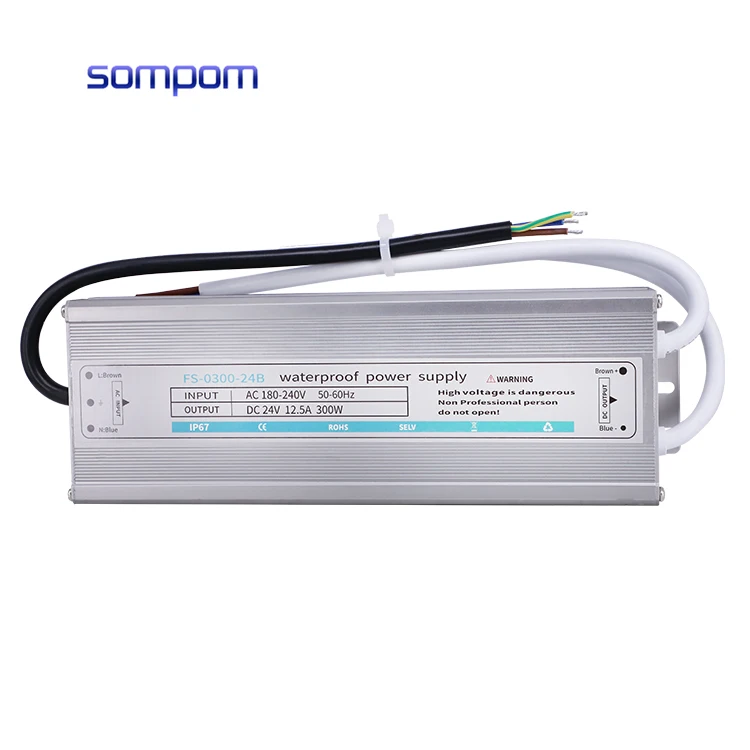

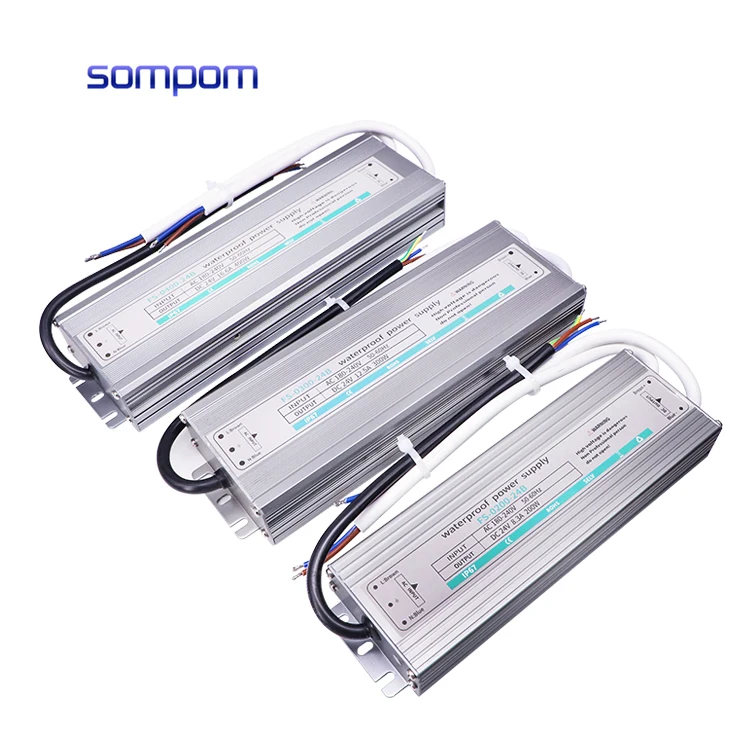

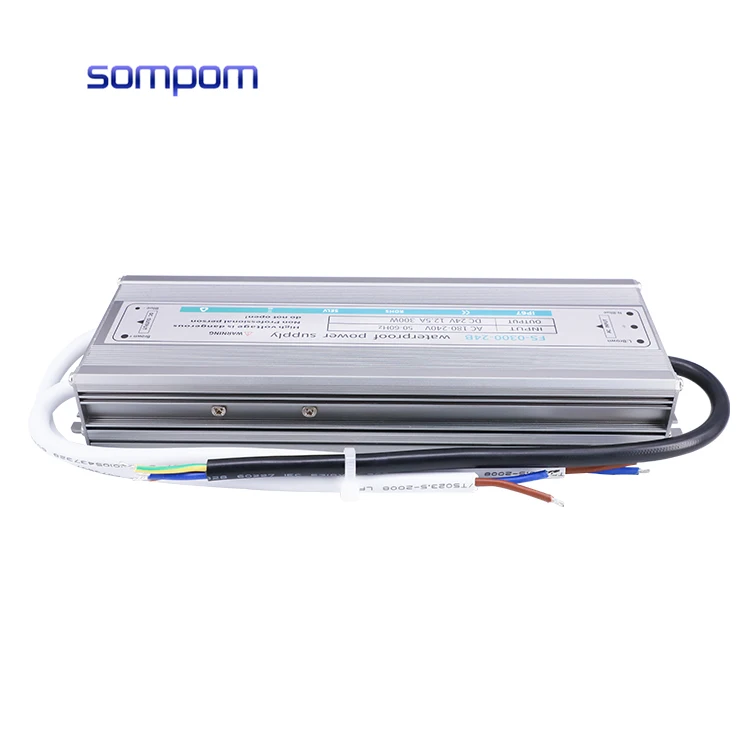

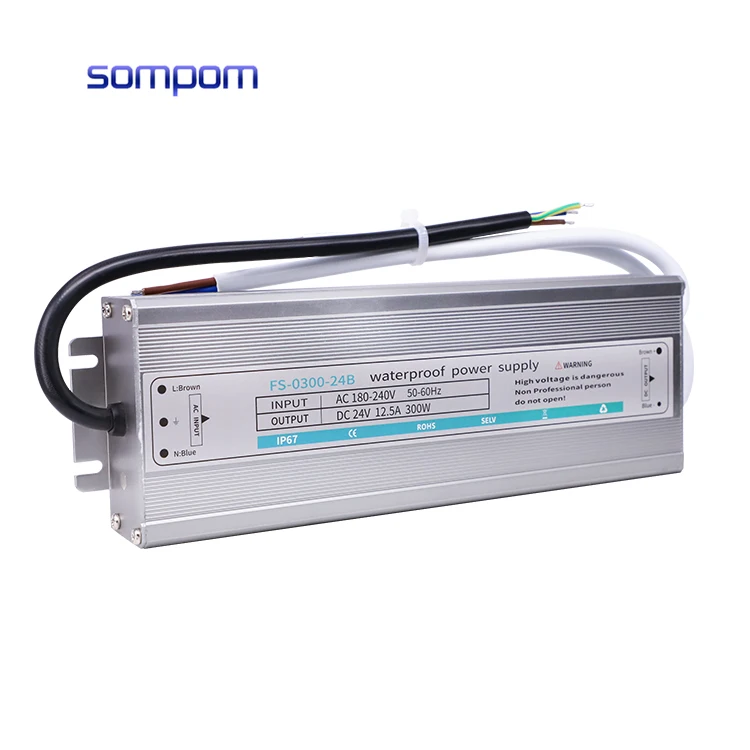

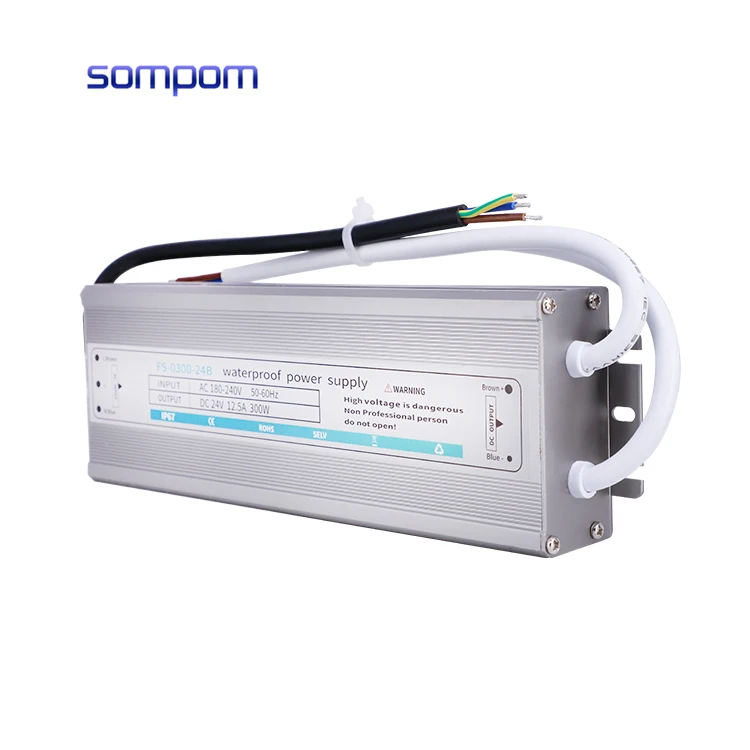

Product Display
Recommend Products
Model Series Link (View more) |
About Us
SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customer’s favor by its high efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
FAQ
1、Q: What is your MOQ of switch power?
A: Our MOQ is 1 piece
2、Q:How many year warranty of your Led driver?
A: Two years
3、Q: Do you offer sample of power?
A: Yes, We offer free sample, but you need pay the shippment.
4、Q: Do you have switch power factory?
A: Yes, we are OEM & ODM manufacturer in Donguan
5、Q: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
6、Q: Do you have any certification?
A: Yes, we have CE, RoHS, FCC and ISO9001 right now. If you need other certification with large order, We can apply for it.
A: Our MOQ is 1 piece
2、Q:How many year warranty of your Led driver?
A: Two years
3、Q: Do you offer sample of power?
A: Yes, We offer free sample, but you need pay the shippment.
4、Q: Do you have switch power factory?
A: Yes, we are OEM & ODM manufacturer in Donguan
5、Q: Is your power with copper transform or something?
A: We can do with complete copper transform and copper cladding aluminum.
6、Q: Do you have any certification?
A: Yes, we have CE, RoHS, FCC and ISO9001 right now. If you need other certification with large order, We can apply for it.
