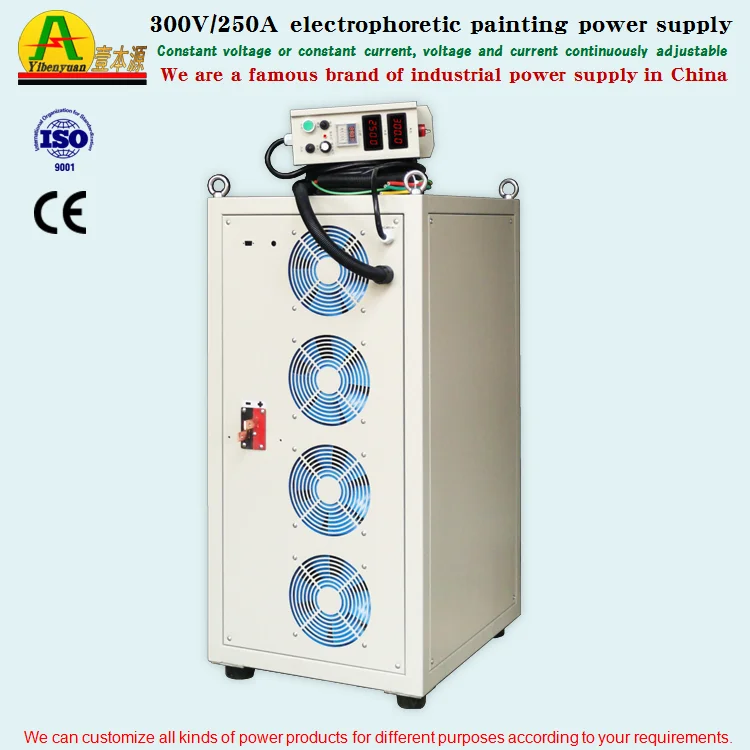

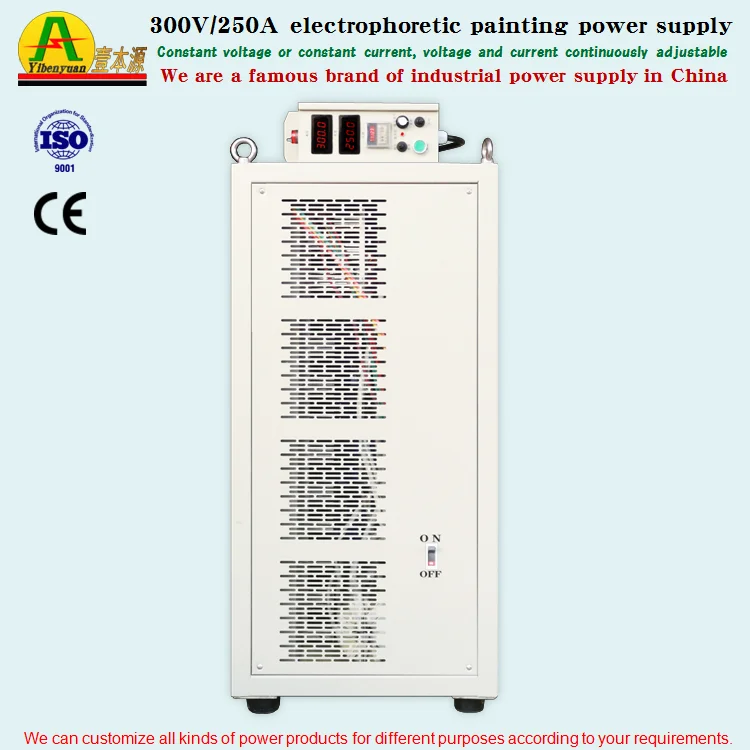

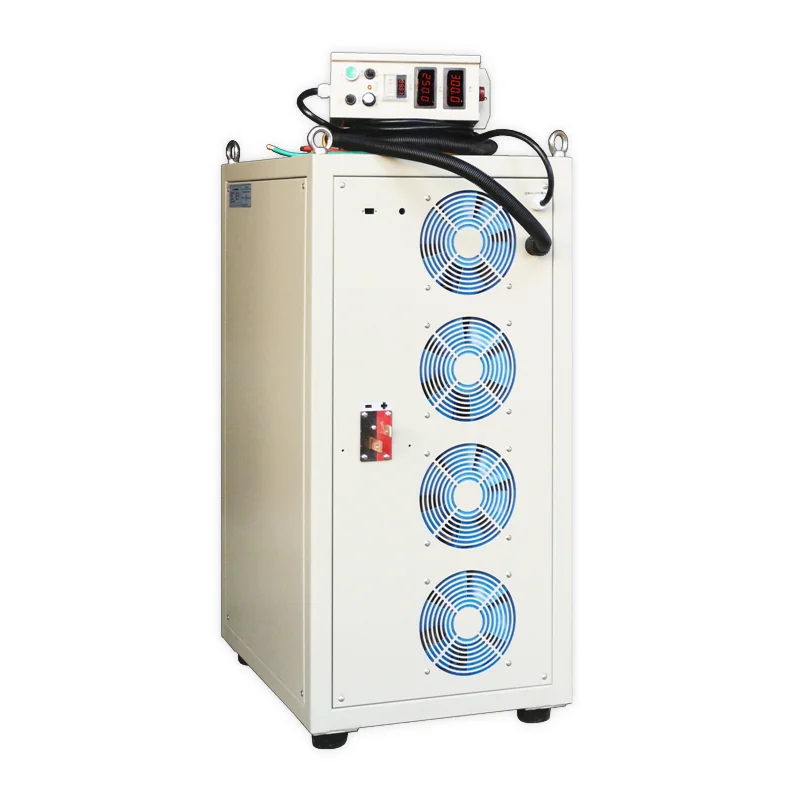

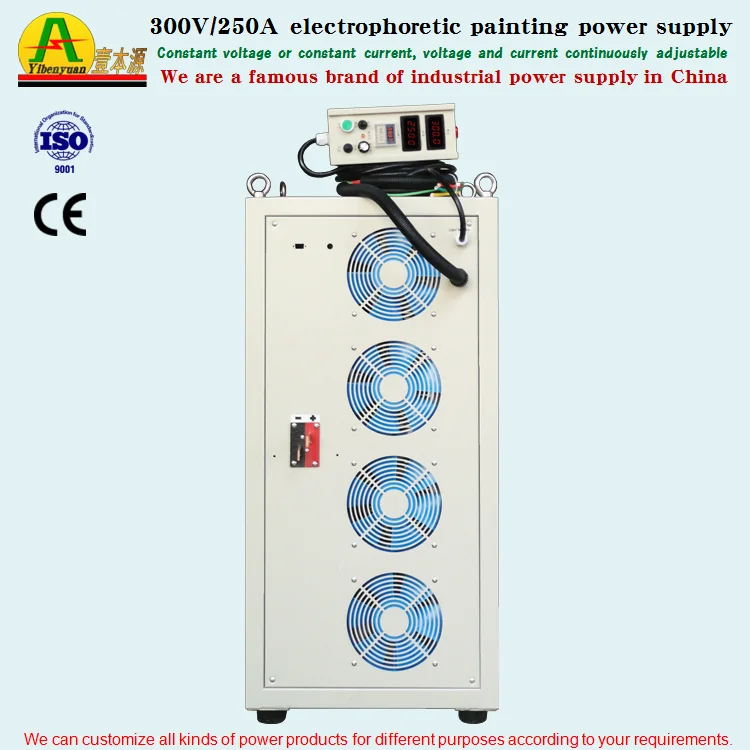

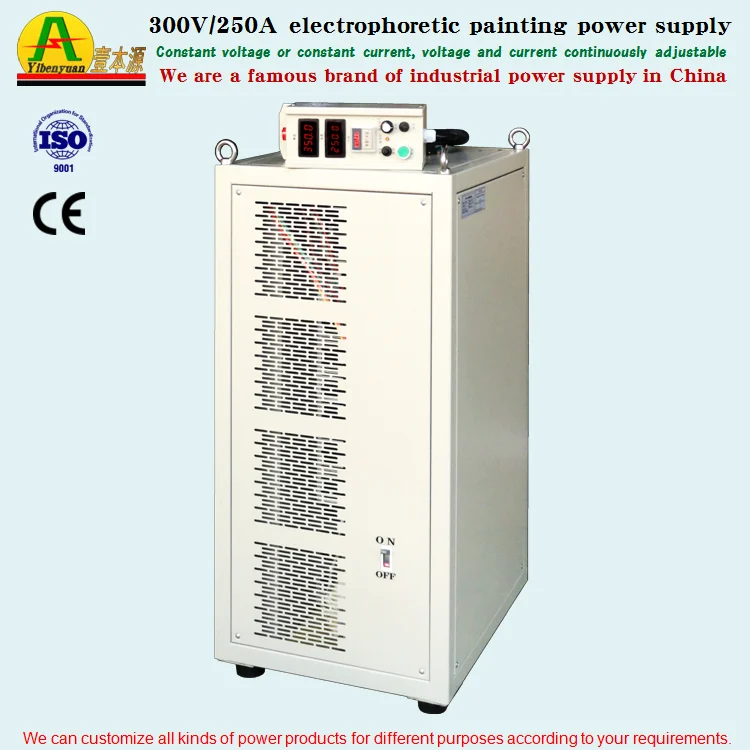

China factory customized 150V, 300V, 250A, 500A regulated and adjustable high voltage DC electrophoretic painting power supply

Scope of application:
Electrophoresis painting
product manual:
1. The product has a beautiful appearance, a firm structure, and the surface of the shell is sprayed with powder, which is firm and corrosion-resistant.
2. This power supply adopts the current world's advanced control system PWM technology and stable and reliable circuit topology design control circuit, and is controlled by German Infineon brand module (IGBT). The main transformer is wound with nanocrystalline magnetic core and pure copper wire, which has good heat dissipation, sufficient power, low power consumption, long-lasting durability and stable performance. The main components such as the rectifier bridge and the rectifier tube are made of high-quality materials from all over the world, and the power supply has an advanced LC filter design. It has the characteristics of small output ripple coefficient, good current distribution, wide output voltage and current range, and high voltage and current stability.

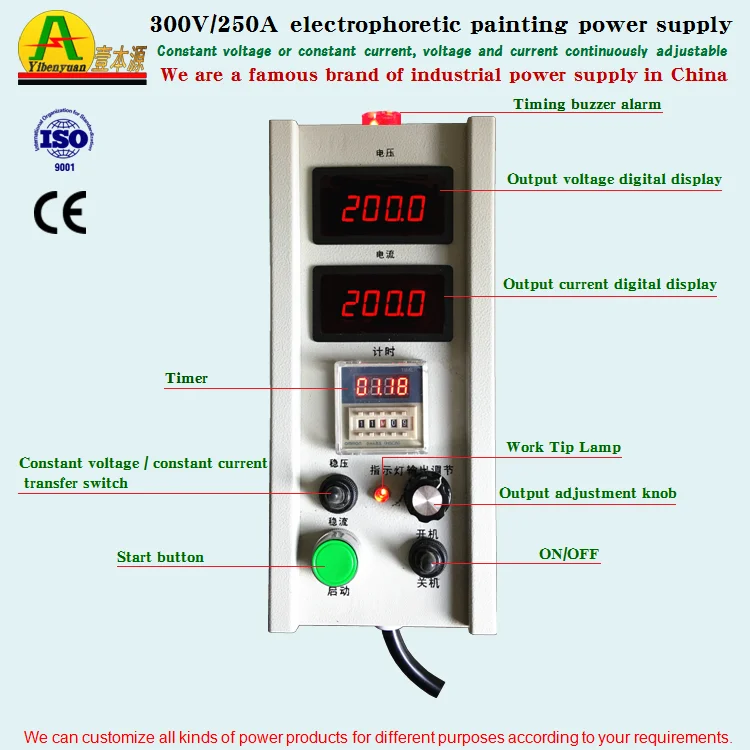

3. Constant voltage/constant current can be switched, voltage and current can be continuously adjusted from 0 to the maximum value. It has automatic protection functions for phase loss, overheating, overvoltage, overcurrent, short circuit and other faults.
4. The internal circuit board adopts anti-salt spray acidification three-proof glue and an independent sealed box, which effectively prevents dust, moisture, and prevents short-circuit caused by the entry of small insects, which effectively improves the safety, stability and use of the product life. The power cord, control line contacts, and trigger signal line contacts are all sealed with silica gel to prevent leakage, moisture, and corrosion; all circuit boards are assembled and debugged with a secondary dipping process, so that the product is suitable for moisture , Acid rot in electrophoresis environment.
5. The product uses generous materials, sufficient power, and large design margins for electronic components and important parts, which can ensure that the product can maintain full load and long-term continuous operation.
