ZG600 горячая Распродажа Автоматическая подъемная внешняя вакуумная машина для упаковки и запечатывания зерен овощей
- Категория: Vacuum Packing Machines >>>
- Поставщик: Henan,Zgcm,Machinery,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2142.80 $* | 2249.76 $* |
| Aug-18-2025 | 2124.95 $* | 2230.15 $* |
| Jul-18-2025 | 1782.72 $* | 1871.0 $* |
| Jun-18-2025 | 2088.53 $* | 2192.32 $* |
| May-18-2025 | 1818.91 $* | 1909.40 $* |
| Apr-18-2025 | 2052.41 $* | 2155.63 $* |
| Mar-18-2025 | 2034.16 $* | 2136.21 $* |
| Feb-18-2025 | 2016.91 $* | 2117.59 $* |
| Jan-18-2025 | 1998.88 $* | 2098.72 $* |
Характеристики
Technical specifications
Model | ZG600 | ZG700 | ZG800 | ZG900 | |||
Sealing size(mm) | 600*8 | 700*8 | 800*8 | 900*8 | |||
Voltage | 110V/220V/380V 50HZ/60HZ (Optional) | ||||||
Pump power | 1.5KW/0.9/1.1KW | ||||||
Packing capacity | 2-4 cycle/min | ||||||
Sealing power | 1kw | 1.1 kw | 1.2kw | 1.3kw | |||
Height of machine head | 1-1430mm | ||||||
Weight | 120kg | 125kg | 130kg | 155kg | |||
Overall size(mm) | 950*960*1800 | 950*960*1800 | 950*960*1800 | 1250*960*1800 | |||

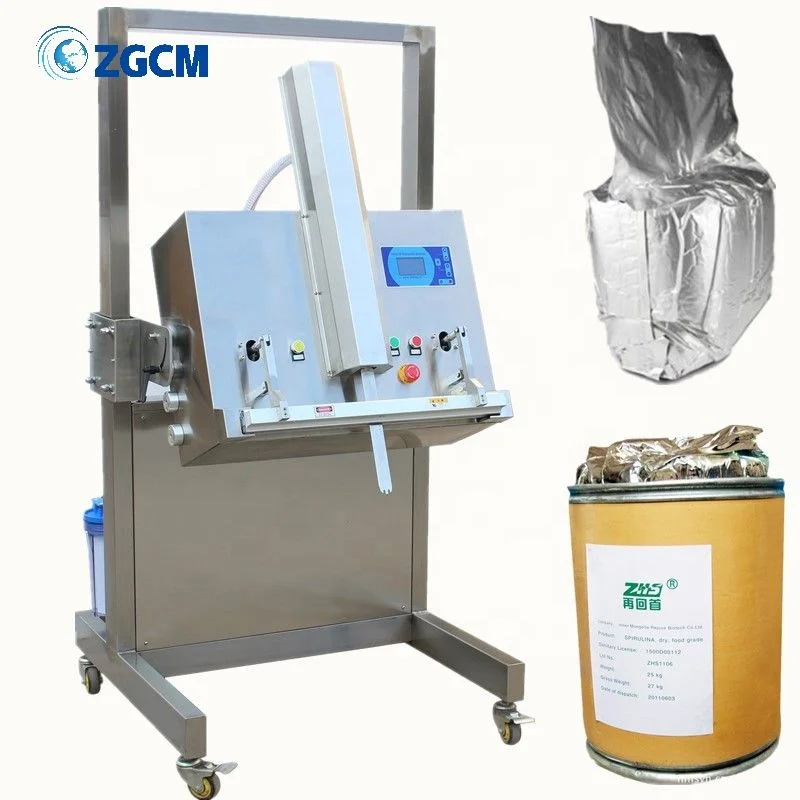

Application products
suitable for Vacuum or nitrogen-filled sealed packaging of electronic components, hardware, meat, dry goods, fabrics and wool products, whole grains, vegetables and fruits, medicine, plastic materials, food, chemical materials, etc. It can achieve anti-oxidation, anti-corrosion, anti-mildew, moisture-proof and other fresh-keeping and quality-preserving effects.
If you have special needs, you can contact us at any time. Customize your exclusive equipment
If you have special needs, you can contact us at any time. Customize your exclusive equipment
Machine advantage
* Using a 7-inch touch screen and PLC control, all information is clear at a glance, the operation becomes simple and fast, and it can be customized according to customer needs. The machine has a fully automatic lifting function and is equipped with a photoelectric positioning conveyor. The barrel or box is transported from the conveyor to the bottom of the machine head. The photoelectric locator automatically detects the barrel or box and other items, and automatically stops the transport, and then the machine head automatically drops and starts to pull the bag. After the vacuuming, sealing and other procedures are completed, the machine head automatically rises to the original position and other processes are completed automatically, thereby improving work efficiency, saving labor costs, and truly realizing automation equipment.
* The operating angle of the body's head can be adjusted within 0-90 degrees, and the operating height can be adjusted up and down freely.
* The vacuuming speed is extremely fast, the packaged product can be drained in only 3-6 seconds, and the seal is beautiful, flat and firm.
* The overall shape adopts stainless steel structure, which is hygienic and durable.
* Equipped with a gas mixer to fill the food with gas (CO2, 02, N2, etc.) to extend the product storage and preservation period.(Optional)
* The vertical setting range of the head: 690-1420mm.
* One machine for multiple purposes: eight working modes such as vacuum, gas filling,and sealing are multi-purpose.
* The operating angle of the body's head can be adjusted within 0-90 degrees, and the operating height can be adjusted up and down freely.
* The vacuuming speed is extremely fast, the packaged product can be drained in only 3-6 seconds, and the seal is beautiful, flat and firm.
* The overall shape adopts stainless steel structure, which is hygienic and durable.
* Equipped with a gas mixer to fill the food with gas (CO2, 02, N2, etc.) to extend the product storage and preservation period.(Optional)
* The vertical setting range of the head: 690-1420mm.
* One machine for multiple purposes: eight working modes such as vacuum, gas filling,and sealing are multi-purpose.

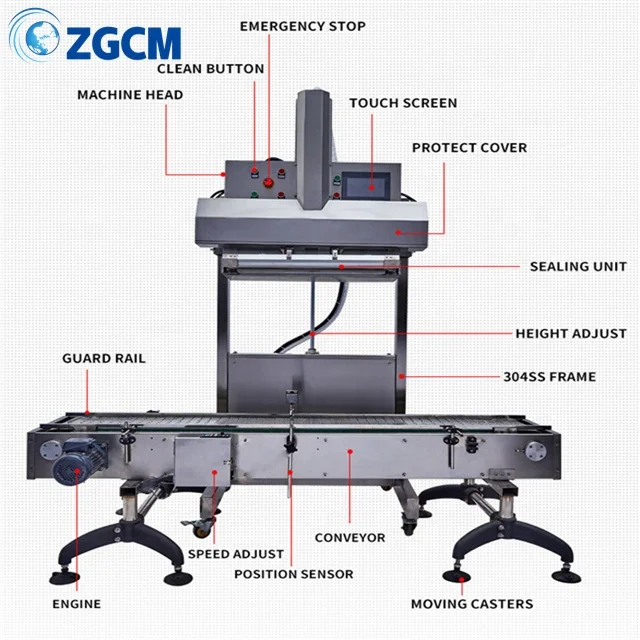

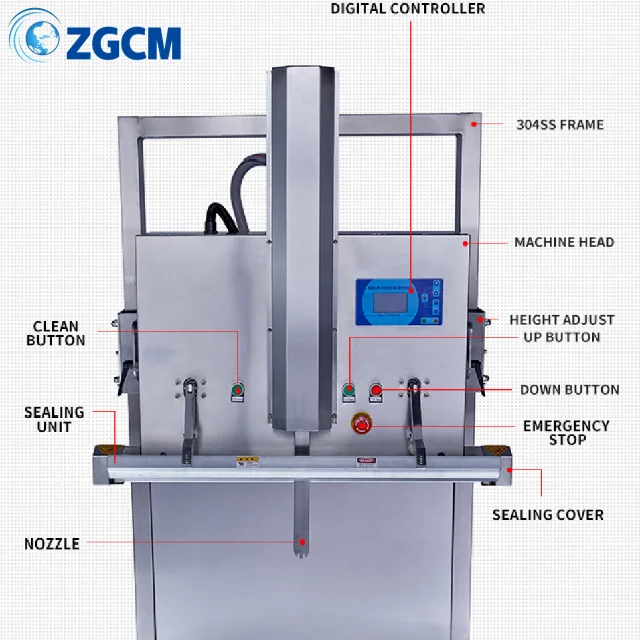

Machine features
* It adopts PLC + 7" touch screen for control system. The touch screen will display all the information.
* Entry level operation.
* The machine head can be lift automatically.
* The convr is photoelectric positioning. Once the barrel is delivered to a certain position by conveyor, the machine will detect it and the conveyor will stop moving.Then the machine head will fall and start to pull bag mouth, vacuum, seal etc. After the bag get sealed, the machine head will lift to previous position.
* The angle of machine head can be angle 0°- 90°adjustable, meanwhile the height can be adjusted up or down with range of 690-1420mm.
* High packing speed. Only need 3s-6s forvacuum.
* The machine is 304SS structure.
* It can work together with gas mixer for MAP purpose. The gas mixer will mix three gases together, and fill it into package.
* Muti purpose. It supports 8 different packing modes.
* Entry level operation.
* The machine head can be lift automatically.
* The convr is photoelectric positioning. Once the barrel is delivered to a certain position by conveyor, the machine will detect it and the conveyor will stop moving.Then the machine head will fall and start to pull bag mouth, vacuum, seal etc. After the bag get sealed, the machine head will lift to previous position.
* The angle of machine head can be angle 0°- 90°adjustable, meanwhile the height can be adjusted up or down with range of 690-1420mm.
* High packing speed. Only need 3s-6s forvacuum.
* The machine is 304SS structure.
* It can work together with gas mixer for MAP purpose. The gas mixer will mix three gases together, and fill it into package.
* Muti purpose. It supports 8 different packing modes.
Our workshop
Our factory
Henan ZGCM Machinery Co.,Ltd. has a plant area of more than 10,000 square meters, which produces vertical packaging machines, automatic material sorting lines, pillow packaging machines, filling machines, etc. Among them, granule packaging machine, powder packaging machine, liquid packaging machine, sauce packaging machine, food packaging machine, multi-head weighing machine, hardware packaging machine, counting packaging machine, medical supplies packaging machine, fresh fruit and vegetable packaging machine, filling machine, Capping series, unscramble bottle washing series, filling production line, etc. are the company's main products, which are exported to hundreds of countries and regions in Southeast Asia, Europe, America, Africa, the Middle East, etc., and are well received by users from all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchanges of talents and technology with famous enterprises at home and abroad. The factory currently has more than 180 employees, including 35 in the R&D department, who are responsible for the R&D and design of non-standard equipment and advanced technology in the industry. The after-sales department has 30 masters with more than 20 years of after-sales experience, who are responsible for the installation of equipment sold at home and abroad. Commissioning, operation training and technical maintenance. We aim to realize enterprise packaging intelligence, liberate people from heavy packaging production, let machines replace manual work, reduce production costs, and improve production efficiency
Company history
Cooperation Case
Our client
transport
Frequently Asked Questions and Answers
1. Q: Do you have a finished machine to see?
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
Yes, we have standard machine inventory.
2. Q: Will you check before leaving the factory?
Yes it is. Every step of production and completion will be checked by QC department before shipment.
3. Q: Can overseas services be provided?
Yes, engineers can go abroad to train workers, install and debug machines for free
4. Q: How long is the warranty period?
One year machine warranty.
5. Q: What is the delivery time?
15-25 days after receiving the deposit.
