Отличная теплоотдача Microchannel конденсатора Micro
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Jiangsu,Yinghe,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 12699.70 $* | 12953.61 $* |
| Jul-17-2025 | 10299.95 $* | 10505.75 $* |
| Jun-17-2025 | 12499.73 $* | 12749.66 $* |
| May-17-2025 | 12399.59 $* | 12647.98 $* |
| Apr-17-2025 | 9899.59 $* | 10097.74 $* |
| Mar-17-2025 | 12199.7 $* | 12443.30 $* |
| Feb-17-2025 | 12099.3 $* | 12341.52 $* |
| Jan-17-2025 | 11999.14 $* | 12239.9 $* |
Характеристики
Products Description
micro-channel heat exchanger advantages :
micro-channel heat exchanger advantages :
* High efficiency
1. averagely 30% higher heat exchanger performance.
2. averagely 20% lower air side pressure drop.
3. AC unit COP highly increased.
* High reliability
1. sustainable high efficiency as metalic bonding.
2. more adapt to high pressure system as micro channel design.
3. better corrosion resistance as alloy design.
* High efficiency
1. averagely 30% higher heat exchanger performance.
2. averagely 20% lower air side pressure drop.
3. AC unit COP highly increased.
* High reliability
1. sustainable high efficiency as metalic bonding.
2. more adapt to high pressure system as micro channel design.
3. better corrosion resistance as alloy design.
* Environment friendly
1. averagely 30% less refrigerant charge.
2. easier to rcycle as all aluminum design.
1. averagely 30% less refrigerant charge.
2. easier to rcycle as all aluminum design.
* Total cost reduction
1. smaller size, less weight.
2. less parts.
3. less refrigerant charge
4. easy handle
1. smaller size, less weight.
2. less parts.
3. less refrigerant charge
4. easy handle

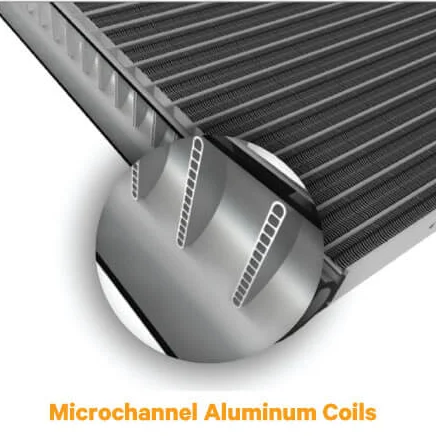

Specification
Width(mm) | Thickness(mm) | Hole No. | |||
Flat pipe specifications | 12 | 1.2 | 17 | ||
16 | 1.3 | 16 | |||
20 | 2 | 12 | |||
25.4 | 2 | 13 | |||
25.4 | 2 | 20 | |||
32 | 2 | 25 | |||
36 | 2 | 26 | |||
36 | 3 | 23 | |||
fin | plain | ||||
corrugated plate | |||||
window plate | |||||
Materials of the heat exchanger
MPE tube: Al alloy AA3102+Zn
Fins: AA4343/3003/4343
Head tube(manifold): AA4045/3003
Fins: AA4343/3003/4343
Head tube(manifold): AA4045/3003
Specification and function of the heat exchanger
Tube and fin brazed tightly, no any loose
No leakage at any brazed or welding point
Surface cleaning and bright, fins are all regular, without obvious deformation or damage
Surface can be black E-coated, coating thickness Min18um, the layer is equally, no blank or peel off.
Heat exchanger can suit for below refrigerant and it’s pressure standard:
* fluid(Glycol & Water mixed) cooler coil: working pressure0.5～1.0MPa, burst pressure3.0～0MPa
* if R22,R134a,R600a, R407C,R410a, working pressure3.0～5MPa, burst pressure Min13.5MPa
* Specifics of MPE tube, fins and the head tube the description of the code pls refer to below drawings, we varied specifics of tube and fins refer to sheet2
No leakage at any brazed or welding point
Surface cleaning and bright, fins are all regular, without obvious deformation or damage
Surface can be black E-coated, coating thickness Min18um, the layer is equally, no blank or peel off.
Heat exchanger can suit for below refrigerant and it’s pressure standard:
* fluid(Glycol & Water mixed) cooler coil: working pressure0.5～1.0MPa, burst pressure3.0～0MPa
* if R22,R134a,R600a, R407C,R410a, working pressure3.0～5MPa, burst pressure Min13.5MPa
* Specifics of MPE tube, fins and the head tube the description of the code pls refer to below drawings, we varied specifics of tube and fins refer to sheet2
Note:
“W”—width of MPE tube/width of Fins, “B”— MPE tube thickness
“O.D”—out diameter of head tube, “W.T” —wall thickness of head tube,
“C” — slot distance of the head tube (MPE tube distance)
F.P—fin pitch (wave distance), F.P.I, “H” height(wave height) of fins
“W”—width of MPE tube/width of Fins, “B”— MPE tube thickness
“O.D”—out diameter of head tube, “W.T” —wall thickness of head tube,
“C” — slot distance of the head tube (MPE tube distance)
F.P—fin pitch (wave distance), F.P.I, “H” height(wave height) of fins
Company Profile
Company profile
The company is an international trade enterprise, in line with the good faith service, customer first, win-win cooperation business philosophy, the integration of international resources, to provide customized, one-stop complete set of services for global customers.
Main products include
1.all kinds of raw and auxiliary materials,
2.automatic machines and equipment
3. agricultural intelligent control spray equipment, agricultural equipment
4. refrigeration equipment and refrigeration accessories
5. new energy and 5G cooling equipment
6. customized heat exchangers & air coolers
7. Medical protective equipment, including masks and protective clothing
8. complete sets of production lines and project technical solutions
9. business agent of customers.
Main products include
1.all kinds of raw and auxiliary materials,
2.automatic machines and equipment
3. agricultural intelligent control spray equipment, agricultural equipment
4. refrigeration equipment and refrigeration accessories
5. new energy and 5G cooling equipment
6. customized heat exchangers & air coolers
7. Medical protective equipment, including masks and protective clothing
8. complete sets of production lines and project technical solutions
9. business agent of customers.
Product packaging
FAQ
Q1.Do you have any MOQ limit for each commodity?
A: More than 10pieces.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, balance before shipment.
Q3.Are your products can be customized?
A: Yes, we can customize products according to customer needs.
Q4.Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty for our products. If any problem happens in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application?
A: Our products have been widely used in many industries, like agriculture, electronics, refrigerator etc.
A: More than 10pieces.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, balance before shipment.
Q3.Are your products can be customized?
A: Yes, we can customize products according to customer needs.
Q4.Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty for our products. If any problem happens in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application?
A: Our products have been widely used in many industries, like agriculture, electronics, refrigerator etc.
