Горизонтальный кованый станок с шестигранным болтом/гаечным ключом/торцевым ключом для
- Категория: Metal Forging Machinery >>>
- Поставщик: Liaoyang,Pharma,Machinery,Imp.,&,Exp.,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.43 $* | 0.53 $* |
| Aug-16-2025 | 0.2 $* | 0.56 $* |
| Jul-16-2025 | 0.13 $* | 0.6 $* |
| Jun-16-2025 | 0.6 $* | 0.29 $* |
| May-16-2025 | 0.80 $* | 0.7 $* |
| Apr-16-2025 | 0.57 $* | 0.29 $* |
| Mar-16-2025 | 0.45 $* | 0.76 $* |
| Feb-16-2025 | 0.51 $* | 0.35 $* |
| Jan-16-2025 | 0.2 $* | 0.75 $* |
Характеристики
Product Description

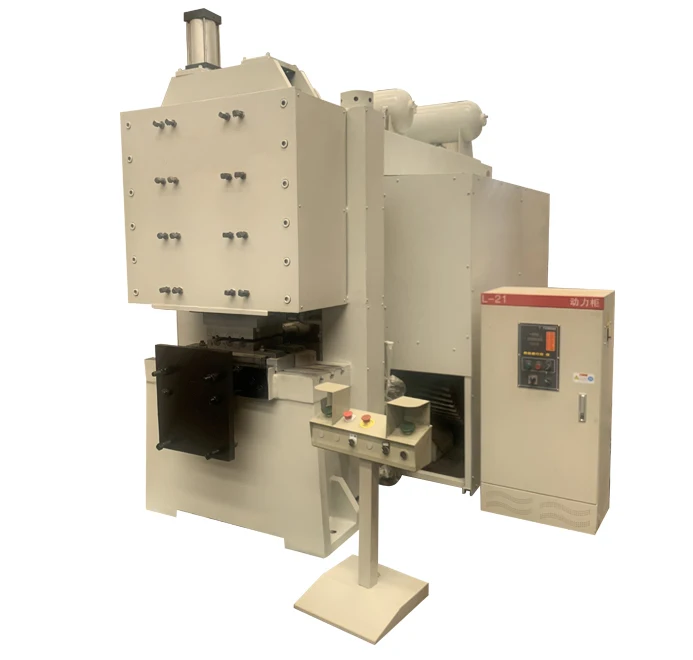

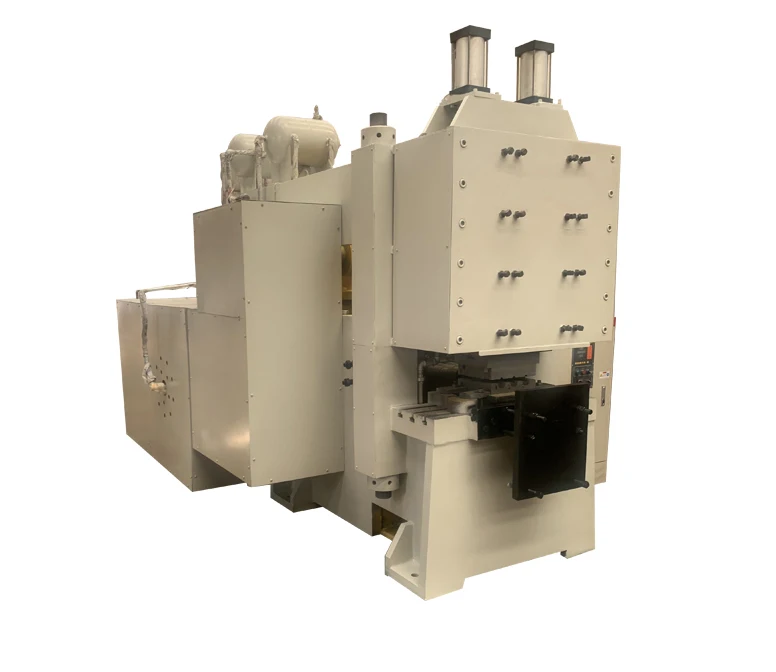

The LK series flat forging machine is a patented product of the company. It is a model with high cost performance in recent years.The concave surface of the machine is horizontal,and the cavity is horizontally arranged,but the upper body is fixed and it is fixed.The tension bolt and the lower body are tightly coupled togeter,such as the open body of the open press ,so it is called the open horizontal split die foring machine.
This model is highly automated,equipped with man-machine interface,automatic lubrication,automatic alrm and other functions,is the ideal model for forging.

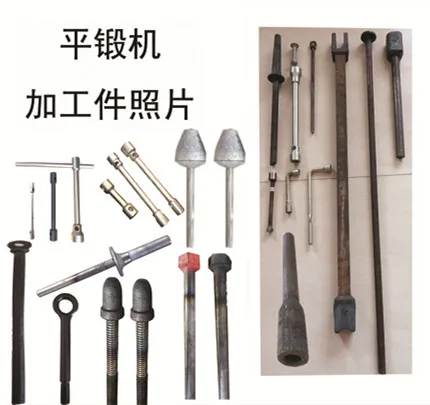

The flat forging machine has a wide application range,and mainly produces various shaped workpieces such as wrenches,high rail forks,bolts,camshafts,and sucker rods.
Parameter:
Description (Unit) | LK-125 | LK-160 | LK--250 | LK--315 | LK--450 | LK--630 | LK--800 | ||
Pier forging force(KN) | 1250 | 1600 | 2500 | 3150 | 4500 | 6300 | 8000 | ||
Clamping force(KN) | 1250 | 1600 | 2500 | 3150 | 4500 | 6300 | 8000 | ||
Main slider stroke (mm) | 130 | 160 | 200 | 290 | 330 | 390 | 450 | ||
Number of trips (min-1) | 56 | 56 | 52 | 50 | 45 | 38 | 35 | ||
Clamping die opening(mm) | 80 | 90 | 100 | 120 | 145 | 170 | 200 | ||
Total mold height (mm) | 240 | 240 | 280 | 290 | 330 | 360 | 400 | ||
Compressed air pressure(Map) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | ||
Height (mm) | 2600 | 2750 | 3050 | 3210 | 3350 | 3750 | 3900 |
Product Sample:
Company Information
Liaoyang Pharma Machinery Co.,Ltd is a grouping enterprise which contributes to production and sale of pharmaceutical,chemical and packaging machinery, the group consists of several subbranches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA,Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the producs are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine,teabag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.
Our Services
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
