Прибор для проверки внутреннего сопротивления батареи
- Категория: Battery Testers >>>
- Поставщик: Changzhou,Chuangkai,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.83 $* | 0.50 $* |
| Aug-19-2025 | 0.55 $* | 0.62 $* |
| Jul-19-2025 | 0.51 $* | 0.79 $* |
| Jun-19-2025 | 0.49 $* | 0.43 $* |
| May-19-2025 | 0.28 $* | 0.23 $* |
| Apr-19-2025 | 0.1 $* | 0.28 $* |
| Mar-19-2025 | 0.85 $* | 0.59 $* |
| Feb-19-2025 | 0.35 $* | 0.61 $* |
| Jan-19-2025 | 0.59 $* | 0.29 $* |
Характеристики
Product Description
Portable + Super Immunity Test
Repeated recharging of a secondary battery can lead to battery deterioration and increase its internal resistance. Problems also can intensify when there is a short-circuit in the internal cell leading to voltage drop, overheating and complete battery malfunction. Worst of all, these problems can cause life threatening fires and other accidents.

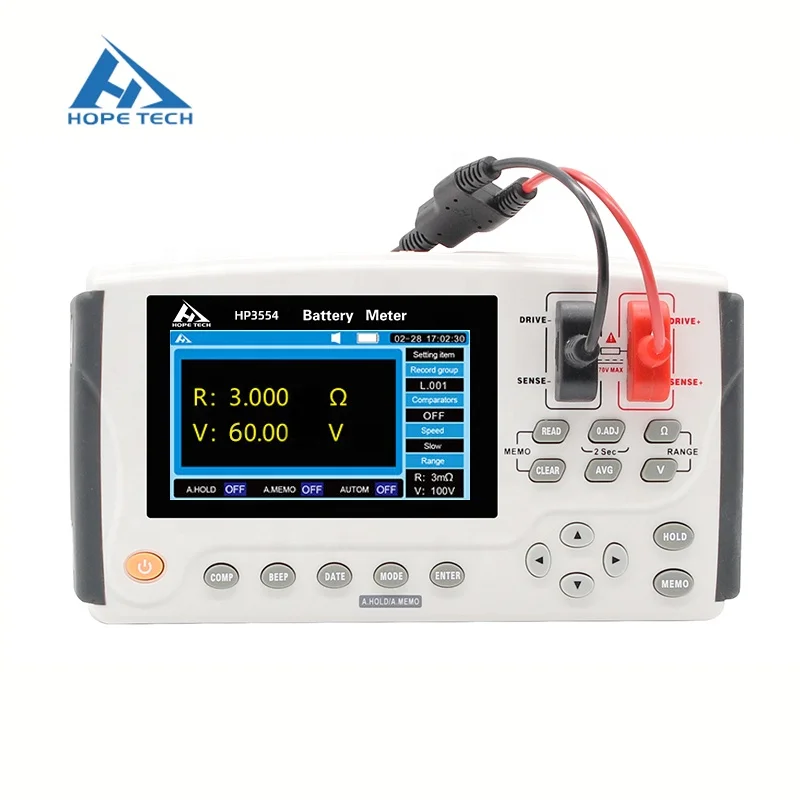

Using the large current and anti-interference design, HP3554 battery tester provides fast, complete and accurate diagnosis in internal resistance and voltage for backup UPS batteries and lead-acid batteries.
Without disconnecting the batteries, HP3554 can carry out online measurement and rapid diagnosis of deterioration of the batteries, much increasing the test efficiency. The built-in automatic data storage function can store up to 2400 sets of data.
Powered of Lithium battery or dry battery, HP3554 can still work in the harsh field and air transport limited areas to facilitate the use of dry-cell battery.
Technical parameter
Model | HP3554 |
Screen size | 4.3 inches TFT-LCD display |
Measurement items | Internal resistance, DC voltage |
Basic Accuracy | Resistance: ±1% Voltage: ±0.1% |
Measurement range | Resistance:0.001mΩ~ 3.100Ω Voltage: 1mV~60.00V |
Signal source | AC 1kHz, Test current: <150mA |
Range | Resistance: 3mΩ/30mΩ/300mΩ/3Ω |
Sampling rate | 2 meas/sec (the average number optional) |
The minimum resolution | Resistance: 1μΩ, Voltage: 1mV |
The maximum reading | Resistance: 31,000 Voltage:60,000 |
Temperature | Range:-10℃ ~60℃, Accuracy:±1℃ |
Correction | Short-circuit reset for all ranges |
Comparator | FAIL/PASS sorting |
Internal data storage | Store up to 2400 test data |
Trigger | Internal/auto trigger |
Interface | USB |
Power supply | 12V/1700 mAh lithium battery, AA (LR6) Alkaline Batteries x 8 |
mption |
|
Input impedance | 32kΩ |
Dimensions and weight | 208 mm (L) x52.5mm (W) x120mm (D); Weight: 0.81kg |
Accessories | Test probe, zero board, lithium battery, DC power adapter, temperature probe, Mini-USB cable |
FAQ
Q: How long is the delivery date?
A: Inventory products will be delivered within 5-7 days after receipt of deposit; products
requiring new production of common materials, usually within 15-20 days; products requiring new production of special and rare materials, usually within 30-40 days.
Q: Can you customize it?
A: There are many models in our company, which can support customization.
Q: Are there any after-sales guarantees?
A: Were one-to-one after-sales It's absolutely satisfying to you.
Q: How many years have you guaranteed it?
A: Instrument quality guarantee for 1-2 years(different products), lifelong maintenance.
Q: Do you provide invoices?
A: Invoices are issued free of charge.
