Тепловизионная Автомобильная камера дневного и ночного видения с военным транспортным
- Категория: Night Vision >>>
- Поставщик: Shaanxi,Ireeda,Protective,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.34 $* | 0.8 $* |
| Aug-17-2025 | 0.67 $* | 0.53 $* |
| Jul-17-2025 | 0.19 $* | 0.90 $* |
| Jun-17-2025 | 0.75 $* | 0.88 $* |
| May-17-2025 | 0.48 $* | 0.9 $* |
| Apr-17-2025 | 0.37 $* | 0.32 $* |
| Mar-17-2025 | 0.40 $* | 0.64 $* |
| Feb-17-2025 | 0.22 $* | 0.72 $* |
| Jan-17-2025 | 0.68 $* | 0.27 $* |
Характеристики
Contact Us
For more prompt discussion you can directly contact our sales engineer Ms. Melin as belowing:
WhatsApp/ Wechat: 0086-182 9141 8396
Email: melin@ireeda.com
Website: www.ireeda.com www.ireeda-tech.com
Product Overview

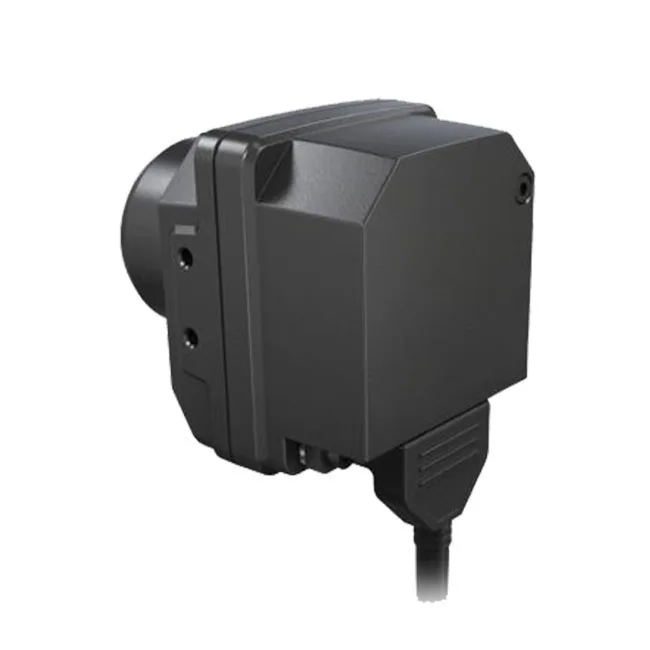

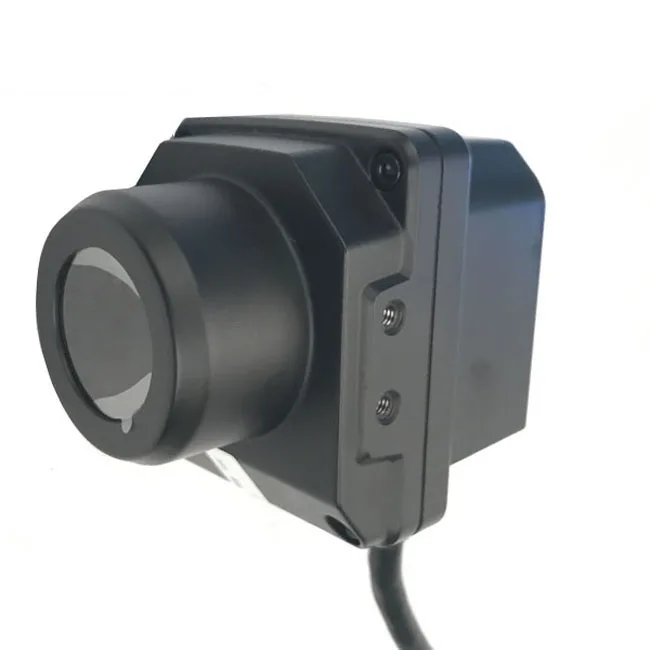

Military vehicle day and night vision thermal imaging car camera

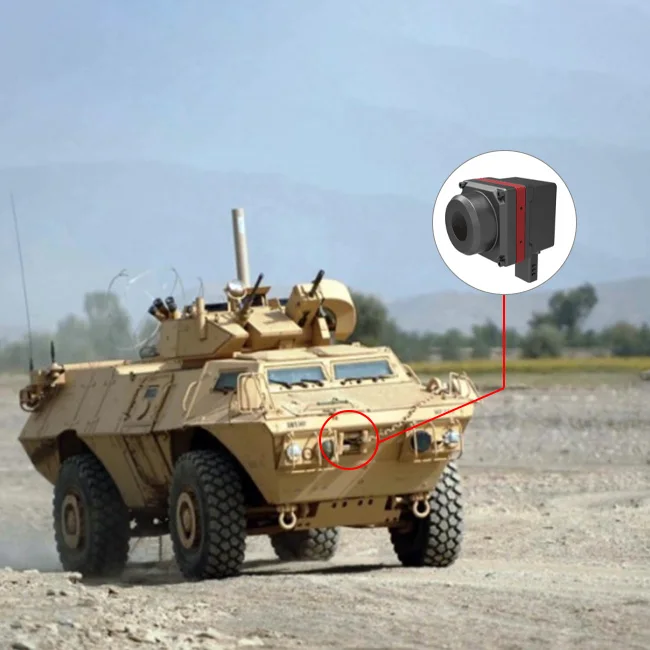

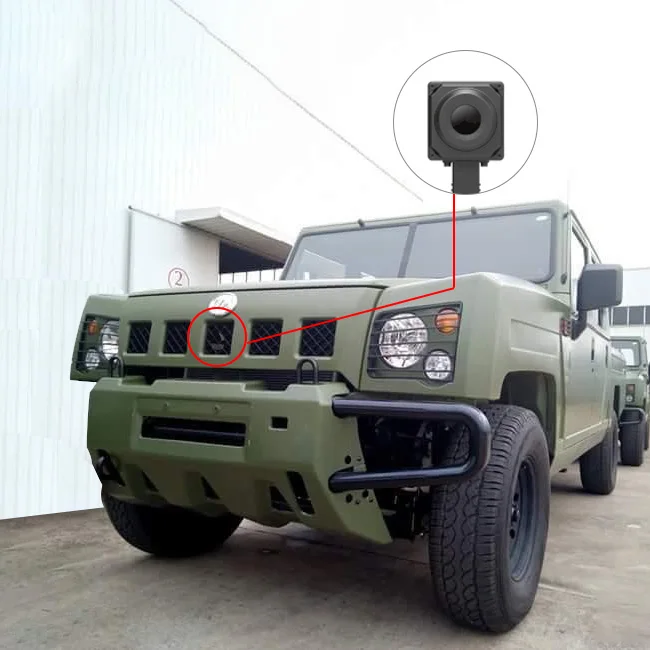

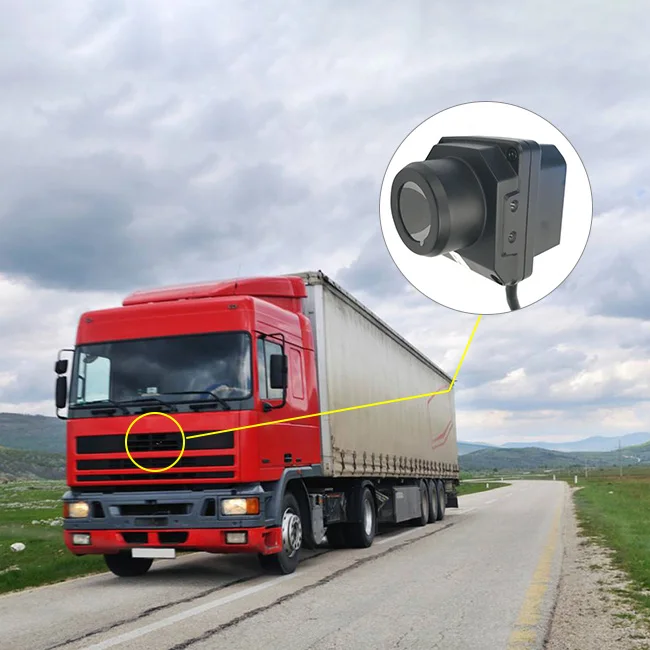

Military vehicle day and night vision thermal imaging car camera help drivers, in the dark, and especially under such severe weather conditions as rain, snow, fog, and haze, and sand and dust,clearly observe vehicles, pedestrians, and obstructions, etc., on the road; thus the safety of the driver, passenger, and the
third party can be greatly improved.
third party can be greatly improved.
Products Description

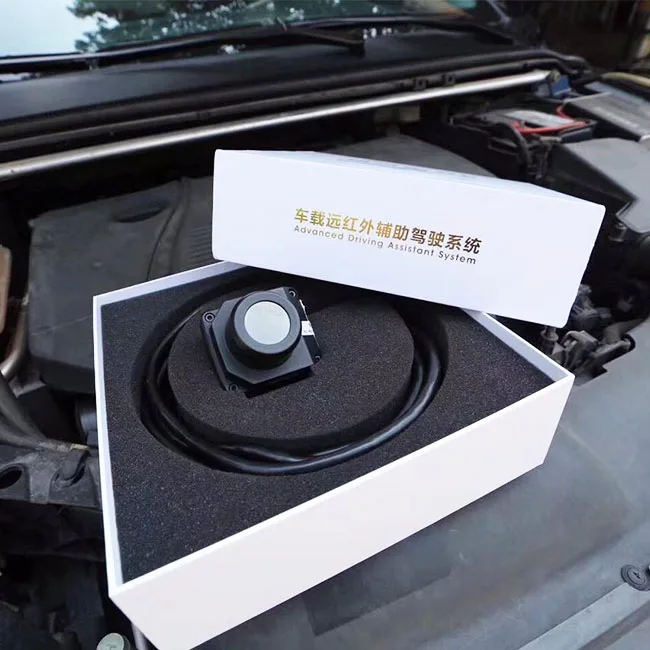

Package & Delivery
Specfication
Detector | ||
Type of detector | Vanadium oxide uncooled focal plane 400×300 | |
Image display performance | ||
Effective focal distance | 19mm F1.0 | |
Field of view | 28°x 21°(PAL),27°x 18°(NTSC) | |
Resolution | Uncooled 384*288px | |
Video output interface | Single-end/difference | |
Video output format | CVBS | |
Frame frequency and resolution of output image | 50Hz,768×576@PAL or 60Hz,720×480@NTSC | |
System characteristics | ||
Time for image formation startup | ≤ 8s | |
Automatic heater | Automatic heating will be started on its own when the window temperature is below 2°C | |
Image algorithm | Automatic brightness contrast | |
Image enhancement | ||
Color alarm display | ||
Image identification and alarm algorithm | Pedestrian identification | |
Forward collision | ||
Characteristics of power source | ||
Rated voltage | DC 9V-32V | |
Power consumption of the whole system | ≤3.5W(@12V, heating without window being started) | |
≤9W (@12V, heating with window being started) | ||
Environmental parameters | ||
Operating temperature | -40℃~+70℃ | |
Storage temperature | -45℃~+85℃ | |
Level of protection | IP67 | |
Physical characteristics | ||
Dimensions(L×W×H) of thermal infrared imager | ≤75mm x 58mm x 68mm (excluding connector) | |
