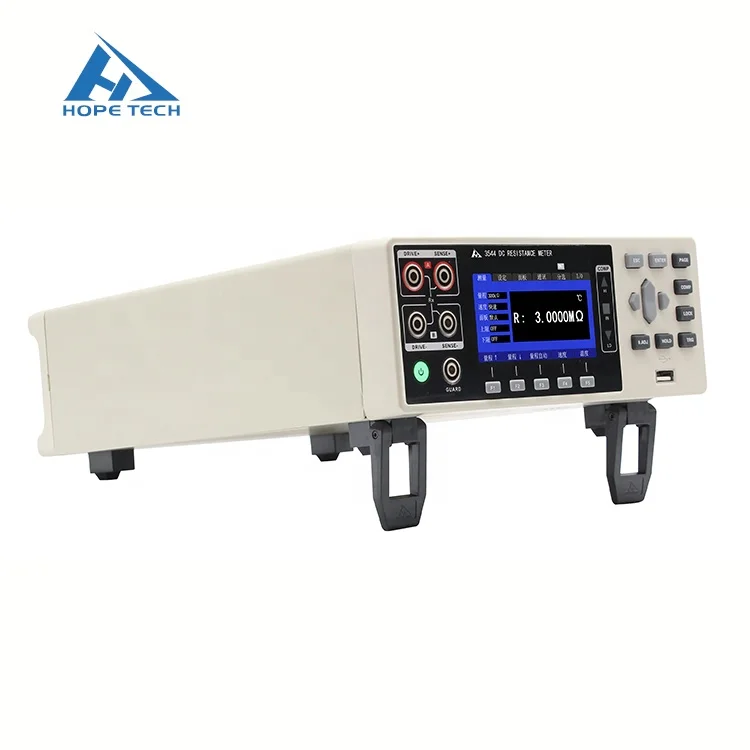

Устройство для испытания сопротивления обмотки Hopetech CHT3544 трансформатора миллиом постоянного
- Категория: Electrical Instruments >>>
- Поставщик: Changzhou,Chuangkai,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.76 $* | 0.98 $* |
| Aug-19-2025 | 0.67 $* | 0.64 $* |
| Jul-19-2025 | 0.83 $* | 0.4 $* |
| Jun-19-2025 | 0.68 $* | 0.34 $* |
| May-19-2025 | 0.41 $* | 0.81 $* |
| Apr-19-2025 | 0.88 $* | 0.88 $* |
| Mar-19-2025 | 0.7 $* | 0.82 $* |
| Feb-19-2025 | 0.73 $* | 0.80 $* |
| Jan-19-2025 | 0.71 $* | 0.92 $* |
Характеристики
Product Description
Features
Measuring range 0.1μΩ~3.3MΩ
Thermistor test function (optional thermistor test card)
Basic accuracy 0.02%, minimum resolution 0.1μΩ, maximum test current 1A
With EXT I/O interface suitable for NPN/PNP, it can be used in various automatic production lines.

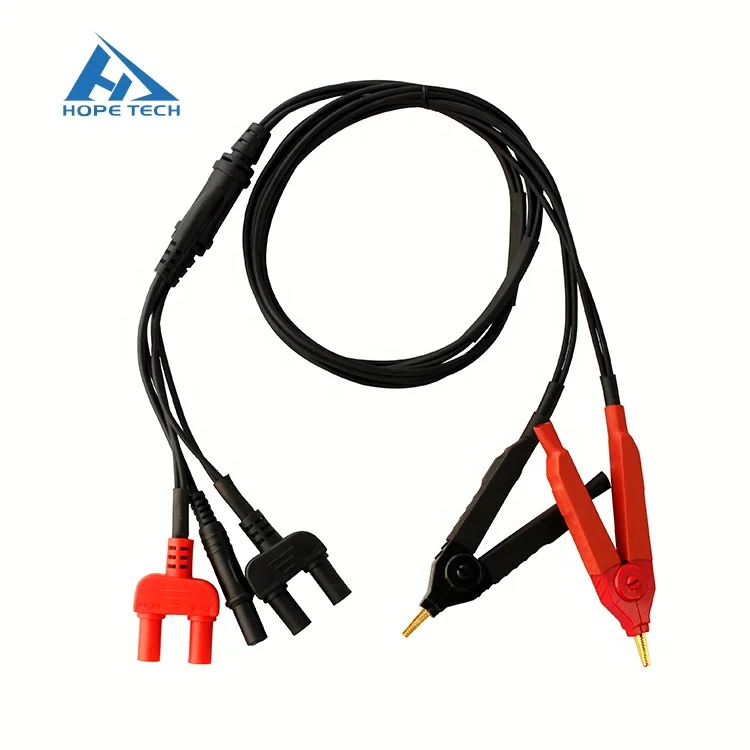

Improve test current by using a probe that protects the port to realize anti-interference measurement.
Use comparison judgment indicator (optional) and loud volume beeper to accurately judge whether it is qualified or not at the production site.
Application
Suitable for conductive property detection for conductive materials
Fast and automatic sorting for electronic components
Suitable for detection of contact resistance resistors for metal contacts
Suitable for resistance checking of coils, motors, transformers and other coil products
Technical Parameter
Model | CHT3544 | CHT3544-12H | CHT3544-24H |
Channel No. | 1 | 12 | 24 |
Measurement Parameter | DC Resistance | ||
Measurement Range | 0.1μ ohm ~3.3M ohm | ||
Max Test Current | DC: 1A; Maximum DC 5.5V | ||
Basic Accuracy | ±0.02%rdg.±0.001%f.s. (accuracy varies based on different ranges, please refer to manual for detailed accuracy description) | ||
Test Speed | Fast (50Hz: 21ms, 60Hz: 18ms), slow (200ms) | ||
Temperature | Range:-10℃~60℃ Accuracy:±1℃ | ||
Range | 3m ohm/ 30m ohm/ 300m ohm/ 3 ohm/ 30 ohm/ 300 ohm/ 3kohm/ 30kohm/ 300k ohm/ 3M ohm
| ||
Correction | Short-circuit clear zero for all ranges | ||
Comparator | 10 bins sorting, output HIGH/IN/LOW sorting signal | ||
Trigger | Internal, External, Manual, Bus Trigger | ||
Other Function | Temperature compensation function, comparator (ABS/REF%), keypad lock (OFF/menu lock/all lock), Power frequency setting (AUTO/50Hz/60Hz), judgment tone setting, automatic hold, average, panel save/read | ||

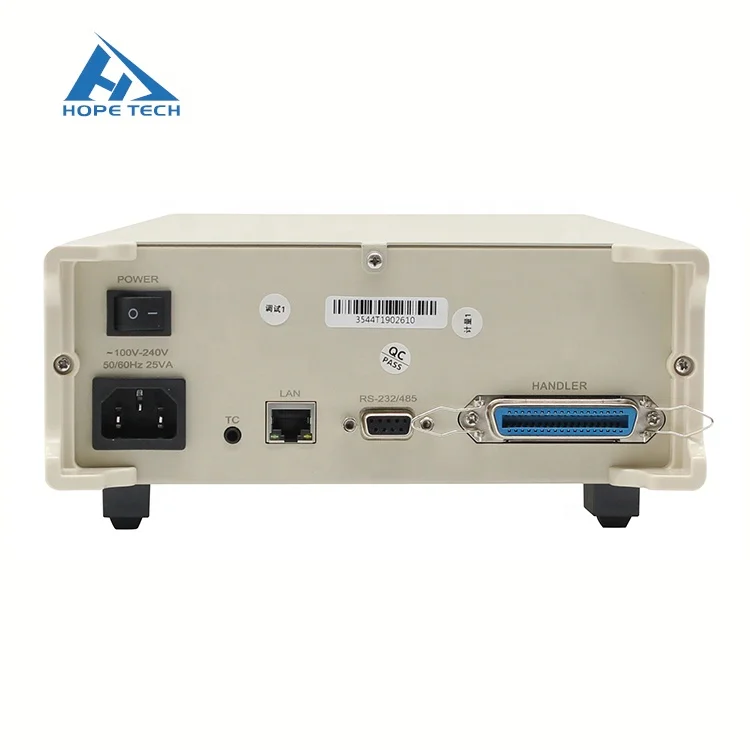

Interface | External I/O interface, LAN interface, RS232/485 interface | ||
Power Supply | AC 100~256V, 50~60 Hz, rated power: 15 VA | ||
Dimension and Weight | 325mm(L) x 215mm(W)x 96.5 mm(D) 4Kg | ||
FAQ
Q: How long is the delivery date?
A: Inventory products will be delivered within 5-7 days after receipt of deposit; products
requiring new production of common materials, usually within 15-20 days; products requiring new production of special and rare materials, usually within 30-40 days.
Q: Can you customize it?
A: There are many models in our company, which can support customization.
Q: Are there any after-sales guarantees?
A: Were one-to-one after-sales It's absolutely satisfying to you.
Q: How many years have you guaranteed it?
A: Instrument quality guarantee for 1-2 years(different products), lifelong maintenance.
Q: Do you provide invoices?
A: Invoices are issued free of charge.
