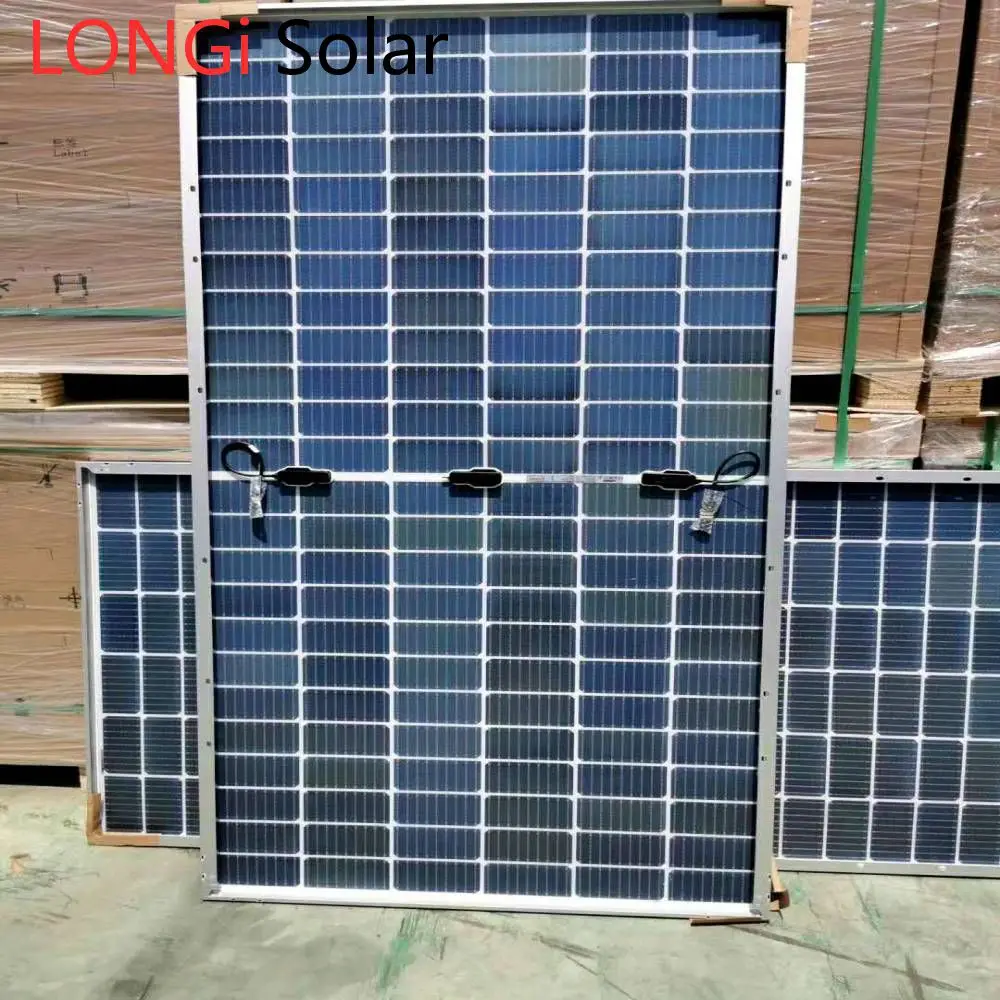

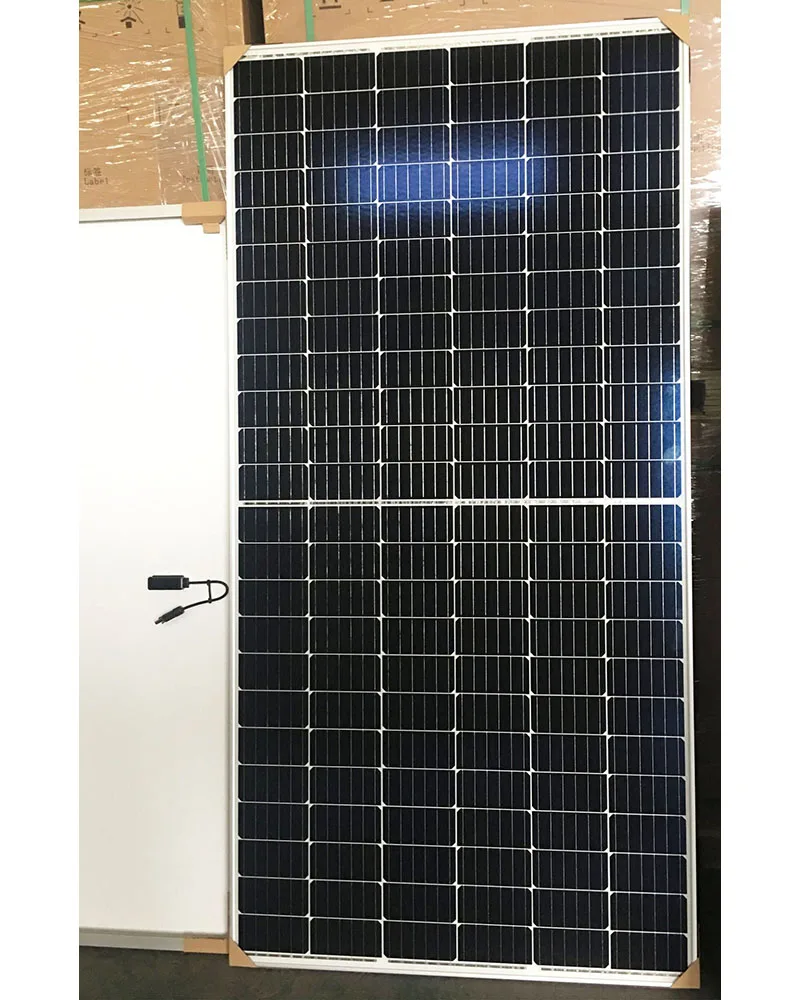

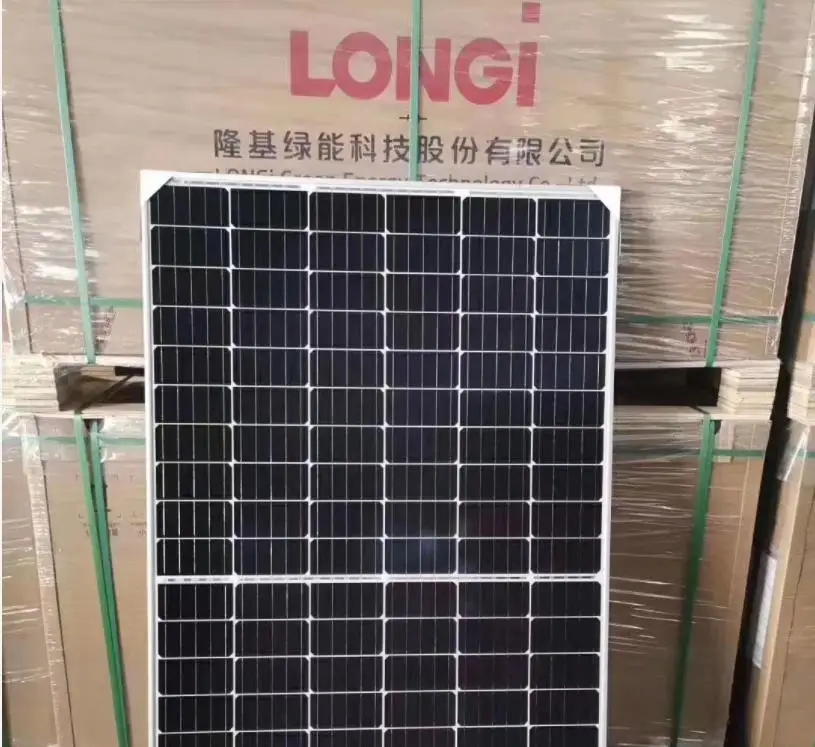

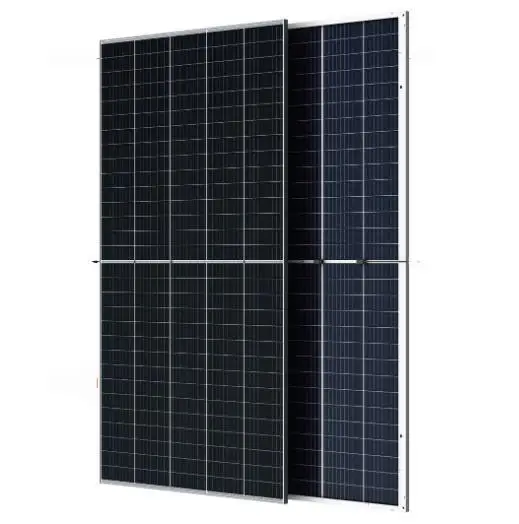

Longi 550W Hi-M05m LR5-72HPH солнечной энергии и он имеет высокую эффективность недорезанный технология клетки для энергетической системы на
- Категория: Solar Cells >>>
- Поставщик: Jiangsu,Morel,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 167.11 $* | 175.22 $* |
| Aug-19-2025 | 165.12 $* | 173.17 $* |
| Jul-19-2025 | 139.60 $* | 146.6 $* |
| Jun-19-2025 | 162.83 $* | 170.63 $* |
| May-19-2025 | 141.41 $* | 148.81 $* |
| Apr-19-2025 | 160.77 $* | 168.92 $* |
| Mar-19-2025 | 158.16 $* | 166.33 $* |
| Feb-19-2025 | 157.38 $* | 165.14 $* |
| Jan-19-2025 | 155.90 $* | 163.29 $* |
Характеристики
Product Description
Specification
Electrical Data (STC) | |||||||||||
Peak Power Watts-PMax(WP)* | 525 | 530 | 535 | 540 | 545 | 550 | |||||
Power Tolerance-PMax(W) | 0~+5 | ||||||||||
Open Circuit Voltage- Voc(V) | 49.05 | 49.20 | 49.35 | 49.50 | 49.65 | 49.80 | |||||
Short Circuit Current- ISC(A) | 13.65 | 13.71 | 13.78 | 13.85 | 13.92 | 13.98 | |||||
Maximum Power Voltage -Vmmp(V) | 41.20 | 41.35 | 41.50 | 41.65 | 41.80 | 41.95 | |||||
Maximum Power Current-Immp(A) | 12.75 | 12.82 | 12.90 | 12.97 | 13.04 | 13.12 | |||||
Module Efficiency η m(%) | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 | 21.5 | |||||
TEMPERATURE RATINGS | Mechancial Loading | |||
Temperature Coefficient of Pmax | -0.350%/℃ | Front Side Maximum Static Loading | 5400 Pa | |
Temperature Coefficient of Voc | -0.270%℃ | Rear Side Maximum Static Loading | 2400 Pa | |
Temperature Coefficient of Isc | +0.048%℃ | Hailstone Test 25mm Hailstone at the speed of 23m/s | ||
Warranty | ||||
Operational Temperature | -40℃~+85℃ | Production Class Class II | ||
Power Output Tolerance | 0~±5W | Fire Rating: UL type 1 or 2 | ||
Voc and Isc Tolerance | ±3% | |||
Maximum System Voltage | DC1500V(IEC/UL) | |||
(Please refer to product warranty for details) | ||||
***The above parameters are for your reference only, if you have any special requirements ,please feel free to contact us in time***
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design glue injection
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip design glue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Humanized design
>More protection with practical and effective design
>Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
>More protection with practical and effective design
>Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module

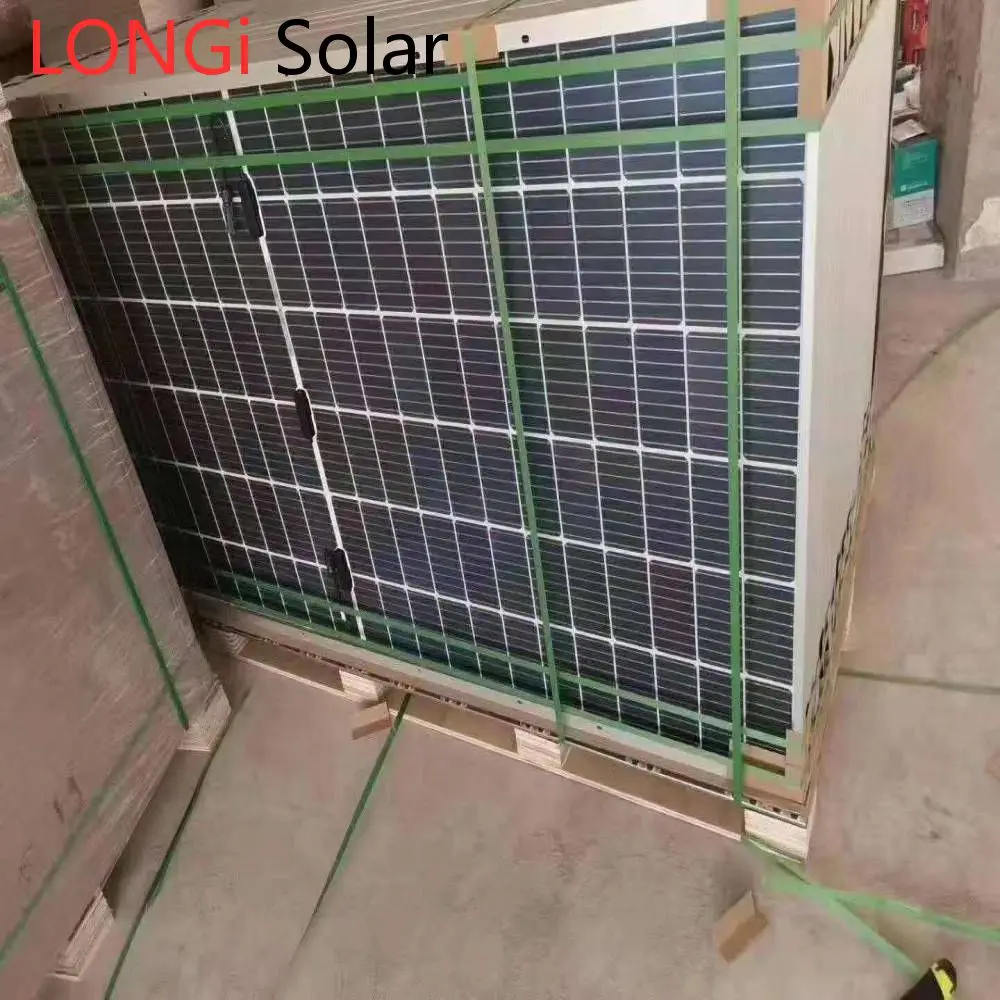

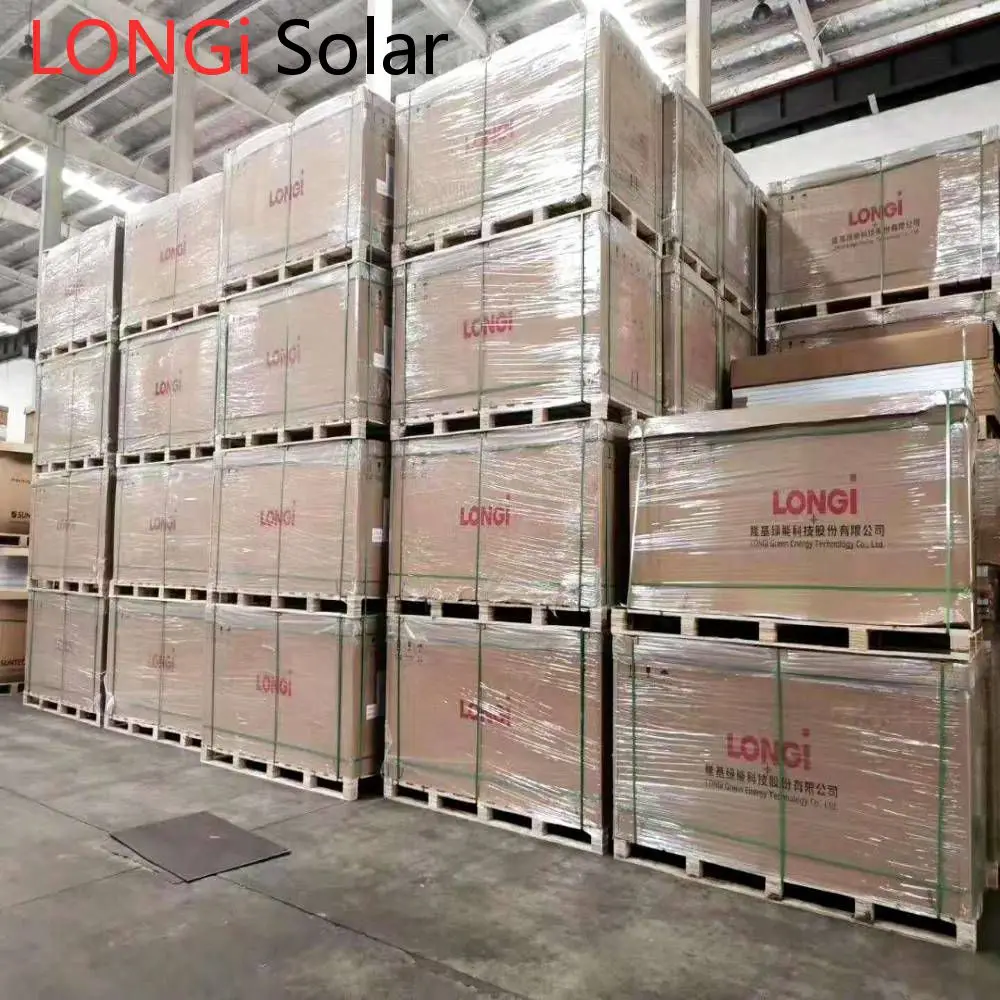

Packing & Delivery
In well protected carton with pallet
