Характеристики

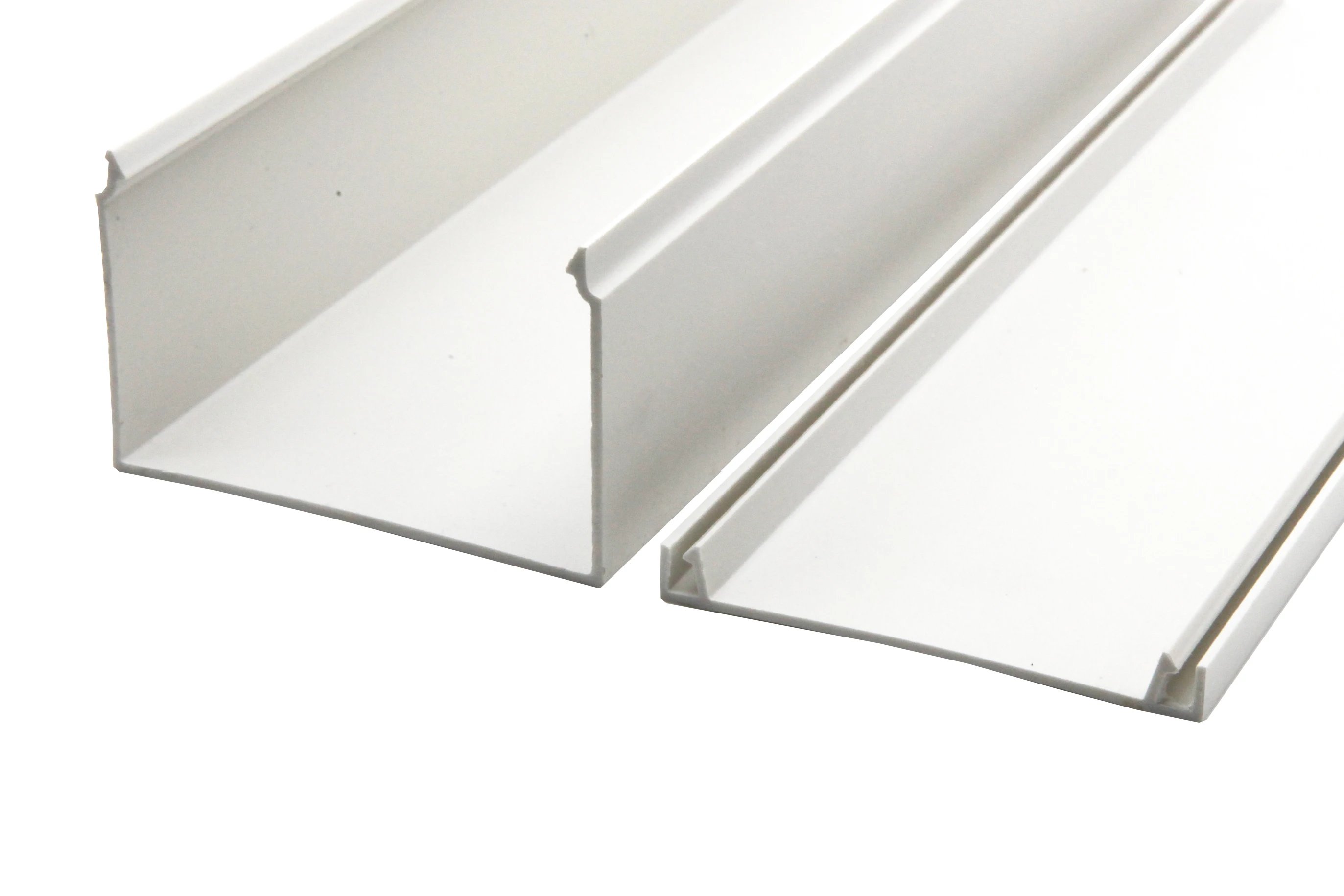

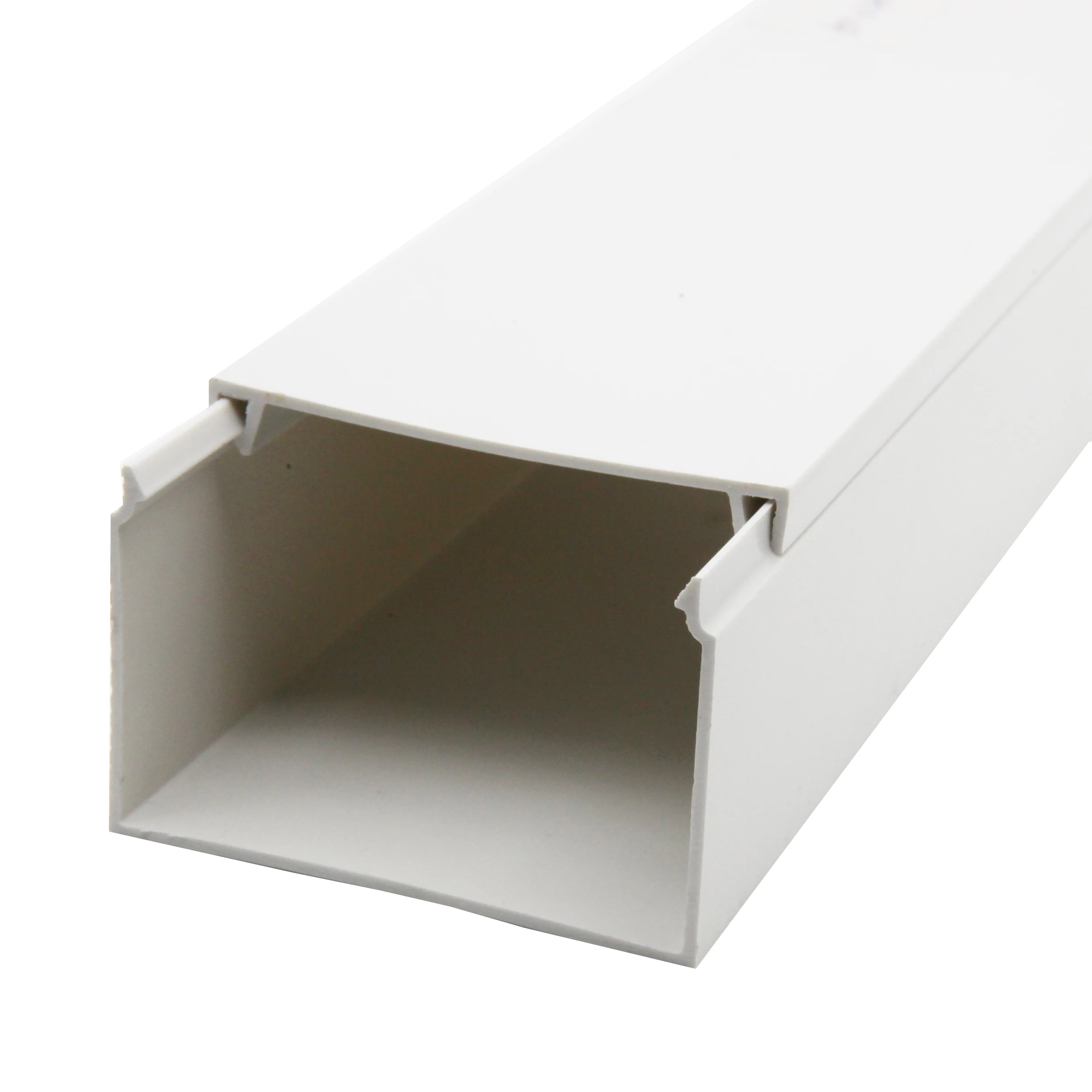

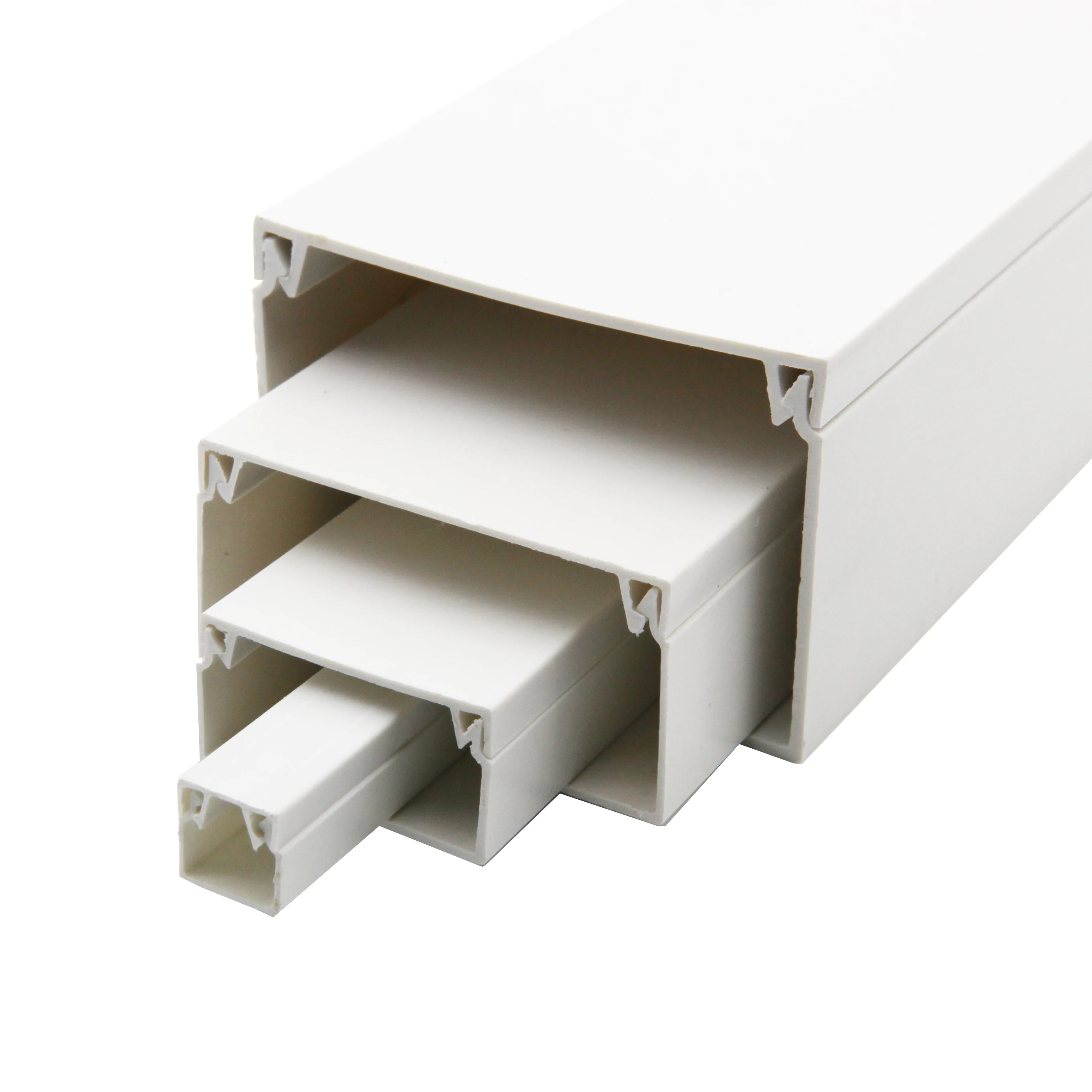

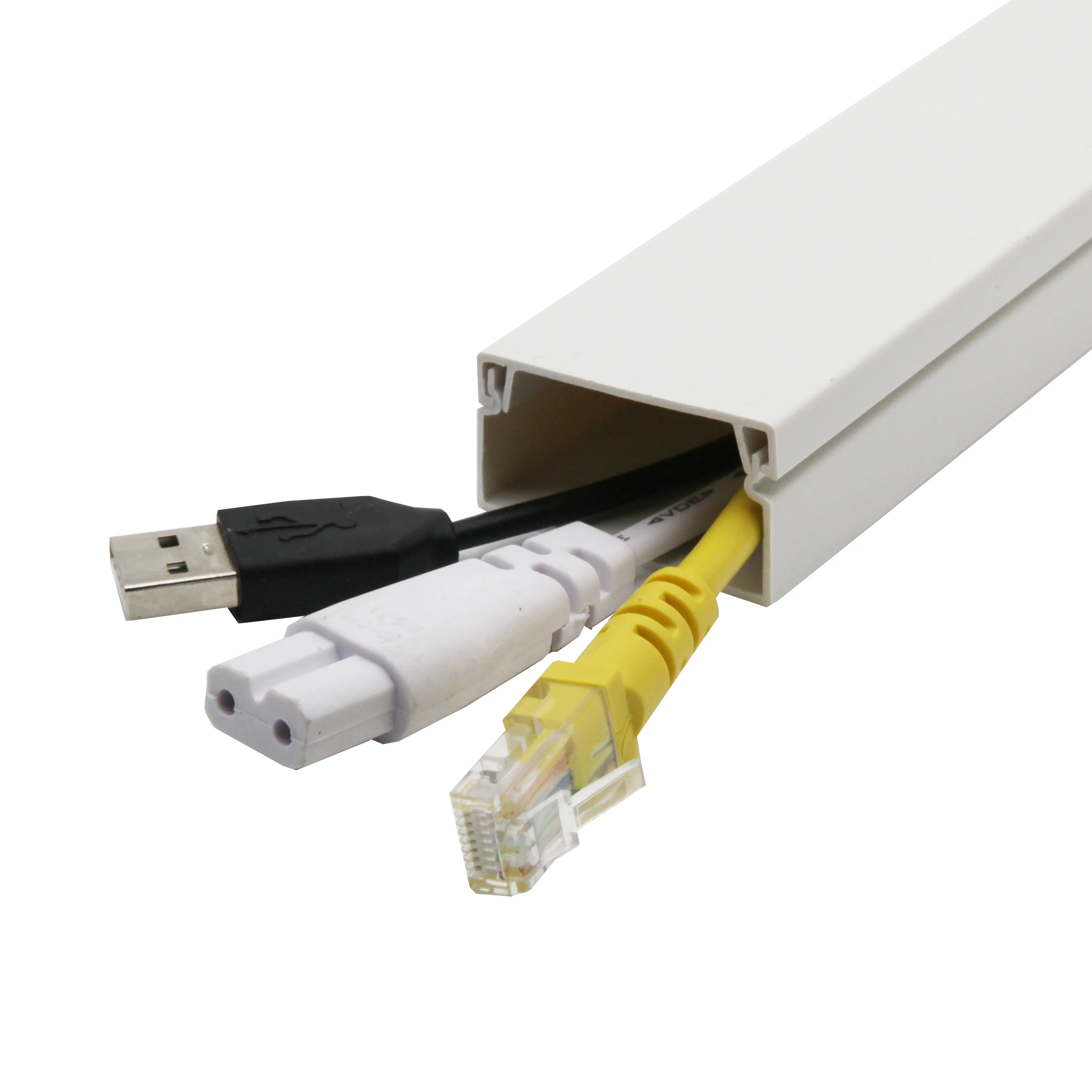

PVC Cable Trunking Features
* Made of rigid PVC
* Widths from 0.4”(1cm) to 8”(20cm) and height from 0.3”(0.8cm) to 4”(10cm)
* Standard length is 2M/pc. Special length comes with MOQ request
* White is the basic color. MOQ is required for other colors
* Work Temperature: -40 °C (-104 °F) up to 65 °C (149 °F)
* Cover does not slide when in vertical installation
* Non-conductive: good insulation which is able to resist 25KV voltage can assure a safe system
* Solid design is especially for anti-dust and anti-mouse
* Trunkings have strength tenacity and combustion-proof, fireproofing, damp-proof, alkalescency-resistant, ageing-resistant
* Easy Installation: light weight, easy to cut, transport, bent and handle; easy connecting by solvent cement and threading
joining without leakage
* Mini-Trunking has been designed to match in with both the square and radius cornered surface mounted switch and socket boxes.

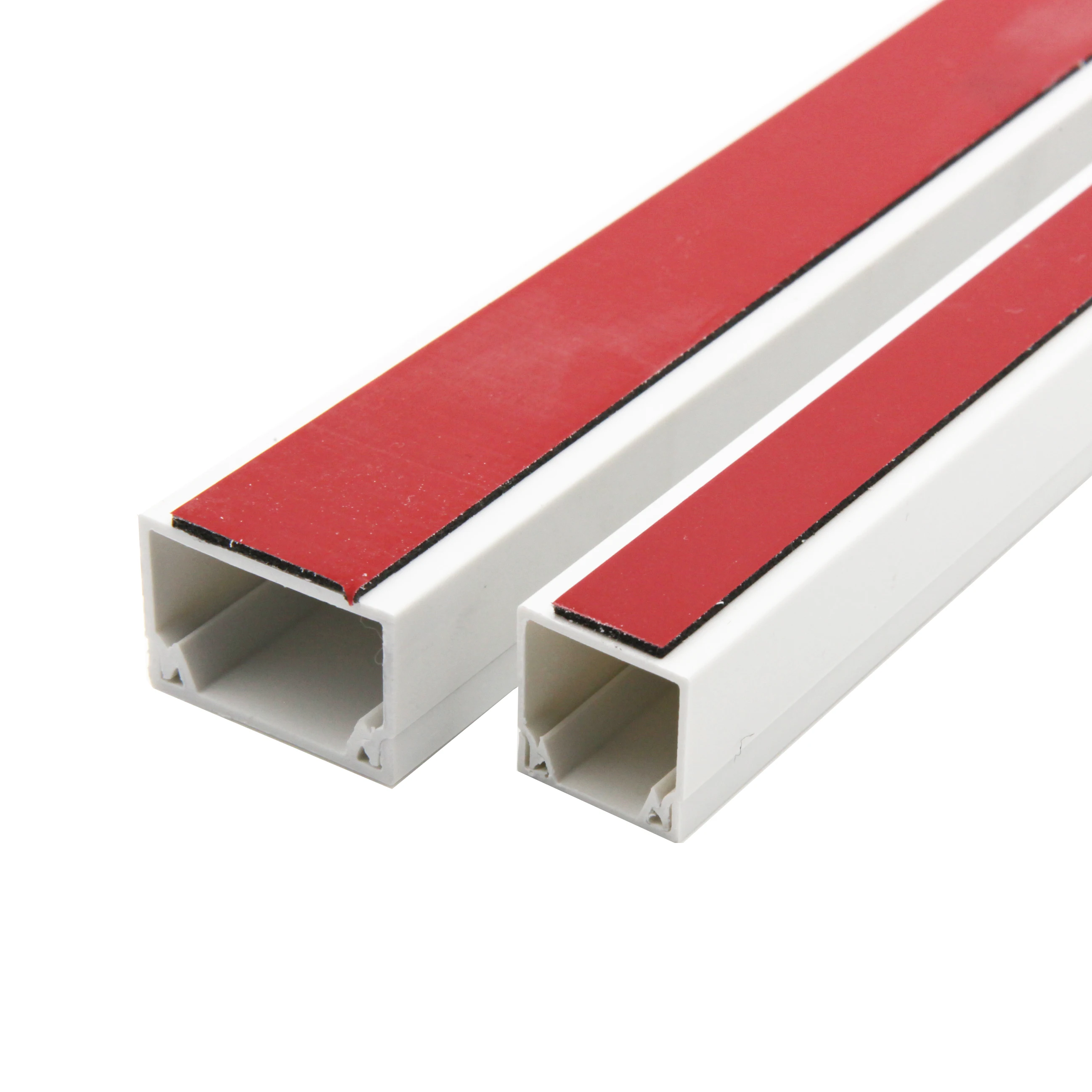

* Mounting holes can be made on the bottom of duct or make it to be adhesive trunking
* Widths from 0.4”(1cm) to 8”(20cm) and height from 0.3”(0.8cm) to 4”(10cm)
* Standard length is 2M/pc. Special length comes with MOQ request
* White is the basic color. MOQ is required for other colors
* Work Temperature: -40 °C (-104 °F) up to 65 °C (149 °F)
* Cover does not slide when in vertical installation
* Non-conductive: good insulation which is able to resist 25KV voltage can assure a safe system
* Solid design is especially for anti-dust and anti-mouse
* Trunkings have strength tenacity and combustion-proof, fireproofing, damp-proof, alkalescency-resistant, ageing-resistant
* Easy Installation: light weight, easy to cut, transport, bent and handle; easy connecting by solvent cement and threading
joining without leakage
* Mini-Trunking has been designed to match in with both the square and radius cornered surface mounted switch and socket boxes.
* Mounting holes can be made on the bottom of duct or make it to be adhesive trunking
Item No. | WxHxL | Thickness | Packing |
(mm) | (mm) | (pcs/pack) | |
PZC1010 | 10x10x2000 | 0.6 | 50 |
PZC1208 | 12x8x2000 | 0.7 | 50 |
PZC1212 | 12x12x2000 | 0.59 | 50 |
PZC1407 | 14x7x2000 | 0.55 | 50 |
PZC1510 | 15x10x2000 | 0.50/0.75 | 50/40 |
PZC1515 | 15x15x2000 | 0.58 | 40 |
PZC1616 | 16x16x2000 | 0.58/0.63/0.70/0.85/0.95 | 40 |
PZC1810 | 18x10x2000 | 0.8 | 50 |
PZC2010 | 20x10x2000 | 0.50/0.60/0.63/0.75 | 40 |
PZC2010 new | 20x10x2000 | 0.5/0.60/0.65/0.70/0.80 | 50 |
PZC2212 | 22x12x2000 | 0.45/0.55 | 25 |
PZC2313 | 23x13x2000 | 0.55/0.61 | 25 |
PZC2414 | 24x14x2000 | 0.70/0.83 | 25 |
PZC2415 | 24.5x15.5x2000 | 0.60/0.63/0.75 | 25 |
PZC2512 | 25x12x2000 | 0.58 | 40 |
PZC2516 | 25x16x2000 | 0.53/0.58/0.63/0.70/0.75/0.87/1.12/1.20 | 25 |
PZC2525 | 25x25x2000 | 0.80/0.95 | 20 |
PZC2813 | 28.5x13x2000 | 0.55/0.65 | 20 |
PZC2913 | 29x13x2000 | 0.9 | 25 |
PZC3010 | 30x10x2000 | 0.8 | 25 |
PZC3015 | 30x15x2000 | 0.65/0.76/0.90 | 20 |
PZC3030 | 30x30x2000 | 1.1 | 15 |
PZC3212 | 32x12x2000 | 1 | 20 |
PZC3817 | 38x17x2000 | 0.66/1.20 | 15 |
PZC3919 | 39x19x2000 | 0.80/0.90/1.15 | 15 |
PZC4010 | 40x10x2000 | 0.8 | 20 |
PZC4016 | 40x16x2000 | 0.62/0.70/0.97 | 15 |
PZC4020 | 40x20x2000 | 1.1 | 15 |
PZC4025 | 40x25x2000 | 0.68/0.74/0.80/0.98/1.25 | 10 |
PZC4040 | 40x40x2000 | 1.10/1.30 | 8 |
PZC5010 | 50x10x2000 | 1.1 | 20 |
PZC5025 | 50x25x2000 | 0.80/0.97/1.40 | 10/8 |
PZC5035 | 50x35x2000 | 1.1 | 8 |
PZC5050 | 50x50x2000 | 1.10/1.20/1.45 | 4 |
PZC5530 | 55x30x2000 | 1.25 | 8 |
PZC5922 | 59x22x2000 | 0.78/1.08 | 10 |
PZC6040 | 60x40x2000 | 1.08/1.20/1.33/1.43 | 4 |
PZC6060 | 60x60x2000 | 1.3/1.60 | 2 |
PZC7550 | 75x50x2000 | 1.20/1.45 | 2 |
PZC7575 | 75x75x2000 | 1.30/1.45/1.75 | 2 |
PZC7631 | 76x31x2000 | 1.3 | 4 |
PZC8040 | 80x40x2000 | 1.20/1.50 | 3 |
PZC8050 | 80x50x2000 | 1.25/1.60 | 2 |
PZC8060 | 80x60x2000 | 1.4 | 2 |
PZC8080 | 80x80x2000 | 1.6 | 1 |
PZC10027 | 100x27x2000 | 1.1 | 5 |
PZC10040 | 100x40x2000 | 1.40/1.50 | 3 |
PZC10050 | 100x50x2000 | 1.35/1.68 | 2 |
PZC10060 | 100x60x2000 | 1.62 | 2 |
PZC10075 | 100x75x2000 | 1.65 | 1 |
PZC100100 | 100x100x2000 | 1.60/2.00/2.20 | 1 |
PZC12080 | 120x80x2000 | 2 | 1 |
PZC150100 | 150x100x2000 | 2 | 1 |
PZC200100 | 200x100x2000 | 2.4 | 1 |
Widths <100mm Widths from 100-200mm
