Parameter

Single Door Control Panel

Multi Door (2) Control Panel

Multi Door (4) Control Panel

Model #

ACB-001

ACB-002

ACB-004

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Description

Control 1 door, get in and out the door by swiping the  card  or get in by swiping a card and get out the door by button

Control 2 doors, get in and out the door by swiping the card or get in by swiping a card and get out the door by button

Control 4 doors, get in the door by swiping the card, and get out the door by button

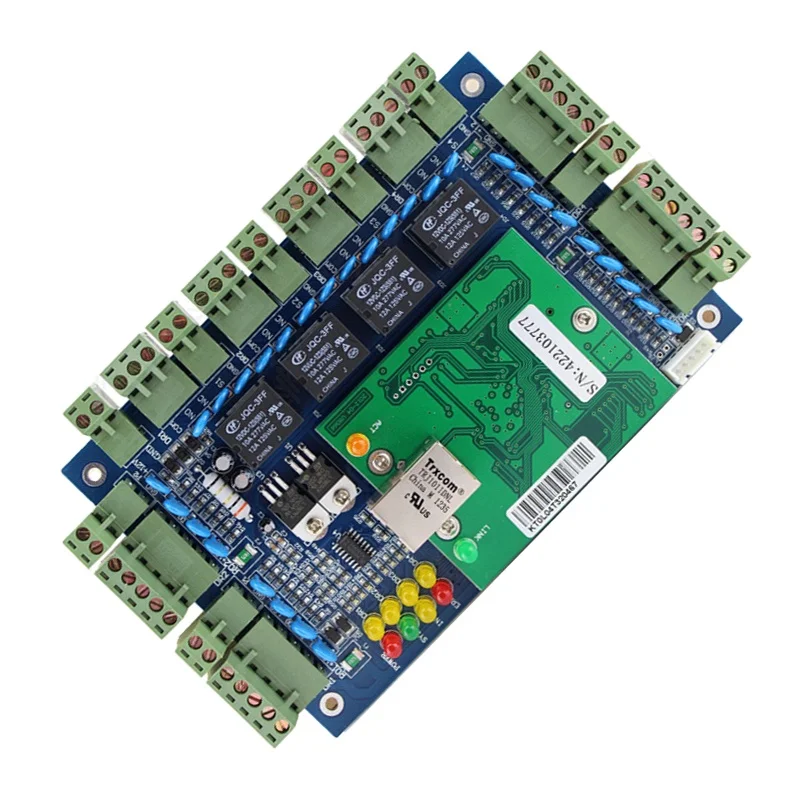

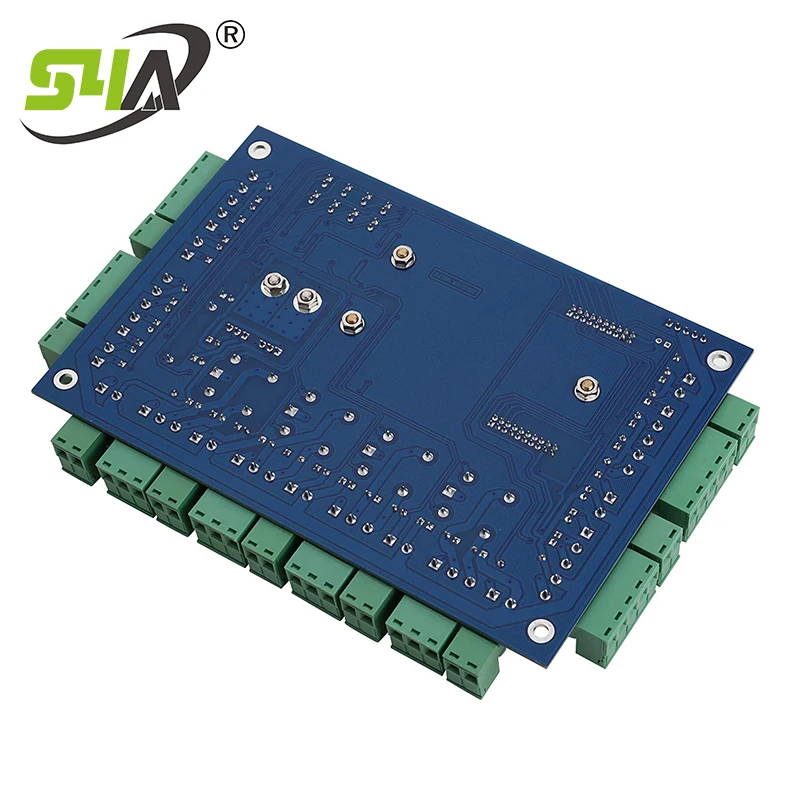

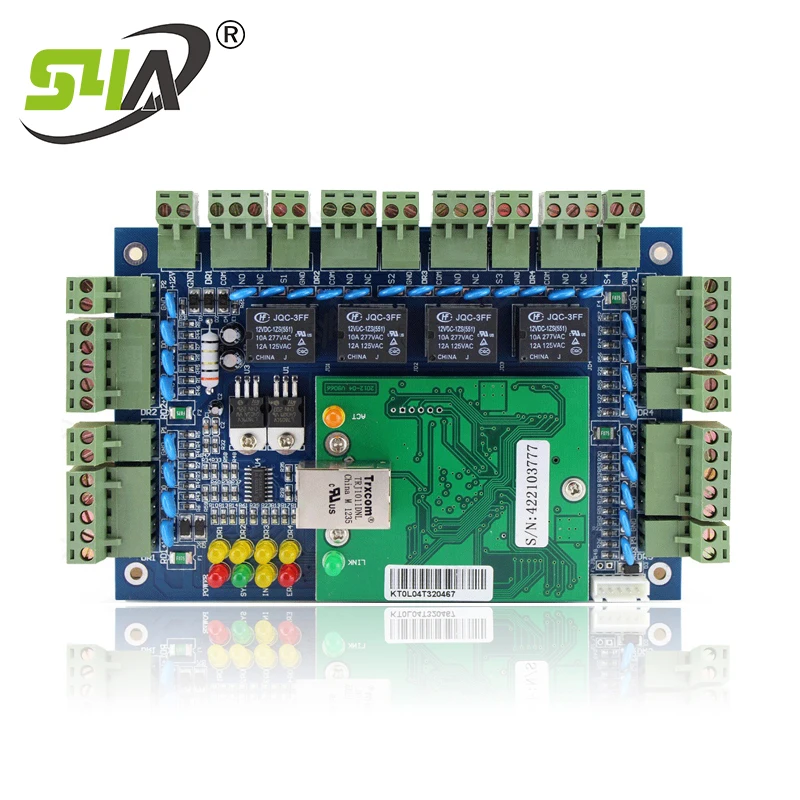

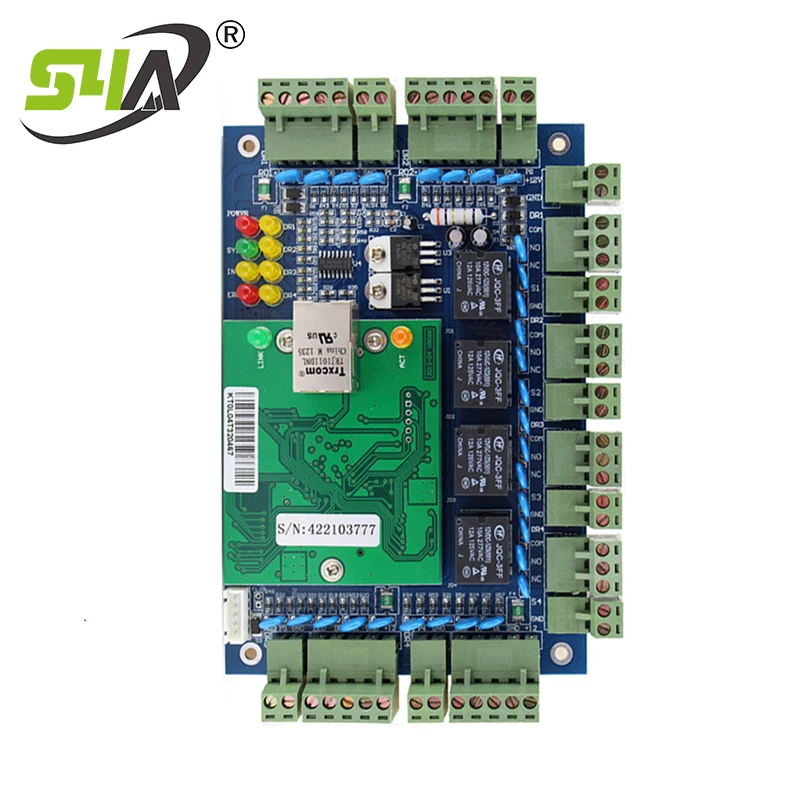

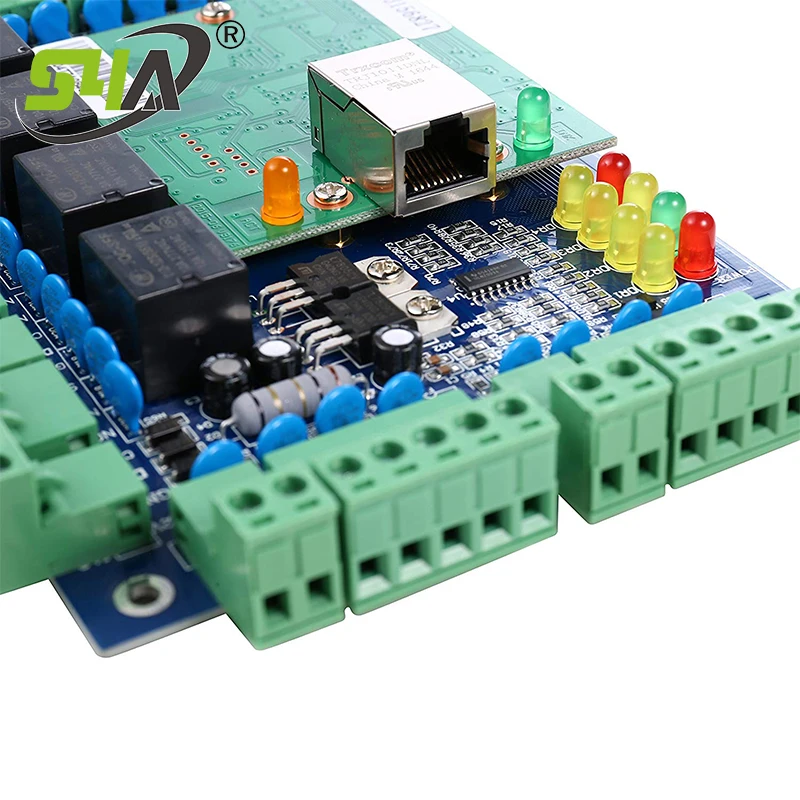

Size of PCB board

160mm*106mm

160mm*106mm

160mm*106mm

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Quantity of Readers

2 pcs

4 pcs

4 pcs

Door Controlled

1 door

2 doors

4 doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit

Operation Temperature

-40℃~70℃

Operation Humidity

10-90 % RH , No Condensation

Q ' ty of users

20,000 Users

Q ' ty of Event Buffers(offline)

100,000 event buffers

Power interruption protection measure

High-Speed Memory, Records never lose

Max Distance from Reader to Controller

100m (suggestion distance 80m)

Max Distance between Controllers

TCP/IP: Depends on net coverage area

Package included:

PCB board, software, manual, certificate. carton

Alarm for long time door open, illegal break-in, intimidate

Yes

Fire and alarm linkage

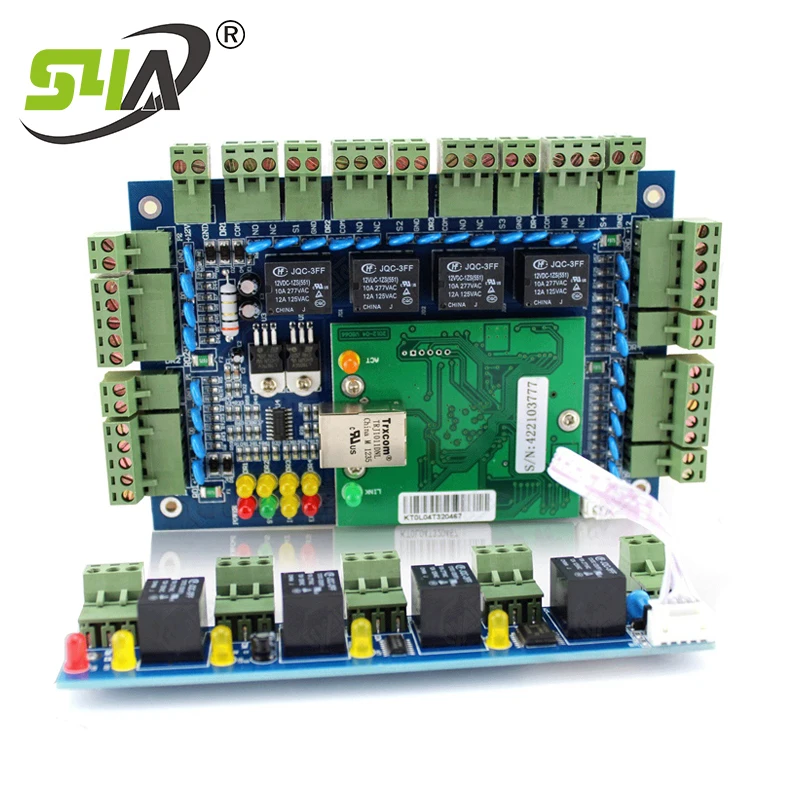

If no connection with the expansion board, only has a software interface alarm and drives the computer speaker. If connected with an expansion board, is able to alarm by hardware, if connected with a strengthened expansion board, then is able to Security alarm, Model is ACB-EA05

A Compulsive open and close door at a long time

Yes

Open door in the remote distance

Yes

Interlock

No

Yes

Yes

Anti pass back and tail

Yes

Yes

Yes

Multi-card open door

Yes

Open a long time at a specified time

Yes

Electronic map

Yes

Urgency locking

Yes

First card unlocking

Yes

Unlock based on internal and external validation

Yes

Keypad (card+passwor, supper password)

Yes
