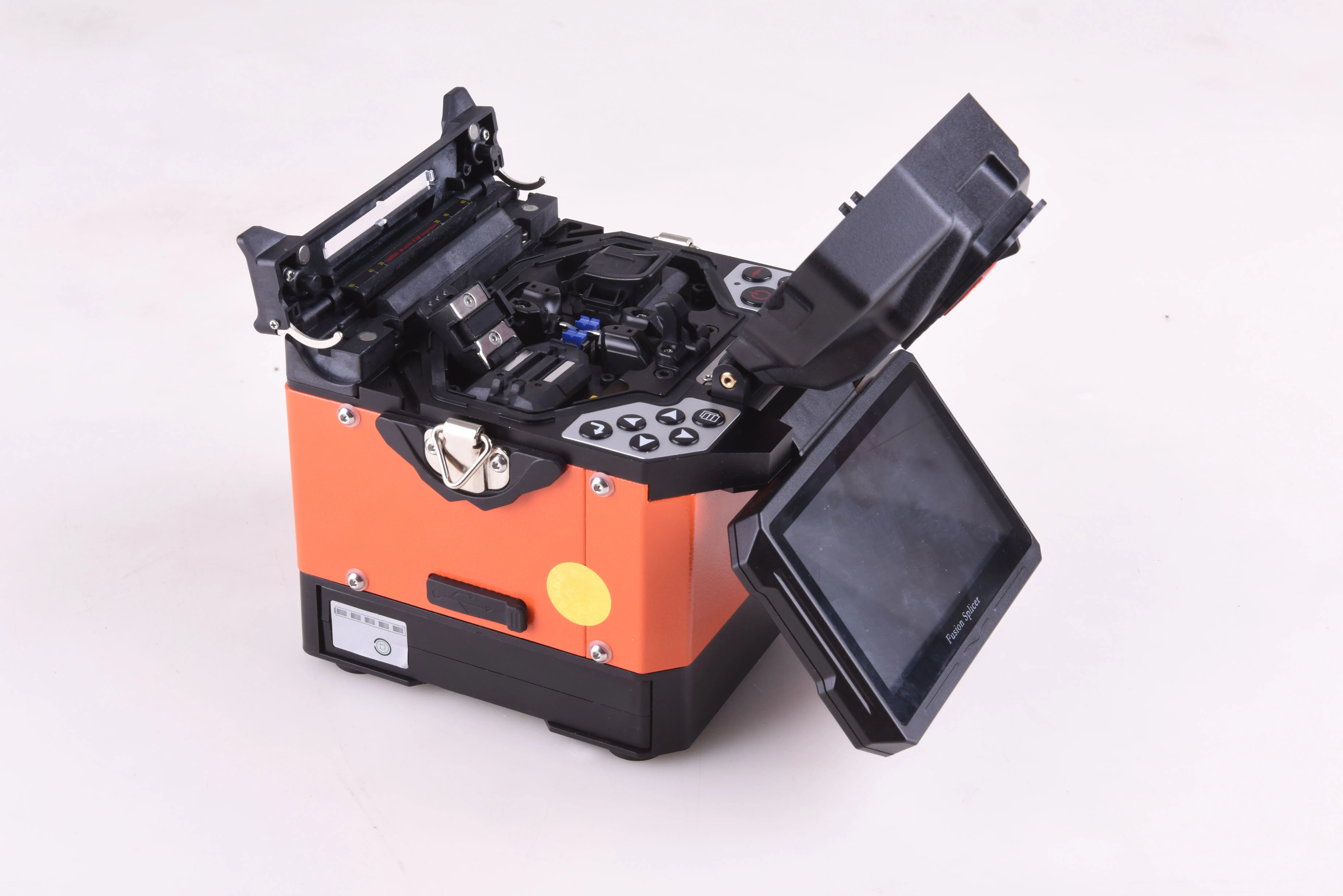

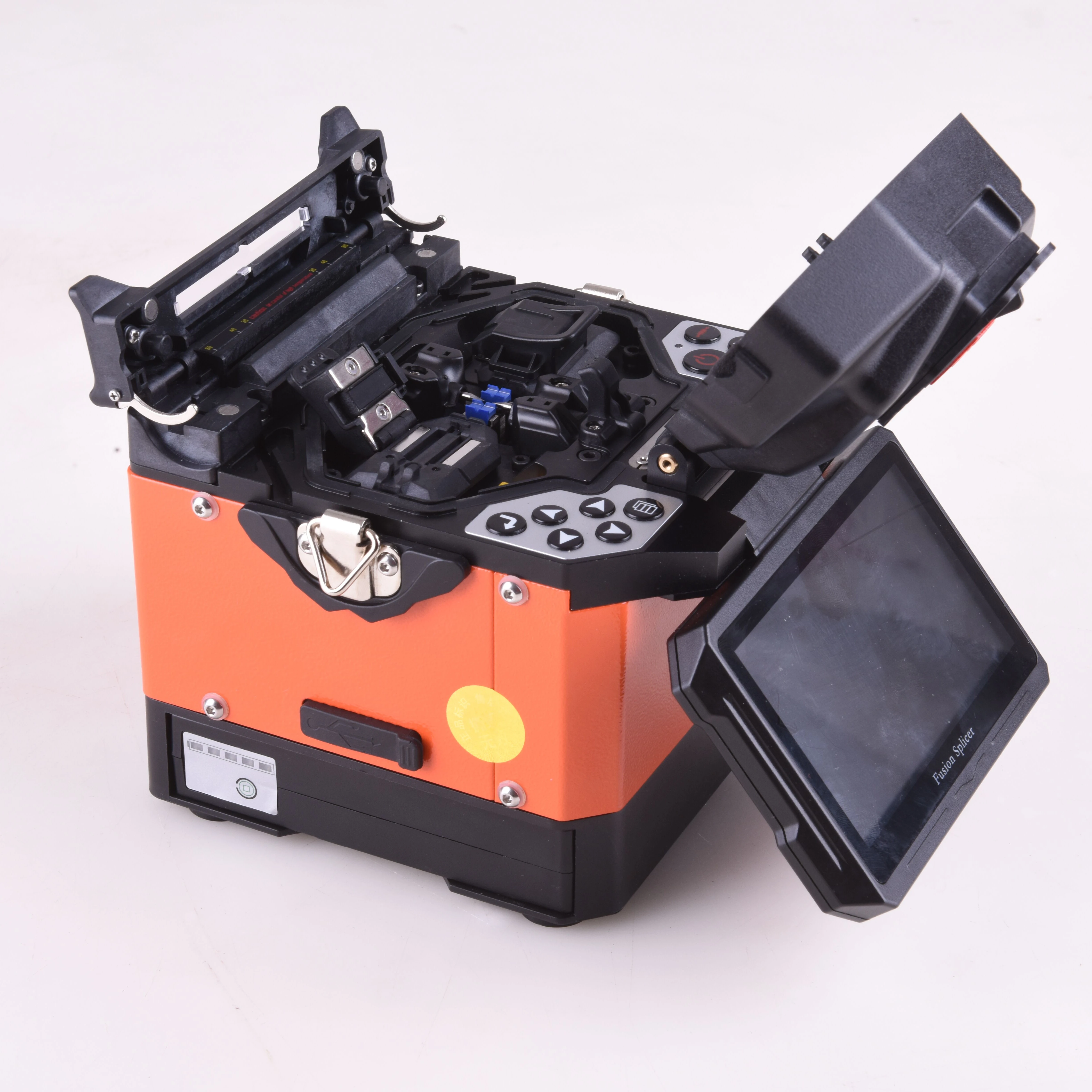

Высококачественный сварочный аппарат одноступенчатый оптоволоконный для выравнивания сердцевины
- Категория: Fiber Optic Equipment >>>
- Поставщик: JFOPT,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.38 $* | 0.17 $* |
| Aug-20-2025 | 0.17 $* | 0.94 $* |
| Jul-20-2025 | 0.19 $* | 0.94 $* |
| Jun-20-2025 | 0.32 $* | 0.80 $* |
| May-20-2025 | 0.20 $* | 0.76 $* |
| Apr-20-2025 | 0.54 $* | 0.6 $* |
| Mar-20-2025 | 0.21 $* | 0.40 $* |
| Feb-20-2025 | 0.54 $* | 0.1 $* |
| Jan-20-2025 | 0.74 $* | 0.77 $* |
Характеристики
Product Description
![__5ZW8KBL9$)37]LCN9~MT4.png](http://sc03.alicdn.com/kf/H3b1cc3280fe84b60bd3893977a01dd458/200233099/H3b1cc3280fe84b60bd3893977a01dd458.png)
Features:
l 4.3 inches high Resolution colorful LCD display, image can be turned according to position
l Fast splice time: 7second
l Optional heating mode, Typical tube-heat time: 15second
l Lithium battery: Rechargeable and up to 180 times of continuous splice and heat after fully charged
l Separately X or Y axis views with 520 times magnification
l 4 motors SPA alignment
l Arc power automatic adjustment according pressure and temperature, not need to always arc test
l Fully automatic splicing and heating
l New developed image processing technology
l One-key test
l New developed steering Wind-proof, better locator, providing stronger wind and dust resistance
l Portable design, 1.29kgs weight(without battery)
l 3-in-1 fixture ( patented technology)
Multipurpose optical fiber fixture (1+N, one 3-in-1 fixture and SC/LC/FC connector fixture, patented technology)
Applicable Fibers | SM, MM, NZ-DS, EDF ,Pigtail, FTTH drop cable |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Tension Test | 2.0N(200gf)(Standard) |
Splicing Program | 50 groups |
Heat-shrinkable T bush | 20mm, 40mm, 60mm |
Environmental Conditions | -10~+50℃(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A |
Battery | 12V 5800mAH |
Dimensions | 120(W)*120(L)*130(H)mm |
FAQ
1. Can I have a sample for testing? Yes, you can buy a sample for evaluation. 2. How long is the lead time? Usually 1-2 days for sample, 1-2 weeks for bulk order. Please kindly contact us to get the actual delivery time for each order.
3. How to transport the goods? International Express DHL, UPS, FedEx or TNT; Air cargo; Sea cargo.
4. Can you accept OEM/ODM service? Yes, we can supply OEM/ODM service, please contact us to get more details.
5. Do you have after-sale service? Yes, if you find any damage or missing objects, please take photos for record and contact us as soon as possible. |
