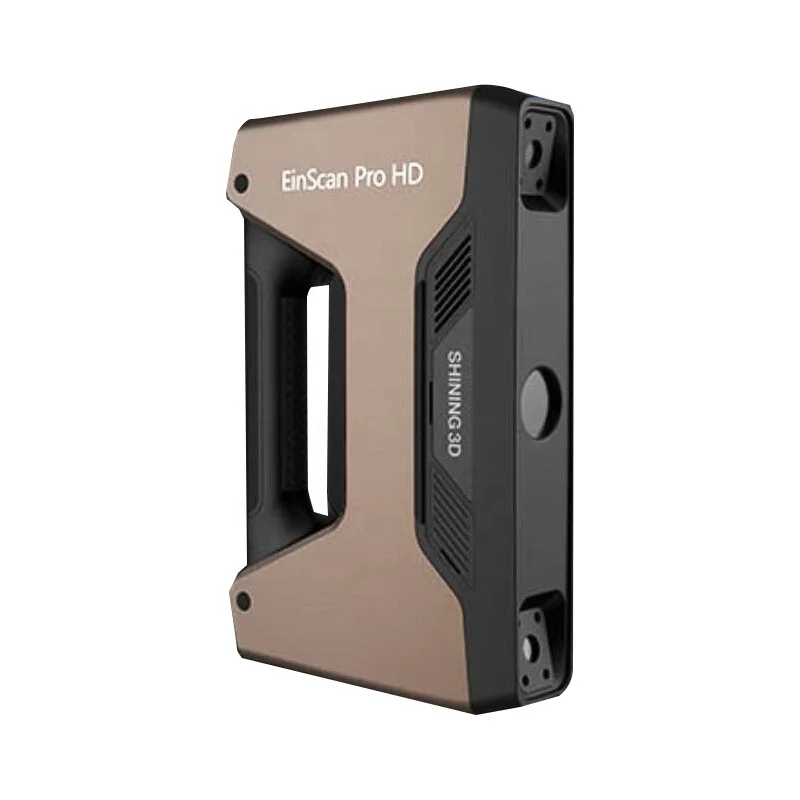

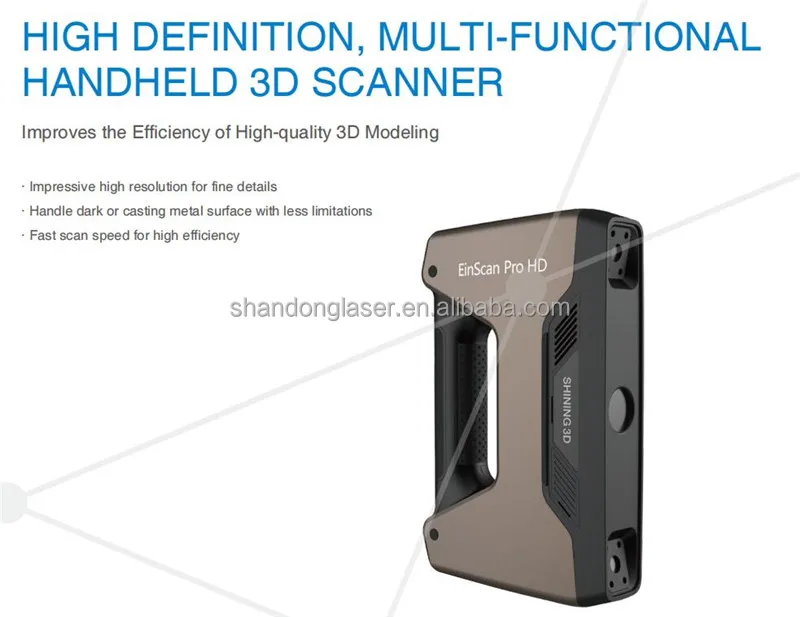

3d сканер для принтера тела сияющий HD

Scan Mode

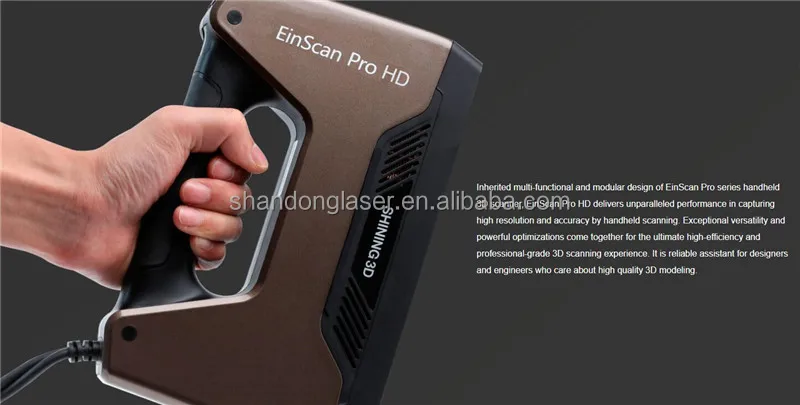

Handheld HD Scan

Handheld Rapid Scan

Fixed scan with tumtable (with add-on industrial pack)

Fixed Scan without Turntable

(with Add-on: Industrial Pack)

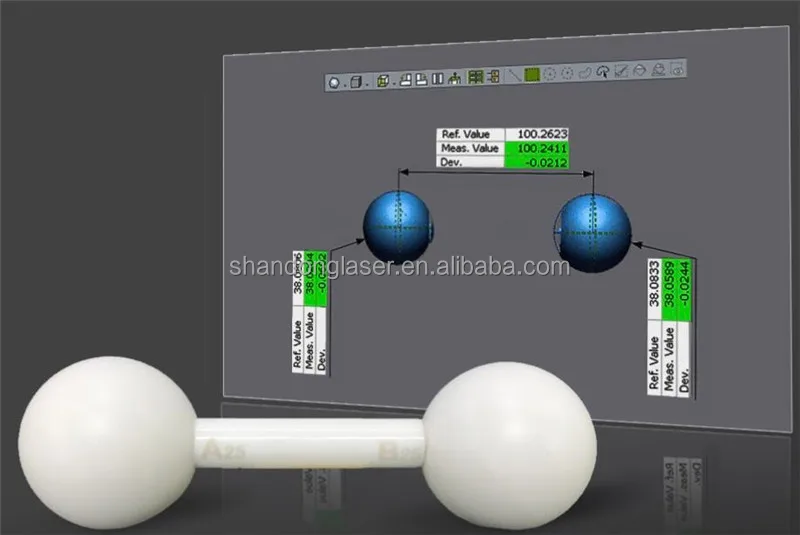

Scan Accuracy

up to 0.045 mm

up to 0.1 mm

0.04 mm (Single Shot Accuracy)

Volume Accuracy[1]

0.3 mm/m

(Markers Alignment)

0.3 mm/m

(Markers Alignment)

/

/

Scan Speed

10 frames/s

3,000,000 points/s

30 frames/s

1,500,000 points/s

Single Scan<0.5 s

Point Distance

0.2 mm-3 mm

0.25 mm-3 mm

0.24 mm

Single Scan Range

209*160mm~310*240mm

DOF

±100 mm

Working center distance

510mm

Light source

LED

Align mode

Marker Alignment,

Feature Alignment [2],

Hybrid Alignment [3]

Marker Alignment,

Texture Alignment [4],

Feature Alignment,

Hybrid Alignment

Turntable Coded

Targets, Feature,

Marker, Manual

Alignment

Marker, Feature, Manual

Alignment

Texture scan

Yes (with Add-on: Color Pack)

Outdoor operation

Set up the shelter or cover to avoid direct sunlight

Special scan object

For the transparent or highly reflective objects, please spray powder before scanning.

Software included

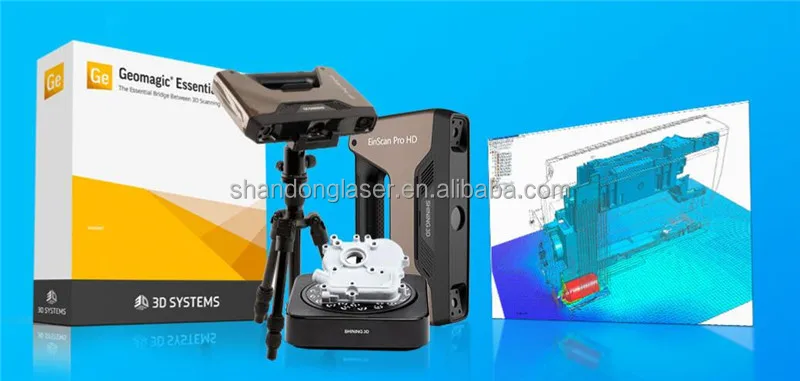

ExScan Pro, Solid Edge SHINING 3D Edition

Data format

OBJ,STL,ASC ,PLY,P3,3MF

Scan head weight

(include a USB cable)

1.13KG

OS System Support

Win10, 64bit

Recommended configuration

Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700,

memory: 64G;interface: high-speed USB 3.0

Required configuration

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
