Светодиодный светильник для шкафа ИК-датчик переключатель двери ВКЛ./ВЫКЛ. постоянного тока 12
- Категория: Inductive Switch >>>
- Поставщик: Shenzhen,Nodav,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.0 $* | 1.47 $* |
| Jul-16-2025 | 1.80 $* | 1.71 $* |
| Jun-16-2025 | 1.61 $* | 1.39 $* |
| May-16-2025 | 1.5 $* | 1.90 $* |
| Apr-16-2025 | 1.15 $* | 1.74 $* |
| Mar-16-2025 | 1.53 $* | 1.29 $* |
| Feb-16-2025 | 1.32 $* | 1.95 $* |
| Jan-16-2025 | 1.69 $* | 1.37 $* |
Характеристики

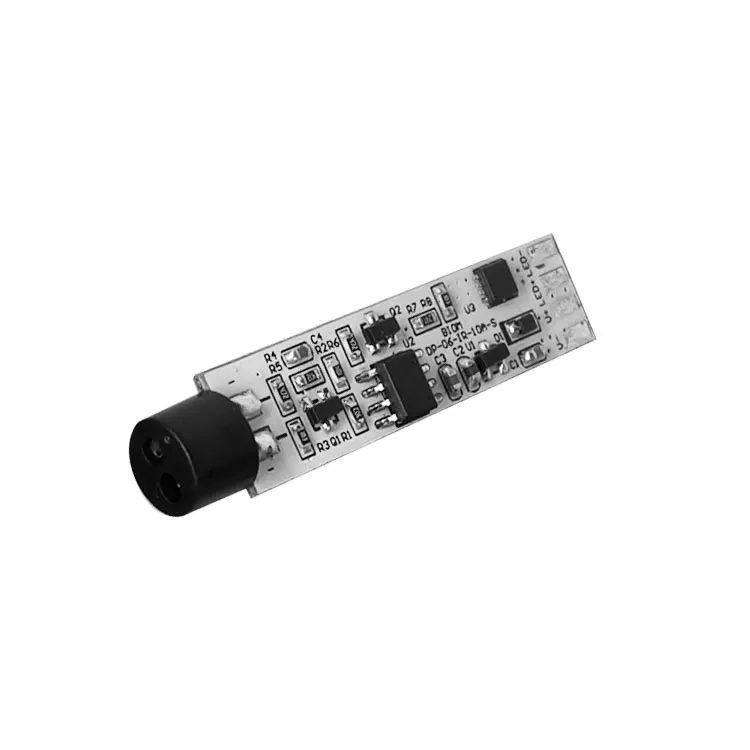

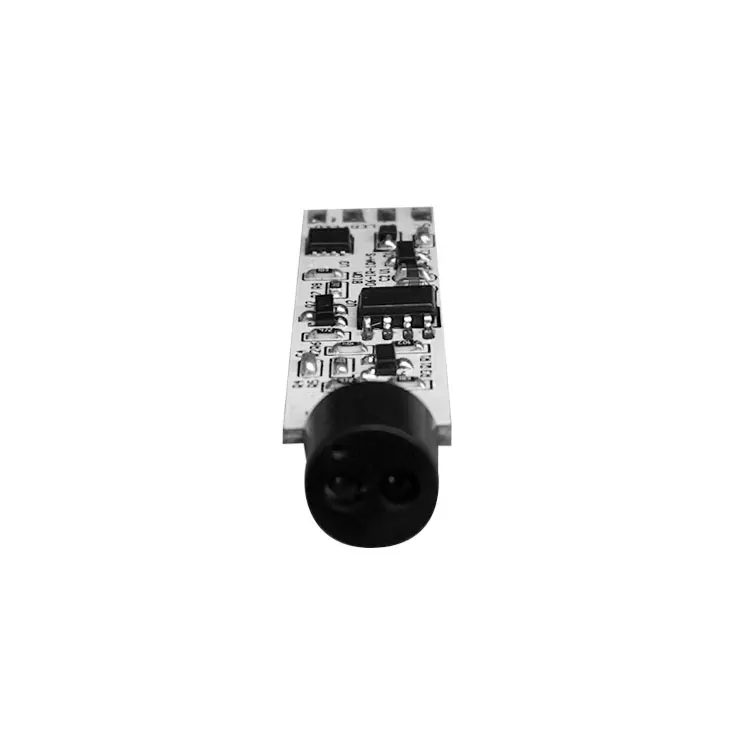

Product Description

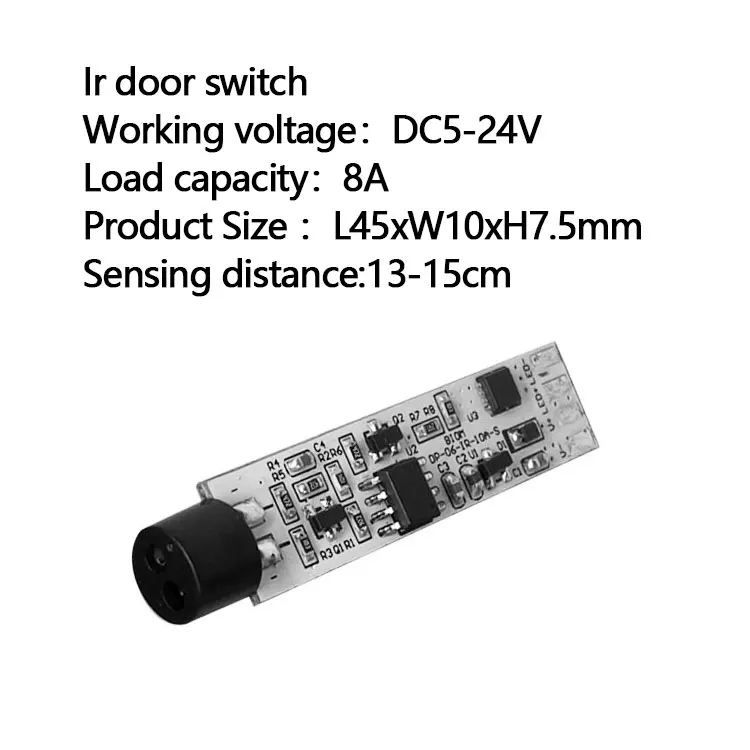

Product name | Ir door Sensor switch | ||||||
brand | Nodav | ||||||
model | NSB016 | ||||||
working voltage | DC5-24V ,recommended DC12V | ||||||
Load capacity | 8A | ||||||
Sensing distance | 13-15cm | ||||||
Product size | 45mm(L)x10mm(W)x7.5mm(H) | ||||||
Applicationg | Wardrobe , cabinet , drawer , wine cabinet , Furniture LED lights,etc | ||||||
Processing and customization | 1.Support processing customization. 2.Tell us your needs, we can design products to meet your needs. | ||||||
Functional features | 1. door impact function: the door opening lamp is on and the door closing lamp is off. 2. realize the door impact function, and can directly replace the mechanical switch. | ||||||
Working Mode | The door open light is on and the door close light is off | ||||||
Recommend RTS Products
model | Type | working voltage | Load capacity | Working Mode |
NS049 | Touch sensor switch | DC5-12V | 2A | Three stage dimming, power on, touch the first time for low light, the second time for medium light, the third time for high light, the fourth time for off, cycle in turn. |
NS018 | Touch sensor switch | DC5-24V, recommended DC12V | 8A，recommended ≤6A | Short press, sensor control LED light on and off；Press and hold for a long time, and the sensor controls the led to adjust the brightness gradually. |
NS016 | Touch sensor switch | DC5-24V, recommended DC12V | 3A | Short press, sensor control LED light on and off；Press and hold for a long time, and the sensor controls the led to adjust the brightness gradually. |
NS001 | Infrared human body sensor switch | DC5-24V, recommended DC12V | 5A | 1.Automatic induction, when people enter the detection area of the induction switch, the light will be on, and when people leave,it will be automatically delayed and turned off. 2. During the lighting period, every effective human activity will automatically delay the induction switch for a delay period. |
NS055 | Sound Light sensor switch | DC5-12V | 6A | |
NSB119-10A | Touch sensor switch | DC5-24V, recommended DC12V | 10A recommended≤6A | |
NSB119-5A | Touch sensor switch | DC5-24V, recommended DC12V | 5A | |
NSB120 | Hand scan Infrared sensor switch | DC5-24V, recommended DC12V | 8A | |
NSB121P | Infrared human body sensor switch | DC5-24V, recommended DC12V | 6A recommend≤5A | 1.Automatic induction, when people enter the detection area of the induction switch, the light will be on, and when people leave,it will be automatically delayed and turned off. 2. During the lighting period, every effective human activity will automatically delay the induction switch for a delay period. |
NSB016 | Ir door Sensor switch | DC5-24V, recommended DC12V | 8A |
Certificate
Company Introduction
Shenzhen Nodav Technology Co., Ltd. is a research and development, production, sales, export, service in one factory. Founded in 2010, the company is located in Shenzhen, the capital of science and technology in China. It is one of the few high-tech enterprises that developed, produced and exported smart sensor switch and smart induction light earlier in China. With 11 years of ODM / OEM experience, professional R & D team and 11 years of export experience, we have a number of product patents, specializing in the production and export of smart sensor switch, smart induction light, smart makeup mirror and other products.
FAQ
1.Q:What are the main products of your factory?
A:Producation and export of smart sensor switch, smart induction light, smart makeup mirror and other products.
2.Q:Where is your factory?
A:Shenzhen, Guangdong, China.
3.Q:What advantages do you have?
A:11 years of ODM / OEM experience, a number of product patents, China's early production of induction lamps, sensors of high-tech enterprises.
4.Q:Do you provide samples? Do you charge for samples and express delivery?
A:Yes.
5.Q:How do you deliver samples?
A:By door to door express DHL, TNT, FedEx, UPS ,EMS...
6.Q:Do you support customization?
A:Yes，Tell us your needs, we can design products to meet your needs.
