JQ-FLT6020ET автоматическая подача и три патроны оптоволокный станок для лазерной резки
- Категория: Industry Laser Equipment >>>
- Поставщик: Jinan,Jinqiang,Laser,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 9520.28 $* | 9996.66 $* |
| Aug-19-2025 | 9440.76 $* | 9912.17 $* |
| Jul-19-2025 | 7920.31 $* | 8316.35 $* |
| Jun-19-2025 | 9280.27 $* | 9744.8 $* |
| May-19-2025 | 8080.96 $* | 8484.13 $* |
| Apr-19-2025 | 9120.89 $* | 9576.56 $* |
| Mar-19-2025 | 9040.91 $* | 9492.87 $* |
| Feb-19-2025 | 8960.95 $* | 9408.11 $* |
| Jan-19-2025 | 8880.23 $* | 9324.4 $* |
Характеристики
Product Description

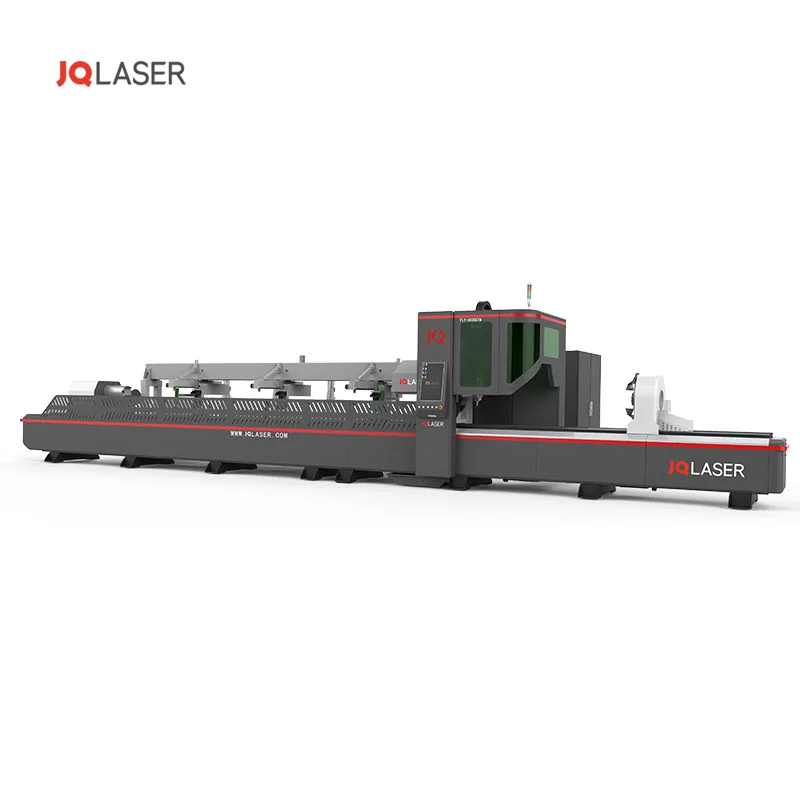

FLT-6020ET.laser cutting machine for Metal Cut
It is mainly used for round pipes, square pipes, rectangular pipes, oval pipes and waist round pipes of ordinary carbon steel, stainless steel and other materials. The outer circle size of the cutting workpiece is Φ15-Φ230mm, and the maximum length of the raw material is 6000mm.
Advantage
1. Three chucks, Zero Tailing
2. Automatic loading system
3. Automatic Unloading Device
4. Fully enclosed pneumatic chucks with dust-proof function.
5. Double-row wheels jaw with high cutting accuracy.
Parameter
Model | 6020ET | ||
Laser Power | 1000W 1500W 2000W 3000W | ||
Repeated Positioning Accuracy | ±0.02mm | ||
Length of tubes | ≦6mm | ||
Diameter of tubes | ∅16mm-∅220mm | ||
Power Supply | 380V/50HZ | ||
X, Y axes Speed | 90m/min | ||
Rotate speed of chuck | 100rpm | ||
Size of machine | 12435*5500*2400mm | ||
Product structure
Automatic loading system for Hot Sale three chucks 1000W 1500W 2000W 3000W zero remains Cnc Pipe Cutter Metal Tube Cut Stainless Steel Tube Cutting Pipe Laser Cutting Machine
Follow-up support
The servo motor is used to drive the lead screw to control the lifting of the receiving plate. When the cut pipe is longer, the receiving plate supports the pipe to prevent it from sagging.
bed frame
The machine bed is integrally welded and processed by annealing to eliminate internal stress. After rough machining, vibration aging is performed before finishing, which greatly improves the rigidity and stability of the machine tool and ensures the accuracy of the machine tool.
Follow-up support
A follow-up support mechanism is installed on the bed, and the auxiliary support is mainly for auxiliary control of the excessive deformation of the longer pipe (tube with smaller pipe diameter).

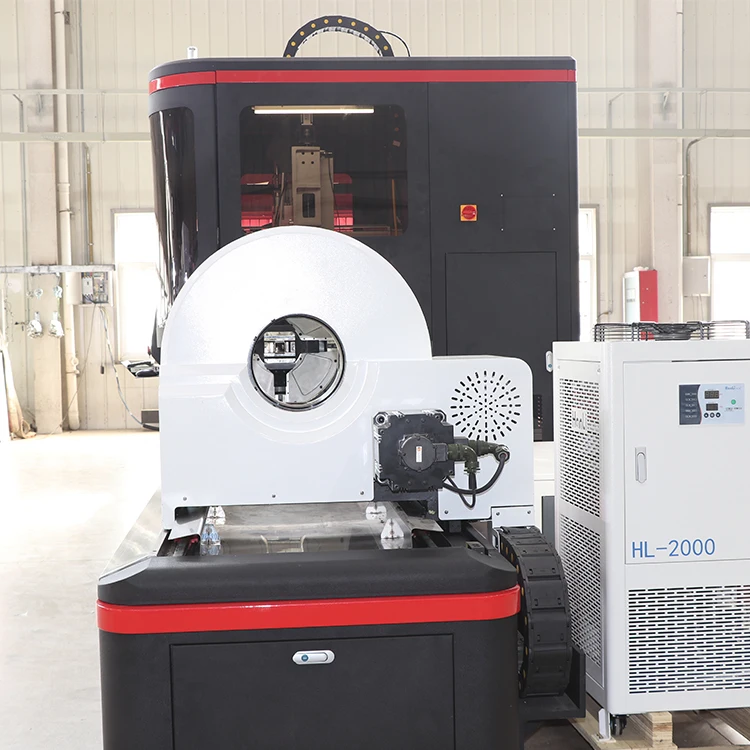

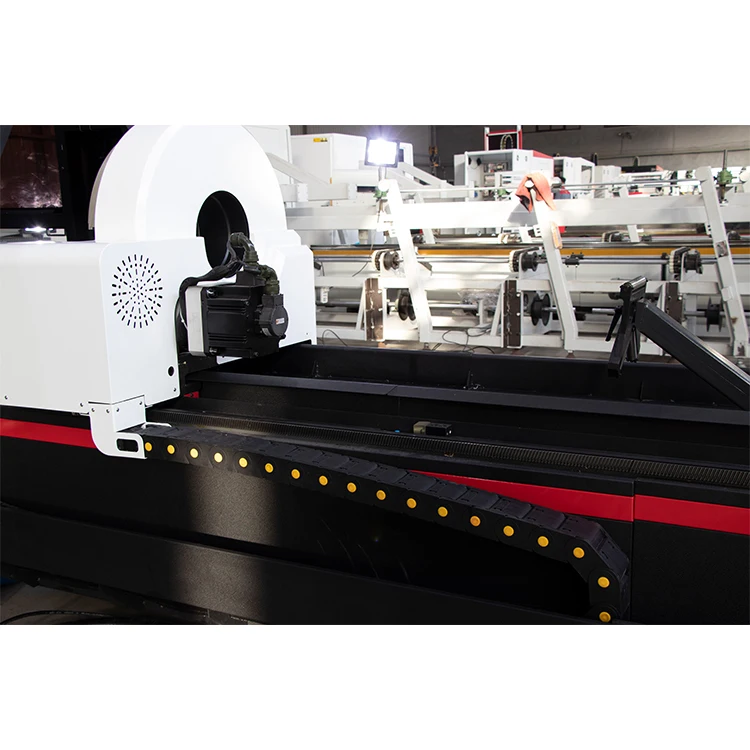

Chuck
Fully enclosed pneumatic chucks with dust-proof function.It is designed by double-row wheels jaw with high cutting accuracy.Diameter:20mm-220mm (diagonal of square
tubs is less than 220mm)Max supporting weight is 300kg
tubs is less than 220mm)Max supporting weight is 300kg
Laser head
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FSCUT system
The FSCUT 5000A system is a PC numerical control system based on WINDOWS, a real-time system based on bus control, and has more stable follow-up control.
Sample
FLT-6020ET Fiber laser cutting machine automatic unloading device, three chuck 1000W zero residue CNC pipe cutting machine, metal pipe cutting stainless steel pipe cutting pipe laser cutting machine, with two automatic grippers, the length of the unloading capacity is up to 3 meters. The maximum unloading weight is 60kg. It is controlled by a servo motor (synchronized movement with the chuck and laser head). Two cylinders automatically control the lifting of the flap (when cutting short pieces, the three chucks and the tool holder are used together). One cylinder controls the main wing from 180 degrees to 135 degrees automatically (used to automatically slide the material after cutting)
*FLT-6020ET can be equipped with an automatic feeding rack, which is convenient and labor-saving
*WE SUPPORT FREE SAMPLES SERVICE！！YOU CAN TELL US ABOUT METERIAL AND THICKNESS, GET SAMPLES FIRST!
Industry Application
JQlaser Fiber laser cutting machines are used in various industries, such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, sheet metal processing, etc.
Certificate
*We have passed CE certification, ISO9001 quality management system certification, Alibaba Jinpincheng Enterprise Certification and design patents and other international certifications.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.
Company Profile
*11 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
Jinan JinQiang Laser CNC Equipment Co.,LTD
Jinan JinQiang Laser CNC Equipment Co.,LTD was established in 2006. It is a high-tech industry focusing on the research and development, production and sales of laser application and sheet metal automation complete equipment. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding. Jinqiang Laser currently has more than 300 employees, and technology research and development and after-sales service account for more than 50%; we have a professional and fast-responding customer service team, providing 24-hour online and offline technical services in 12 languages. With reliable product quality, reasonable prices and perfect after-sales service system, JQ laser is now exported to more than 150 countries and regions around the world.
Exhibition display
Jinqiang Laser has traveled all over the world, participated in more than 300 exhibitions and served more than 20,000 customers。
*About the installation and inspection of the fiber laser cutting machine before leaving the factory We strictly control the quality of the fiber laser cutting machine, and achieve perfection in every detail. Let our customers rest assured to use our machines safely！
After-sales service & customer visit:
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
