Установка для строительства солнечных панелей фотогальваническая строительная машина откручивания кустов на гусеничном ходу гидравлический молоток
- Категория: Pile Driver >>>
- Поставщик: Xuzhou,Hengxing,Jinqiao,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 13685.78 $* | 14369.6 $* |
| Aug-18-2025 | 13570.93 $* | 14249.41 $* |
| Jul-18-2025 | 11385.3 $* | 11954.3 $* |
| Jun-18-2025 | 13340.12 $* | 14007.39 $* |
| May-18-2025 | 11615.47 $* | 12196.94 $* |
| Apr-18-2025 | 13110.48 $* | 13766.47 $* |
| Mar-18-2025 | 12995.73 $* | 13645.63 $* |
| Feb-18-2025 | 12880.95 $* | 13524.53 $* |
| Jan-18-2025 | 12765.92 $* | 13403.83 $* |
Характеристики
Products Description
Solar Panel Arrays Installment Photovoltaic Pv Construction Screw Crawler Pile Driver Hydraulic Hammer Post Ramming Machine | ||||
Item | Valve | Unit | ||
Shape size(L*W*H) | 3250*2350*5000 | mm | ||
Shape size(L*W*H) | 5000*2350*2300 | mm | ||
Chassis body width | 1800 | mm | ||
Vehicle net weight | 4500 | kg | ||
Working motor torque(max) | 5700 | Nm | ||
Rotary motor torque(ground screw pilling) | 4000 | Nm | ||
Rotary motor torque(auger drilling) | 4000 | Nm | ||
Post length(max) | 5000(standard 3500) | mm | ||
Ground screw length | 5000(standard 3500) | mm | ||
Drilling depth | 3500 | mm | ||
Ground screw depth | 3500 | mm | ||
Working stroke of hydraulic hammer | 700-3000 | mm | ||
Piling height | 2500 | mm | ||
Drill Pipe Diameter(auger drilling) | 0-300 | mm | ||
Engine power | 53 | KW | ||
Diesel engine rated speed | less than or equal to 2300 | r/min | ||
Diesel engine weight | 205 | kg | ||
Inclination angle of sliding guide frame | left 30/right 10 | ° | ||
Front and rear adjusting angle of frame | +-10 | ° | ||
Hydraulic system pressure | 16-20 | Mpa | ||
Flow rate Hydraulic system | 100 | L/min | ||
Walking speed | 0-1600 | m/h | ||
Climbing ability | less than or equal to 30 | ° | ||
Chassis spec(L*W*H) | 2002*1800*520 | MM | ||
Width of steel chassis track | 400 | mm | ||
Track height above the ground | 230 | mm | ||
Track turn rate | 1:21.4 | |||
Tracking working pressure difference | 13 | Mpa | ||
1.It has a special structure and long service life2.Equipped with angle digital indicator to adjust angle quickly. 3.Guard rail vertical to the ground when pilling ,can most reduce the effect of vibration on pile perpendicularity. 4.Guide rail equipped with double-row chain makes machine high safety coefficient. 5.Max stroke of hammer can reach 5 m,(standard pilling stroke height to 3.5m) 6.High control accuracy of operation valve ,Easy and smooth. | ||||

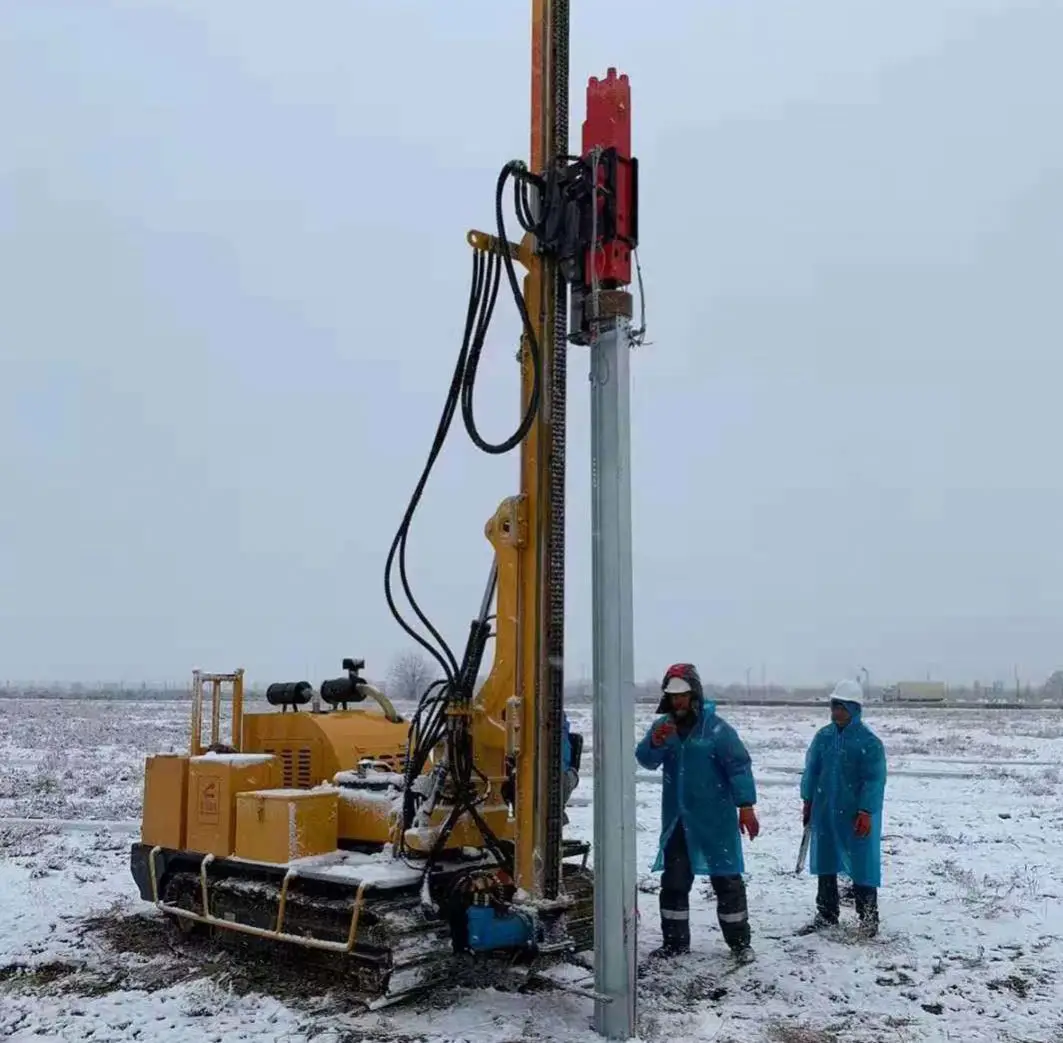

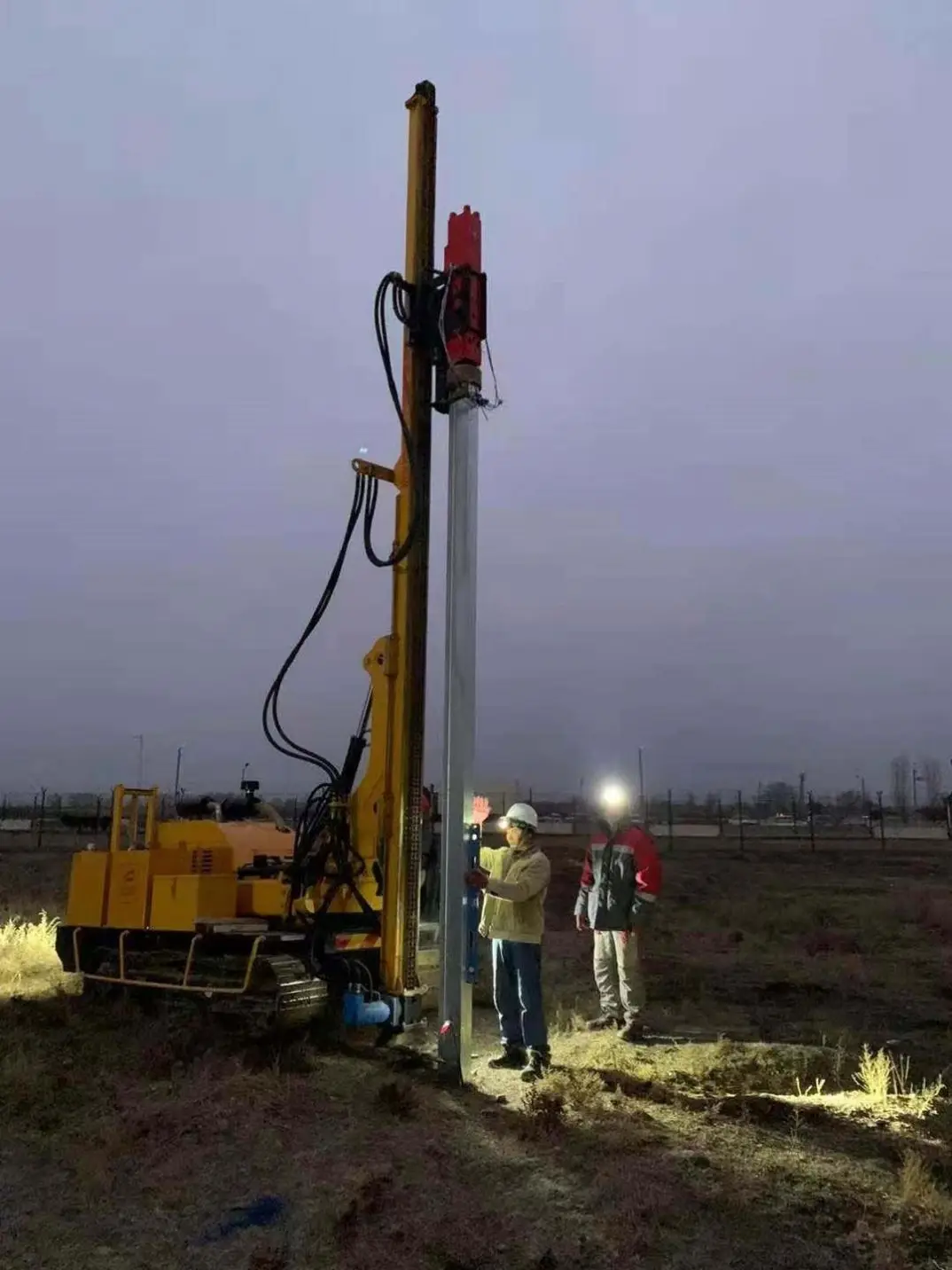

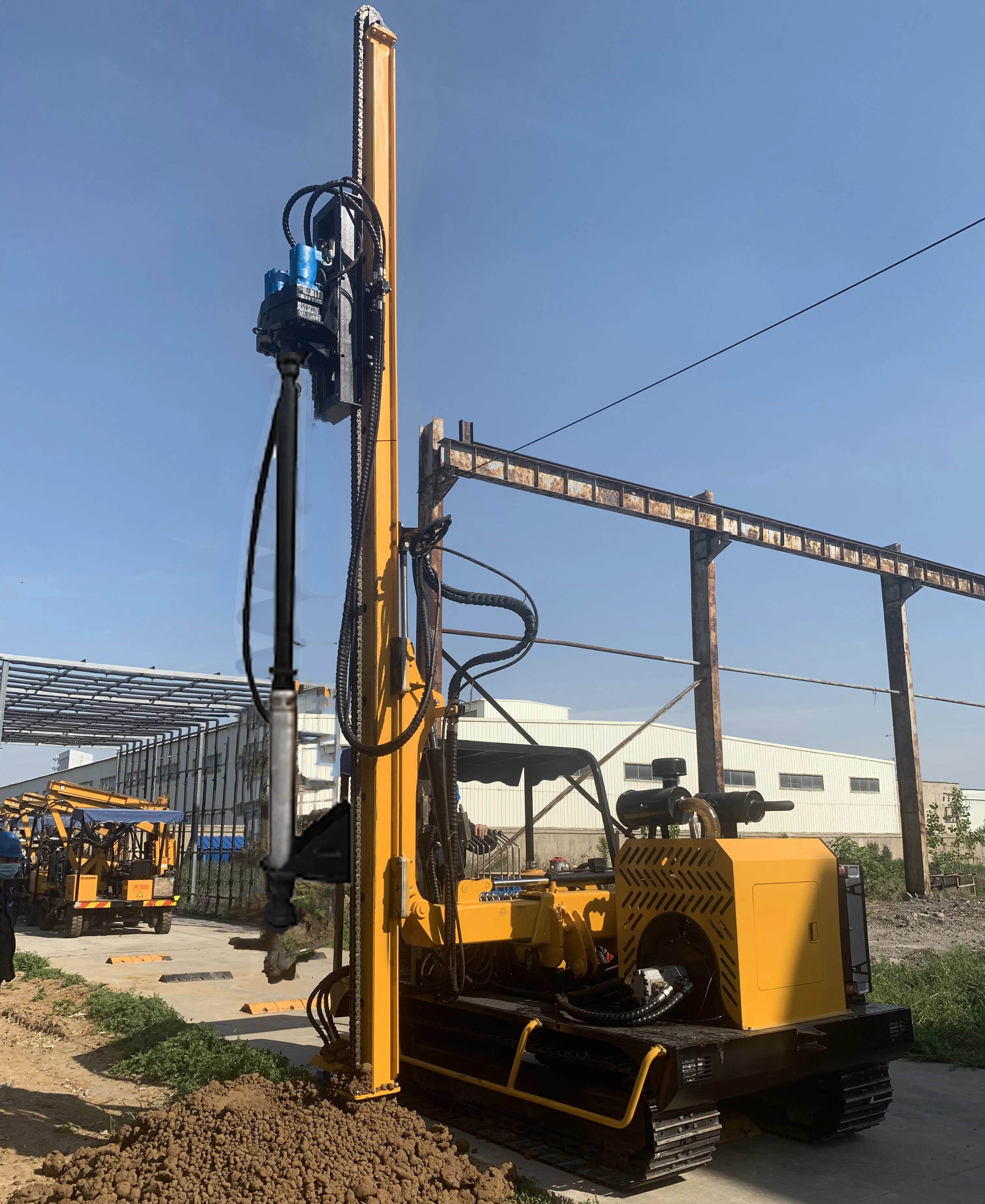

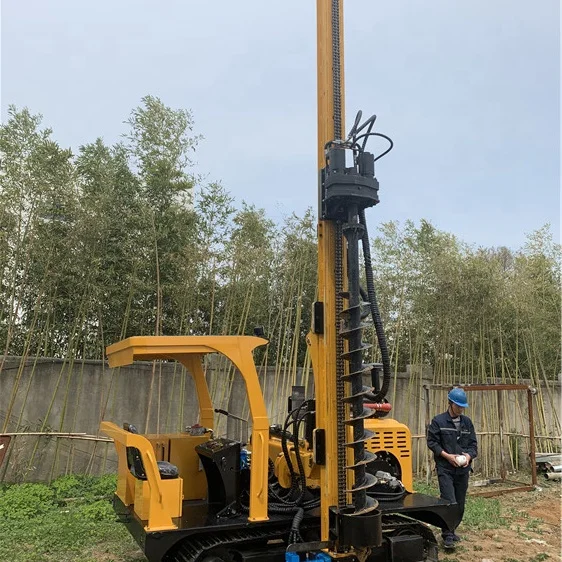

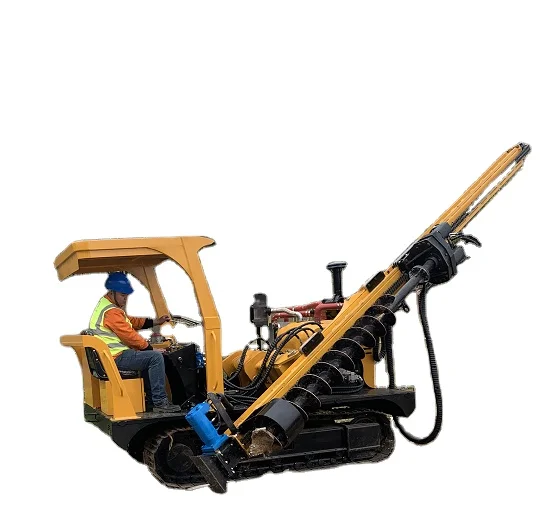

Details Images
FAQ
1.What is the main function of our pile driver?
Ans.: It has different models used for all kinds of PV post install, it is the best choice for solar power station construction.
2.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer),during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.
3.What is the lead time and shipping method?
Ans.:Usually the lead time is 3 days, and we send the machine by sea.
4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...

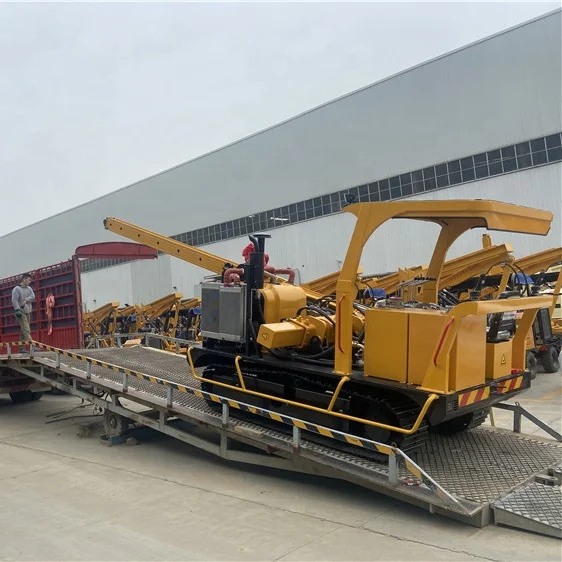

Product packaging
PRODUCT PACKING
special request
Customer Photos
Certifications And Exhibition
About Us
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
we has always followed our survival principle that “strives for the survival by quality, development through reputation”, and our service tenet “your demand is our demand”. Through continuous technological innovation we try to build our global brand.
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
