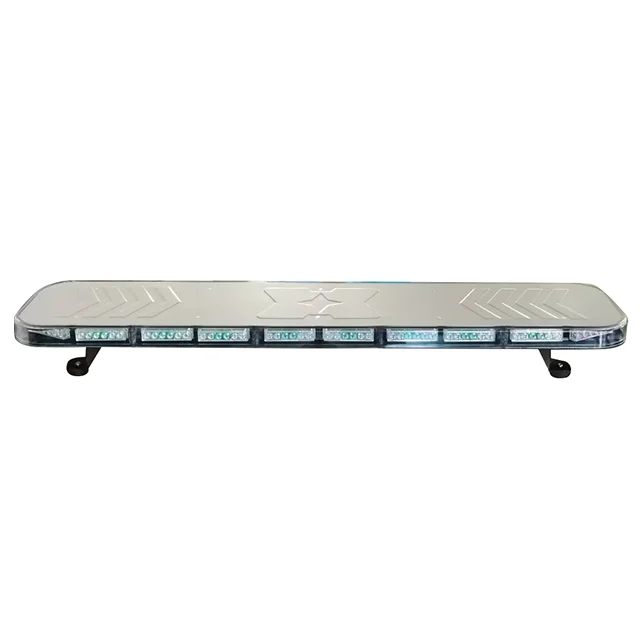

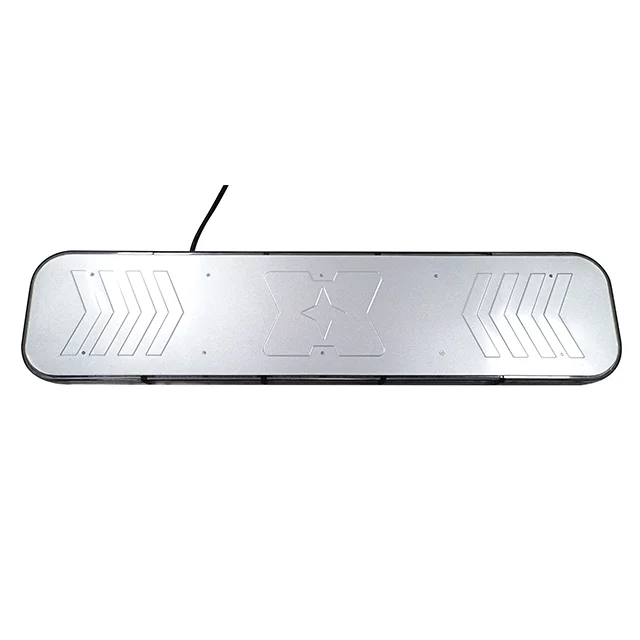

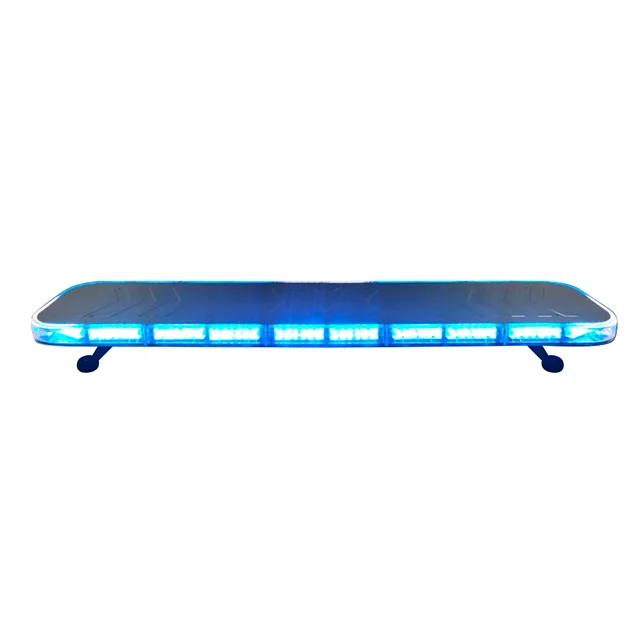

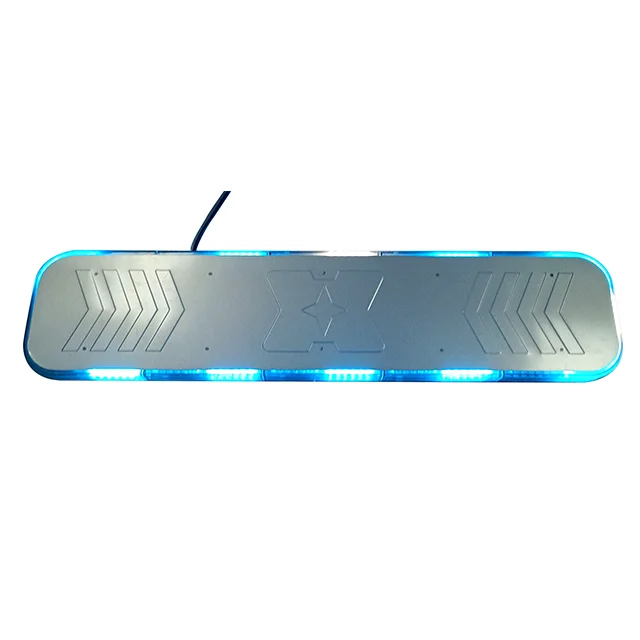

Световая балка VENUS


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.33 $* 0.6 $*
Aug-15-2025 0.73 $* 0.1 $*
Jul-15-2025 0.82 $* 0.15 $*
Jun-15-2025 0.87 $* 0.59 $*
May-15-2025 0.24 $* 0.7 $*
Apr-15-2025 0.59 $* 0.40 $*
Mar-15-2025 0.64 $* 0.47 $*
Feb-15-2025 0.32 $* 0.7 $*
Jan-15-2025 0.59 $* 0.77 $*

Характеристики


12 cores sheathed cable :





Thick red wire: To 10-28V/DC (15A Fuse)





Thick black wire: Ground





Yellow wire: Flash pattern ,(to + 12VDC more than 1 second to next pattern, more than 3 seconds all lights steady on,Continuously to +12VDC 3 times , return first pattern .





White wire: To 10-28V/DC to turn on two white lights in middle in front row lights . second time ,the lights flash , third time turn off the two lights ,then the two lights work with all lights .





Thin red wire: Control front row lights To 10-28V/DC





Blue wire : Left arrow lights of rear row lights , To 10-28V/DC





Purple wire: Right arrow lights of rear row lights ,To 10-28V/DC (Lights go from center to both sides when blue wire and purple wires connect to 10-28V/DC together)





Brown wire: MODE 1, To 10-28V/DC





Orange wire : Control rear row lights to 10-28V/DC Green wire: MODE 2 (It is Prior to MODE1), To 10-28V/DC





Gray wire : Connect to 10-28V/DC first time to turn on both sides alley light , second time to connect 10-28V/DC , both alley lights flash ,third time connect to 10-28V/DC to turn off alley lights . then alley lights work with all lights .





Thin black wire : MODE 3 (It is prior to MODE1 and MODE2), To 10-28V/DC





Venus light bar.png
