Бетономешалка Hino 10 кубических метров цементный

Бетономешалка Hino 10 кубических метров цементный

Категория: Cement Trucks >>>
Поставщик: Henan,Tarzan,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.37 $*	0.88 $*
Aug-18-2025	0.87 $*	0.41 $*
Jul-18-2025	0.81 $*	0.53 $*
Jun-18-2025	0.9 $*	0.92 $*
May-18-2025	0.46 $*	0.13 $*
Apr-18-2025	0.40 $*	0.36 $*
Mar-18-2025	0.45 $*	0.99 $*
Feb-18-2025	0.86 $*	0.9 $*
Jan-18-2025	0.85 $*	0.54 $*

Характеристики

Product Description

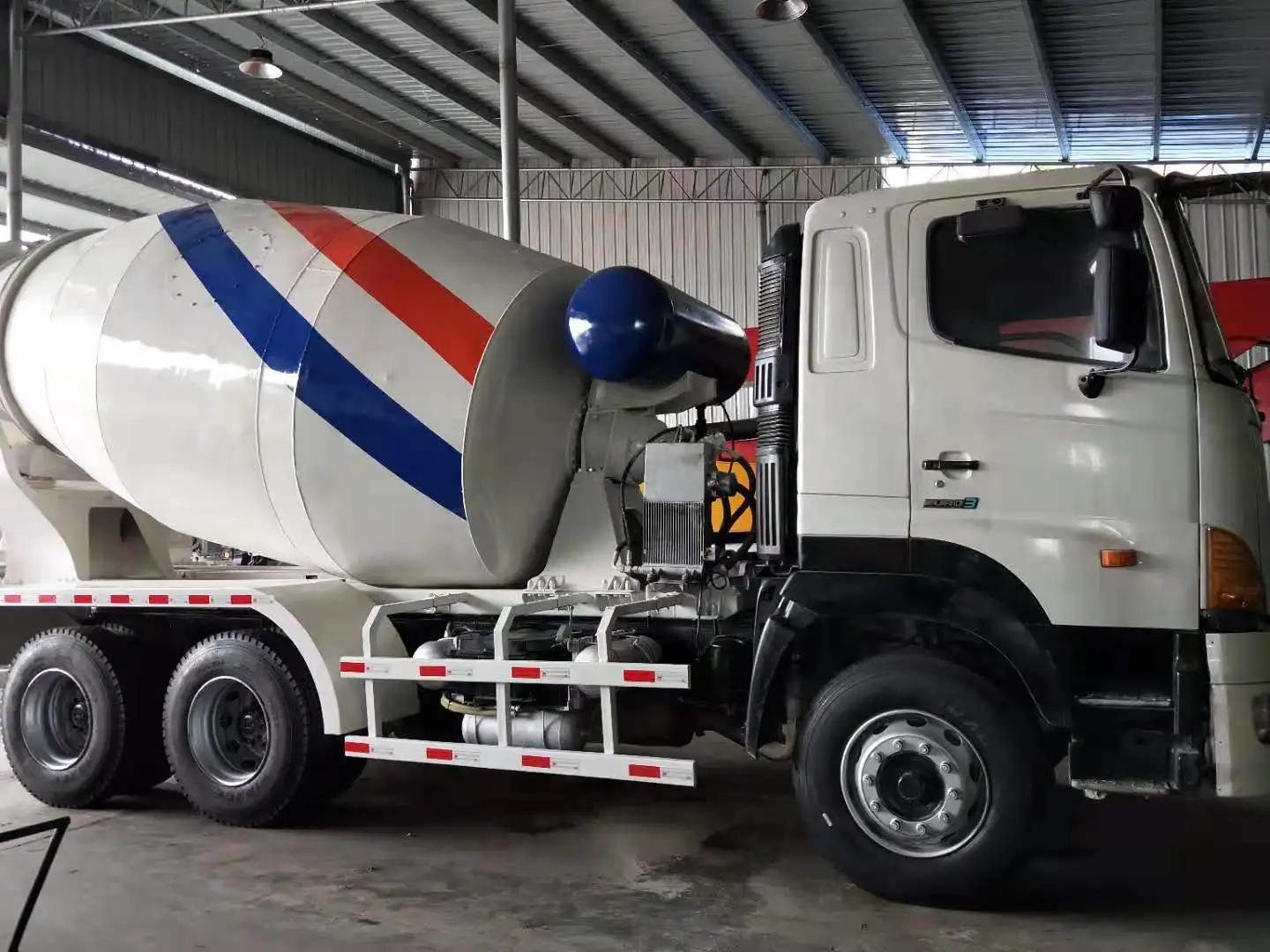

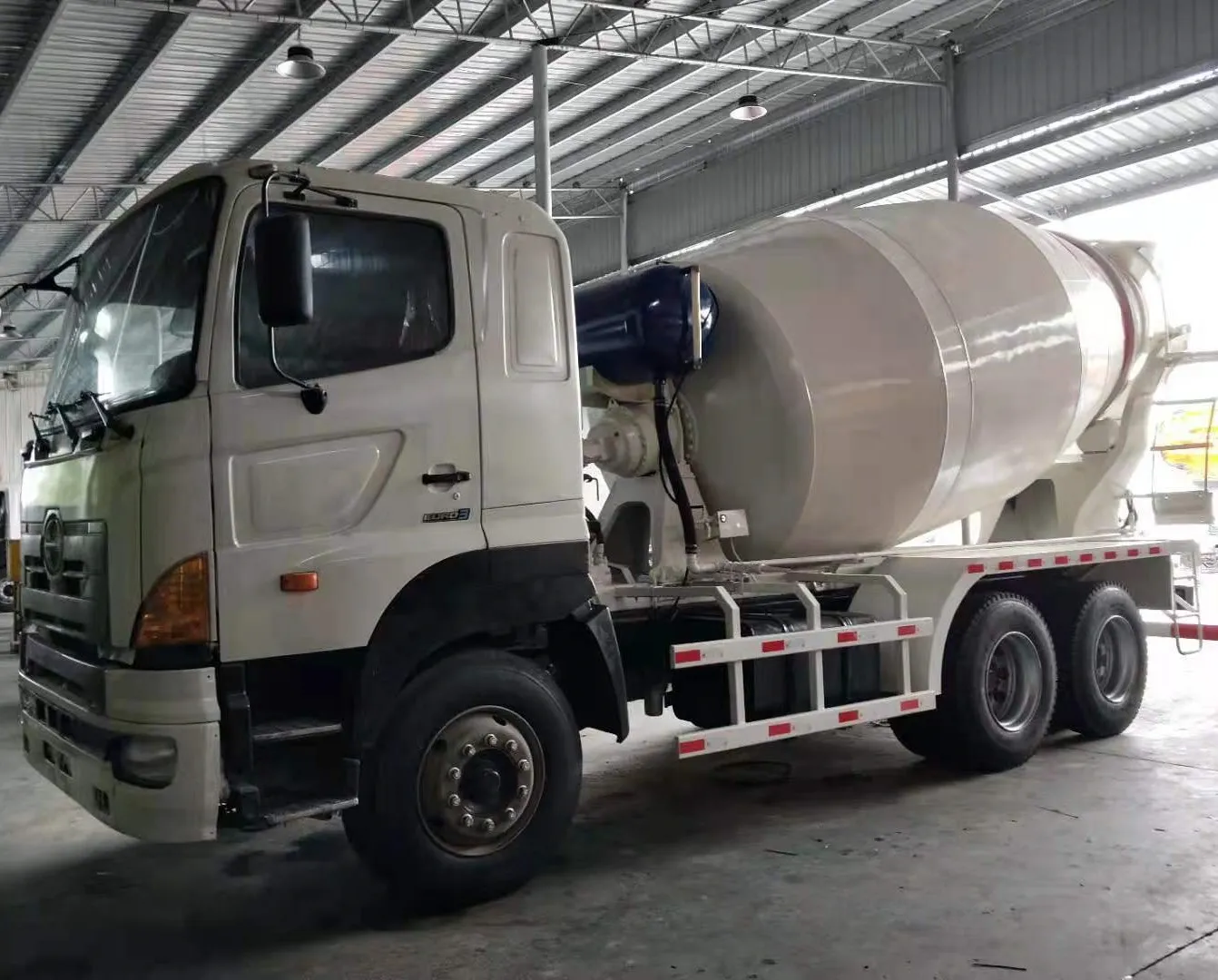

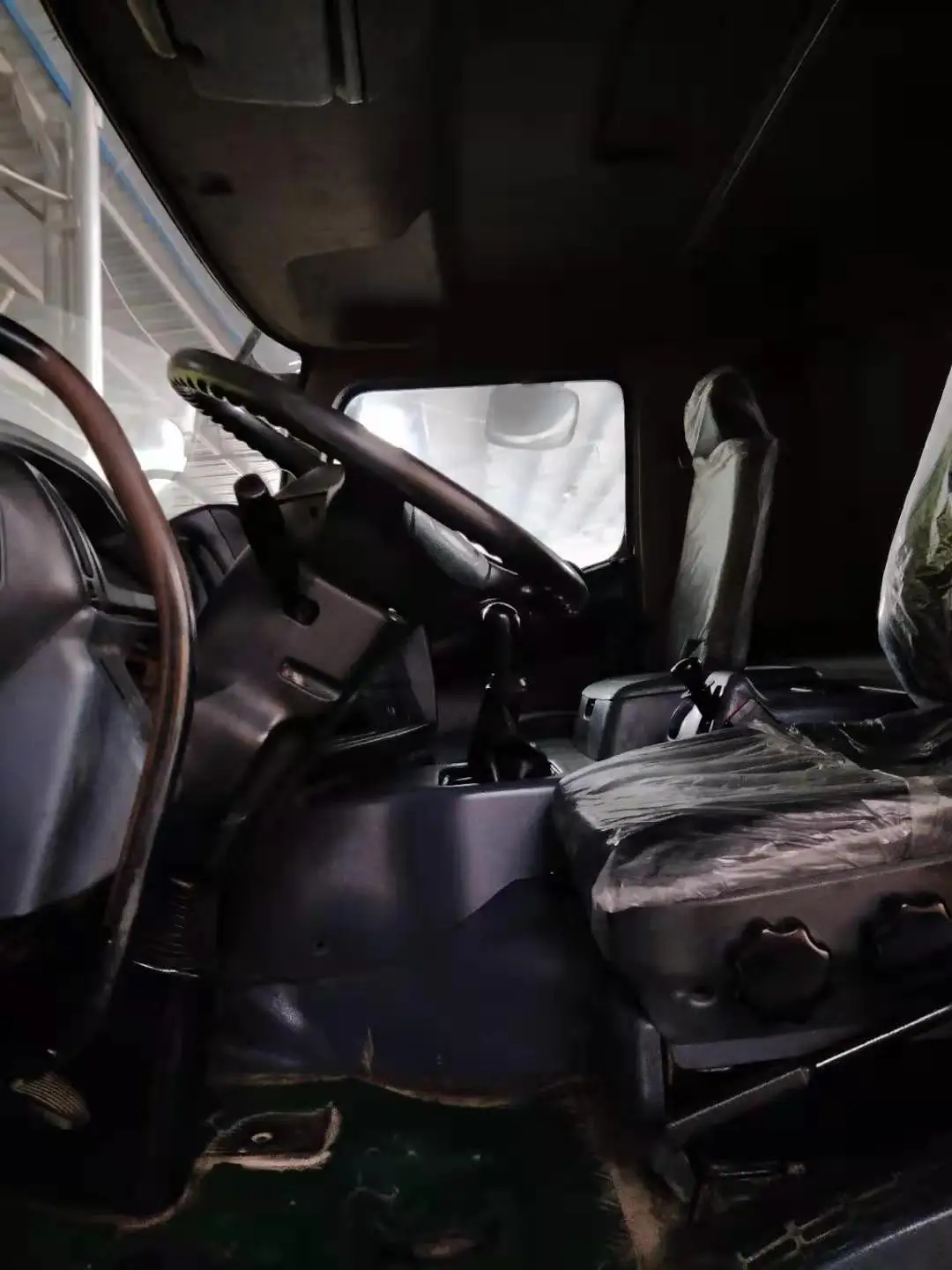

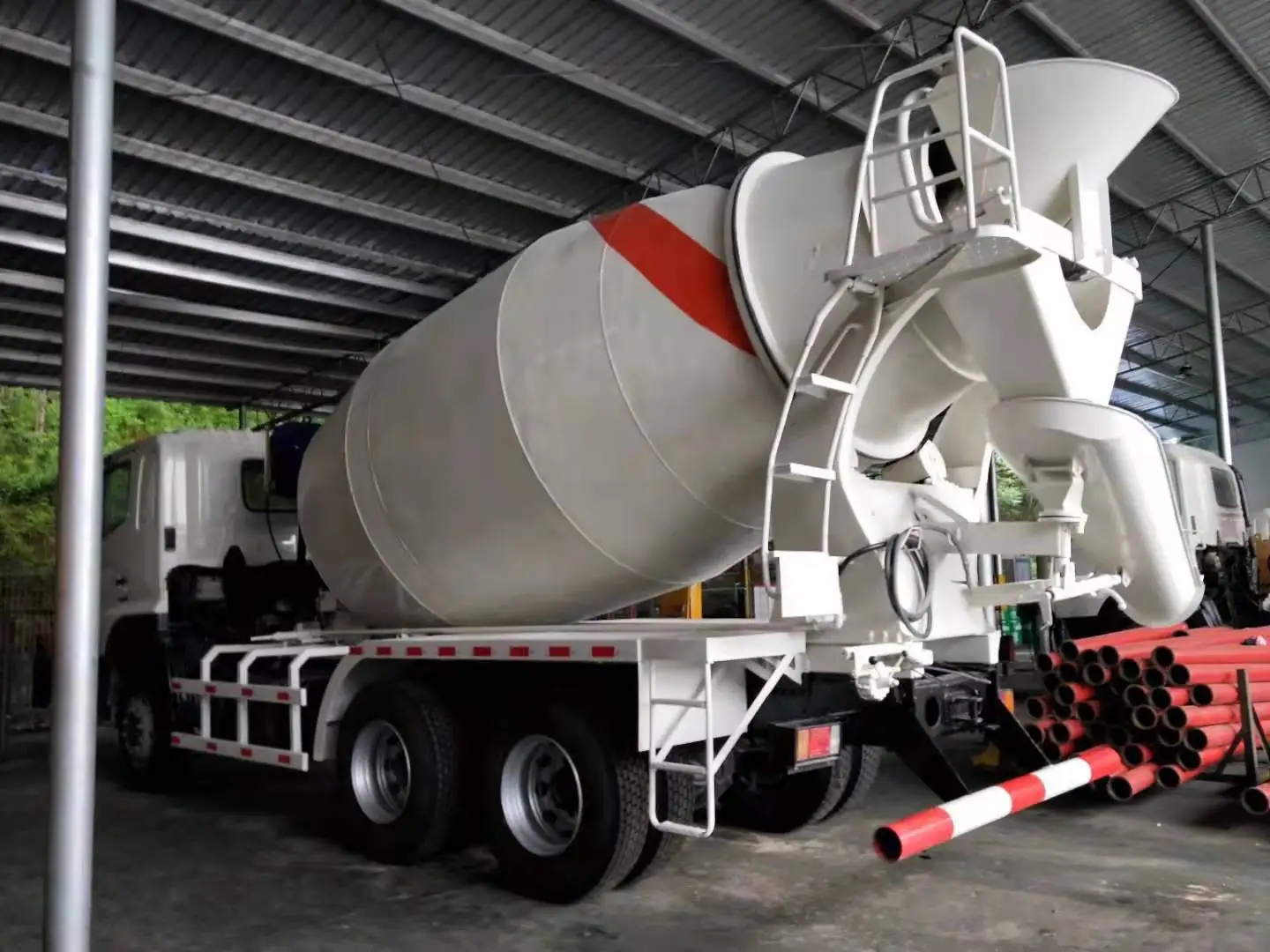

Detailed Images

Specification
Drive mode	6×4
Engine	Model	Yuchai YC6MK375N 30 CNG
		Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
		Max. power(Kw/rpm)	275/2200
		Max. torque(N.m/rpm)	1550/1600
		Displacement(ml)	9839
		Type of fuel	diesel
		Compression ratio	(16.6±0.5):1
Cab	D310-S1	single berth
Gearbox	Model	9JS150T-B
Gearbox		Max.torque(N.m)	1500
Clutch	Φ430mm	diaphragm spring clutch
Frame Height×Width× Thickness(mm)	300×90×(8+6)
Frame Height×Width× Thickness(mm)		Frame width 940 (front ), Frame width 810 ( rear )
Tyre	Size	11.00-20
Air conditioner	A/C
Dimensions	Overall dimension (mm)	9250x2500x3750mm
		Wheel base (mm)	3800+1350
		Front/Rear tread(mm)	1986/1860
		Appr./Depa. angel (°)	30/18
		Min. ground cleanrance(mm)	250
Mass	Payload(Kg)	11870
		Curb weight(Kg)	13000
		G.V.W(Kg)	25000
Performance	Max. speed(Km/h)	80
		Max. gradeability(%)	40
		Min. turning diameter(m)	23
		Fuel consumption(L/100Km)	36
Special function	Mixing capacity(m³)	10
		Angel of inclination of mixing drum(°)	13
		Geometric volume(m³)	14.3
		Filling ratio(%)	58
		Feeding speed(m³/min)	≥3
		Discharge speed(m³/min)	≥2
		Residual ratio(%)	＜0.8
		Collapsed degree range(mm)	40-230
		Hydraulic pump	MA4VG90, Italy
		Hydraulic motor	MF090W, Italy
		Decelerator	577L3131AX1A, Italy
