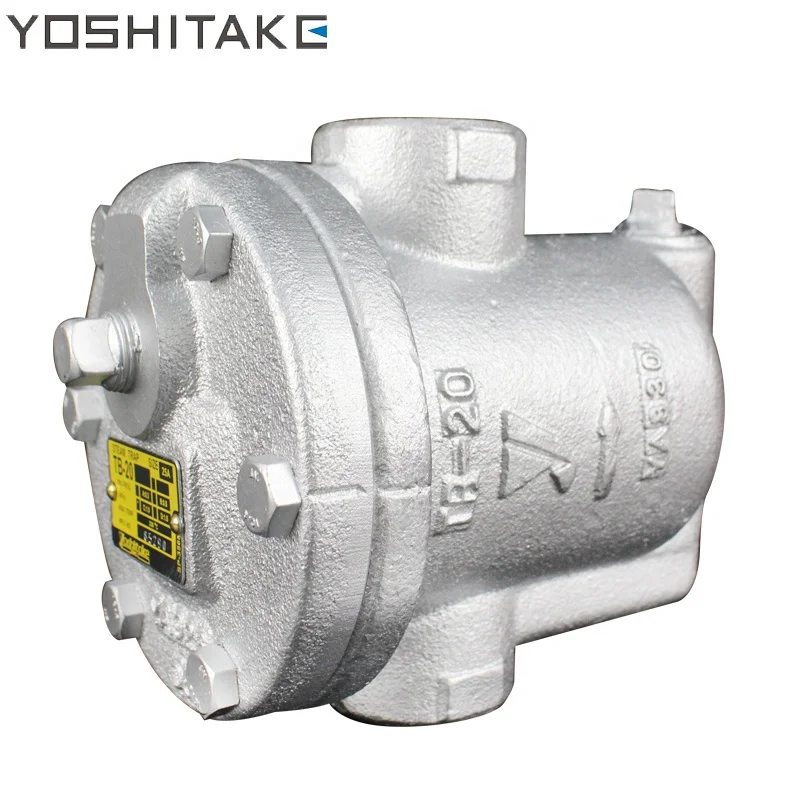

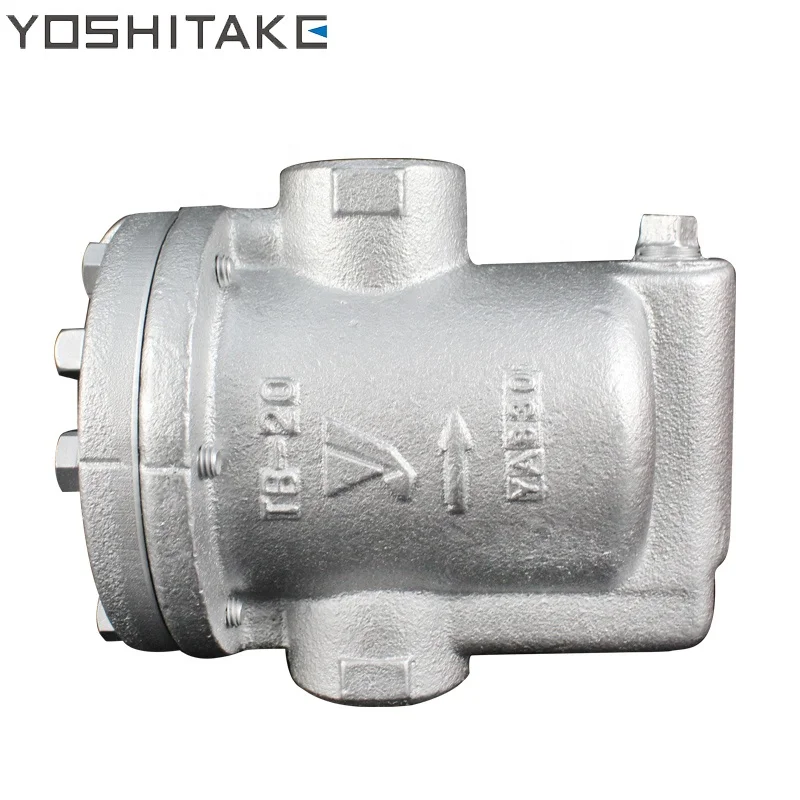

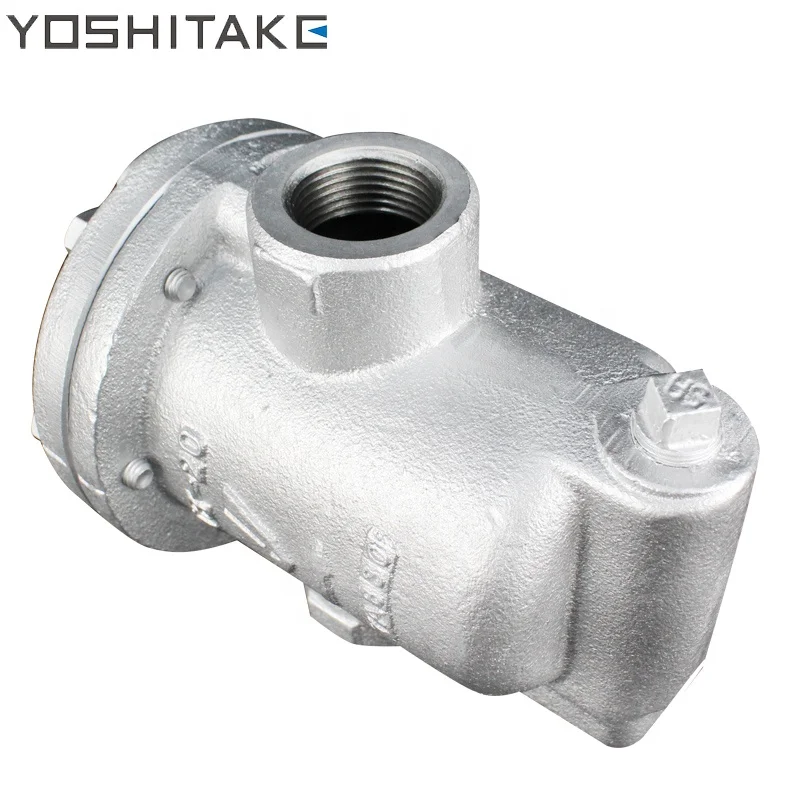

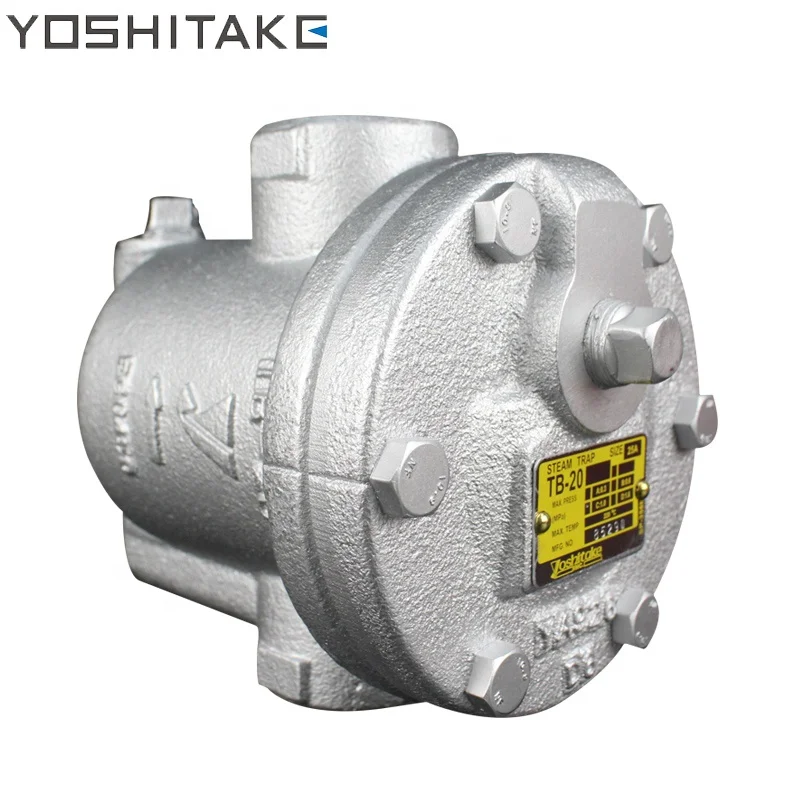

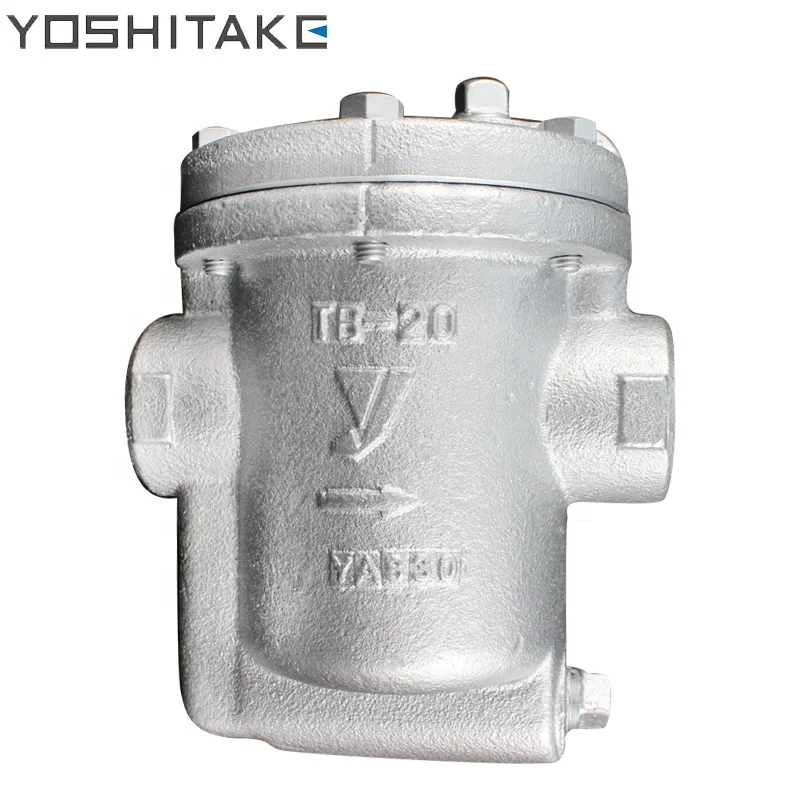

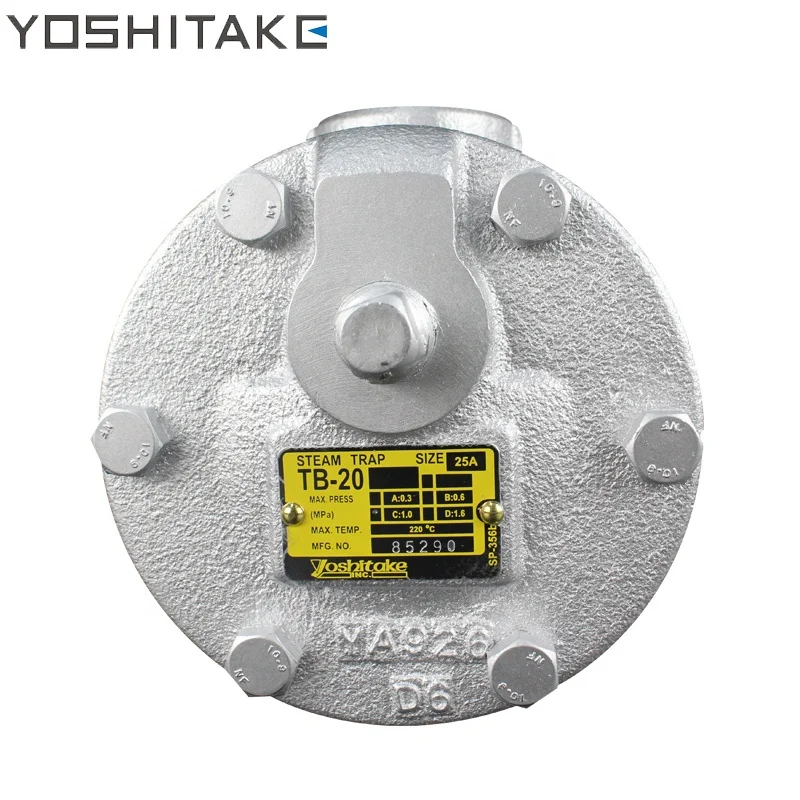

Оптовая продажа японская оригинальная Паровая ловушка Yoshitake TB-20 1/2in 3/4in 1in из ковкого чугуна для парового
- Категория: >>>
- Поставщик: Beijing,Ymer,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.45 $* | 0.97 $* |
| Aug-17-2025 | 0.70 $* | 0.42 $* |
| Jul-17-2025 | 0.11 $* | 0.61 $* |
| Jun-17-2025 | 0.19 $* | 0.63 $* |
| May-17-2025 | 0.73 $* | 0.94 $* |
| Apr-17-2025 | 0.60 $* | 0.62 $* |
| Mar-17-2025 | 0.39 $* | 0.10 $* |
| Feb-17-2025 | 0.79 $* | 0.28 $* |
| Jan-17-2025 | 0.35 $* | 0.93 $* |
Характеристики
Product Description
The freight shown on the page is only the reference price. Please contact us before placing the order. |
Product parameters
Features
1. Excellent durability ensured by unique internal structure (hemispherical valve, etc).
2. The upper plug is made of stainless steel, and is excellent in wear resistance.
3. Reliable performance due to all stainless steel made internal parts and the unique internal structure.
4. Super energy saving since intermittent operation removes air adiabatic wall in the heat exchanger and increases heat efficiency considerably.
Specifications
| Model | TB-20 | |
| Nominal Size | 15A, 20A, 25A | |
| Connection | JIS Rc screwed | |
| Application | Steam condensate | |
| Working Pressure | A | 0.01-0.3 MPa |
| B | 0.2-0.6 MPa | |
| C | 0.3-1.0 MPa | |
| D | 0.6-1.6 MPa | |
| Connection | JIS Rc screwed0 | |
| Max. Temperature | 220°C | |
| Material | Body | Ductile cast iron |
| Valve | Stainless steel (Heat treated) | |
| Valve seat | Stainless steel (Heat treated) | |
Dimensions (mm) and Weights (kg)
| Nominal size | L | H | H1 | A | Weight |
| 15A | 136 | 183 | 94 | 117 | 4.3 |
| 20A | |||||
| 25A |
Discharge Capacity Chart
Prouduct show
ABOUT US
Our manufacturing philosophy is to ensure stable quality and just in time delivery. We have an advanced machining shop.experienced operation team.The high level of automation throughout the organization helps us to serve the most.
YMER is a supplier of valves offering Pipe, Iron valve, Steel valveand Brass valve. Our products are durable, solid and reliable witha competitiveprice. YMER is always willing to offer our service along with great quality products to our customers. Please choose us as your most loyal partner and achieve every precious success.
