Цифровой Регулируемый лабораторный настольный источник питания NICE-POWER SPS305 30 В
- Категория: Power Supplies >>>
- Поставщик: Shenzhen,Bodunbaili,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 50.44 $* | 51.90 $* |
| Jul-15-2025 | 40.90 $* | 41.84 $* |
| Jun-15-2025 | 49.38 $* | 50.17 $* |
| May-15-2025 | 48.28 $* | 49.87 $* |
| Apr-15-2025 | 39.24 $* | 40.70 $* |
| Mar-15-2025 | 48.97 $* | 49.23 $* |
| Feb-15-2025 | 47.31 $* | 48.33 $* |
| Jan-15-2025 | 47.85 $* | 48.20 $* |
Характеристики
Products Description

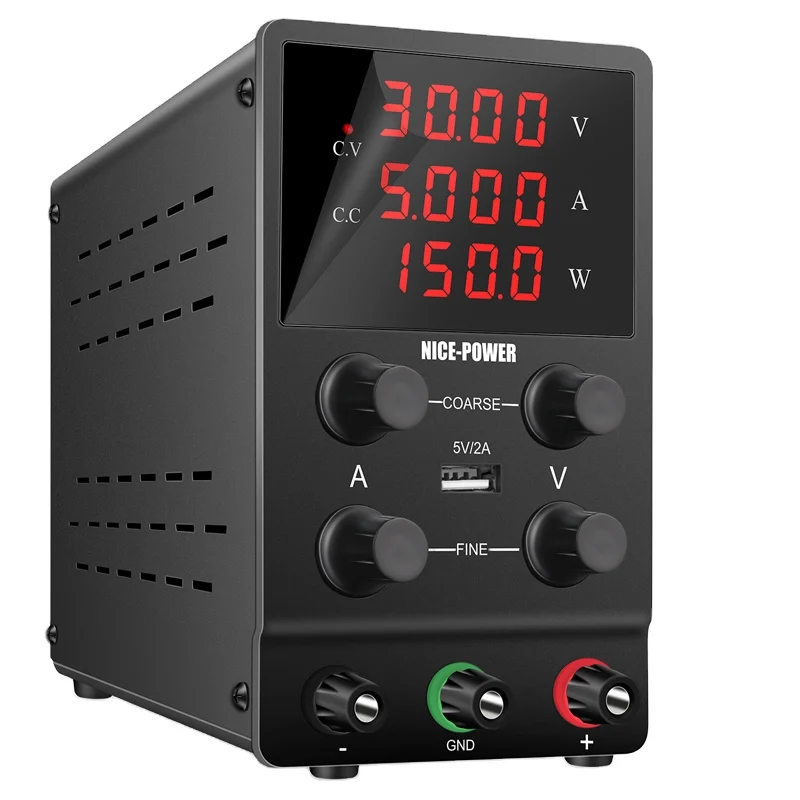

NICE-POWER SPS305 30V 5A Black LED Digital Adjustable Variable Laboratory Bench Power Supply Variable Voltage Regulator
1.Have complete operating protection function
2.Highly efficient, low ripple, small volume, light weight

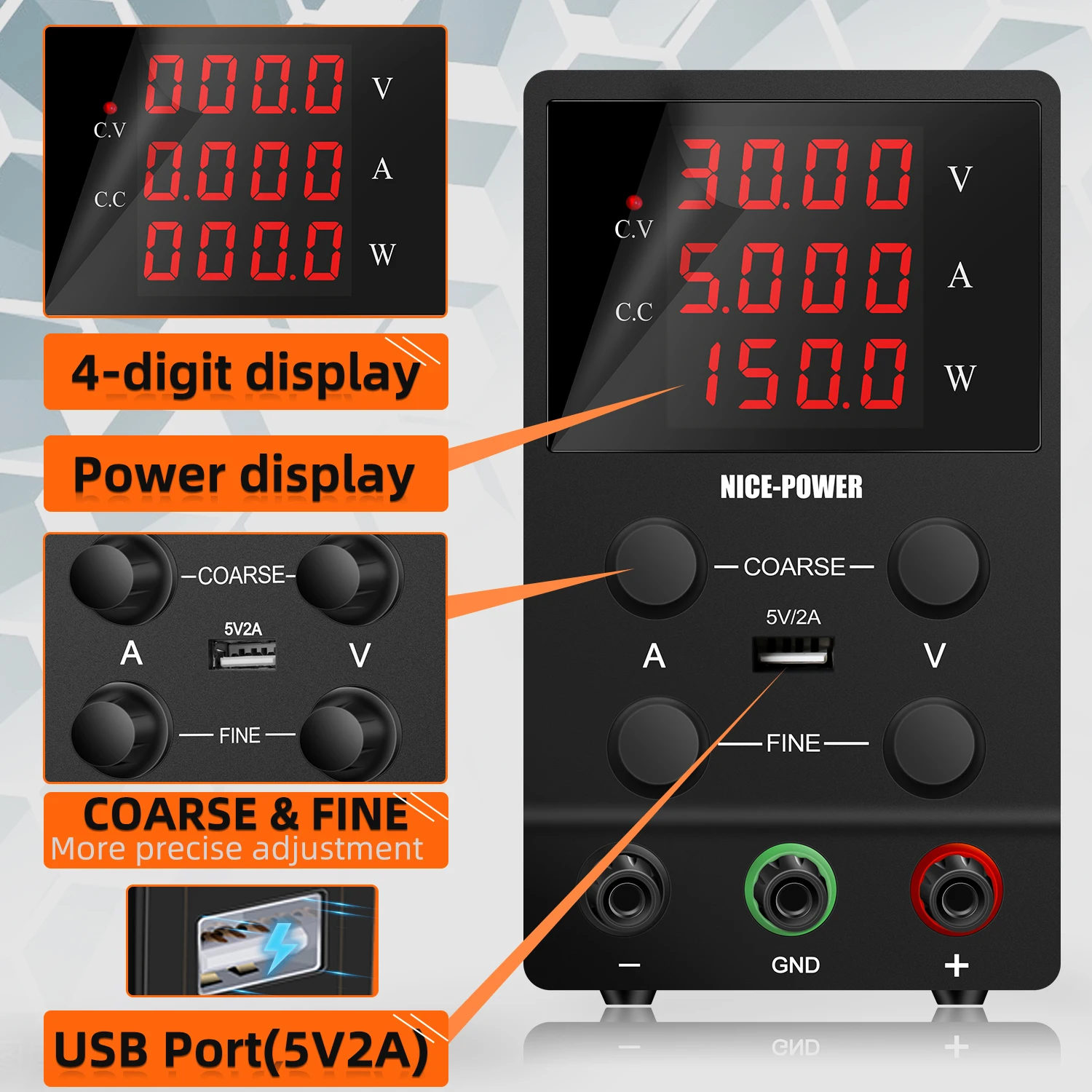

3.Double display voltage, current, and high precision
4.Voltage stabilization, current limiting, simple operation
5.Dual voltage input and convenient choice

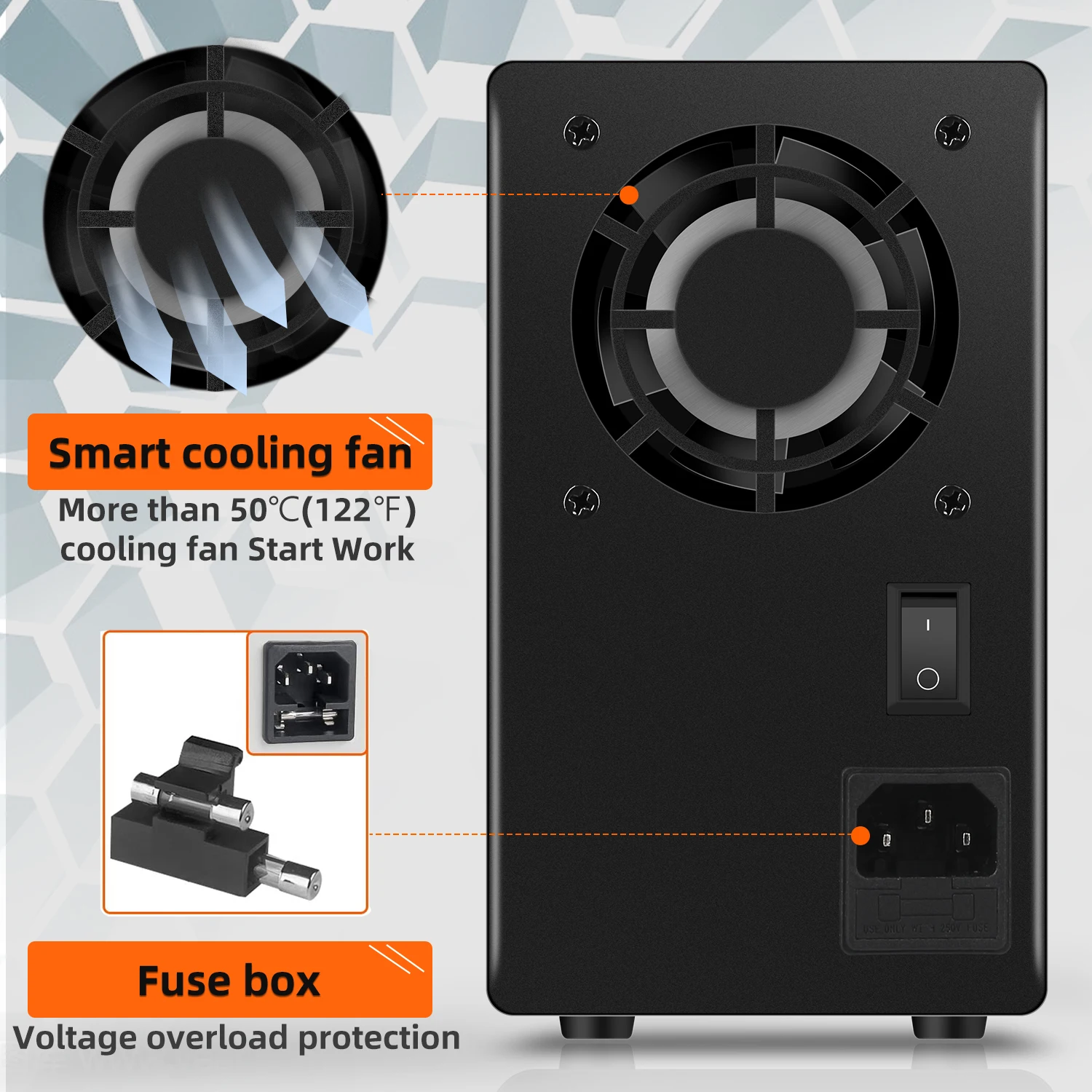

6.Temperature control fan heat dissipation, low noise

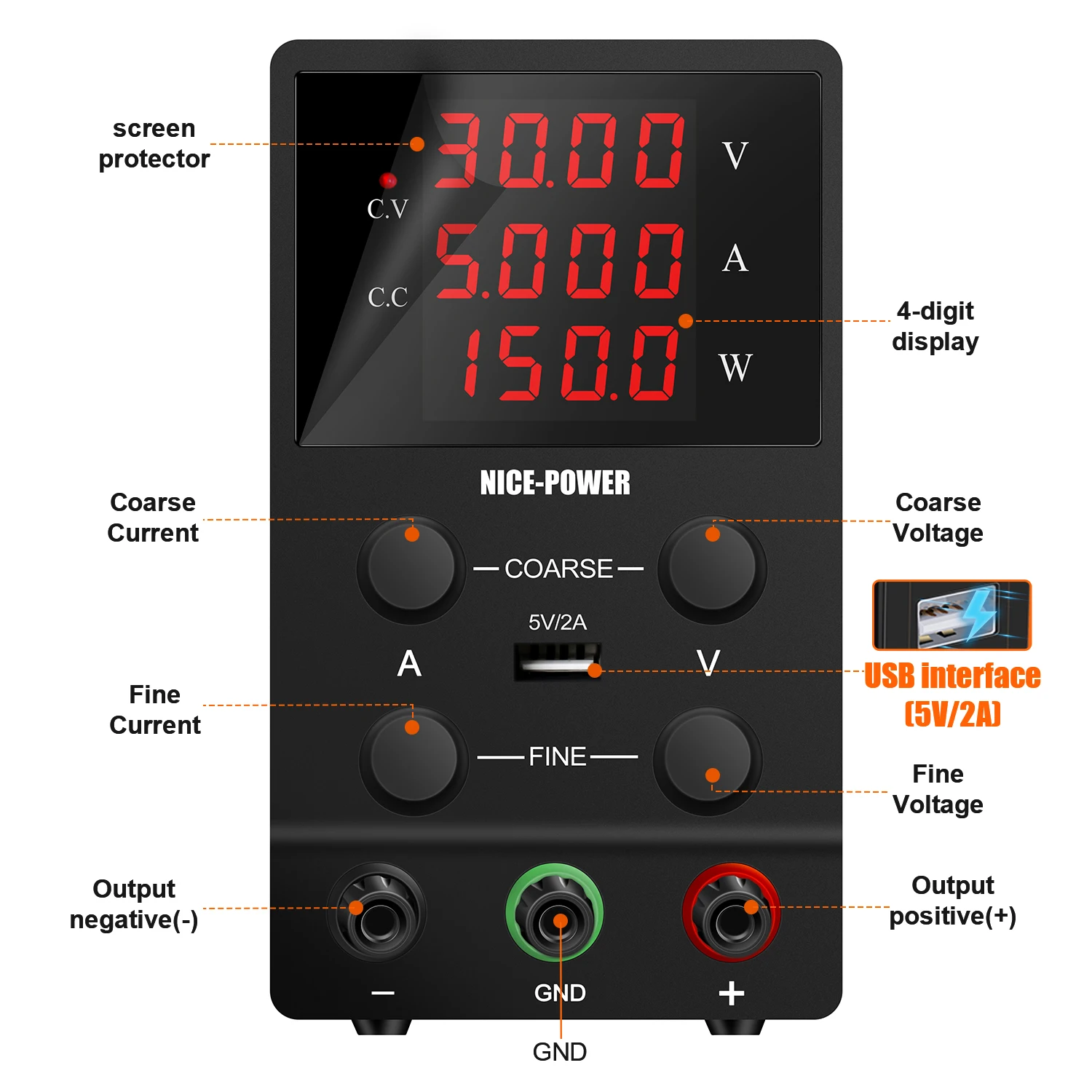

7.Double potentiometer more precise adjustment
More Parameters
Input voltage:AC 220V 50Hz / AC 110V 60Hz
Output voltage:0 ~ 30V
Output current:0 ~ 5A
Voltage resolution:0.01V
Current resolution:0.001A
Output Voltage ranges from 0 to 30V with continuous adjustment .
Output Current ranges from 0 to 5A with continuous adjustment .
Voltage regulation : Line regulation<5mV. Load regulation<5mV.
Recovery time<500us(50% Load change, minimum load 0.5A)
Ripple & Noise<5m Vrms, 100m Vp-p
Temperature coefficient<100p pm/C.
Output current ranges from 0 to rating current with continuous adjustment
Current regulation line regulation<3mA. load regulation<3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
2.Highly efficient, low ripple, small volume, light weight
3.Double display voltage, current, and high precision
4.Voltage stabilization, current limiting, simple operation
5.Dual voltage input and convenient choice
6.Temperature control fan heat dissipation, low noise
7.Double potentiometer more precise adjustment
More Parameters
Input voltage:AC 220V 50Hz / AC 110V 60Hz
Output voltage:0 ~ 30V
Output current:0 ~ 5A
Voltage resolution:0.01V
Current resolution:0.001A
Output Voltage ranges from 0 to 30V with continuous adjustment .
Output Current ranges from 0 to 5A with continuous adjustment .
Voltage regulation : Line regulation<5mV. Load regulation<5mV.
Recovery time<500us(50% Load change, minimum load 0.5A)
Ripple & Noise<5m Vrms, 100m Vp-p
Temperature coefficient<100p pm/C.
Output current ranges from 0 to rating current with continuous adjustment
Current regulation line regulation<3mA. load regulation<3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
Brand | NICE-POWER |
Model | SPS305 |
voltage | 30V |
current | 5A |
Details Images
Our Services
