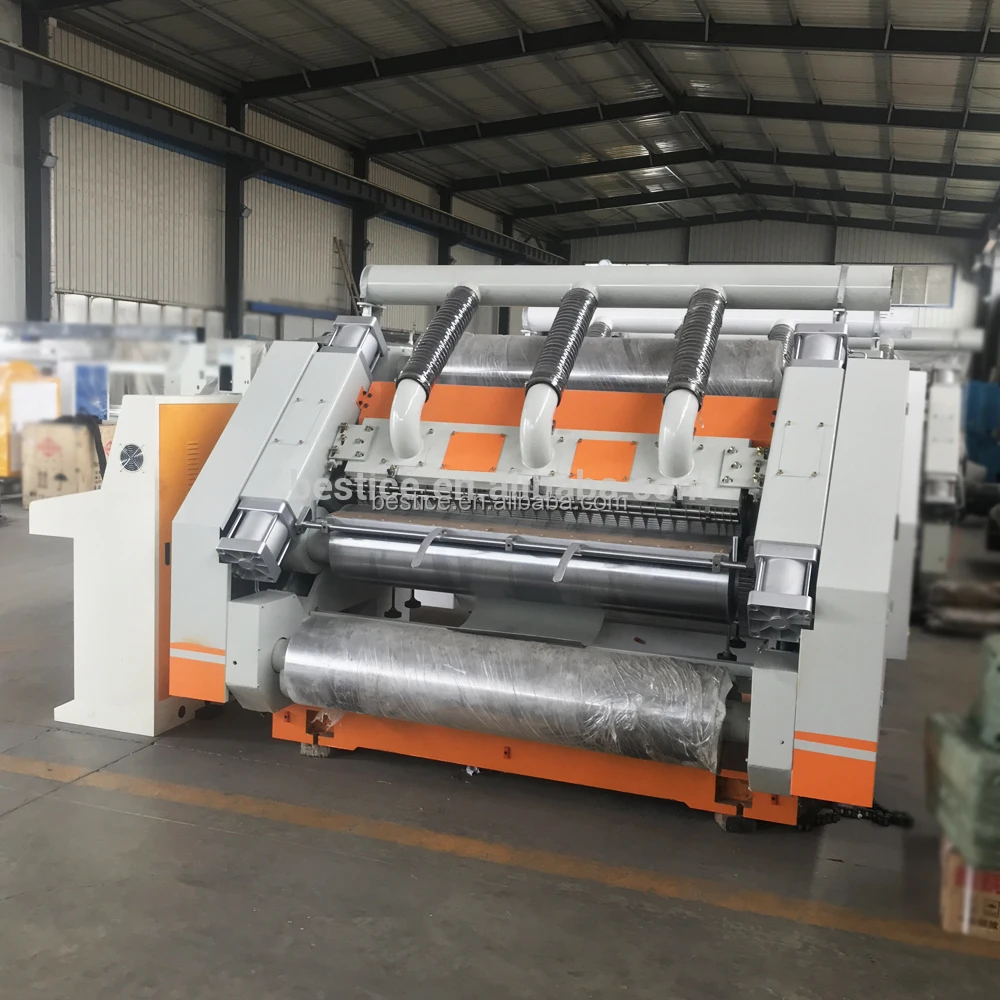

2 слойный гофрируемый картон Производственная линия с одиночными шопкинами для производства гофрированного картона

2 ply corrugated cardboard production line single face corrugated paperboard production line

Features:

1. Paper feeding way is vacuum suction way and perfect flute formation in high speed production.


2. Available width: 1400 mm,1600 mm,1800 mm,2000 mm,2200mm,2500mm.


3. Flute type: A, C, B, E, F, UV


4. Corrugated roller:φ280-φ320mm-φ360mm

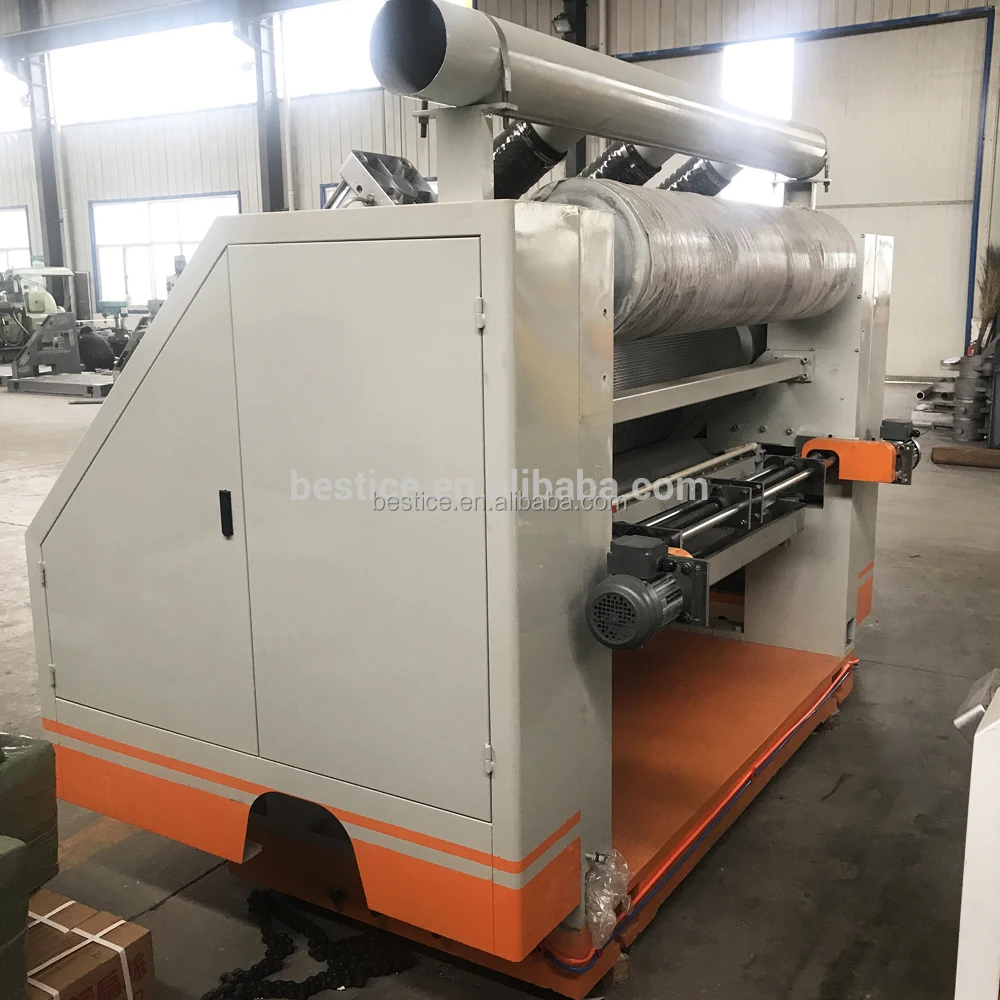

5. Drive using universal joints, isolate the vibration source which make transmission more stable, reliable.


6. Driven gearbox adopts immersion oil lubrication, reduce noise, universal joint transmission. Separate structure is independent control and transmission more stable.


7. The glue coating part adopt automatic circulating glue feeding way (manual or electrical isolation device)


8. Pneumatic control to adjust the glue feeding and adjust gluing capacity electrically or manually; the glue parts running separately while the main motor stopped, prevent paste from drying up.

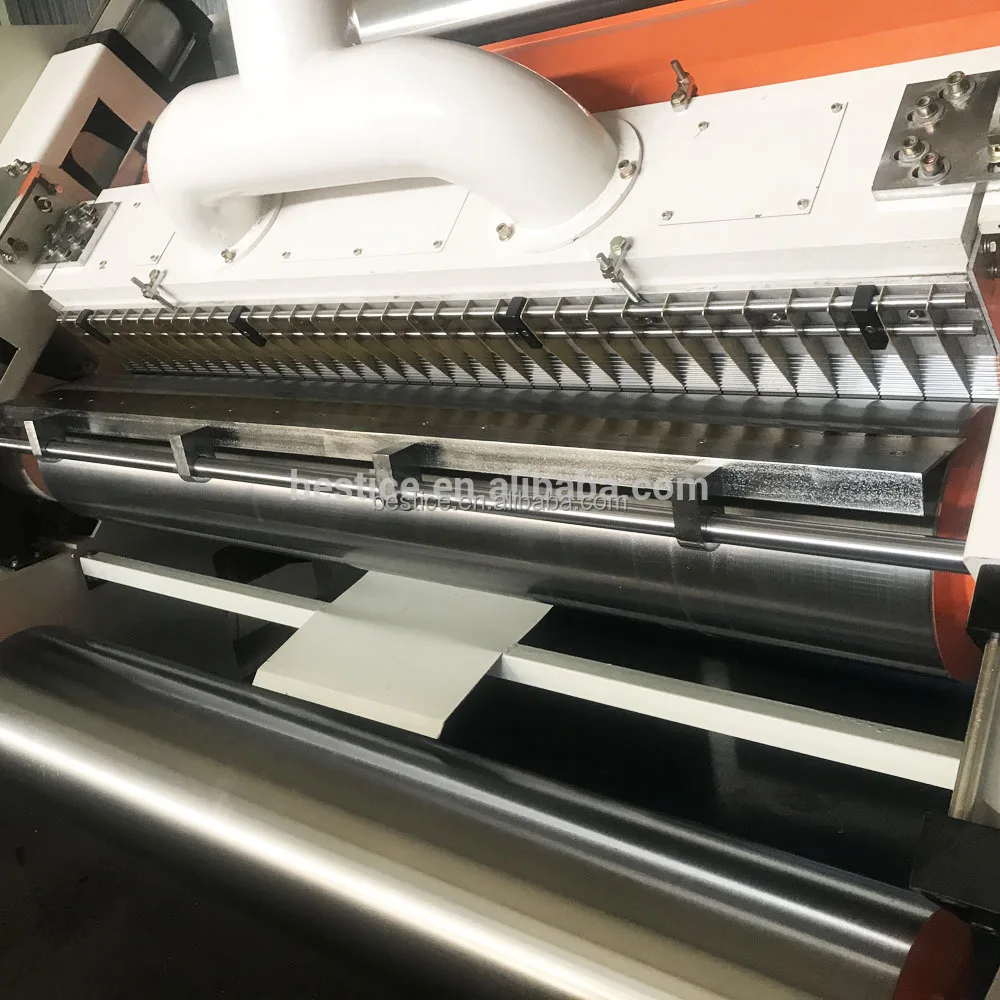

9. The gap between glue roller and absorption corrugated roller is precision measurement, electric adjustment, and automatic adjustment according to the machine speed.


10. The glue part can drive alone which easy for maintenance and clean.

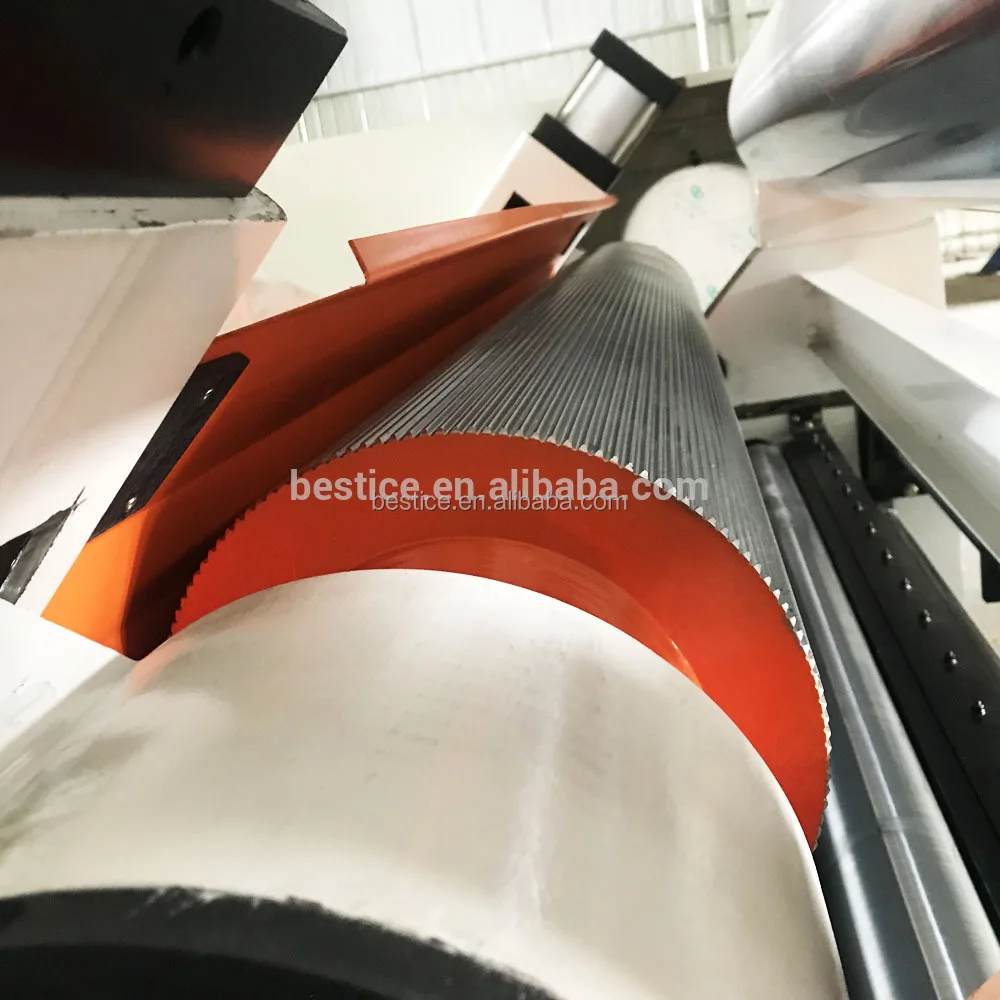

11. The corrugated roller materials 50CrMo alloy, Hardness can reach more than HRC60 which ensures good  wear-resistance and long life service.


12. The up and down movement for upper and lower corrugated rollers, pressure roller and glue roller are   controlled by cylinder.

Parameters:

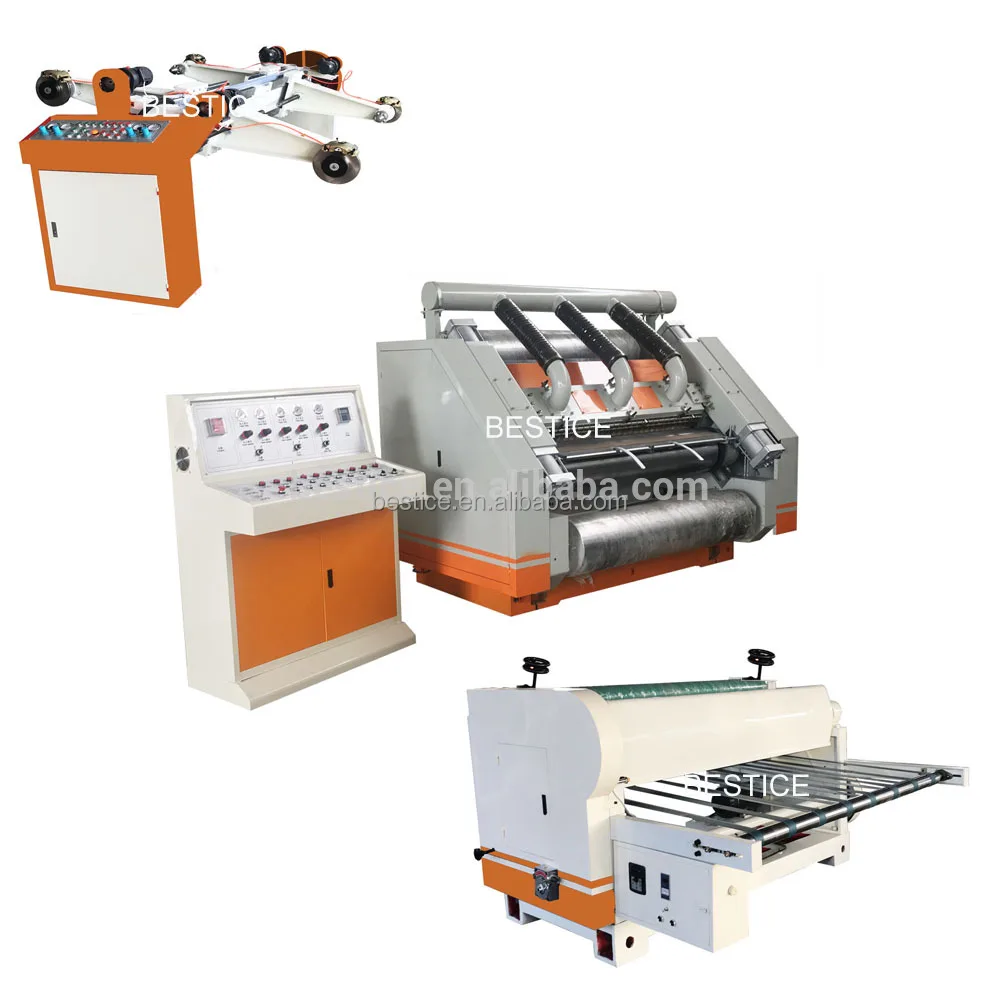

The production line for currogating sheet include 3 machines, roll stand, single facer and sheet cutter.

2-ply corrugated sheet

Pre-sales

Bestice Machinery understand how important it is for our customers to choose the appropriate and cost-effective products. We are ready to help select and solutions. Please tell us what you need, we will identify the most suitable for you.

On sale

For all your request, we will supply best suggestion and solution on time. Any time, you have any query, please feel free to contact us. You could contact us by e-mail, or by Skype, Whatsup, or Wechat and QQ.

Welcome you to visit our factory to check the machine. We will pick you up from airport or train station.

After-sale service

Problems, assembly or operation? Please tell us. we will send you the relevant user manuals or instructions immediately to you. We have video guidance or instructions as well. If all these are not working, please feel free to contact us directly. Send us an email or by Skype, Whatsup, Wechat, or QQ.

QC

All our machine will be tested by our QC department before shipping, to ensure every machine will work well after they reach you. The QC is through all production, from raw materials, processing, assembling, finished machine testing.

Warranty

The machine guarantee is 1 year and within 12 months, if any spare parts damaged ( not broken by person ), we will offer the spare parts freely. But the buyer shall afford the courier charge. The electrical components, the loss by nature and artificial damage created by unprofessional operation, not in maintenance scope.

OEM

All products are available on request, with or without logo.If you need OEM service with your own logo or products, please let us know. If you have any other specific requirements, please do not hesitate to contact us

1) Can I custom this machine?

     Yes, optional parts can be chosen if you need, COST EXTRA. Such as safety cover,handheld operator,cutting supporter and auto grinding system.
2) Does your packing safe?

    Of course. Our packing is export standard wooden case suitable for long time ocean shipping
3) What is your payment terms?

    30% T/T as deposit and 70% payment before shipment, or 100% irrevocable L/C at sight, or usance L/C
4) What is your delivery?

    About 20-45 wording days after deposit.
5) Can I get guarantee?

    Yes, of course. We supply 1 year guarantee for all machines.

We coopreate with the customers worldwide, America, Japan, india, Pakistan, Bangladesh, Uzbekistan, Middle east, South America, Africa, ect .Following pictures are all took at customer factory.

Hebei Bestice Machinery factory was established in 1998. We are professional in designing and manufacturing carton making machineries applicable for various size of carton box, slitter and rewinder machineries applicable to various type of tapes, papers, films.
Our main products: printing slotting and die cutting machine, automatic laminator, carton stitching machine, single facer, sheet cutter, thin blade creasing and cutting machine, log slitter, log rewinder, slitter and rewinder etc.
All our machines are heavy duty construction and built by high quality components for reliability and long life service, providing and excellent return for your capital investment. We already cooperated with customers from America, Japan, India, Russia, South Asia, Middle East, Africa, etc.
