Стальная конструкция сборная Ферма для строительства коров/овец/крупного рогатого скота/молочных
- Категория: Steel Structures >>>
- Поставщик: Hebei,Sichuang,Steel,Structure,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 24.33 $* | 24.3 $* |
| Jul-15-2025 | 20.84 $* | 20.58 $* |
| Jun-15-2025 | 24.52 $* | 24.55 $* |
| May-15-2025 | 24.61 $* | 24.39 $* |
| Apr-15-2025 | 19.93 $* | 19.31 $* |
| Mar-15-2025 | 23.28 $* | 23.50 $* |
| Feb-15-2025 | 23.73 $* | 23.81 $* |
| Jan-15-2025 | 23.17 $* | 23.42 $* |
Характеристики
* Steel Structure Warehouse Building
* Steel Structure Workshop Building
* Pre-engineered Building
* Multi-story Steel Building
* Prefabricated Steel Poultry House
* Prefab Steel Carport & Garage
* Steel Material Supply
About us
1) Founded for 15 years in steel structure field
2) 3000 square meters workshop
3) Product range: H-shaped structure, round pipe structure, box structure, cross structure, pipe truss structure, prefabricated buildings, various types of composite steel plates, rock wool boards, etc.
4) Usage of products: industrial plants, storage shed, garage，poultry house，livestock shed，commercial and residential real estate, exhibition centers, Large industrial and civil buildings.
5) Our advantages: stable and durable quality, safe use, earthquake resistance, energy saving and environmental protection, fast installation, beautiful appearance, etc.
1) Founded for 15 years in steel structure field
2) 3000 square meters workshop
3) Product range: H-shaped structure, round pipe structure, box structure, cross structure, pipe truss structure, prefabricated buildings, various types of composite steel plates, rock wool boards, etc.
4) Usage of products: industrial plants, storage shed, garage，poultry house，livestock shed，commercial and residential real estate, exhibition centers, Large industrial and civil buildings.
5) Our advantages: stable and durable quality, safe use, earthquake resistance, energy saving and environmental protection, fast installation, beautiful appearance, etc.
Our Products

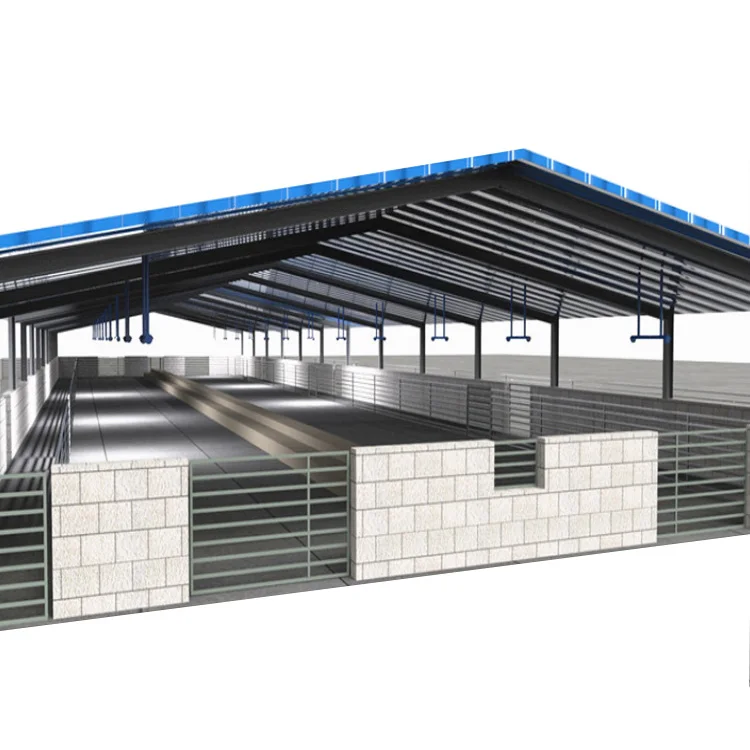

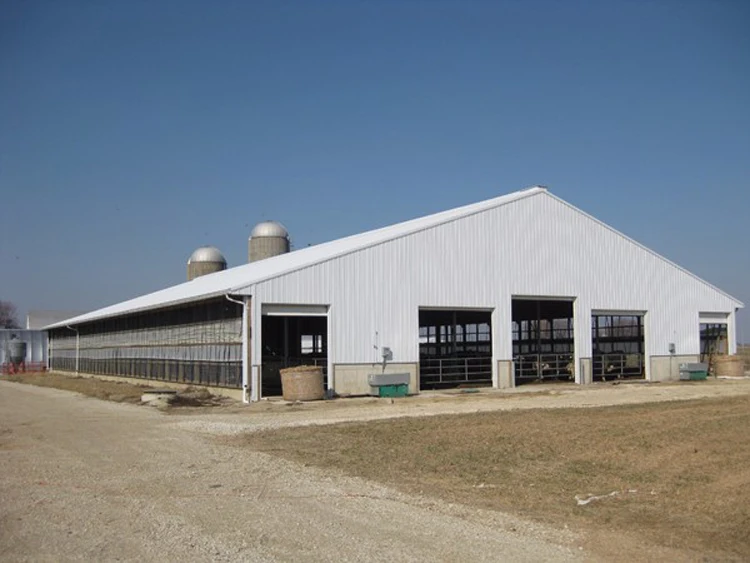

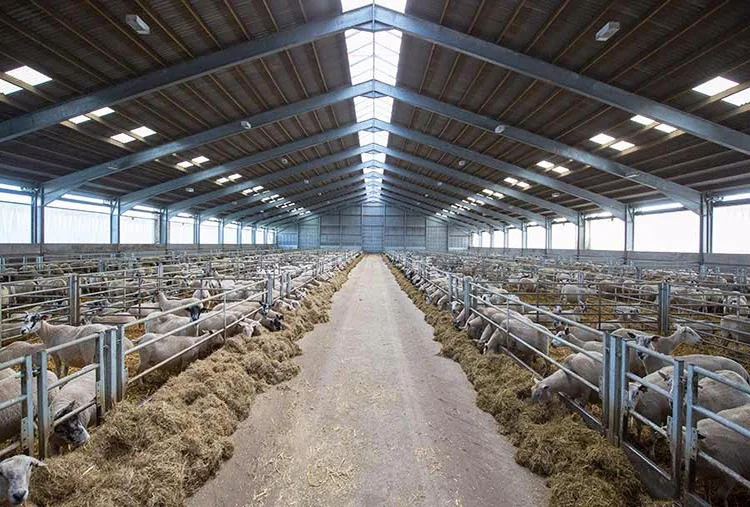

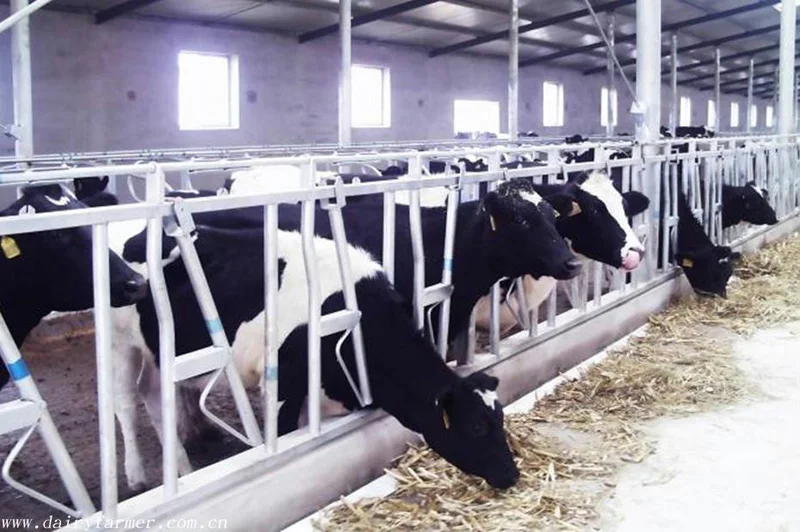

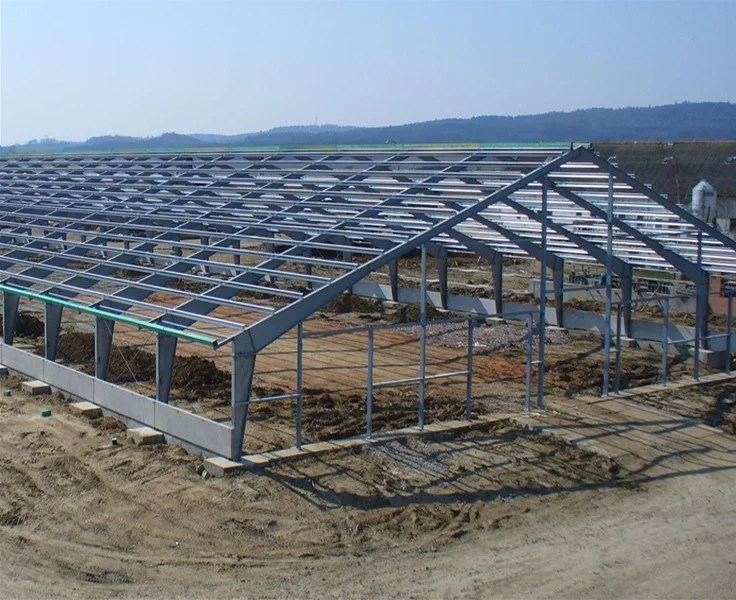

Prefabricated steel structure cow/cattle/pig/sheep/goat shed use the high quality steel structure for the framework,steel sheet or sandwich panel for the wall/roof, this shed protects the animals from storm and rain.cold and warm, the shed can be small or large, we can customize the shed as per clients' requirements.
Open style cattle shed usually has one wall, three side is open,even four side is open.It just use steel column or steel frame to
build as a cattle shed.This kind of cattle shed, the design is very simple, low cost, and good day lighting and ventilation , but heat preservation is poor, so apply to the area with high temperature all year round.
semi-open style has three walls,one side is open.This kind of cattle shed is suitable for areas that are not too cold in winter.
Close style cattle shed has whole wall and roof, some windows on wall for lighting, skylights on the roof or Windows on the wall
are for ventilation.
In cold climates, it is very important to keep warm in the cow shed. so close style cattle shed is a best choose
The advantage of pig shed Buildings
(Used in our Durable pig shed Buildings)
1. The tensile strength of steel is much more times greater than concrete.
2. Steel is also ductile in nature.
3. Steel has also the high strength to weight ratio as compared to concrete.
4. Steel structures are also preferred when time span is small. Construction rate is very fast.
5. Steel bars are also reusable.
6. Steel structures can be extended in any direction.
7. Steel has smaller columns as compared to concrete columns, so do to this more space will be available for some other functions.
8. As steel structures are lighter then concrete, therefore there is less cost used and foundation of structure become less expensive.
(Used in our Durable pig shed Buildings)
1. The tensile strength of steel is much more times greater than concrete.
2. Steel is also ductile in nature.
3. Steel has also the high strength to weight ratio as compared to concrete.
4. Steel structures are also preferred when time span is small. Construction rate is very fast.
5. Steel bars are also reusable.
6. Steel structures can be extended in any direction.
7. Steel has smaller columns as compared to concrete columns, so do to this more space will be available for some other functions.
8. As steel structures are lighter then concrete, therefore there is less cost used and foundation of structure become less expensive.
9. Steel structures are cost-effective
Products Description
Product Name | Steel structure prefab farm building cow/sheep/cattle/dairy/goat house farm sheds Piggery | ||
Main Steel Frame | Column | Q235, Q345 Welded H Section Steel | |
Beam | Q235, Q345 Welded H Section Steel | ||
Secondary Frame | Purlin | Q235 C and Z purlin | |
Knee brace | Q235 Angle Steel | ||
Tie Rod | Q235 Circular Steel Pipe | ||
Brace | Q235 Round Bar | ||
Vertical&Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | ||
Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel /Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet | ||
Wall Panel | Sandwich Panel / Corrugated Steel Sheet | ||
Accessories | Window | Aluminum Alloy Window / PVC Window / Sandwich Panel Window | |
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | ||
Rainspout | PVC | ||
Live load on Roof | Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
Earthquake-resistance | Earthquake-resistance | 8 Grades | |
Finishing Options | Vast array of colors and textures available | ||
Paint Options | Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | |
Product material

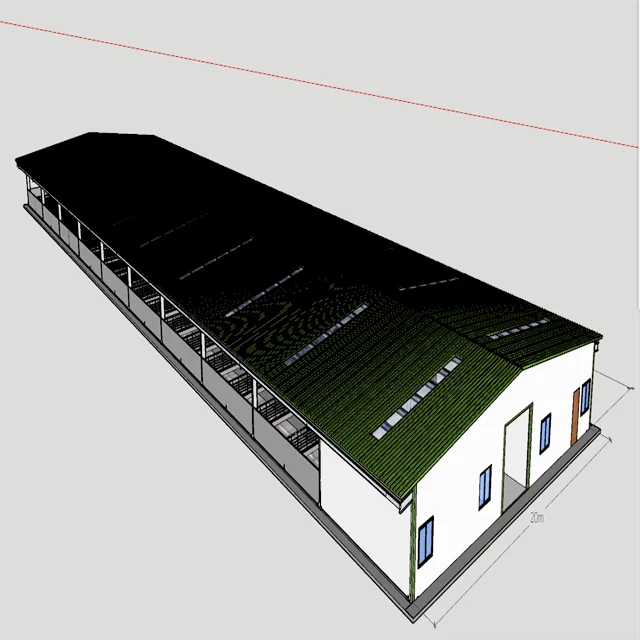

Drawings And Quotations
Our Services
In order to supply the most suitable drawing and best price for you, our design team need to confirm some information with you, as below:
1. Location (where will it be built? ) _____country, city_____
2. Size: Length*width*height _____mm*_____mm*_____mm
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow thickness)_____kn/m2, _____mm
5. Anti-earthquake grade_____
6. Brick wall needed or not. If yes, 1.2m high or 1.5m high?
7. Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quantity & size _____units, _____(width)mm*_____(height)mm
1. Location (where will it be built? ) _____country, city_____
2. Size: Length*width*height _____mm*_____mm*_____mm
3. Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4. Snow load (max. Snow thickness)_____kn/m2, _____mm
5. Anti-earthquake grade_____
6. Brick wall needed or not. If yes, 1.2m high or 1.5m high?
7. Thermal insulation requirement. If yes, EPS/fiberglass wool/rock wool/PU sandwich panels will be suggested; If not, the metal steel sheets will be OK. The cost of the latter will be much lower than the former.
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quantity & size _____units, _____(width)mm*_____(height)mm
FAQ
1. Who are you?
We are based in Hebei, China, start from 2005.We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.
3.What can you buy from us?
Steel structure workshop/warehouse/hangar/garage/barn/shed,prefab house
4. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after
receiving deposit.
5. What services can we provide?
Accepted Payment Type: T/T,L/C;
You can contact us by email(732534530@qq.com), phone:(+8618632871680), Alibaba TM, WhatsApp(+8613785821798) and so on 24*7 and you will get reply within 8 hours.
We are based in Hebei, China, start from 2005.We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.
3.What can you buy from us?
Steel structure workshop/warehouse/hangar/garage/barn/shed,prefab house
4. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after
receiving deposit.
5. What services can we provide?
Accepted Payment Type: T/T,L/C;
You can contact us by email(732534530@qq.com), phone:(+8618632871680), Alibaba TM, WhatsApp(+8613785821798) and so on 24*7 and you will get reply within 8 hours.
