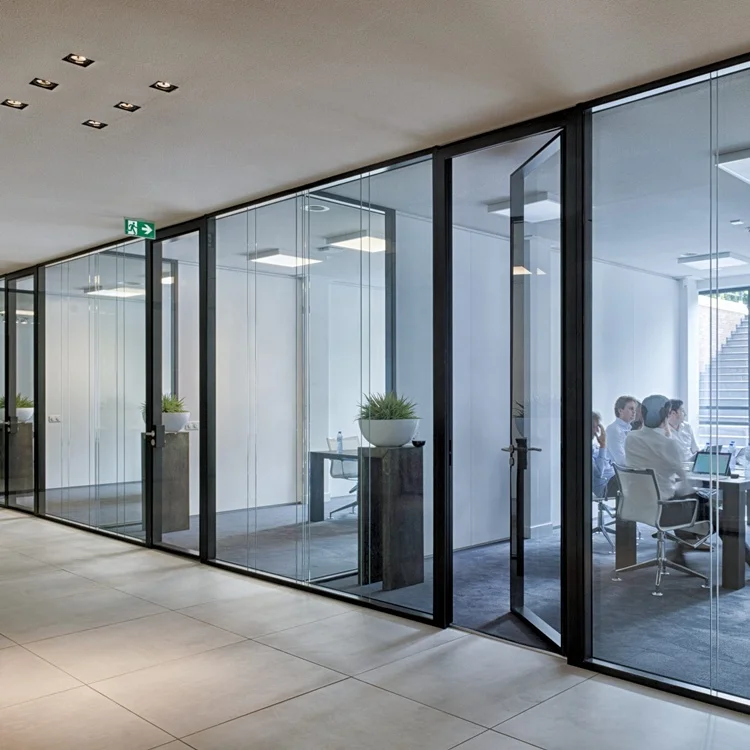

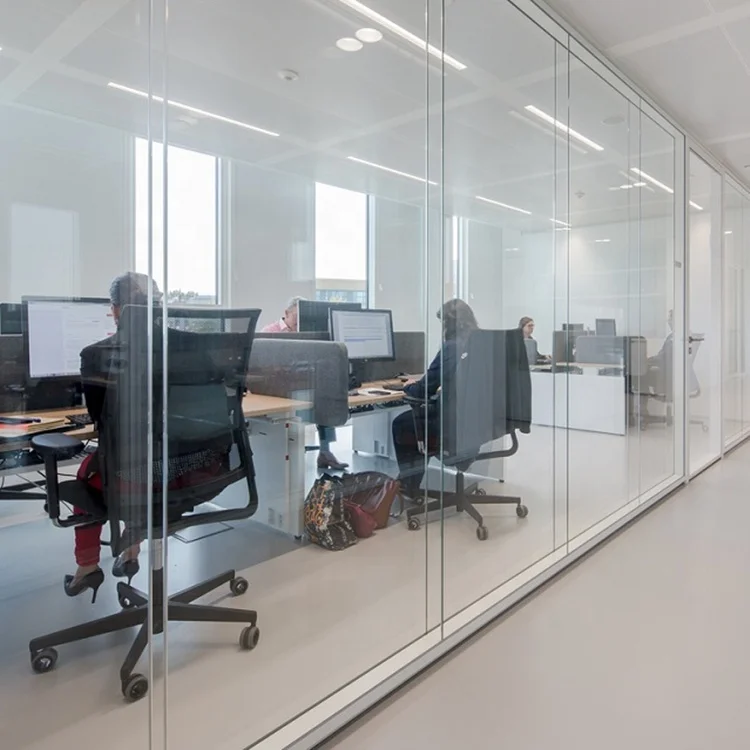

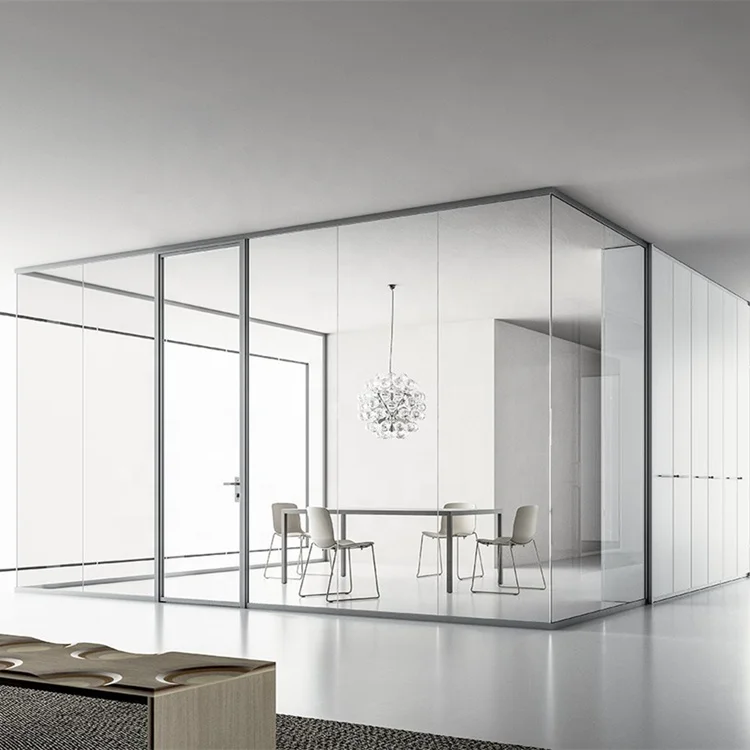

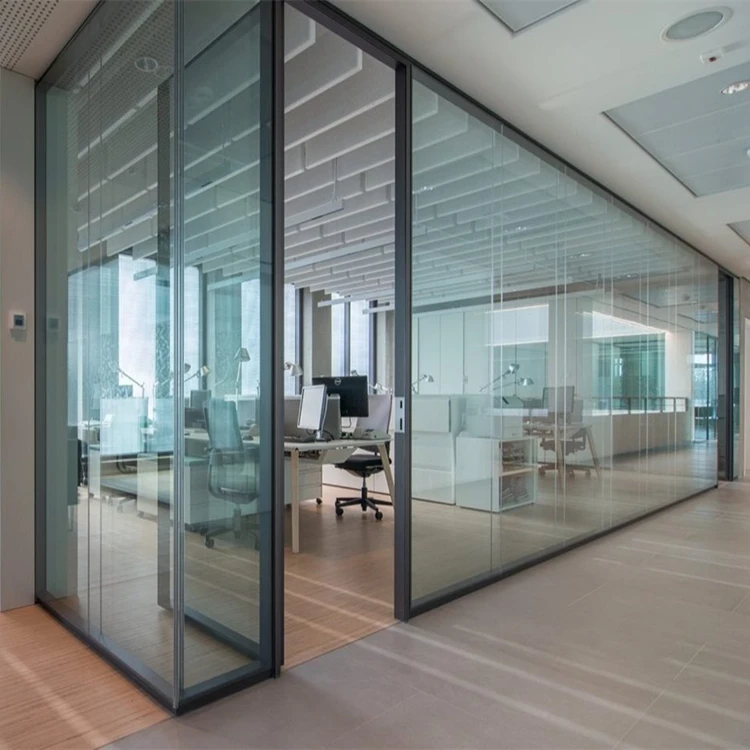

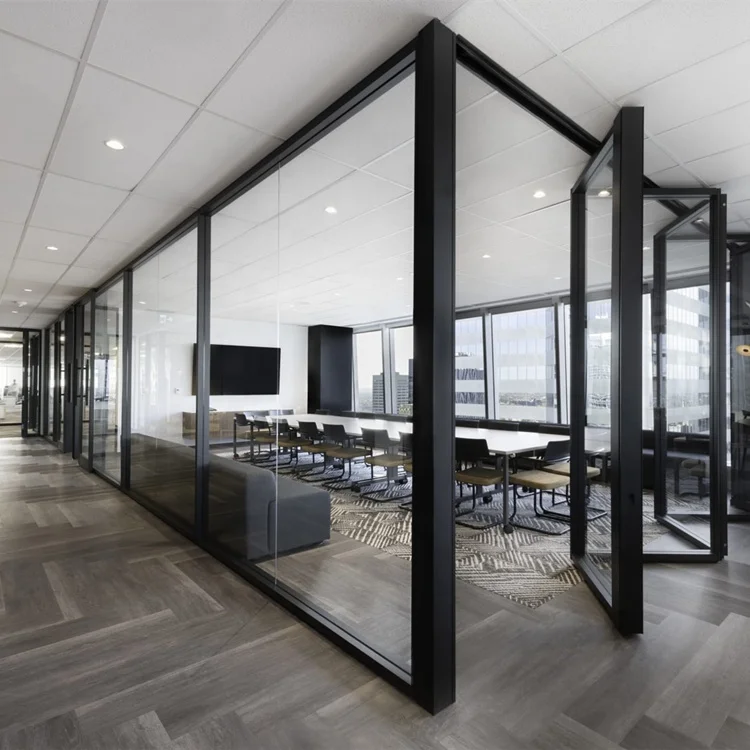

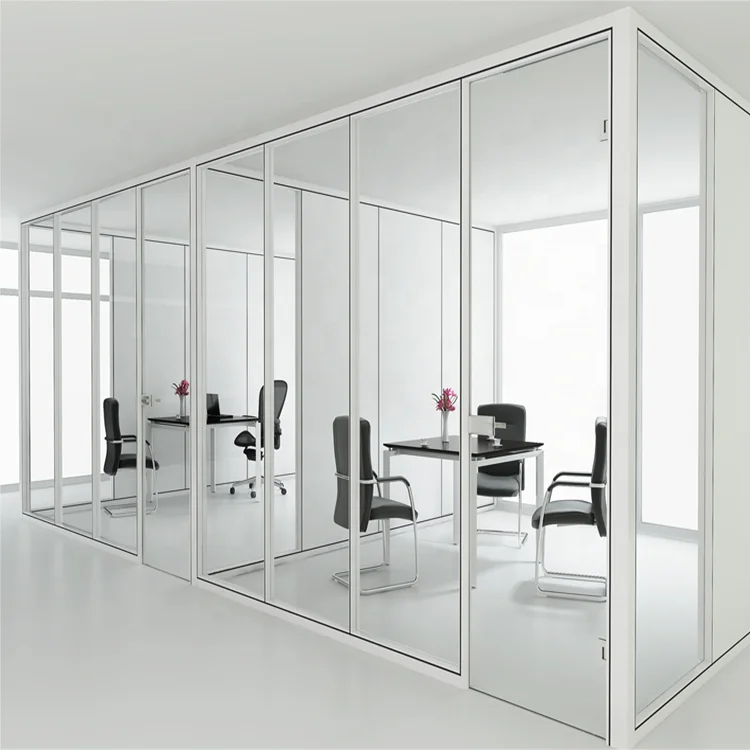

Frameless clear transparent glass partition wall

When the architecture of a building promotes lightness and space and the function of the room requires a minimalist partition solution, frameless series glass partition system provides the answer.



With the glazing held in a perimeter frame with no need for vertical aluminum framing, a transparent and open room is created. Aluminum profiles with powder coated or anodized finishes are serving as horizontal and vertical connections to the building structure, glass and glass joint by special adhesive.



1) Clean lines and visual transparency

2) Flush single or double glazing

3) Frameless structural glazing construction method
4) Glass and glass joint by special adhesive
5) Wall thickness 108 mm, flush with solid wall and door elements
6) Venetian blinds can be centrally integrated in double-glazing cavity
7) Adjustable accessories in base frame for leveling allowance

8) Sound insulation test certificates for glass wall STC up to 48 dB













Design features	Frameless without vertical aluminum profiles
Series	108 series frameless glass partition
Layers	Single/double glass
Glass thickness	12mm
Application	Office and conference room
Panel thickness	108mm
Built-in doors	Single glass and double glazed doors, solid doors
View	Transparent, colored or frosted glass, blinds intergrated between the glass panels
Noise reduction coefficient	STC 48 db
Door Accessories	Electronic lock available





















































FAQ

1. What’s the price for office glass partition?

We calculate the price by square meter , however, it has a variation in price for every single project. Four key factors influence pricing :

1) Material & design Selection;

2) Hardware choice;

3) Partition width & height

4) Acoustic performance requirement.



2. What materials can be selected for office glass partition?

We have different types with single / double glazed or solid panels, glass can be clear tempered glass, frosted glass, painting glass, smart glass etc..Solid materials can be melamine laminate, HPL, Aluminum board, Steel plate.



3. How easy is it to install or remove a office glass partition ?

It’s 100% removable and reusable. All modular parts will be pre-assembled in our factory, what you need to to is follow sequence to fix materials over flooring and under gypsum ceiling . We have detailed installation video from A to Z, we can also provide supervisor in site to install if you need.



4. How do they compare to drywall?

1) Office glass partition systems are more cost-effect

2) Install easier and more faster than drywall.

3) Panels can be removed and reconfigured to fit other areas.

4) Provide the better Sound Transmission Class ratings than drywall.

5) Noble and elegant appearance by various design



5. How do you pack and deliver?

Profile, hardware and glass are packed separately by using paper carton, strong pallet and plywood case. Shipping, courier and airplane are optional according to your budget and timing.
