Счетное устройство для пассажирского датчика автобуса профессиональный счетчик видео с 4g gps Wi-Fi 2
- Категория: Counters >>>
- Поставщик: Chengdu,Huaxin,Zhiyun,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 298.79 $* | 313.25 $* |
| Aug-19-2025 | 295.35 $* | 310.94 $* |
| Jul-19-2025 | 248.80 $* | 260.62 $* |
| Jun-19-2025 | 290.64 $* | 305.26 $* |
| May-19-2025 | 253.12 $* | 266.2 $* |
| Apr-19-2025 | 285.24 $* | 299.71 $* |
| Mar-19-2025 | 283.2 $* | 297.77 $* |
| Feb-19-2025 | 280.32 $* | 294.18 $* |
| Jan-19-2025 | 278.90 $* | 292.78 $* |
Характеристики
WiFi 3D Binocular Passenger People Footfall Counter | ||
Viewing Angle | Horizontal 100°，Vertical 70° | |
Depth map resolution | 640*400@0～3.5m；1280*800@3.5m～6m | |
The output frame rate | 640*400@25fps | |
accuracy | ≥98% | |
Height range | 2.2~6.0m | |
coverage | 1.2~5.5m | |
Filter out highly | 0.5~1.2m | |
power | 3.2W~3.6W | |
The power supply mode | POE（802.3af/at）/DC12V | |
Ethernet cable | 5 classes | |
Networking way | Wired network/Wi-Fi | |
Addressing | Static IP/DHCP | |
Offline caching | 90 days | |
Data uploading method | HTTP POST | |
Working temperature | 0°C~45 °C | |
Working humidity | 20~80 % | |
Storage temperature | -20°C~50 °C | |
Store humidity | 20~80 % | |
Size | 135mm x 65mm x 39.5mm | |
Weight | 300g | |
Installation | Top mounting/hoisting | |
Product features
HX-CCD16 binocular passenger flow
Through binocular stereo vision AI sensor real-time access to 3D depth information, based on the head and shoulder feature algorithm, human tracking algorithm, to achieve accurate passenger flow statistics
Large field of view Angle
Binocular passenger flow statistics equipment has a large field of view Angle of 100° and a wider coverage. According to the different installation height, the coverage range is also different, which can cover 5.5m
WIFI Wireless Connection
Real-time output of passenger flow statistics to meet the needs of real-time collection and monitoring; Support Flash offline storage, do not have to worry about the occurrence of disconnected network; Support static IP and DHCP two modes, flexible deployment
Platform data export
Binocular passenger flow statistics equipment has the edge calculation ability, complete the passenger flow statistics calculation in the local equipment, directly output the passenger flow data, real-time view of the passenger flow data, can export Excel spreadsheet data
Product details
P is the power indicator always on; S is for status light flashing; L is for wired network connection indicator
DC12V power supply; A network interface; Support POE, DC12V power supply, come with WiFi connection and increase 485 communication

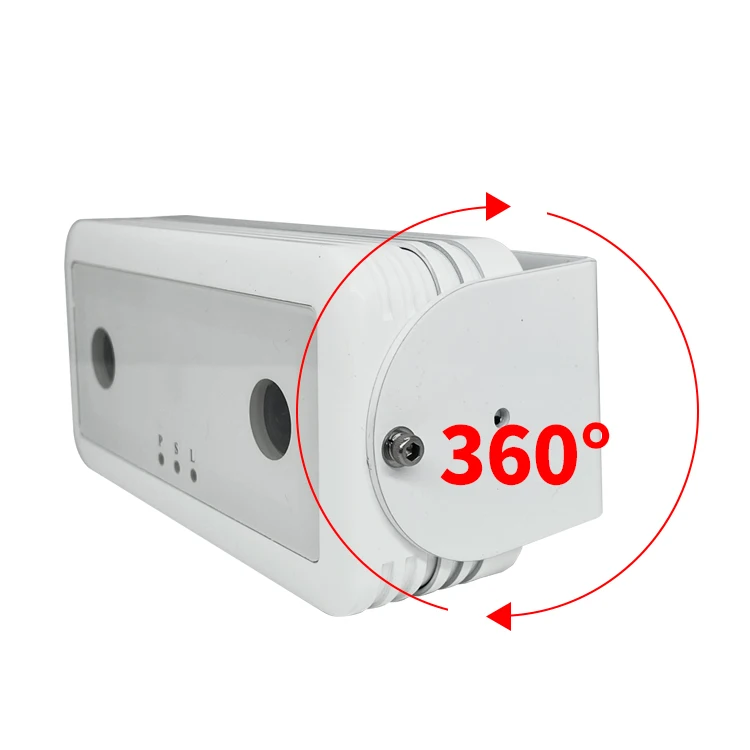

Support ceiling/ceiling installation; The bracket and equipment can be rotated to adjust the Angle
Product analysis

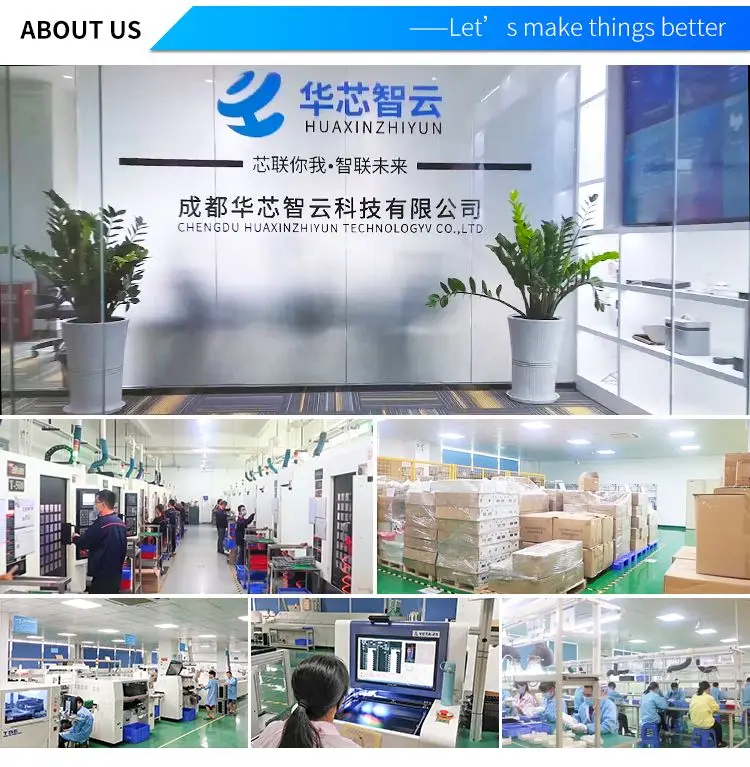

Company Profile
About us
1.Chengdu Huaxin Zhiyun Technology Co., Ltd. founded in 2011 with a history of 10 years.
2.All products passed the newest ce,fcc,rohs certificate.
3.Brand "huaxin", res: to be the most responsible enterprise; to be most professional in thermometer.
Packing&Shipping
FAQ
Can you accept OEM?
Yes, we can customize the products according to your requirements.
What is your term of delivery?
We accept EXW, FOB Shenzhen or FOB Guangzhou. You can choose one which is the most convenient or cost effective for you.
How long is your preparation time?
It would take 3-6days by ganeral express,2-3days by air express 20-30 days by sea.
How long is the warranty?
Each product warranty period is different, you can contact us to negotiate.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us your email so that we will regard you inquiry priority.
Are you trading company or manufacturer?
We are manufacturer for your main product.
