TP энергии распродажа 5BB 158 75*158 75 monocristalline 6 дюймов маленький мини солнечных батарей diy для
- Категория: Solar Cells >>>
- Поставщик: Shenzhen,Topsky,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.50 $* | 0.64 $* |
| Aug-17-2025 | 0.69 $* | 0.62 $* |
| Jul-17-2025 | 0.85 $* | 0.12 $* |
| Jun-17-2025 | 0.4 $* | 0.34 $* |
| May-17-2025 | 0.32 $* | 0.96 $* |
| Apr-17-2025 | 0.26 $* | 0.56 $* |
| Mar-17-2025 | 0.12 $* | 0.74 $* |
| Feb-17-2025 | 0.39 $* | 0.72 $* |
| Jan-17-2025 | 0.57 $* | 0.70 $* |
Характеристики

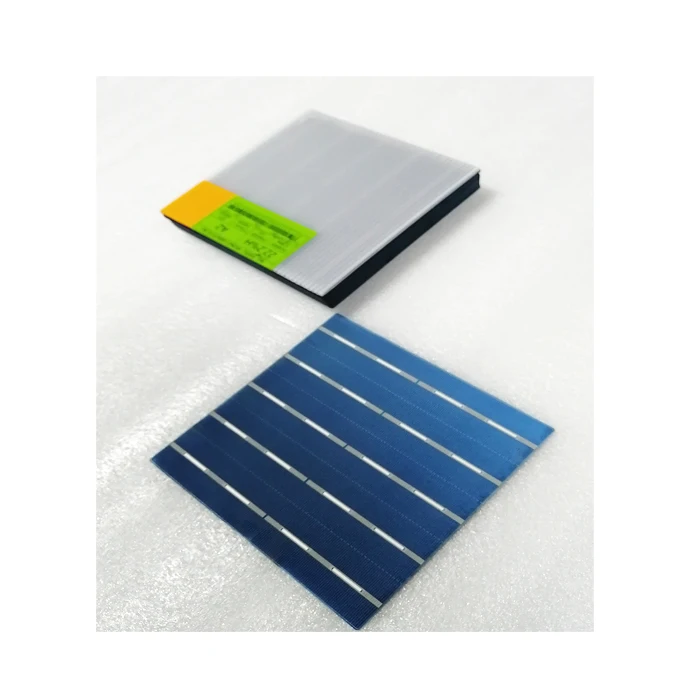

TP Energy sale 5BB 158.75*158.75 monocristalline 6inch small mini solar cells diy for solar panel solar cell

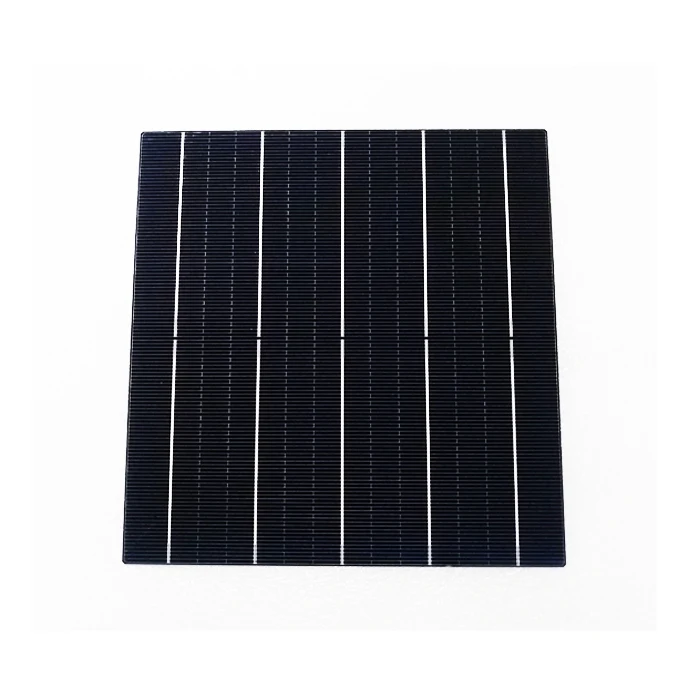

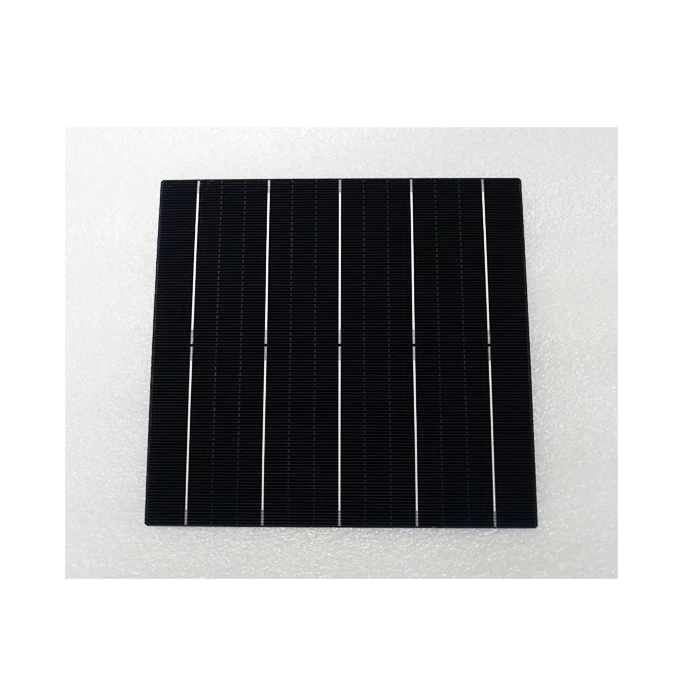

158.75mm*158.75mm square dark G1 type mono solar cell
Product Description
Dark Mono G1 solar cells features:
1.High conversion efficiency with high reliability
2.No light-induced degradation
3.Uniform cell performance with stable process control
4.Low mismatch of cell performance during encapsulation
5.Excellent power generation performance under low irradiation
6.Low hot spot effect
7.Dark blue color with esthetics.
5BB G1 Mono Silicon Solar Cell:
| Dimension | 158.75 mm X 158.75 mm ± 0.25 mm |
| Thickness | 180 µm ± 30 µm |
| Front | 0.7mm bus bars(silver),silicon oxide+blue silicon nitride compound anti-reflection coating(PID Free) |

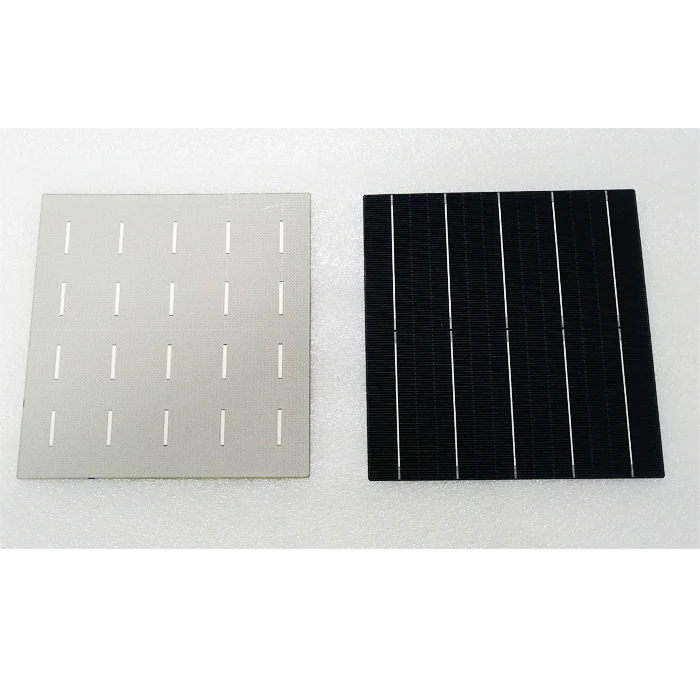

| Back | Segmented electrodes 5*4, width*length: 1.7mm*17.5mm |
158.75mm Square Mono Solar Cells Electrical Characteristics:
| Efficiency(%) | Uoc(V) | Isc(A) | FF(%) | Umpp(V) | Pmpp(W) | Impp(A) |
| 21.4~21.5 | 0.662 | 9.957 | 81.75 | 0.564 | 5.39 | 10.62 |
| 21.5~21.6 | 0.664 | 9.970 | 81.85 | 0.565 | 5.42 | 10.65 |
| 21.6~21.7 | 0.665 | 9.979 | 81.96 | 0.567 | 5.44 | 10.67 |
| 21.7~21.8 | 0.666 | 10.007 | 82.06 | 0.569 | 5.47 | 10.68 |
| 21.8~21.9 | 0.666 | 10.031 | 82.15 | 0.571 | 5.49 | 10.70 |
| 21.9~22.0 | 0.667 | 10.058 | 82.27 | 0.573 | 5.52 | 10.71 |
| 22.0~22.1 | 0.667 | 10.082 | 82.36 | 0.574 | 5.54 | 10.72 |
| 22.1~22.2 | 0.668 | 10.092 | 82.50 | 0.576 | 5.57 | 10.75 |
| 22.2~22.3 | 0.668 | 10.120 | 82.63 | 0.577 | 5.59 | 10.77 |
| 22.3~22.4 | 0.669 | 10.141 | 82.85 | 0.578 | 5.62 | 10.79 |
Photovoltaic cells Quality Control
Packaging & Shipping
>>>>> Solar cell Packaging
Standard Package:
100PCS /120PC Per BOX
12BOXES/CARTON (1200/1400PCS)
24CARTONS/PALLET(28800~33600PCS)
Weight:1.5KG/BOX ; 16.5KG/CARTON
Size of carton:45×30×30CM
Size of pallet:110×120×140CM
Company Information
TOPSKY ENERGY specializes in solar industry for providing solar cells,solar poly panels, solar mono power panels and solar application products and Solar PV system solutions with experience over 10 years.
TOPSKY has set up two sole-funded companies in SHENZHEN ,two operating companies in HONGKONG and one Jointed Venture in JIANGSU province successively since 2005.TOPSKY is able to provide customers with annual capacity of 300MW solar cells,400MW solar panels and 60,000 sets of solar kits.
Main products are as follows:
*125mm 2BB mono solar cell, back-contact sunpower solar cells, 156.75/157mm 3BB/4BB/5BB poly solar cell, 158.75mm/166mm/182mm/210mm monocrystallline solar cells.
*3W-600W standard mono silicon and polycrystalline silicon solar panel, Mono PERC half cells solar panels, Bifacial dual glass panel solar, HJT BIFI glass glass solar energy panels.
*Solar PET/Epoxy resin/Glass panels, small mini solar panels, lightweight flexible solar panel are offered OEM and ODM service as per customers’ request.
*Exclusive channel to get solar cells and solar panels from tier-1 rating brand at pretty more competitive price,they are Risen solar,Trina solar, JA, Longi, Jinko solar, Csun solar, SUN POWER ,URE,MOTECH,QCELLS, SUNTECH, LONGI,BYD, GCL,etc.
TOPSKY always pursues the philosophy of people -oriented and energy-saving as well as cost effectiveness to create long term value for customers.
Our Services
>>>>>Pre sale:
- Our sales representative and engineer work together to answer your questions and offer solution for free
- We choose the best product for you to make sure it worth its real value
- We design the best solution with good perfomance for you,manwhile save every cent of your money.
>>>>>After sale:
We provide 10 years Warranty for the product, 10 years warranty for 90% power production ,25 years warranty for 80% power production.
We Topsky Energy are authorized distributor of Suntech brand panels---one of the most famous tier-1 brand manufacturer in the world. We welcome your any inquiry.
