8 мм 10 12 16 горизонтальный алюминиевый литой стержень для литья под
- Категория: Metal & Metallurgy Machinery >>>
- Поставщик: Luoyang,Judian,Metal,Thermal,Processing,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 34510.66 $* | 36236.61 $* |
| Aug-19-2025 | 34220.66 $* | 35931.48 $* |
| Jul-19-2025 | 28710.76 $* | 30146.12 $* |
| Jun-19-2025 | 33640.32 $* | 35322.94 $* |
| May-19-2025 | 29290.62 $* | 30755.84 $* |
| Apr-19-2025 | 33060.83 $* | 34713.14 $* |
| Mar-19-2025 | 32770.23 $* | 34409.77 $* |
| Feb-19-2025 | 32480.44 $* | 34104.92 $* |
| Jan-19-2025 | 32190.28 $* | 33800.89 $* |
Характеристики
8mm 10mm 12mm 16mm horizontal aluminum sand casting rod pressure die casting
Products Description
1, This equipment is for small dia. aluminum/copper rod/wire continuous casting production line with stable production efficiency.
2, Aluminum rods size: 8-20mm
3, Production capacity: 2-5T/day
5, Advantages: Mini production capacity,easy to operate, Small investment, high profit line
2, Aluminum rods size: 8-20mm
3, Production capacity: 2-5T/day
5, Advantages: Mini production capacity,easy to operate, Small investment, high profit line
Technological Process
Step 1: Aluminum melting furnace
Scrap aluminum cans coil, wire, shell etc material recycling and melting.
Aluminum cans is the best material for material purity.
Aluminum cans is the best material for material purity.
Step 2 : Aluminum liquid temperature holding furnace
Pouring the molten aluminum liquid from melting furnace into temperature holding furnace.
There are casting position on holding furnace,can outlet the liquid and casting as aluminum rods/wire.
There are casting position on holding furnace,can outlet the liquid and casting as aluminum rods/wire.
Step 3 : Tractor
Aluminum rod/wire tractor
Drawing the rod out from temperature holding furnace
Step 4 : Winding Machine

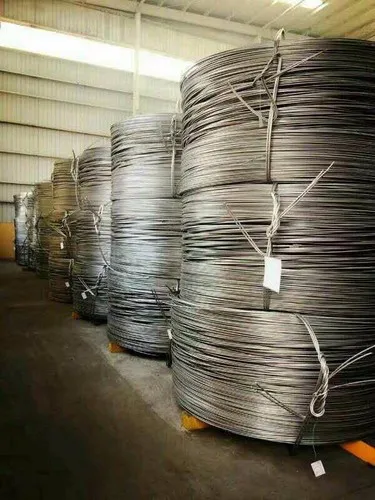

Collecting the aluminum wire into rolls.
If customer required rod as bar this winding machine do not need .
We have strong customizing ability for your project.
Project Site
The main feature is stepless speed regulation, automatic liquid filling, ingot uniform, low labor intensity, the output can be
increased 20%-30% by using this equipment
1, Casting machine main structure: U-steel channel welded steel body, conveyor, speed-adjust motor, reducer, big & small chain wheel & chains, power distribution systems
2, The driving motor is AC speed regulating motor with electromagnetic or variable frequency mode.
increased 20%-30% by using this equipment
1, Casting machine main structure: U-steel channel welded steel body, conveyor, speed-adjust motor, reducer, big & small chain wheel & chains, power distribution systems
2, The driving motor is AC speed regulating motor with electromagnetic or variable frequency mode.
3. Can design by customer requirement
Product Parameters
Technical Parameter of induction melting furnace | ||||||||
Model | MF Power | Input voltage | MF Voltage | Frequency | ||||
0.1T | 80kw | 3ph,380V | 750V | 2500HZ | ||||
0.25T | 180kw | 3ph,380V | 750V | 2000HZ | ||||
0.35T | 200kw | 3ph,380V | 750V | 1500HZ | ||||
0.5T | 400kw | 3ph,380V | 1500V | 1500HZ | ||||
0.75T | 600kw | 3ph,380V | 1500V | 1000HZ | ||||
1T | 700kw | 3ph,660V | 2400V | 800HZ | ||||
1.5T | 800kw | 3ph,660V | 2500V | 600HZ | ||||
2T | 1000kw | 3ph,660V | 2500V | 600HZ | ||||
