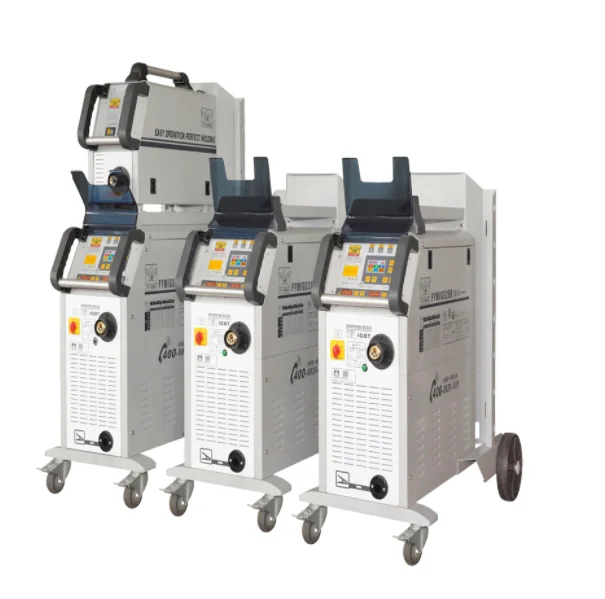

Сварочный аппарат IGBT Inverter MIG/сварочный центр
- Категория: Arc Welders >>>
- Поставщик: Guangzhou,Baohua,Auto,Maintenance,Equipment,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 833.25 $* | 875.81 $* |
| Aug-17-2025 | 826.74 $* | 867.16 $* |
| Jul-17-2025 | 693.1 $* | 728.90 $* |
| Jun-17-2025 | 812.24 $* | 853.83 $* |
| May-17-2025 | 707.72 $* | 742.57 $* |
| Apr-17-2025 | 798.13 $* | 838.38 $* |
| Mar-17-2025 | 791.91 $* | 831.56 $* |
| Feb-17-2025 | 784.35 $* | 823.7 $* |
| Jan-17-2025 | 777.22 $* | 816.85 $* |
Характеристики
Product Description
Description:
With a multifunctional color LCD panel and the most advanced DSP control technology. Intelligently choose steel, stainless steel, aluminum, copper, and nickel car material. The users can store the welding parameters easily and safely.
Specification
Technical parameter | FYMIG5320 | FYMIG5300 | FYMIG5260 | ||
input voltage | 380V | 380V | 380V | ||
rated input power | 11KVA | 11KVA | 11KVA | ||
rated input current | 17A | 15A | 12A | ||
min./max. current/voltage | 35A/15.7V-320A/33V | 35A/15.7V-300A/31V | 35A/15.7V-260A/30V | ||
no load output voltage | 55V | 50V | 50V | ||
efficiency | ≥90% | ≥90% | ≥90% | ||
power factor | ≥0.95 | ≥0.95 | ≥0.95 | ||
insulation grade | F | F | F | ||
frequancy | 60-120KHz | 60-120KHz | 60-120KHz | ||
steel wire diameter | 0.6-1.2mm | 0.6-1.2mm | 0.6-1.2mm | ||
aluminum wire diameter | 0.8-1.2mm | 0.8-1.2mm | 0.8-1.2mm | ||
copper wire diameter | 0.6-1.6mm | 0.6-1.6mm | 0.6-1.6mm | ||

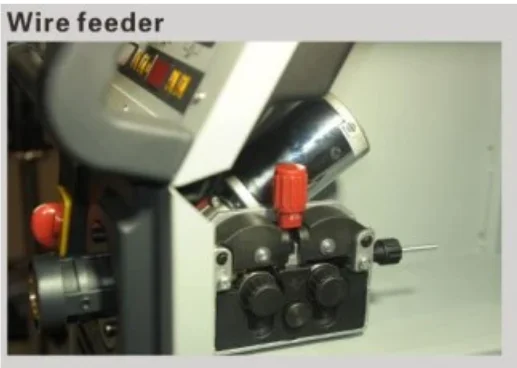

wire feeder | four rool drive | ||||
Accessories
Factory
