High Quality Thunder Lightning Arresyer Duval Messien ESE-6000 Lightning Rods

more than 9 years experience for production ese lightning rod

                                                                                                   more product, please click it



The role of the lightning conductors is to capture lightning to flow it into the ground by down conductors.Duval Messien manufactures and installs lightning conductors of three categories.



Simple rod: with sharp, steel points, derived from earlier designs.They provide protection for small structures.



Early Streamer Emission (ESE): a development of simple rod, but in which the efficiency is enhanced by using a device generated High voltage pulses to create a corona  effect. This reduces meeting time between the upward and the downward leaders and makes designs suitable for much larger structures.Duval  Messien  SATELIT  range  uses  components  from  different technologies. They have a high performance and reliability.



Meshed cage or tight strands: based on the « faraday cage », is composed if necessary of several strike points installed around the building and on its prominent features, at regular intervals. These strike points are connected to one another by meshes done with either, conductor installed on the roof, either with wires suspended above the building.







Product Features

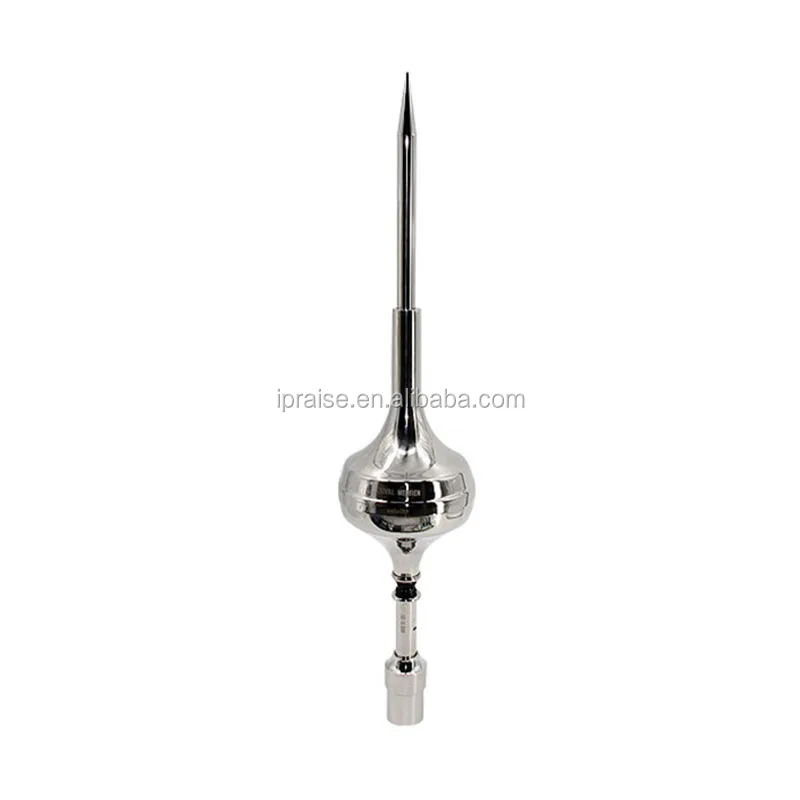

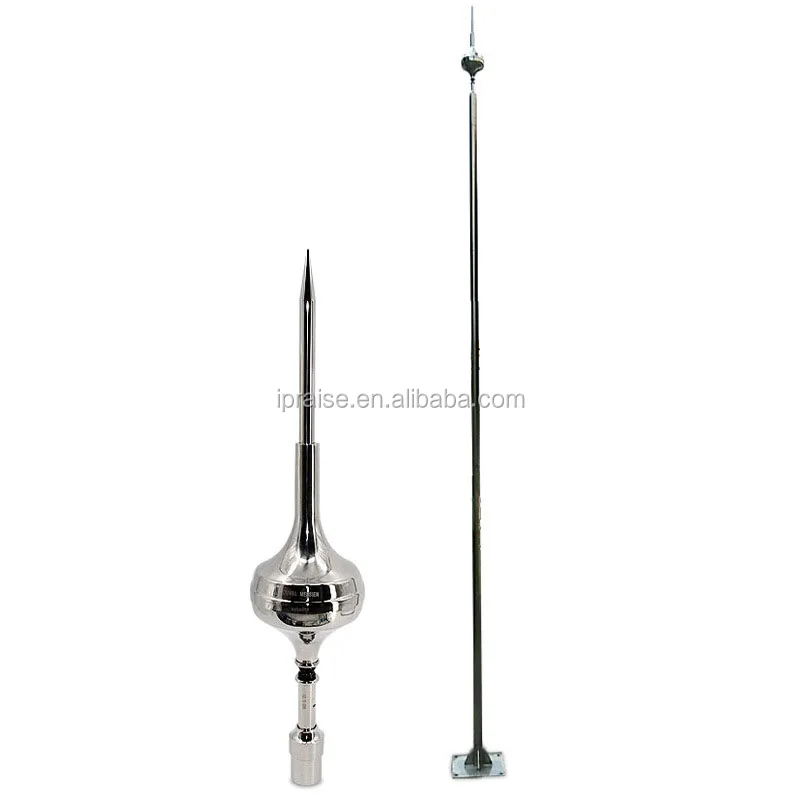

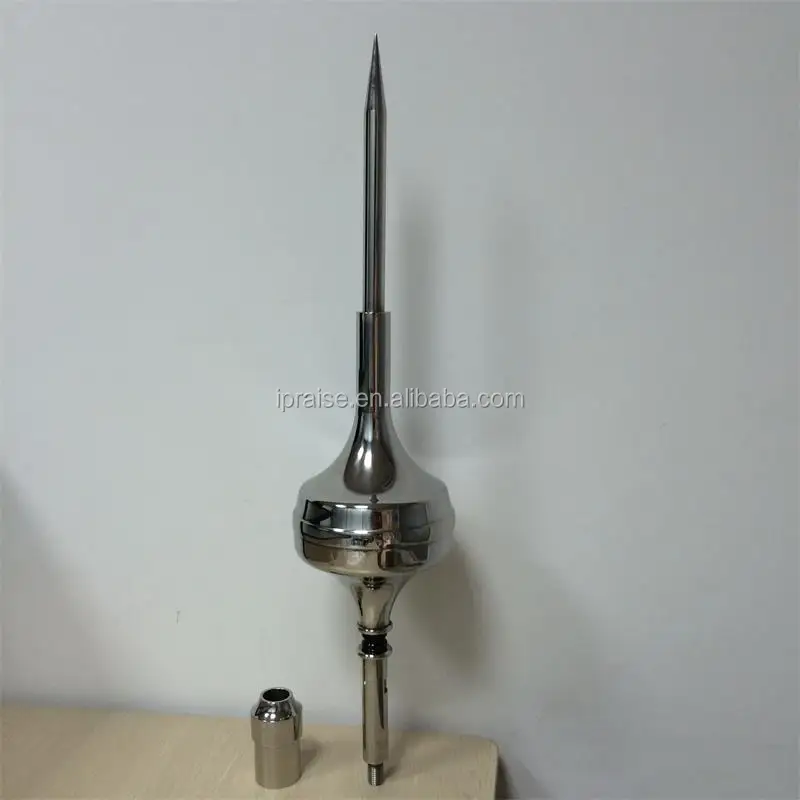

This is kind of  lightning rod are made from stainless steel material, it has different protection area

and various features.



1. Not electron style,life long.

2. Keep the good performance after lightning stroked.

3. Various protection radius.

4. Tracing the lightning in advance and conduction it to the earth completely.

5. It would be activated only have lightning and thunder.

6. Artistic outline.

7. Safety and reliable.

8. Without maintenance.

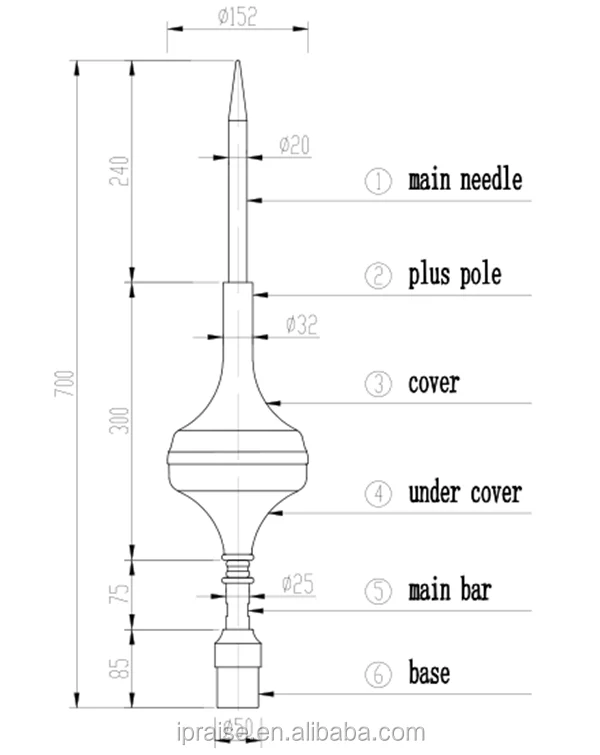

Structure drawing





PROTECTION AREAS (Duval Messien ESE Lightning Rod Arrester)



Reference No.	T(us)
LTDE 2500	25
LTDE 4500	45
LTDE 6000	60





(Duval Messien ESE Lightning Rod Arrester)

PROTECTION RADII RP (m)
Types of SATELIT+ G2	H=height of ESE tip (m)
	2	4	5	7	10	15	20	45	60
Protection Level 1
ESE 2500	17	34	42	43	44	45	45	45	45
ESE 4500	25	51	63	64	64	65	65	65	65
ESE 6000	32	64	79	79	79	80	80	80	80
Protection Level 2
ESE 2500	23	45	57	59	61	63	65	70	70
ESE 4500	32	65	81	82	83	85	86	90	90
ESE 6000	40	75	97	98	99	101	102	105	105
Protection Level 3
ESE 2500	26	52	65	66	69	72	75	84	85
ESE 4500	36	72	89	91	92	95	97	104	105
ESE 6000	44	87	107	108	109	111	113	120	120



Application



It is widely used to wireless communication base station, flammable, explosive goods warehouse,

high rise buildings, University, hospital, civilian, military ships, airport, historic buildings, horse racing, sports grounds, chemicals, rubber, paint manufacturing, radar stations, oil depots, meteorological

stations, gas stations, military bases, mine etc.
