Заводская цена сверхпрочные Алюминиевые экструзионные z-образные зажимы французские
- Категория: Office Binding Supplies >>>
- Поставщик: Anshan,Zhongjda,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.57 $* | 0.96 $* |
| Aug-16-2025 | 0.15 $* | 0.96 $* |
| Jul-16-2025 | 0.65 $* | 0.38 $* |
| Jun-16-2025 | 0.14 $* | 0.27 $* |
| May-16-2025 | 0.19 $* | 0.79 $* |
| Apr-16-2025 | 0.23 $* | 0.62 $* |
| Mar-16-2025 | 0.40 $* | 0.25 $* |
| Feb-16-2025 | 0.76 $* | 0.99 $* |
| Jan-16-2025 | 0.57 $* | 0.7 $* |
Характеристики

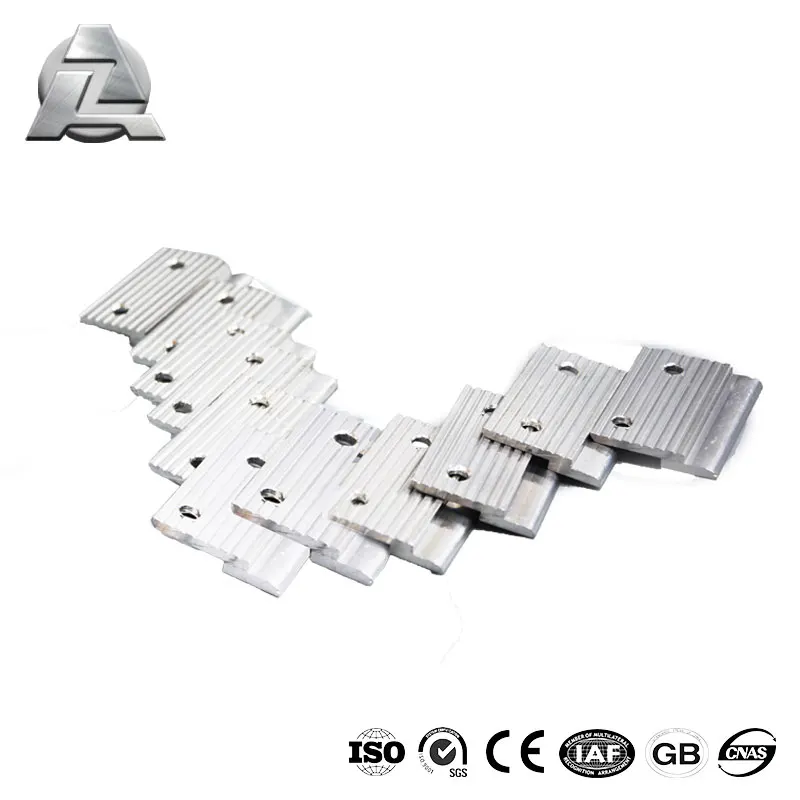

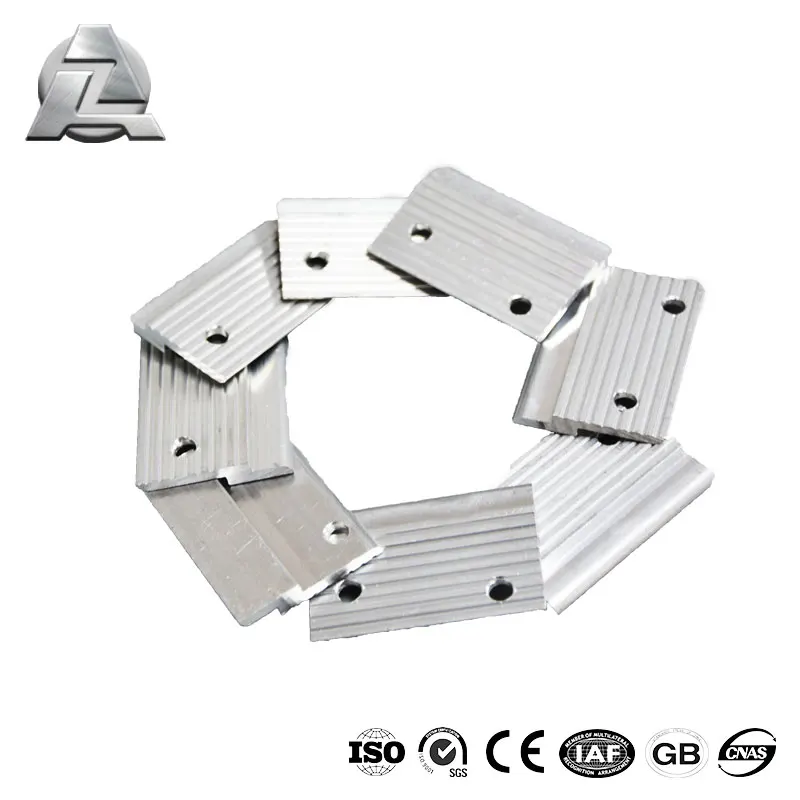

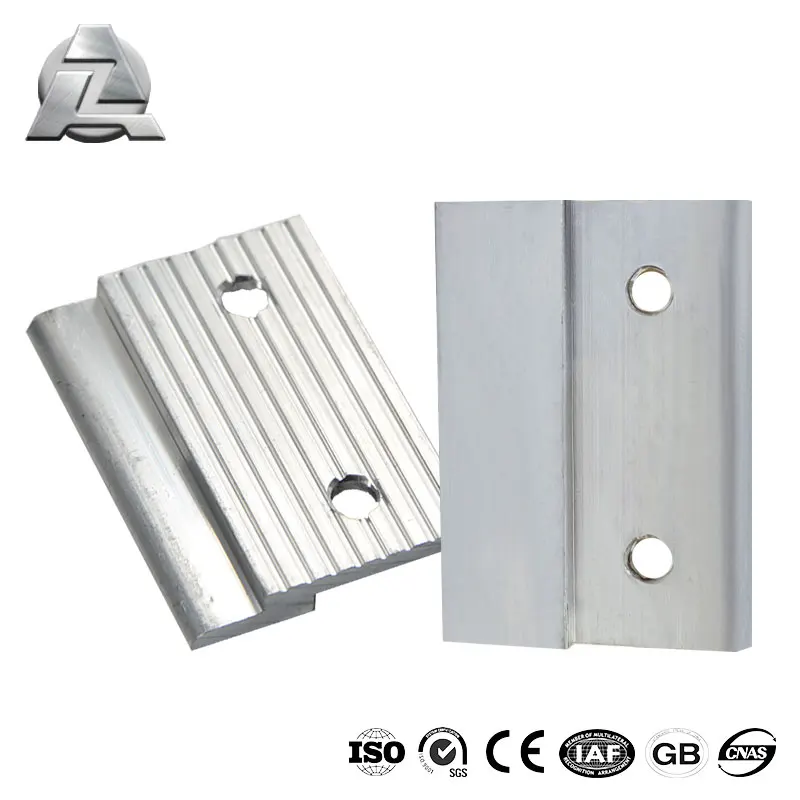

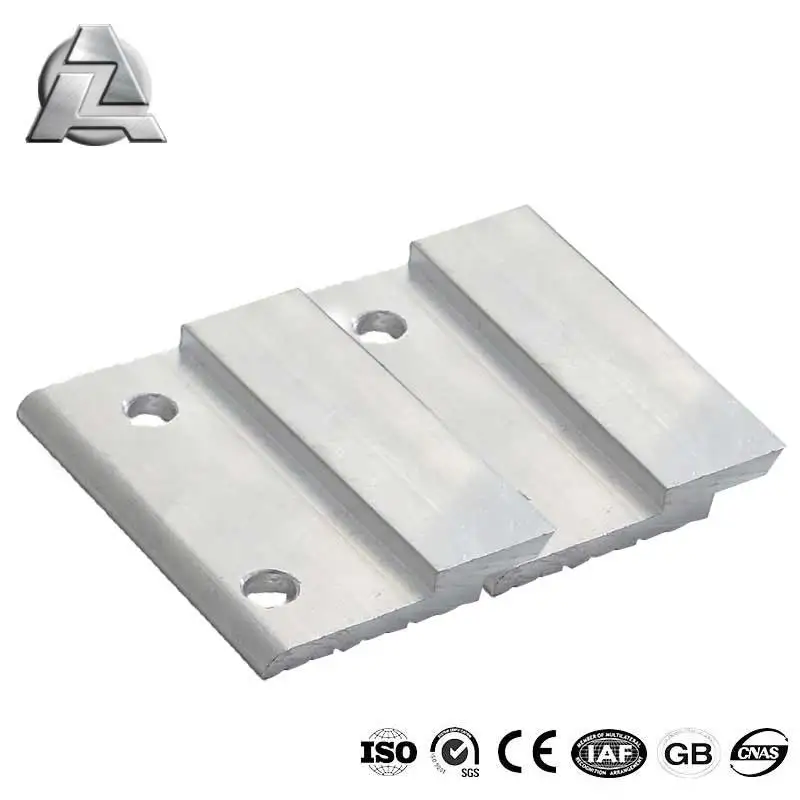

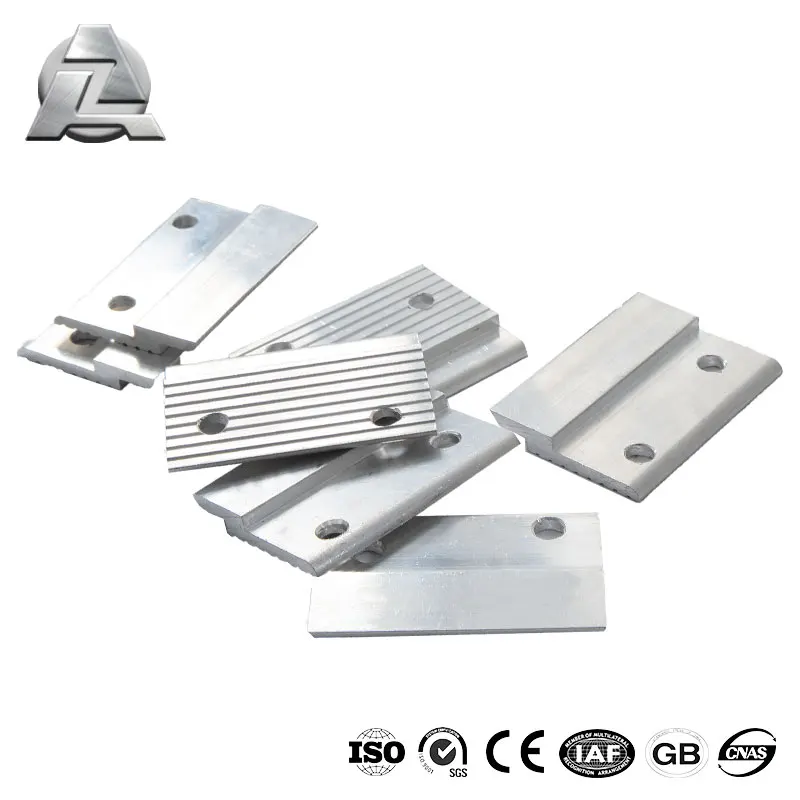

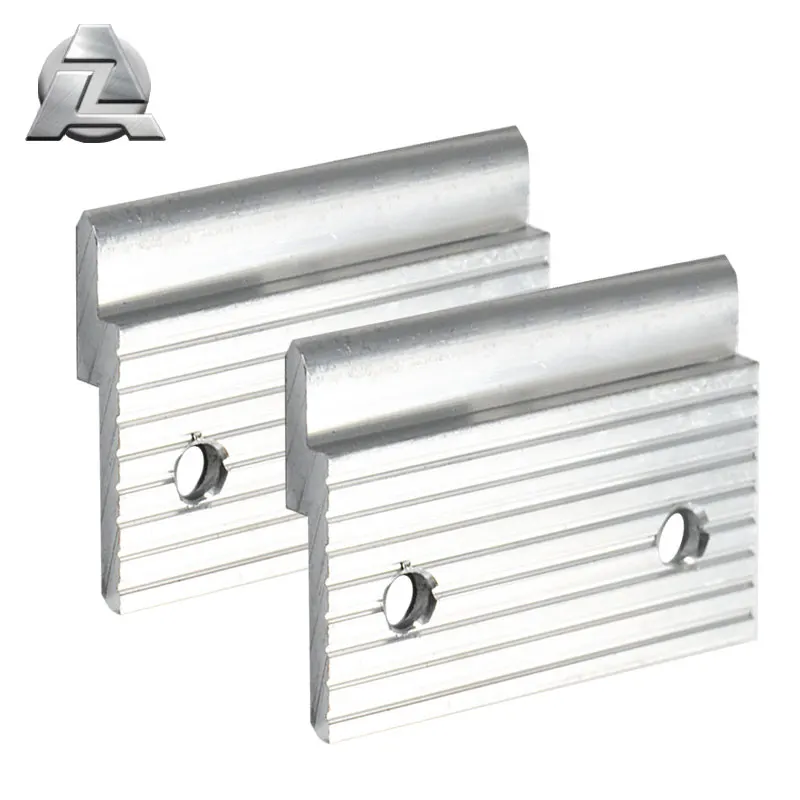

Factory price interlocking heavy duty aluminum extrusion z clip french cleat metal bar clips
aluminum z-clip, with 2 holes. |
Hanging things on the wall has never been easier. Zhongjda Z Clips (aluminum z extrusions) are a fast and cost-effective method to hang, fasten, and secure any kind of wall panel, acoustical panel, partition, frame, cabinet, sign, mirror or piece of artwork. Our specially engineered Zhongjda Z Clips allow for fast mounting and removal. |
To Mount Acoustical Pannel, Signage, Phenolic Panels, Frames, Panel, Cabinet, Art work, Soundproofing, Lightbox, ect. |
Product Applications
Packaging
Why Choose Us
| Aluminum Alloy | 6063, 6005, 6005A, 6105, 6101, 6082, 6061 |
| Tempers | T4 , T5 , T6 |
 | Extrusion Capacity
2750 Ton, 10" Press |
Surface Treatment
Mill finish , Sand Blasting , Anodizing , Wood grain , Electrophoresis painting , Powder coating * Powder coating thickness: 60-120um * Anodizing thickness: 8-25um | |
| Fabrication
Cutting Countersinking Punching Notching Bending Deburring Drilling Tapping Milling Forming Mitre cutting CNC machining |
Design *Engineering -CAD Shape Design |  |
Standard Dies Shape | |
Angles(equal) , Angles(unequal) , C shapes , Caps , Carpet bar , Channels , Corners | |
Tolerance | |
According to GB5237.1-2008 or as per agreement
| |
Industry Standards | |
ISO9001: 2008 , ISO14001: 2004 , ISO10012 , AAA grade standardize corporate | |
| Testing | |
Validation , Durability , Reliability , Mechanical , Chemical , Physical , Dimensional , | |
About Us
Inspection Service
Our Services
SUPPLYING YOU WITH SOLUTIONS
Phone support: speak to a friendly voice you trust to get the job done
Industry leading practises: take the stress out of material control
On the case: we make sure every order is chased
In the know: one step ahead, recording the progress of your order
Comprehensive technology: we use the latest technology to stay ahead
Mail us any time: fast and reliable responses to inbound email
FAQ
| Q1: What is the load rating or weight bearing capacity of the Zhongjda Z Clips? How much weight can a Zhongjda Z Clip hold? |
A: We cannot provide structural recommendations. That said, Zhongjda Z Clips are extruded from 6063-T6 aluminum. By itself, Zhongjda Z Clips will withstand thousands of pounds of stress, both compressive and tensile. We suggest that your concern should not be with the structural integrity of the clip, but with integrity of the substrate you are screwing into and the hardware you are using. |
| Q2: What can I do to add strength to the Zhongjda Z Clip hanging system? |
A: To increase the strength of the system for overweight items, you need to increase the number of fasteners (screws). On the panel side, this means decreasing the spacing between the Zhongjda Z Clips. On the wall side, it can mean using multiple screws at each stud or installing a piece of plywood blocking in front of the wall and securing the continuous length with fasteners every 8″ or 4″, instead of 16″ or 24″.. |
Q3: What else are Zhongjda Z Clips used to hang |
A: Wall panels, acoustic panels, elevator panels, signage, artworks, etc. Zhongjda Z Clips are so versatile that the possibilities are limitless. Our customers tell us they also use them for stone. |
| Q4: Can you drill the holes and cut to length to help me save time on the job site? |
A: Yes. We will custom cut the Zhongjda Z Clips or other aluminum extrusion to any length you specify. |
| Q5: What About Anodizer Rack Marks? |
A: Electrical contact must be made to each part to be anodized. The more electrical current required, the greater the electrical contact. The size of the contact therefore depends on the anodizing process and the size of the part being anodized. |
Q6: What is your closest sea-port ? |
A: Dalian City SeaPort . |
