Electric Pet food dehydrator dryer/Fruit and vegetable drying machine/Hot air circulation dryer oven for Chinese herbal medicine









1. Introduction of Electric Heating Hot air circulation dryer

RFXH series hot air circle oven is equipped with low noise axial flow fan and automatic temperature control system.The circle system is fully sealed .It makes the hot efficiency increased from 3%-7% of traditional oven to nearly 35%-40% .The maximum hot efficiency can be up to 70%.The hot air circle oven catches up the advanced level both at home and abroad.It saves plenty of energy source and increase profit for enterprises.



This hot air circulation has wide applicaiton,  such as Chinese herbal medicine,tablet ,immersed electuary,packing bottle,pigment, chalk, vegetable and fruit , seafood, meat , sausage, plastic resin,electric elements,varnish and so on.











2. Features of Electric Heating Hot air circulation dryer

1. easy opeation: There are trolleys with shelves inside the dryer and many trays on the shelves. You can put your raw materials in the trays, and then put the trays on the shelves. There are wheels on the trolleys so that you can push it into the dryer easily.

2. high quality: The inner wall, trolley and trays are stainless steel.

3. automatic temperature control: preciseTemperature and humidity control panel

4.high hot efficiency:Most of hot air is circulating inside the oven, saving energy source

5.It applies compulsory ventilation and equipped with adjustable air divider plate inside the oven,Raw material can be dried evenly,The hot source is extensive,such as steam, hot water,electricity or far infrared.

6.The machine has low noise and stable running.The temperature can be controlled automatically.The installation and maintenance are very convenient.

7.The application is wide and suits for all kinds of raw materials.It is a universal dryer.







3. Parameters of Electric Heating Hot air circulation dryer

Model	RFXH-0	RFXH-1	RFXH-2	RFXH-3	RFXH-4
Capacity	50kg/time	100kg/time	200kg/time	300kg/time	400kg/time
Heating power	9kw	15kw	30kw	45kw	60kw
Air fan power	0.55kw	0.55kw	1.1kw	1.65kw	2.2kw
Trolley quantity	1pcs	2pcs	4pcs	6pcs	8pcs
Tray quantity	24pcs	24pcs	96pcs	144pcs	192pcs
Weight	480kg	1080kg	1520kg	1960kg	2400kg
Dimension(mm)	1260*1200*2160	2250*1200*2160	2250*2160*2160	3290*2160*2160mm	4360*2160*2160mm

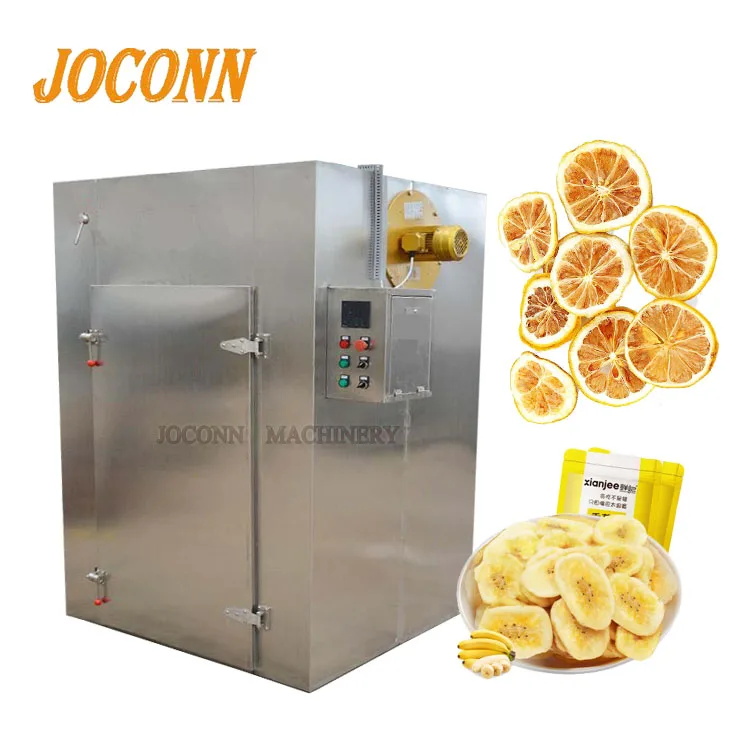

4.Pictures of Electric Heating Hot air circulation dryer



































5.Final products
