Электрическая магнитная машина для подъема кранов по заводской
- Категория: Грузоподъемные магниты >>>
- Поставщик: Xinxiang,Weiying,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 1726.69 $* | 1812.97 $* |
| Aug-19-2025 | 1711.18 $* | 1797.12 $* |
| Jul-19-2025 | 1436.43 $* | 1508.88 $* |
| Jun-19-2025 | 1682.30 $* | 1766.58 $* |
| May-19-2025 | 1465.97 $* | 1538.65 $* |
| Apr-19-2025 | 1653.28 $* | 1736.22 $* |
| Mar-19-2025 | 1639.79 $* | 1721.10 $* |
| Feb-19-2025 | 1624.78 $* | 1705.23 $* |
| Jan-19-2025 | 1610.45 $* | 1691.51 $* |
Характеристики
Products Description
Electromagnetic Lifting Magnet is a kind of special electromagnet which uses the sucked object as the armature. It is an equipment that uses the physical quantities of electricity and magnetism to absorb ferromagnetic materials. It is an indispensable lifting tool for lifting magnetic materials such as iron and steel in metallurgy, mining, machinery, shipbuilding, transportation and other industries. In some fields, it is also used as electromagnetic manipulator, magnetic centering, bar sizing and many other aspects. welcome to the inquiry !
NOTE:
For normal temperature type and high frequency type electromagnets, strong excitation mode (DC-290v during lifting and DC-200v during operation) can be used to further improve the lifting capacity. For large electromagnets, over excitation mode (DC-350v /DC-290v / DC-200v) can also be used for high frequency type electromagnets to speed up the current rise and play a stronger
lifting capacity.
Type | Current (A) | Cold Power (KW) | Lifting capacity(kg)(cold/hot) | Weight (kg) | ||||
steel ball | steel ingot | cutting | ||||||
MW5-110L/1-75 | 26.7 | 6.1 | 6500 | 105/800 | 450/400 | 1500 | ||
MW5-120L/1-75 | 3.6 | 7.4 | 7500 | 1300/100 | 600/500 | 1850 | ||
MW5-130L/1-75 | 40.7 | 9 | 8500 | 1450/1100 | 700/600 | 2280 | ||
MW5-150L/1-75 | 51.4 | 11.3 | 11000 | 1980/1500 | 1100/900 | 3180 | ||
MW5-165L/1-75 | 55.6 | 12.2 | 125000 | 2300/1800 | 1300/1100 | 3840 | ||
MW5-180L/1-75 | 73.9 | 16.3 | 145000 | 2850/1800 | 1650/1400 | 4690 | ||
MW5-210L/1-75 | 98.5 | 21.7 | 21000 | 2300/1900 | 2300/1900 | 6000 | ||
MW5-240L/1-75 | 117.6 | 25.9 | 26000 | 4850/3900 | 2950/2350 | 9000 | ||
Product details

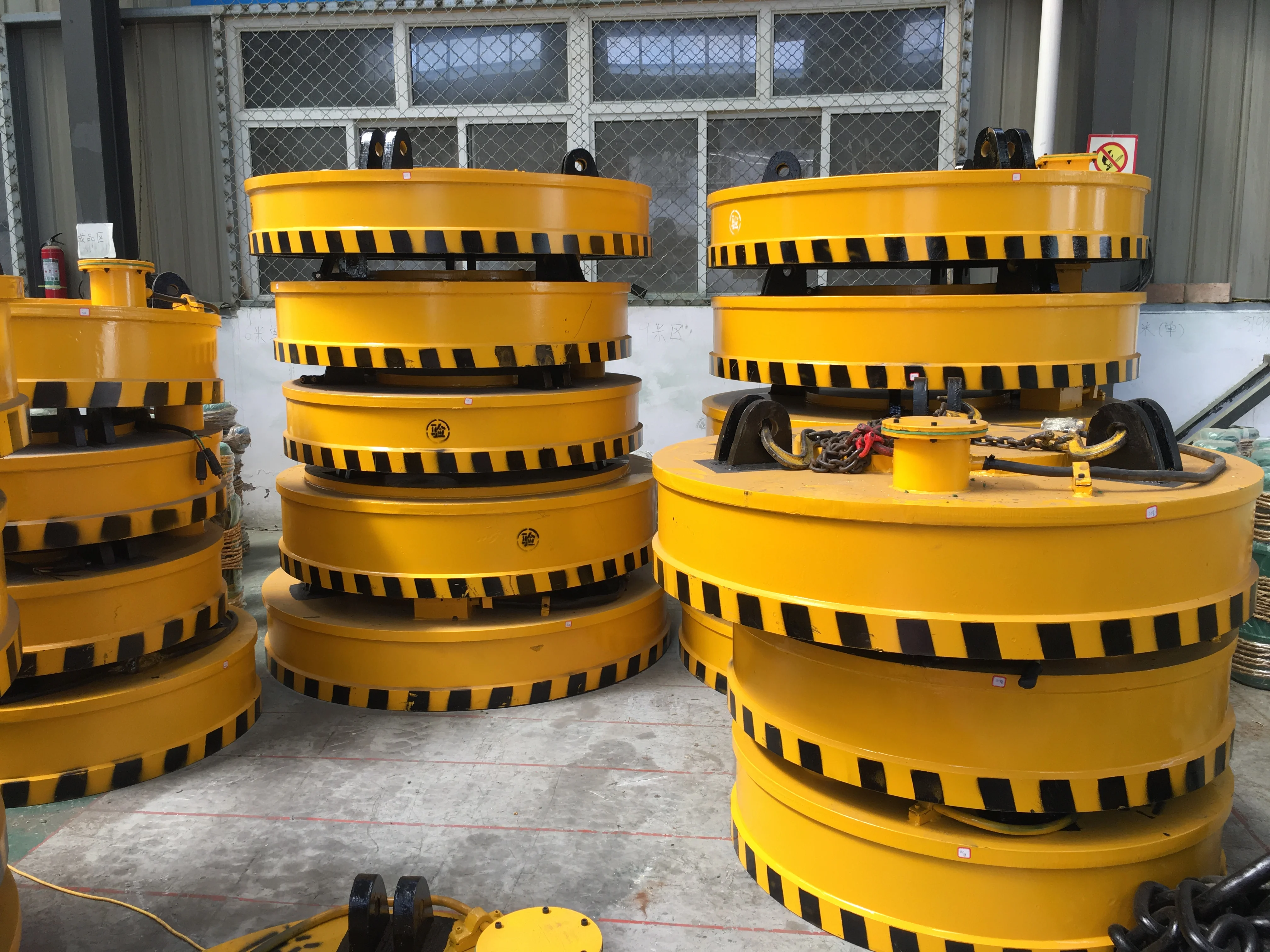

Factory show
Electromagnetic Lifting Magnet application
1. It is used to lift and transport steel and other magnetic materials in metallurgy, mining, machinery, transportation and other
industries.
industries.
2. It is used for electromagnetic manipulator, holding steel and other magnetic materials.
Related product
Permanent-Magnetic Chuck 1000 Kg
Electric Large Rectangular Lifting Magnets
MW84-16040L/1 Magnetic Chuck
CD/MD Electric Hoist
LDA Single Beam Bridge Crane
LH Double Beam Overhead Crane
Packing & Payment & Delivery
>> Packaging Details:
Plywood Case(Composite Material Box)
>> Delivery Time:
5-7 Days after receipt of the deposit
>> Payment Terms:
30%(T/T) as deposit, the Rest 70%(T/T) Before Shipment
In order to give you a good price, please tell us the following information.
1.Magnetic lifter diameter?(size)
2.Where is it used?(Usage environment)
3.What is the voltage?(380V 50HZ 3PH?)
4.Which kinds of cargos will be load by magnetic chuck ?( Ingot,Scrap,steel plate,steel ball....)
5.How many sets do you need?
