Твердые шины 22x7x17 3/4 для genie 94908 94909
- Категория: Material Handling Equipment Parts >>>
- Поставщик: Yantai,Wonray,Rubber,Tire,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 167.91 $* | 175.51 $* |
| Aug-20-2025 | 165.45 $* | 173.97 $* |
| Jul-20-2025 | 139.79 $* | 146.95 $* |
| Jun-20-2025 | 162.46 $* | 170.75 $* |
| May-20-2025 | 141.12 $* | 148.57 $* |
| Apr-20-2025 | 160.32 $* | 168.59 $* |
| Mar-20-2025 | 158.90 $* | 166.12 $* |
| Feb-20-2025 | 157.22 $* | 165.52 $* |
| Jan-20-2025 | 155.6 $* | 163.21 $* |
Характеристики
Product Description
solid tire 22x7x17 3/4 for genie 94908 94909 56454 36553
Our solid tires have been fitted for the aftermarket of the lifting platforms, such as Genie, JLG, Skyjack, Haulotte, Dingli, Manitou etc.
Brand: | WonRay & WRST |
Type: | Solid Tire |
Quality: | Both brands with Top-end quality with compectitive price; |
Pattern: | R714 |
Warranty: | 1Year normal working environment |
Using life: | 2-3 years |
Color: | grey, white and requested colors |

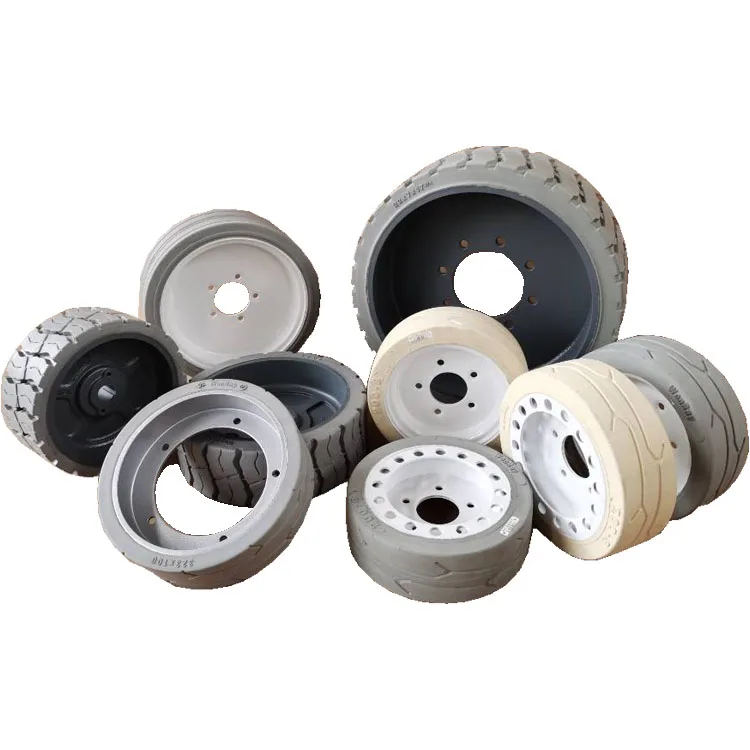

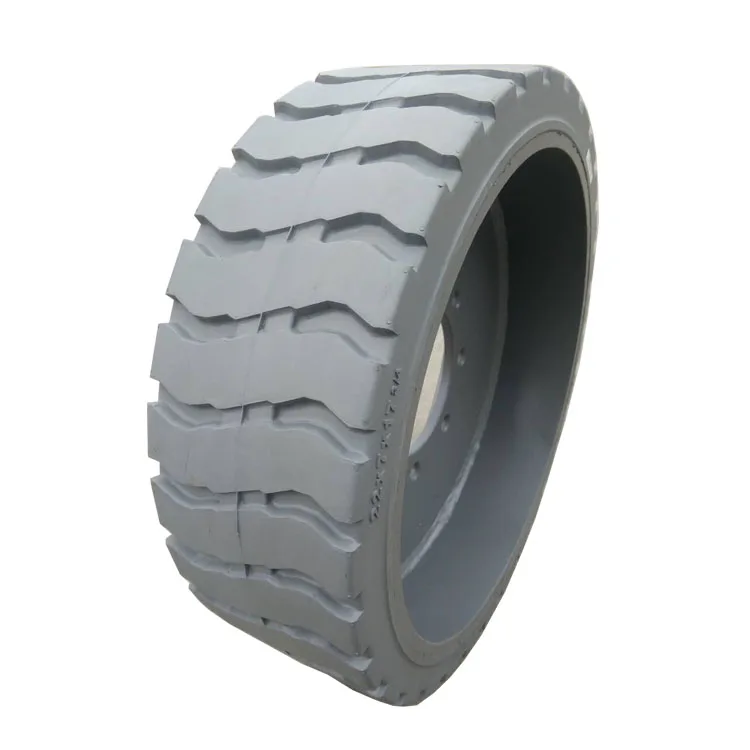

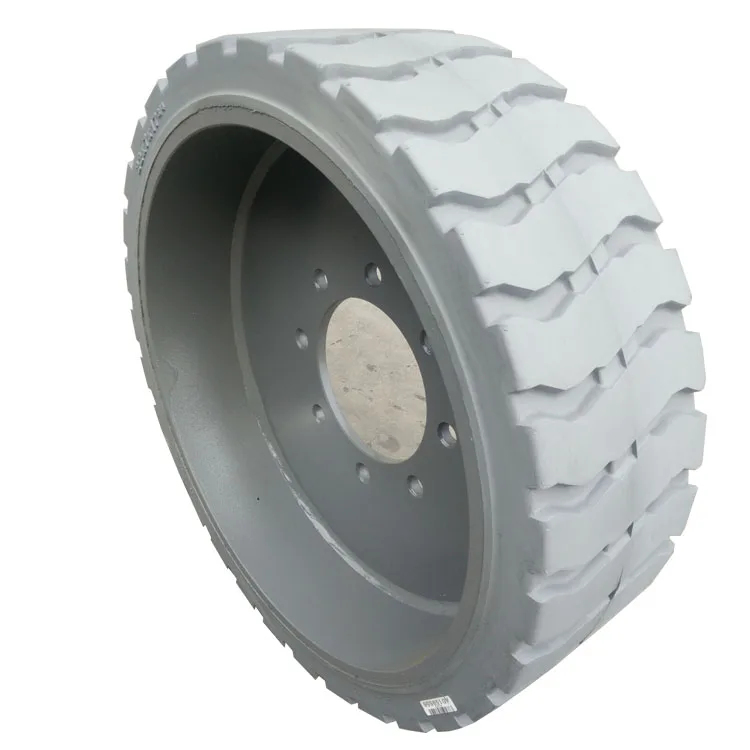

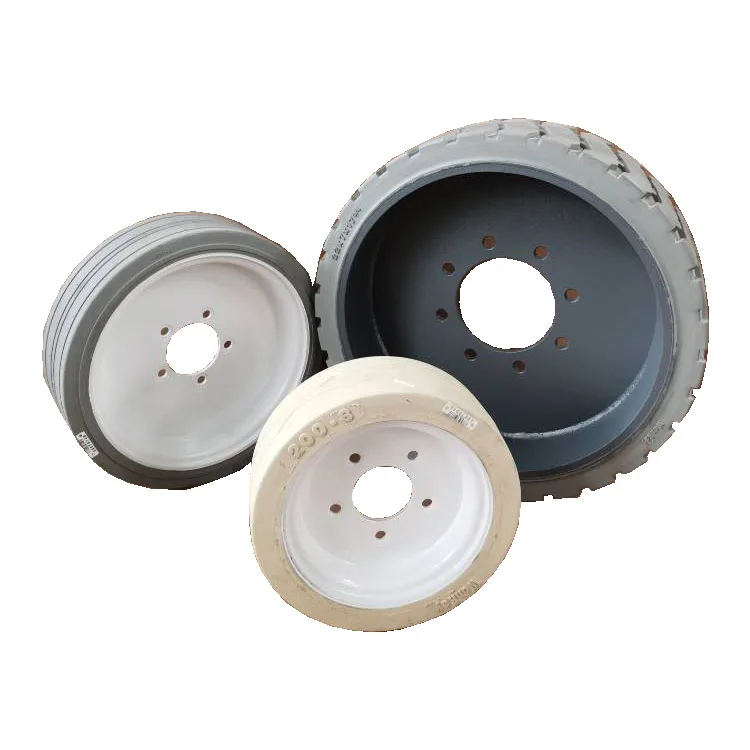

Detailed Images
solid tire 22x7x17 3/4 for genie 94908 94909 56454 36553
Cases
Size Information
solid tire 22x7x17 3/4 for genie 94908 94909 56454 36553
Size of Tire | Rim Size | Pattern No. | O.D. | S.W. | N.W. | MAX MAX LOAD (kg) | ||
±5mm | ±5mm | ±1.5%kg | 10km/h | |||||
10x3 | mold-on | R706 | 254 | 74 | 7.0 | 425 | ||
10x4 | mold-on | R706 | 256 | 102 | 5.90 | 630 | ||
12x4.5 | mold-on | R707/R712 | 310 | 115 | 15(G)/10 | 820 | ||
15x5 | mold-on | R712 | 384 | 127 | 20(G/H)/ 16.5 | 1095 | ||
22x7x17 3/4 | mold-on | R714 | 559 | 176 | 48.5(8h)/ 47.5(9h) | 2270 | ||
12.5x4.25 | mold-on | R712 | 320 | 108 | 12.6 | 810 | ||
14x4.5 | mold-on | R713 | 358 | 114 | 14.5 | 920 | ||
16x5x12 with brake | mold-on | R706/R707 | 406 | 125 | 15.2 | 1265 | ||
16x5x12 without brake | mold-on | R706/R707 | 406 | 125 | 14 | 1265 | ||
406x125 | mold-on | R706 | 406 | 125 | 17 | 1265 | ||
230x80 | mold-on | R717 | 230 | 80 | 7.3 | 600 | ||
600x190 | mold-on | R706 | 600 | 190 | 55.2 | 2670 | ||
305/100-255 | mold-on | R717 | 305 | 100 | 13.1 | 600 | ||
Related Products
Packing&Shipping
Usually our solid tires mess goods will be packed on the standard export pallets. The pallet sizes including 1.2mx1.2m, 1.1mx1.1m, 1.0mx0.7m, 1.0mx0.6m etc.
Sure our solid tires also could be bulk into containers, then will load more quantity.

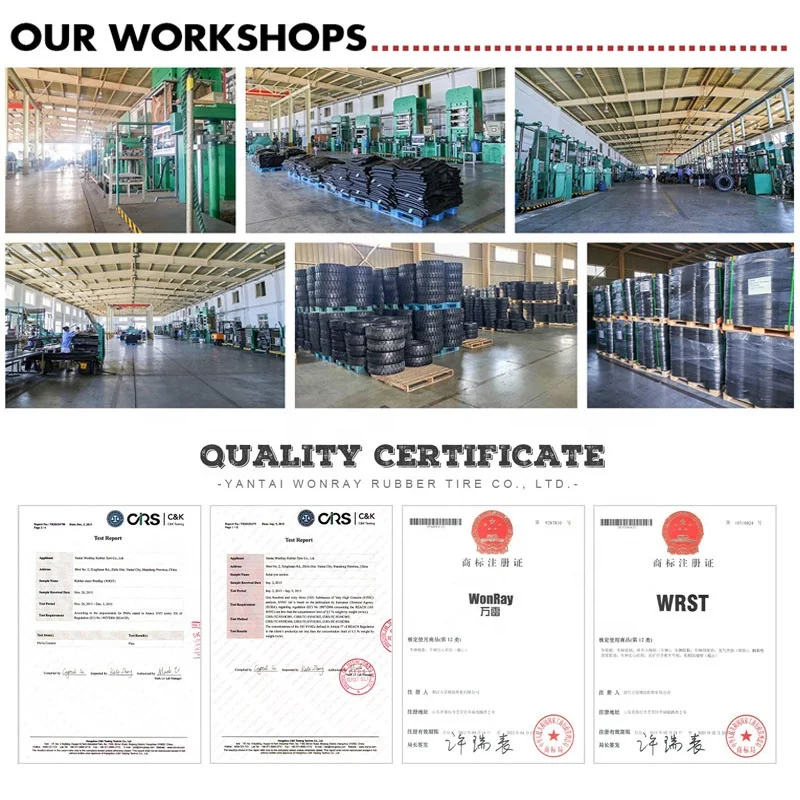

Exhibition
Company Introduction
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Including solid tires for forklift and small field runnung vehicles, solid OTR tires, special tires for trailers, skid steer solid tires with rims, solid tires for Sintering& Mining machines, press-on solid tires, solid tires for lifting platforms etc. As well as the Rims&Wheels, Polyurethane wheels.
Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Our Services & Strength
We have our own technical team with more than 20years' experience in solid tires.
1. We can recommend the right solid tires according to your machine working environment, and machines status;

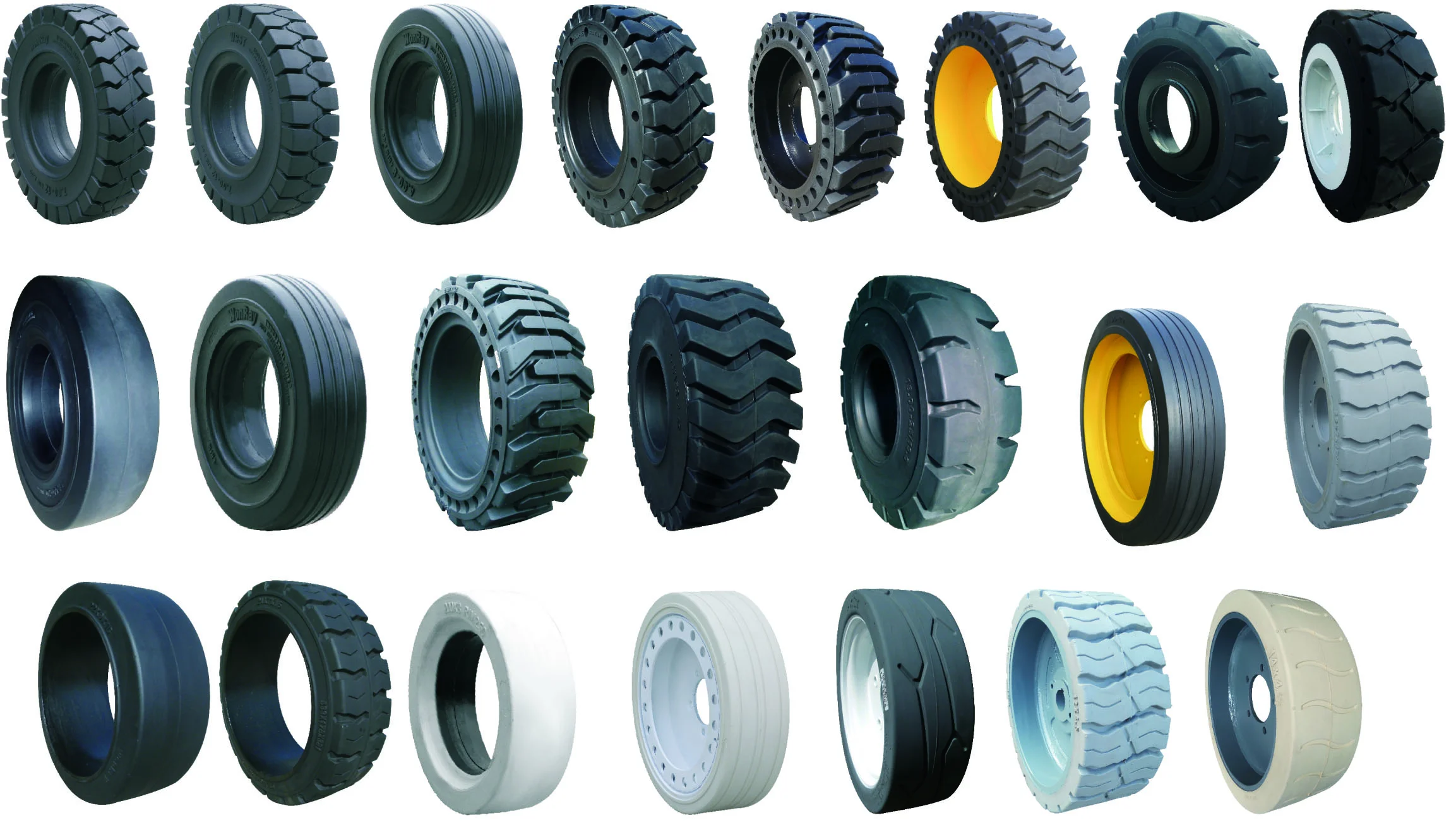

2. We have full sizes solid tires from the smallest 2.00-8 to the largest 29.5-25;
3. We can provide the free pressing service use our own pressing machines from 80T to 400T.
4. Our technical team will provide the rim (wheels) drawings according to your rim technical data;
5. In the domestic market, Our products have been matched for Sany Heavy Industry, Carrie Heavy Industry, Liugong Machinery, Maximal, Tailift, MCC Baosteel and Haipeng Industry etc.
6. We have many exclusive agents in the world. Such as USA, Canada, South Africa, Chile, Poland, Spain, Russia and so on.
