Грузовик с воздушной платформой Marilyn DONGFENG DKL
US $12000-$29900
Гидравлический подъемник JMC 32 м изолированный Воздушная лестница грузовик для
- Категория: High-altitude Operation Trucks >>>
- Поставщик: Hubei,Dali,Special,Automobile,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.28 $* | 0.84 $* |
| Aug-20-2025 | 0.33 $* | 0.42 $* |
| Jul-20-2025 | 0.74 $* | 0.59 $* |
| Jun-20-2025 | 0.33 $* | 0.2 $* |
| May-20-2025 | 0.21 $* | 0.88 $* |
| Apr-20-2025 | 0.43 $* | 0.75 $* |
| Mar-20-2025 | 0.68 $* | 0.80 $* |
| Feb-20-2025 | 0.56 $* | 0.44 $* |
| Jan-20-2025 | 0.77 $* | 0.52 $* |
Характеристики

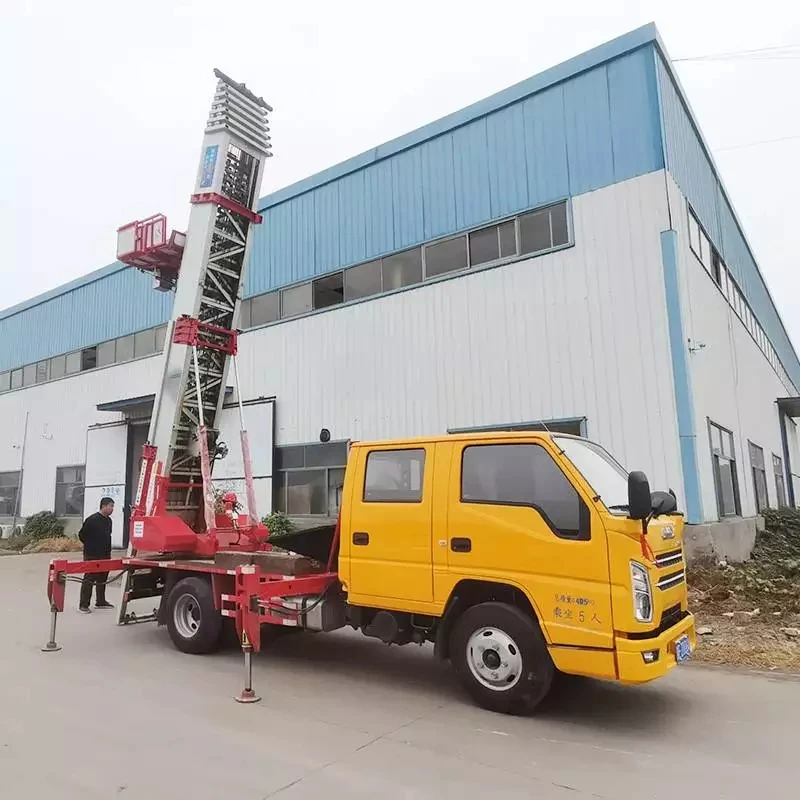

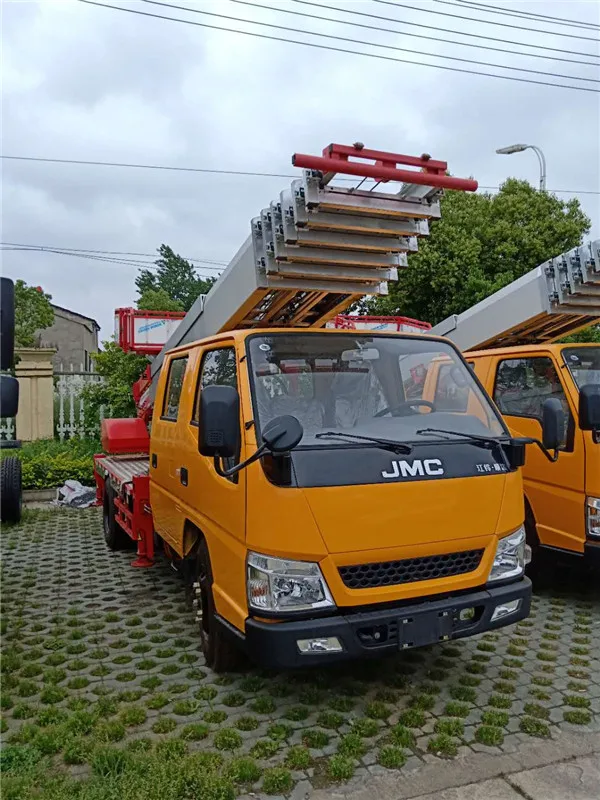

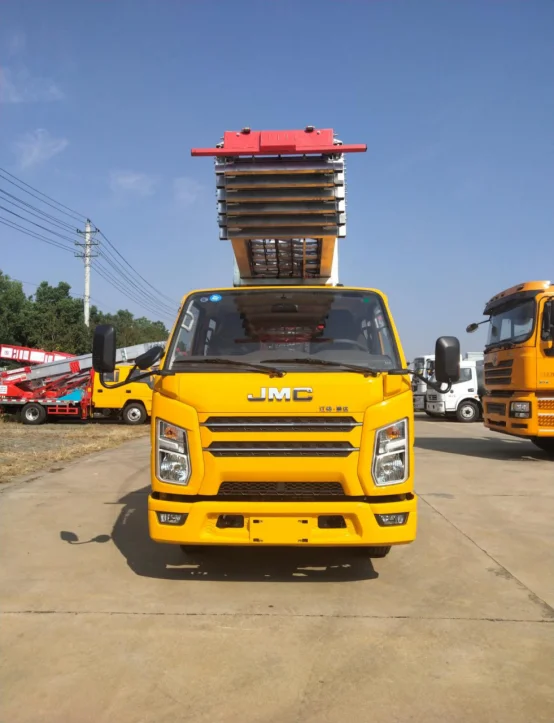

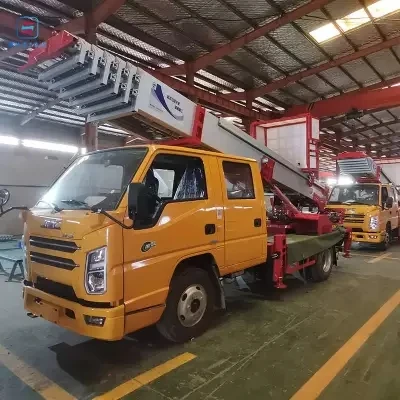

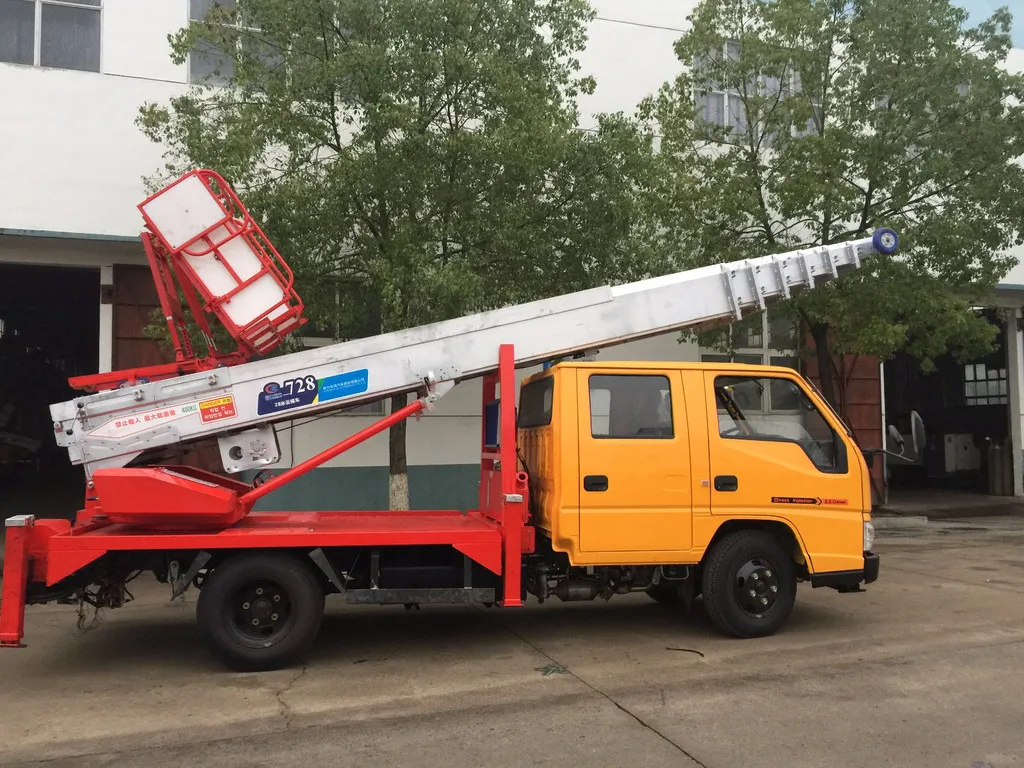

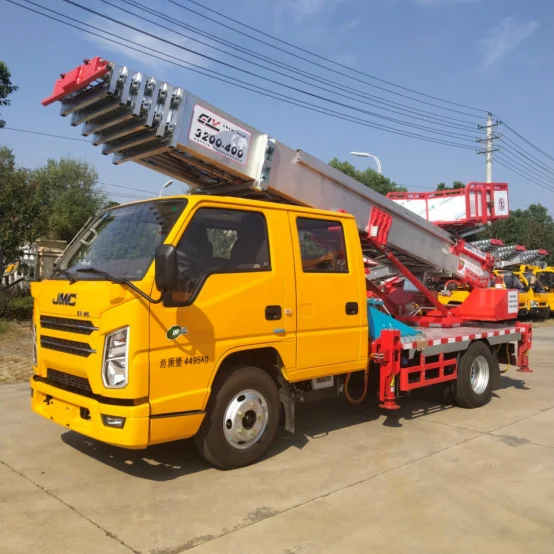

high altitude operation truck aerial ladder truck 32m for sale
Product Description
Technical Parameter | |
Product Name | High Attitude working truck |
Overall Dimension(mm) | 9200×2460×3600 |
GVW(kg) | 11000 |
Curb weight(kg) | 10805 |
Approaching/Departure Angle(°) | 28/12 |
Front/Rear suspension(mm) | 1205/2095 |
Front/Rear tread(mm) | 1940/1860 |
Fuel type | Diesel |
Chassis Technical Parameter | |
Chassis brand name | Dongfeng |
Traction system | 4×2 |
Transmission | 6 forward gear, 1 backward gear |
Tyre specifications | 10.00-20 |
Tire number | 6 (1 spare tire) |
Wheelbase(mm) | 4500 |
Axle number | 2 |
Axle loading(kg) | 3500/7500 |
Passengers in cab | 3 |
Maximum speed(km/h) | 90 |
Engine Parameter | |
Engine manufacturer | Dongfeng Cummins |
Engine model | B190-33 |
Displacement (ml) | 5900 |
Power (kw/hp) | 140/190 |
Number of cylinders | 6 |
Cylinder spread pattern | In-line |
Intake type | Supercharged and mid-cooling |
Rated rotation(rpm) | 2500 |
Emission standard | Euro 3 |
Packaging & Shipping
Packing: Nude, Covered with wax
Delivery date: 7-15 working days since receiving the payment
Company Information
HUBEI DALI SPECIAL AUTOMOBILE MANUFACTURING CO.,LTD is located in the hometown of Yan Emperor Dragon and chime township of ancient music, China special automobile industry city-Suizhou City Hubei Province. The company covers an area of 166000 square meters, which is the first domestic private enterprise entering the special automobile industry. The company has focused on all kinds of special automobile R&D, manufacturing, sales and service, two special automobile production lines of the company are five series and 300 products, which are municipal engineering truck series, oil field chemical truck series, multi-function rescue fire truck series, sanitation special automobile series, semi-trailer trucks. The company is also the first pressure tank vehicle manufacturing private enterprise which has got the quarantine license from General administration of quality supervision of China. The company is a high-tech enterprise in hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.
Our Services
Warranty: 12 months, from date of supply
FAQ
1. Can i have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can you supply some quick-wear trailer parts?
Yes, we can supply the trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc
4. What's the payment method?
TT 30% as Deposit, Balance Before shipment by TT or L/C at sight
5.Do you have any used trailer for sale?
We have many trailers in stock for choice, from 2010-2014 year, the price are favorable
We'll show you our stock trailer if you need.
6.Factory
We have own factory and skilled worker, rich experienced design team and responsible QC and good after sales service.
7.Quality and Price
We are strictly control quality from raw material to finished products. And ensure high quality of your required products. Also we manage to control the cost and save every penny for your party.
8.Amount
We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.
9.Your Model
Our design team can design per your specific text description and reference design.
