Product Description
Product Application
Our HDS series smart permanent magnet large ceiling fan is a new product specially developed for improving the comfort of the working environment. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
Widely used in industrial plants, logistic ware-housing, waiting room, exhibition hall and so on.
Technical Data
Model | HDS-3 | HDS-3.7 | HDS-4.3 | HDS-5 | HDS-6.1 | HDS-6.7 | HDS-7.3 | ||||||
Diameter(m) | 3 | 3.7 | 4.3 | 5 | 6.1 | 6.7 | 7.3 | ||||||
Diameter(ft) | 10 | 12 | 14 | 16 | 20 | 22 | 24 | ||||||
Power(KW) | 0.37 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.1 | ||||||
Horsepower(HP) | 0.5 | 0.5 | 1 | 1.5 | |||||||||
Voltage(V) | 220-240/380-460 | ||||||||||||
Frequency(Hz) | 50/60 | ||||||||||||
Air volume(m³/min) | 4000 | 5000 | 7000 | 10000 | 11500 | 12000 | 13000 | ||||||
Rotating speed(rpm) | 120 | 100 | 90 | 80 | 65 | 60 | 55 | ||||||
Number of leaves(Pcs) | 5 | 6 | |||||||||||
Noise(dB) | 38 | ||||||||||||
Motor weight(kg) | 18 | 18 | 25 | 25 | 48 | 48 | 48 | ||||||
Ceiling fan weight(kg) | 35 | 38 | 46 | 49 | 103 | 107 | 111 | ||||||
Effective area(m³) | 150 | 230 | 256 | 300 | 600 | 650 | 700 | ||||||
Coverage area(m²) | 250 | 380 | 450 | 500 | 1000 | 1300 | 1500 | ||||||
Main Features
1) Direct drive motor system-permanent motor
2) Intelligent Control
3) Airfoil blade
4) Energy saving tail
5) Variable speed 1m-5m/s
6) Super mute 38db
7) Five security
8) Insurance, each sold ceiling fan has $150,000 sum insured
Detailed Images
FAN Parts

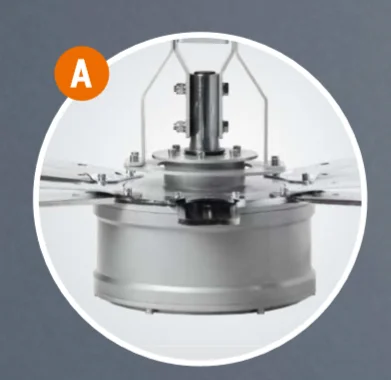

Name: Direct Drive Motor System
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
Aluminium alloy material is adopted in many parts to realize the lightweight design.
FAN Parts
Name: Smart control system
The control system adopts the closed design of IP66, which is dustproof, waterproof, moisture-proof and can withstand high temperature indoor and outdoor harsh environment.
The system is no position vector control,anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.
The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
.
FAN Parts

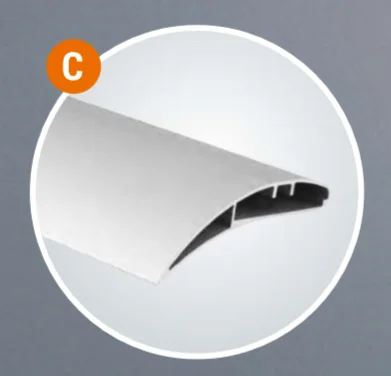

Name: Fan blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, lightweight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
Energy saving tail.
Five Levels Of Security Guarantee

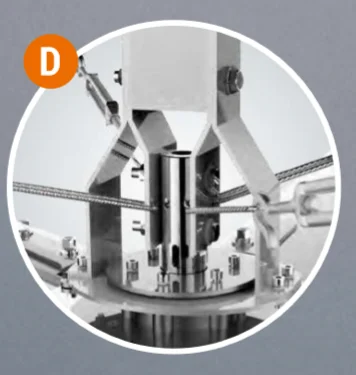

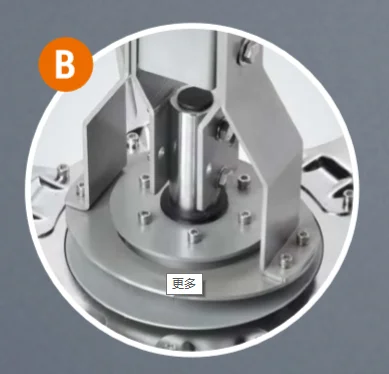

Motor bracket is integrated to prevent any parts from falling off and ensure the safety of the whole structure.
Anti-off-plate break-off protection structure design ensures the safety of the ceiling fan.
Aluminum magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Aluminium-magnesium alloy tensile blade, internal reinforcement structure, strength, toughness, to ensure the safety of the blade.
Automatic power off protection, to ensure that the blade accidental tough, timely safety shutdown.
Long Warranty
We always provide customers with high-quality products and excellent after-sales service.
Permanent magnet motor warranty period of 5 Years
The controller warranty period of 18 Month.
Installation Data
Permanent Magnet Motor Ceiling Fan VS Gear Box Variable Speed Ceiling Fan
1)Permanent magnet synchronous high-temperature resistant out rotor motor, super energy efficient.
2) Small size and light weight.
3) Low noise. 38db
4) Simple structure.
5) Frequency modulation width (0-50HZ)
6) Direct drive motor maintenance free
7) No running hazard.
1) The use of asynchronous ordinary motor+gear box consumes a lot of energy.
2) Large and heavy.
3) Loud noise 60db.
4) Complex structure.
5) FM narrow (25-50HZ)
6) Need frequent daily maintenance (change seals, add gearbox oil.)
7) There are hidden dangers such as gearbox leakage.
Industrial Large Ceiling Fan VS Industrial Floor Fan
Application Area
Super-Large Plant
Large-scale public places
Commercial area

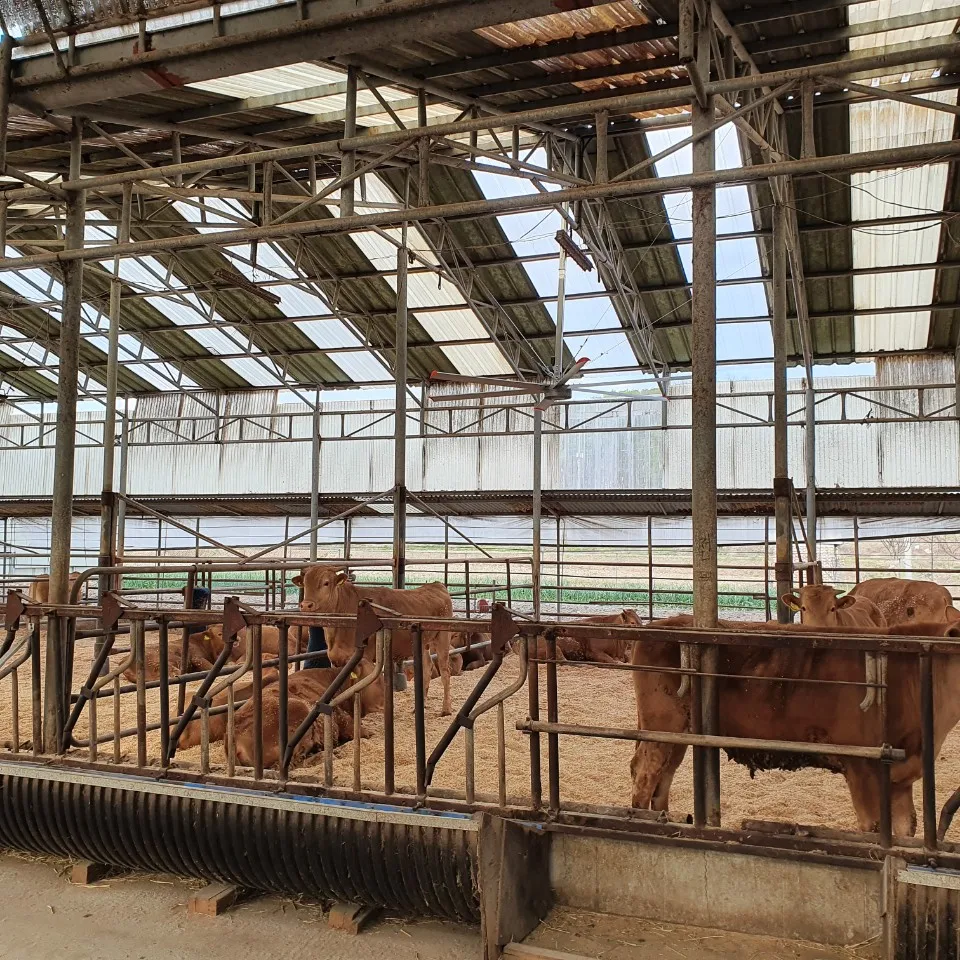

Animal Husbandry
Vertical Application Case
For example, parks city squares, outdoor dining, urban construction sites, etc.
Packing & Delivery
Fan blade Packaging | ||
Size | 3540 (L) * 200(W) * 200 (D)mm | |
N.W/G.W | 45.9kg/61.5kg | |
Packaging material | Plywood | |
Motor and Spare Parts Packaging | ||
Size | 800 (L) * 800 (W) * 450 (D) mm | |
N.W/G.W | 106.1kg/130.1kg | |
Packaging material | Plywood | |
Our Factory
For more than ten years, the company focuses on the research, development and production of the high-temperature motor,high-temperature fan and permanent magnet variable frequency ceiling fan, Strict control of production technology, to create quality.
The company has passed the standard acceptance of safety standardization; ISO9001:2008 quality management system certification, ISO14001:2015 environmental quality system certification. It has obtained the national production license for industrial products and the pollution discharge certificate of Fujian province. Products through CCSAus certificate, CCC certification, European CE certificate, fire safety certificate, best-selling national and overseas markets.
The company has owned 16 utility model patents and appearance patents. It was awarded"2017 China agricultural machinery industry annual parts quality award".
