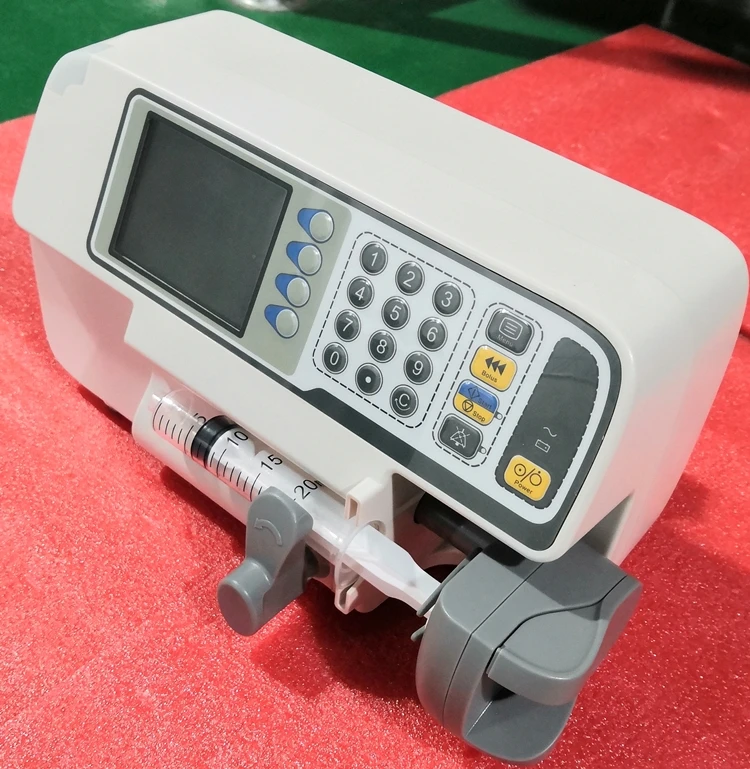

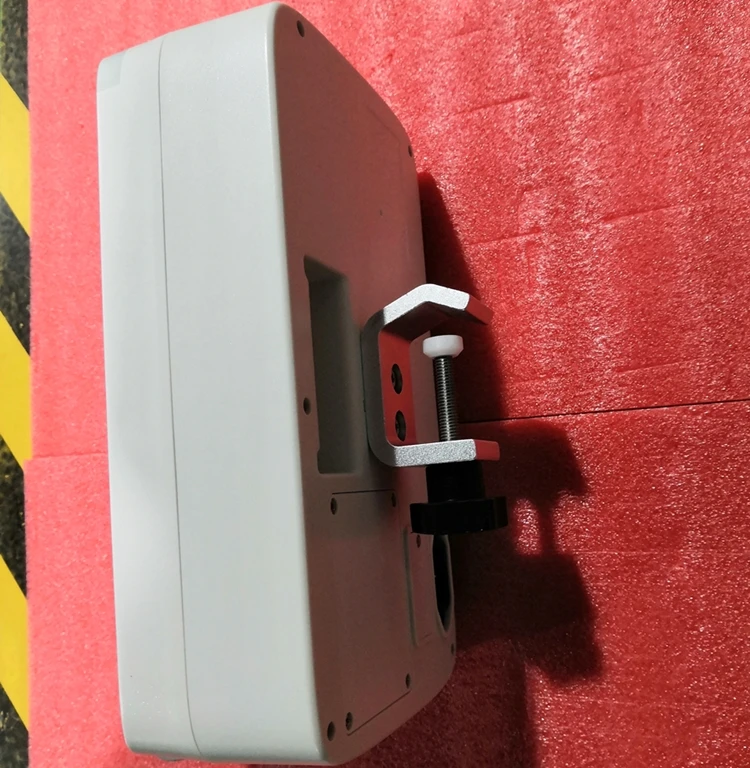

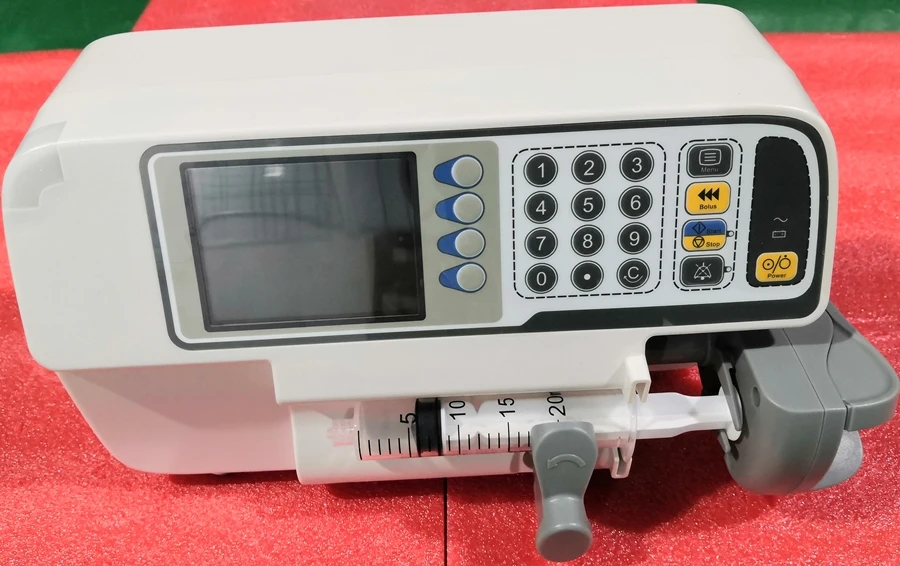

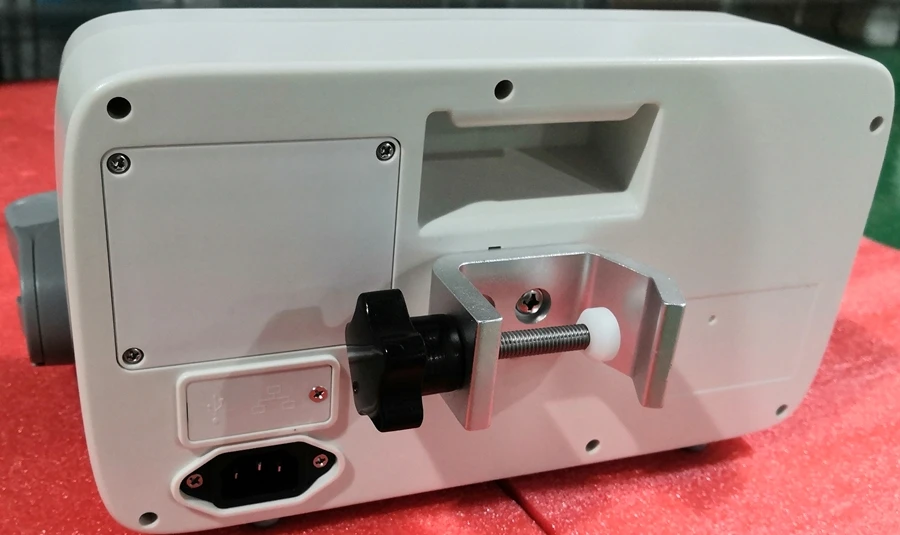

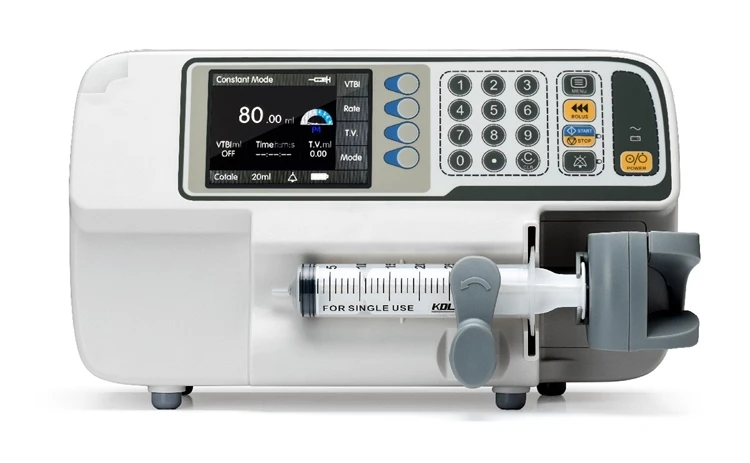

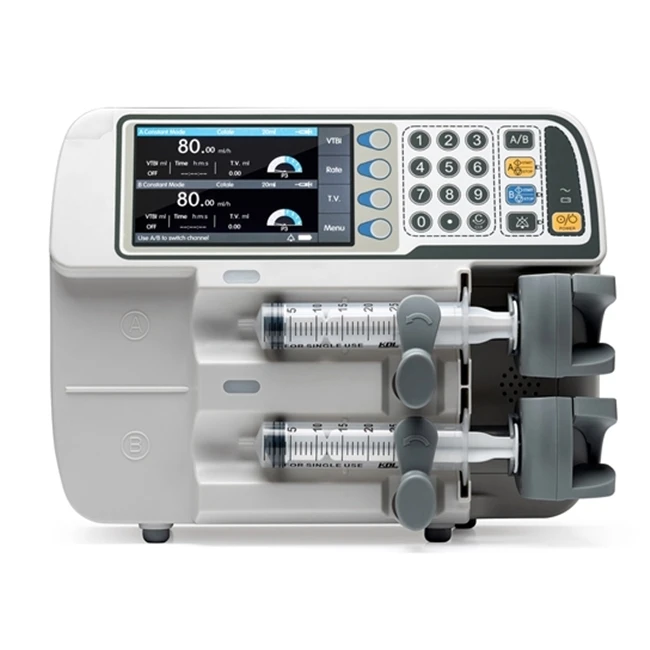

Шприц для использования в ветеринарной клинике трубчатый инфузионный насос шприц умный медицинский

Item Model

HF-610A HF-61 OB HF-61 OC

HF-620A HF-620B HF-620C

Injection Mode

Constant Rate,Time/ Volume,Drug Weight,Micro,Sequential, Drug Library Mode

Syringe Size

5ml, l0ml, 20ml, 30ml, 50/60ml, auto-recognition

Flow Rate

5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h

20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h

50/60ml: 0.10ml/h-1200.00ml/h

Increment

0.01 ml/h

Preset Time

1s~99hr59min59s

Parameter Changed during Injection

Support change of VTBI, flow rate during injection

Accuracy

< ±2% (± 1% mechanical accuracy included)

Preset Volume(VTBI)

0 10-9999.99ml∅

Accumulated Volume

0.00-9999.99ml

Purge Rate

5ml: 30-60ml/h 10ml: 150-300ml/h

20ml: 200-400ml/h; 30ml: 300-600ml/

50ml: 600-1200ml/h

Bolus Rate

5ml: 0.10ml/h-60.00ml/h 10ml: 0.10ml/h-300.00ml/h

20ml: 0.10ml/h-400.00ml/h 30ml: 0.10ml/h-600.00ml/h

50/60ml: 0.10ml/h-1200.00ml/h

KVO

0.10-5.00ml/h adjustable

Occlusion Pressure

8 level adjustable, 20Kpa-140Kpa, dynamically pressure value display.

Alarm

Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error, low battery, battery lost, battery ran out, AC power lost, abnormal injection, communication error

Syringe Management

Display

Preset 20 syringe brands, can add or edit the brand,accept all brands after calibration

5.0’ TFT color LCD;10 level brightness adjustable

Power Supply

AC Power: 100V-240V, 50Hz/60Hz

Communication Port

USB,RJ45 for future use, Ethernet Port

Battery

Rechargeable Li-ion battery, DC 11.1V, 3000mAh;

operating time: >10h

Alarm Voice

Standard Medical Alarm Voice with Mute function, 8 levels adjustable.

Event Log

10000 event log, can be transmitted to PC with USB

Software Upgrade

Upgrade the software with USB

Operation Environment

+5°C-+40°C, Relative humidity: 20%-90%; Atmospheric pressure: 70-106 Kpa

Classification

Class II, Type CF; IPX4

Other Function

Double CPU, Password function. Multi Language, Pressure Release function,

90 °rotable IV pole, 4 soft function key, key lock function, numeric keypad, Pause Function, etc.

Application

Intravenous injection
