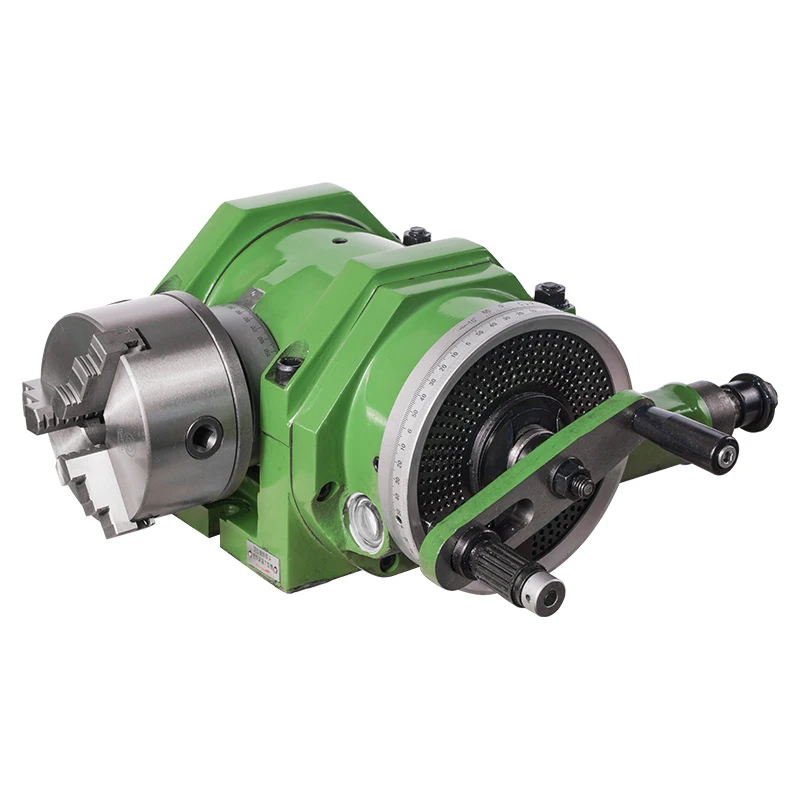

F11 universal dividing head

The universal dividing head,Type F11100A,F11160A is one of the most important attachmenet for milling machine.With the help of this dividing head the workpiece held between centers,or on a chuck can be rotate to any angle as desired and the periphery of a workpiece can be divided into any divisions of equal parts.By means of all kinds of cutters,the dividing head can also help milling machine to perform the milling operation for flute spir gear,spiral gear,spiral flute,Archimedean cam,helical flute and etc.
The dividing head is equipped with a face plate that can be mounted onto the spindle nose.The workpiece can be mounted on the face plate,thus,cutting can be carried out on 4-sides of a workpiece.
F11125C F11160C is designed for the consumers special needed,the shafting is improved to support heavy load.
The universal dividing head,type F11100AL,F11125AL,f11160AL is the same as of the structures and the opreation handle is setted on the left.
specification

Item		F11100A	F11125A	F11160A	F11200A
Center hight mm		100	125	160	200
Swivel angle of spindle from it's horizontal posirion(upward)		≤95°
Horizontal position(downward)		≤5°
Rotating angle of spindle for one complete revolution of dividing handle		9°(540grad.,1' each)
Min reading of vernier		10"
Worm gear ratio		1:40
Taper of spindle bore		MT3	MT4
Width of locating key.mm		14	18
Diameter of short taper of spindlenose for mounting flange mm		Φ41.275	Φ53.975	Φ53.975	Φ53.975
Hole number on index plate	1st plate	24,25,28,30,34,37,38,39,41,42,43
	2nd plate	46,47,49,51,53,54,57,58,59,62,66
Change Gear	Module	1.5	2
	Teht Numbers	2.5,30,35,40,50,55,60,70,80,90,100
Individual indexing error of the spindle for one complete revolution of dividing handle		±45"
Cumulate error at any 1/4 periphery of spindle		±1"
Max bearing Kg		100	130	130	130
Net weight Kg		67	101.5	113	130
Gross weight Kg		79	111.5	123	140
Overall dimensions mm		616×465×265	635×530×530	710×535×342	710×535×342
