Высокопрочная пара арамидной пряжи 200D -1500D арамидное пуленепробиваемое
- Категория: Fiber >>>
- Поставщик: Nanjing,Faircon,New,Materials,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.50 $* | 0.97 $* |
| Aug-15-2025 | 0.47 $* | 0.73 $* |
| Jul-15-2025 | 0.69 $* | 0.88 $* |
| Jun-15-2025 | 0.63 $* | 0.38 $* |
| May-15-2025 | 0.98 $* | 0.28 $* |
| Apr-15-2025 | 0.94 $* | 0.62 $* |
| Mar-15-2025 | 0.36 $* | 0.5 $* |
| Feb-15-2025 | 0.73 $* | 0.96 $* |
| Jan-15-2025 | 0.51 $* | 0.59 $* |
Характеристики
Product Description

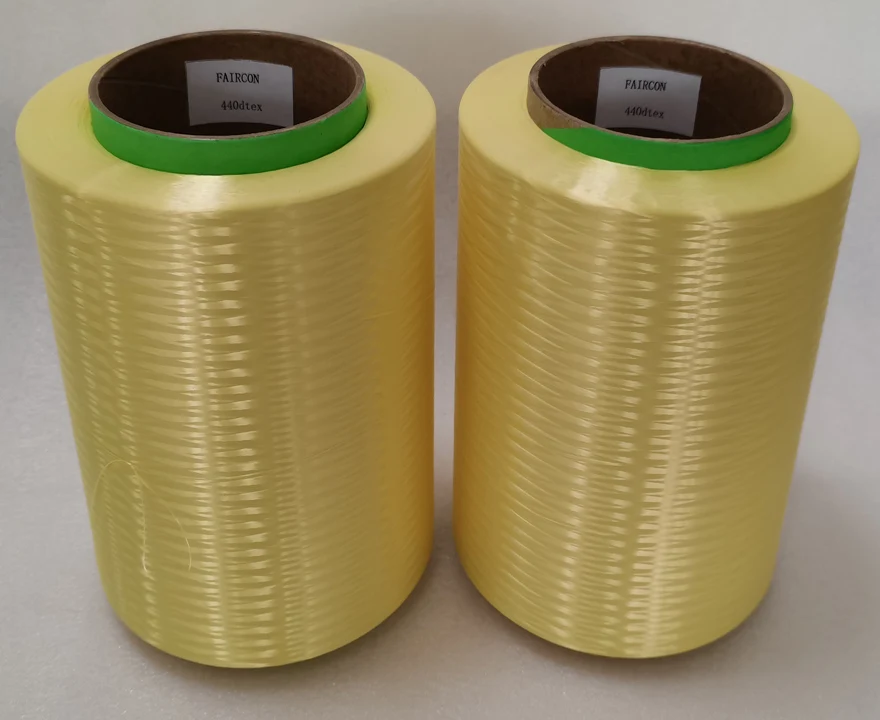

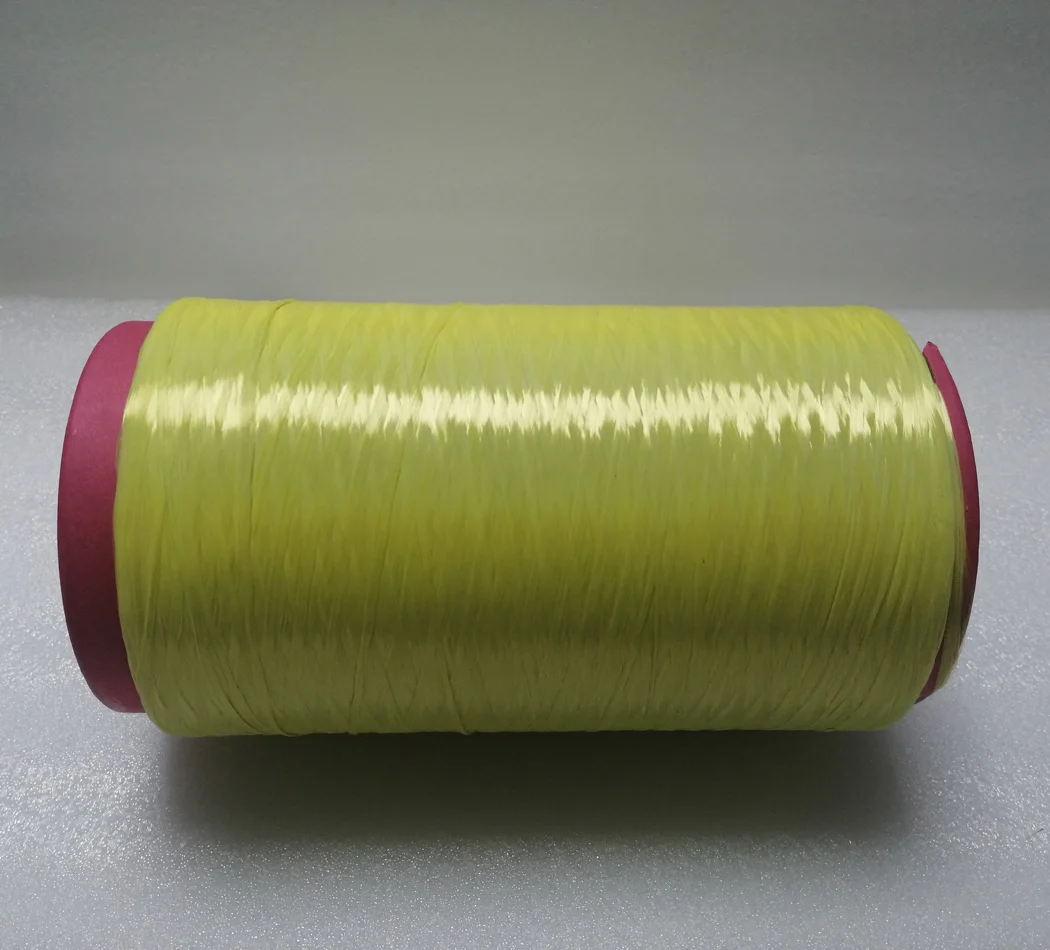

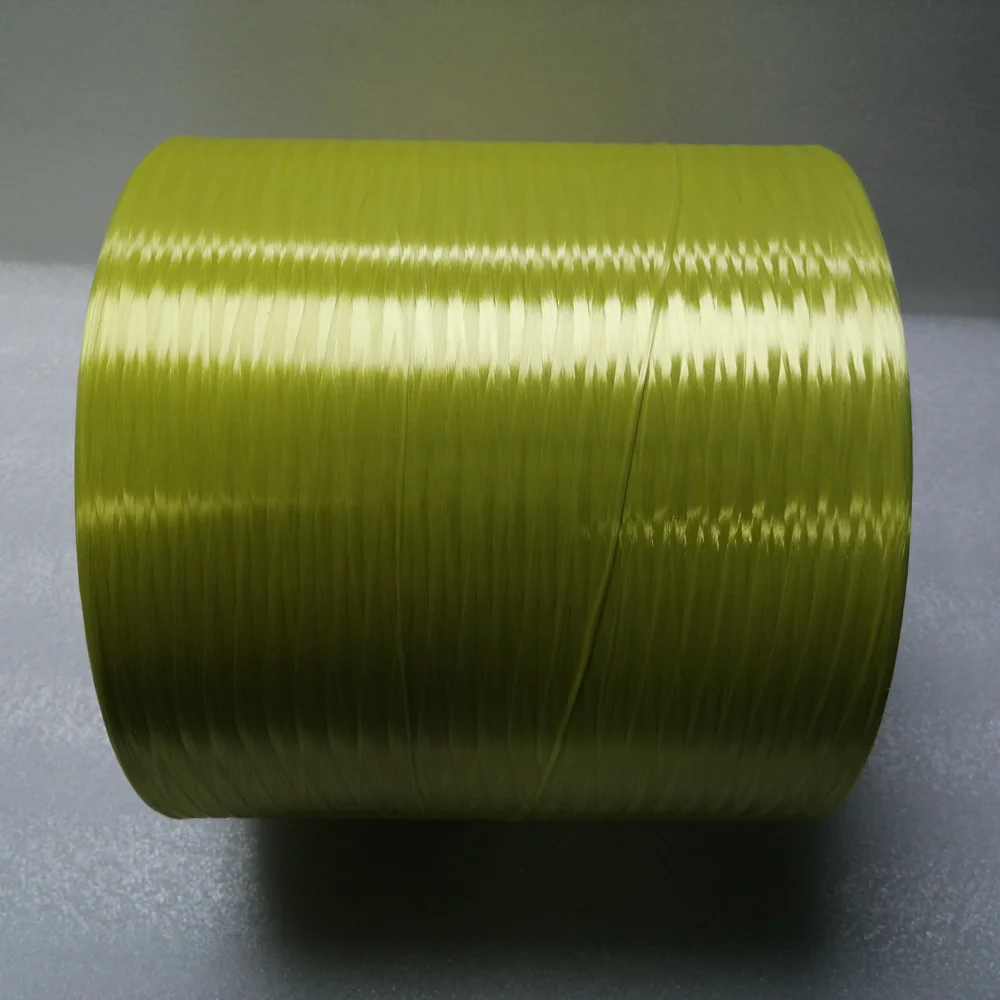

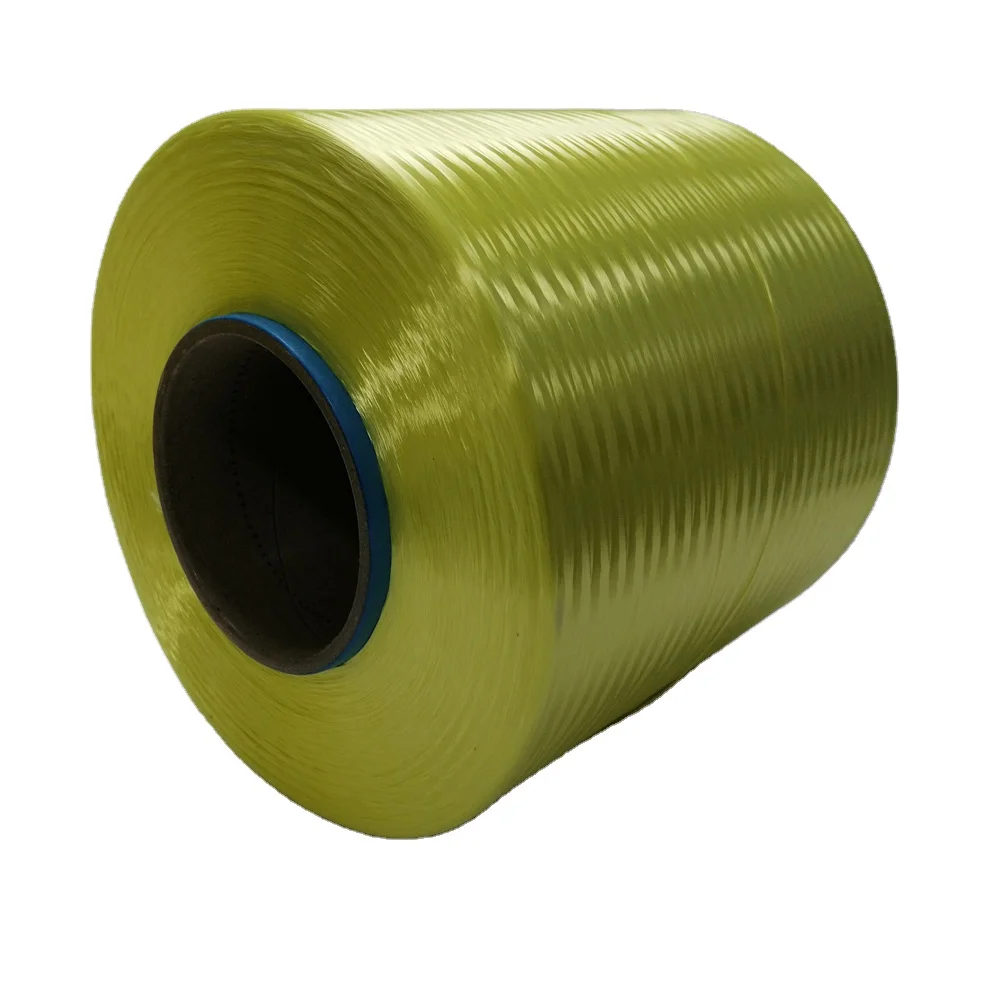

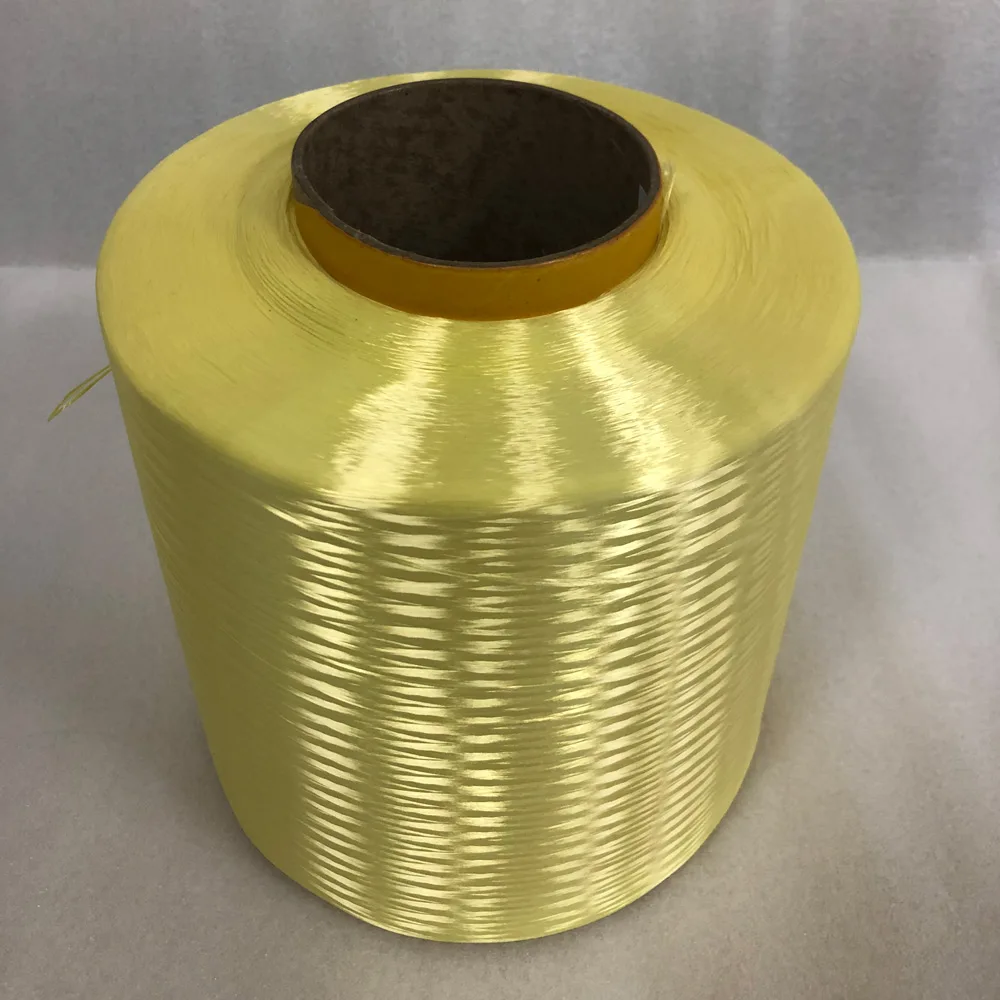

para aramid fiber:
The mechanical properties of high strength and high modulus : a strong hydrogen bond strength , strength of up to 28 g / D more, than the strength of steel wire 5 to 6 times higher than the modulus of steel wire or glass fiber 2 to 3 times, toughness steel wire are two -fold , and weighs only wire about 1/5 .
Temperature resistance
Continuous use temperature range is extremely wide, -196 °C to 204 °C in the range of long-term operation . At 500 °C high temperature does not decompose , does not melt , at 200 °C undergo 100 hours , still maintain the original strength of 75%.
Good chemical solvent properties
acid, anti-aging, have a good adhesion to rubber .Reinforcements Long aramid fiber has a high tensile strength, low elongation , high elastic modulus , non-conductive , corrosion resistance, low thermal high toughness, high shear strength , fire resistance and other outstanding features , widely used in ngineering and construction , rubber , cable reinforcement, high strength rope and other fields.
Protective materials
aramid fiber has high strength and high modulus , high temperature resistance , corrosion resistance, flexibility and low shrinkage properties, can be made of high-temperature protective clothing , cut-resistant gloves body armor, ballistic helmets , etc., is an ideal material for the field of personal protection .
Composites
aramid fiber has a high tensile strength, low density, small elongation , flexural strength characteristics with resin , rubber and other composite materials , can significantly reduce component weight , increased payload , for the production of aerospace equipment, high-speed trains and yacht housing and so on.
Friction and sealing materials
aramid fiber has high strength and high modulus , high temperature resistance, good toughness, fatigue and other outstanding features , can be used as friction material reinforced fiber ( asbestos substitutes ) , significantly improve wear resistance, suitable for high temperature conditions.
Sports Equipment
aramid fiber also be processed into insulating circuit boards, high-strength webbing , pipelines , specialty paper and golf clubs, tennis rackets , skis and other sports equipment , production in people , many areas of life play an increasingly important role.
The mechanical properties of high strength and high modulus : a strong hydrogen bond strength , strength of up to 28 g / D more, than the strength of steel wire 5 to 6 times higher than the modulus of steel wire or glass fiber 2 to 3 times, toughness steel wire are two -fold , and weighs only wire about 1/5 .
Temperature resistance
Continuous use temperature range is extremely wide, -196 °C to 204 °C in the range of long-term operation . At 500 °C high temperature does not decompose , does not melt , at 200 °C undergo 100 hours , still maintain the original strength of 75%.
Good chemical solvent properties
acid, anti-aging, have a good adhesion to rubber .Reinforcements Long aramid fiber has a high tensile strength, low elongation , high elastic modulus , non-conductive , corrosion resistance, low thermal high toughness, high shear strength , fire resistance and other outstanding features , widely used in ngineering and construction , rubber , cable reinforcement, high strength rope and other fields.
Protective materials
aramid fiber has high strength and high modulus , high temperature resistance , corrosion resistance, flexibility and low shrinkage properties, can be made of high-temperature protective clothing , cut-resistant gloves body armor, ballistic helmets , etc., is an ideal material for the field of personal protection .
Composites
aramid fiber has a high tensile strength, low density, small elongation , flexural strength characteristics with resin , rubber and other composite materials , can significantly reduce component weight , increased payload , for the production of aerospace equipment, high-speed trains and yacht housing and so on.
Friction and sealing materials
aramid fiber has high strength and high modulus , high temperature resistance, good toughness, fatigue and other outstanding features , can be used as friction material reinforced fiber ( asbestos substitutes ) , significantly improve wear resistance, suitable for high temperature conditions.
Sports Equipment
aramid fiber also be processed into insulating circuit boards, high-strength webbing , pipelines , specialty paper and golf clubs, tennis rackets , skis and other sports equipment , production in people , many areas of life play an increasingly important role.
Specification
No | Parameter | Unit | Specification | Testing Value for Max | Testing Value for Min | Mark |
1 | Appearance | visual | good | OK | OK | PASS |
2 | Fuzziness | visual | no | OK | OK | PASS |
3 | Impurity substance | visual | no | OK | OK | PASS |
4 | CV of count | % | ±5.0 | 4.5 | 0.5 | PASS |
5 | Tenacity(Break Strength) | cN/dtex | ≥18 | 21.52 | 19.05 | PASS |
6 | Elongation at break | % | 2.50~4.20 | 3.84 | 2.78 | PASS |
7 | Modulus | GPa | ≥90 | 93.5 | 87.7 | PASS |
8 | Oil residue | % | 1.00±0.5 | 0.72 | 0.60 | PASS |
9 | Hot shrinkage | % | ≤0.2 | 0.2 | 0.1 | PASS |
Recommend Products
Packing & Delivery
Packaging Details:
Yarn roll is covered with black plastic bag,then packed in a carton;cartons with palletes.
Yarn roll is covered with black plastic bag,then packed in a carton;cartons with palletes.
Company Profile
Nanjing Faircon New Materials Company is a professional supplier who can provide UHMWPE Fiber, UHMWPE UD fabic, para aramid UD fabric, bulletproof plates, bulletproof helmets, bulletproof vests and so on.
