ASV5910 +-1 персональный звуковой шумомер дозиметр сохранение

Applied Standards:

IEC 61252:2002 Personal Sound Exposure Meters,

IEC61672-2002,Class 2;

ANSI S1.25:1991 Personal Noise Dosimeters

Microphone:

1/4 inch prepolarized condenser field replaceable threaded microphone

Channel:

Dual channels

Measurement Range:

60-143dBA,65-143dBC,70-143dBZ(sensitivity: -53 dB )

Peak C Measuring Range:

80 to 143dB

Frequency Range:

20Hz to 12.5kHz

Frequency Weightings:

Parallel (simultaneous) A, C, Z for each channel

Time Weightings:

Parallel (simultaneous) F, S, I, Peak for each channel

Selectable thresholds :

40 to 90dB

Exchange rates:

3, 4, 5 and 6

Selectable criterion:

70 to 90dB

Dose exposure measurement range:

0.01Pa2h ~ 99.99Pa²h

Noise dose measuring range:

0% ~ 9999%

Integrating time:

1 second ~ 24 hours

Memory capacity:

2GB

Sampling interval of statistic analysis:

0.01s

Calibration information:

Calibration dates, times, and levels

Internal software function:

Integrating Function,  Statistical Analysis Function

Security:

Lock via keys

Power supply:

Rechargeable lithium polymer battery

Battery life:

Over 16 hours run capacity

Dimensions:

68(H)×68(W)×20(D)mm

Weight:

85g

Working Temperature:

-15℃~50℃

Display:

128×64 LCD

Output:

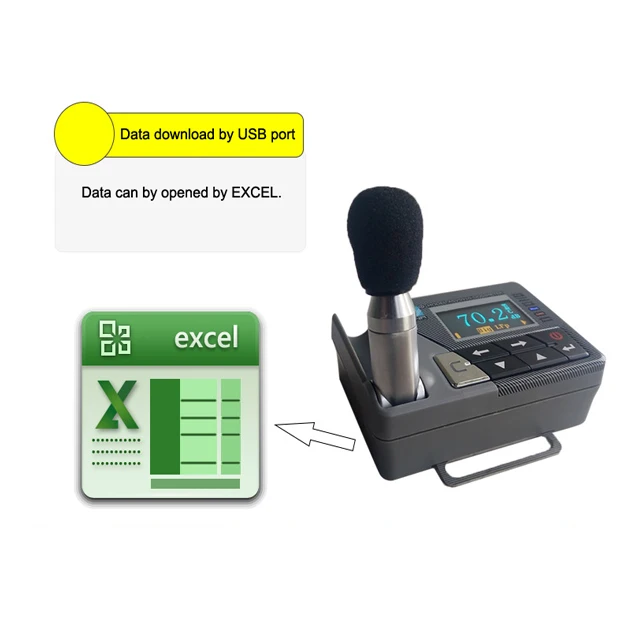

Mini USB port

Measure Parameters:

LXYp,  LXeq,T,  LXYmax,  LXYmin,  LN (Note:  X is A, C, Z; Y is F, S, I; N can be 1-99)

SEL,  Lex,8h,  Lavg, TWA,  DOSE,  E,  SD,  LXpeak
