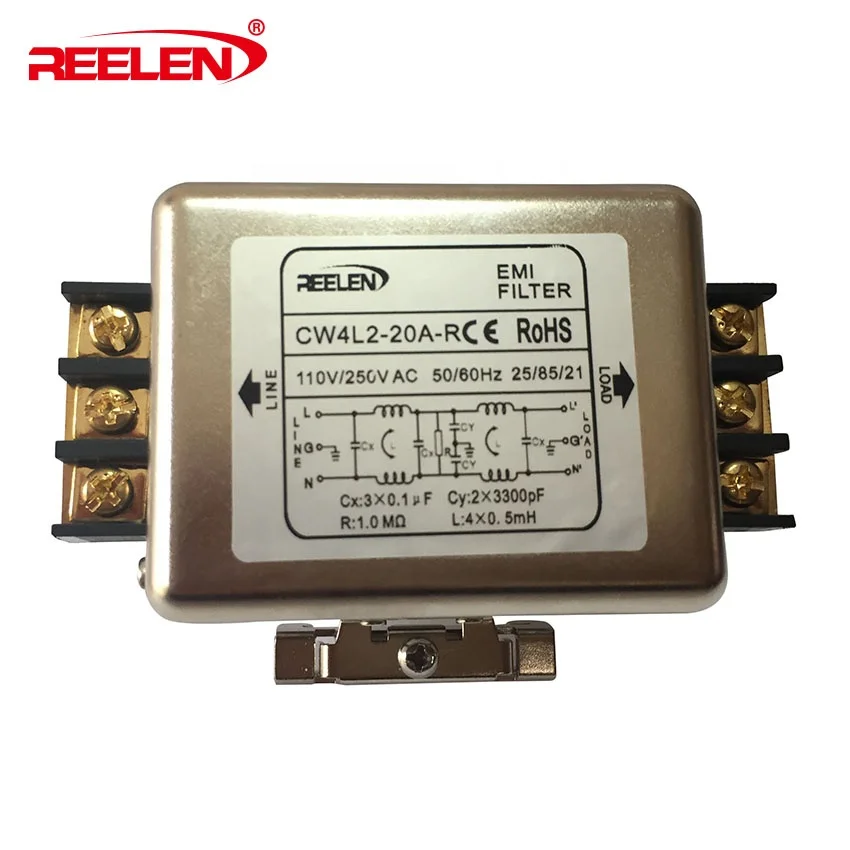

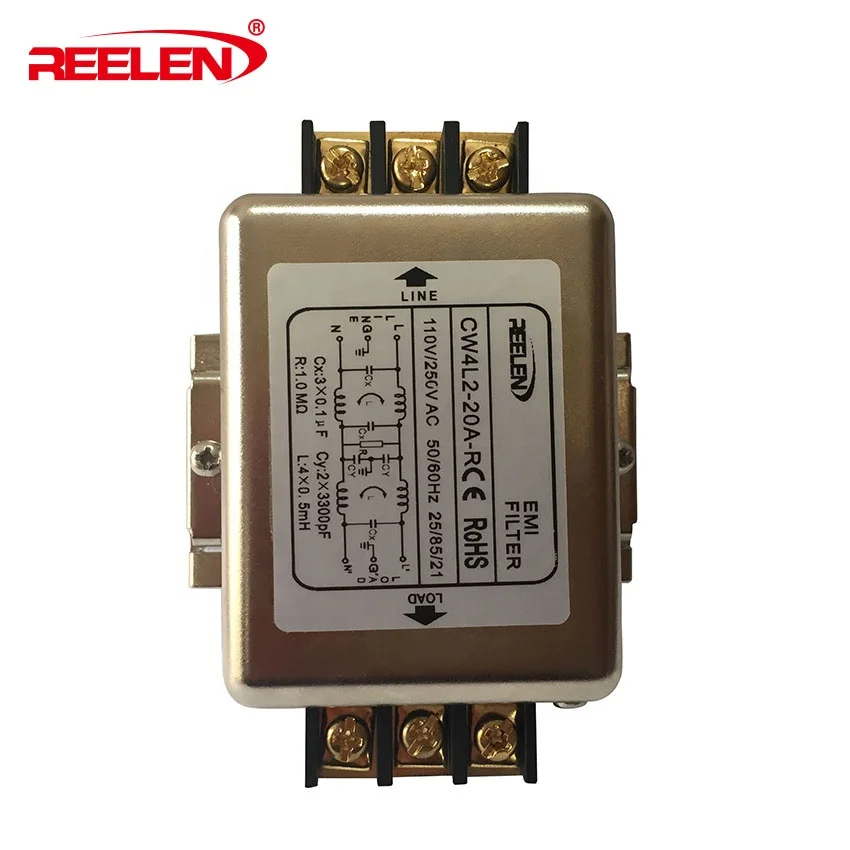

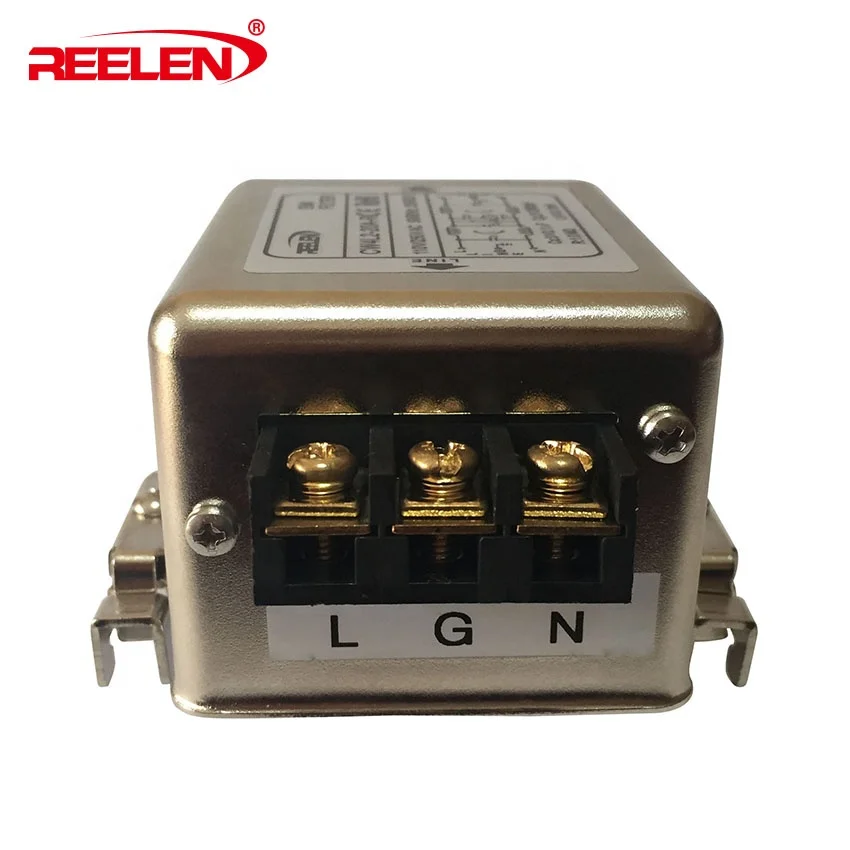

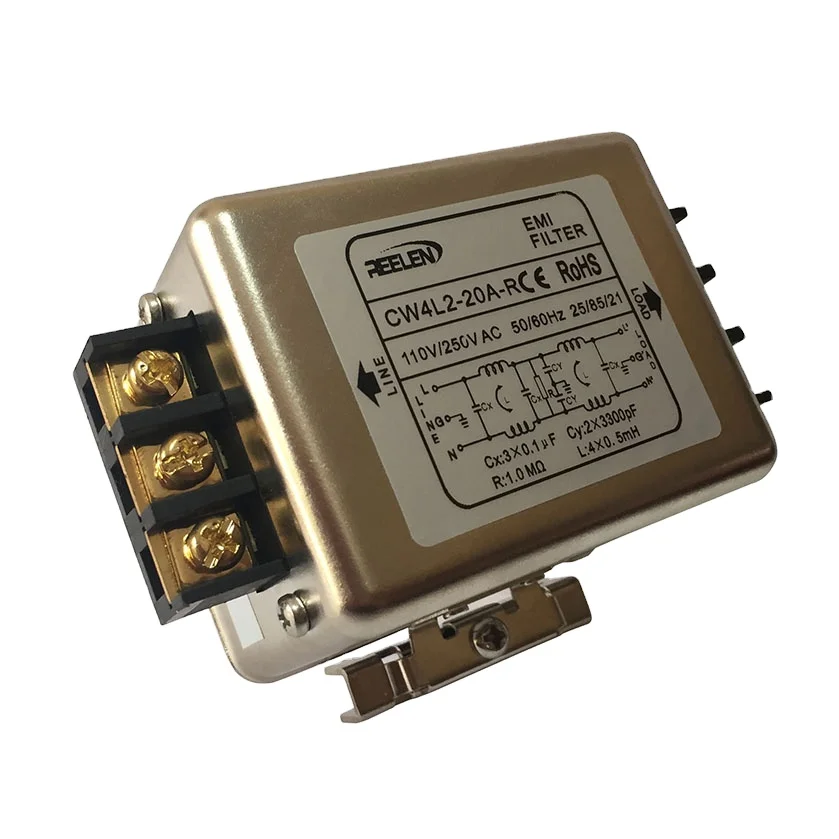

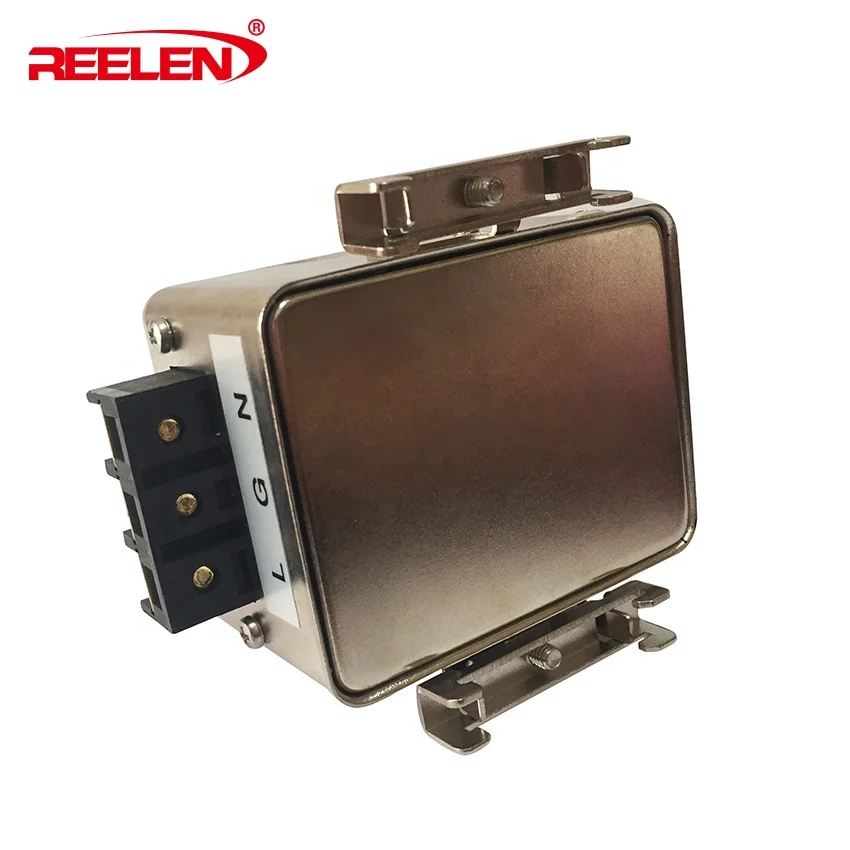

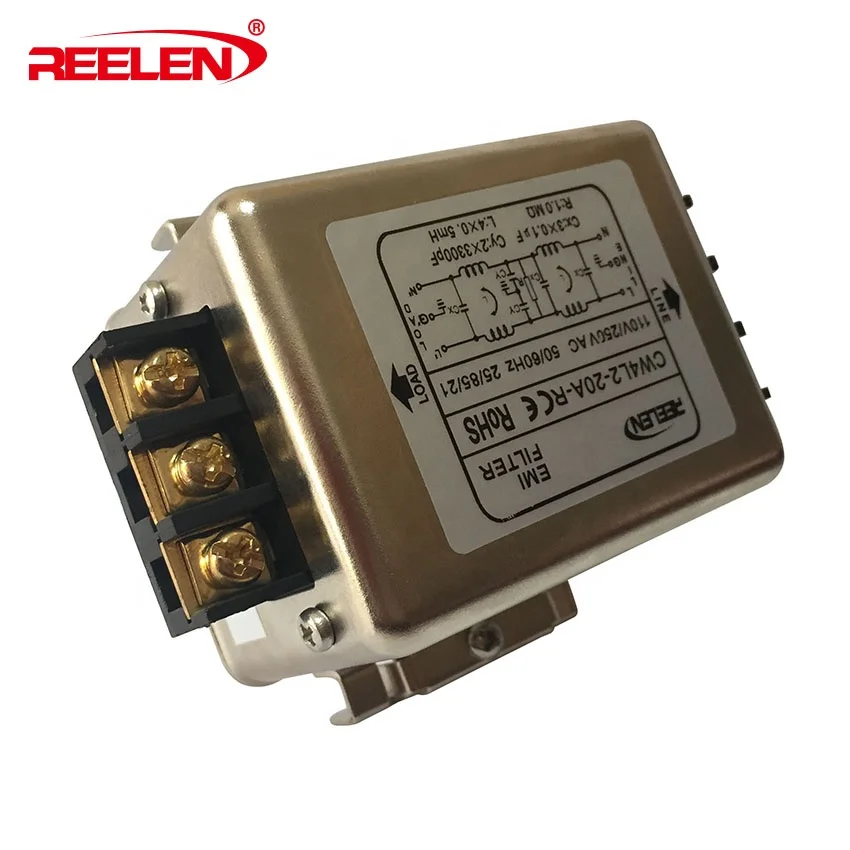

Ac EMI фильтр 20A двухполюсный направляющая Тип
- Категория: Filters >>>
- Поставщик: WENZHOU,REELEN,ELECTRICAL,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 11.62 $* | 11.5 $* |
| Jul-15-2025 | 9.50 $* | 9.42 $* |
| Jun-15-2025 | 11.36 $* | 11.18 $* |
| May-15-2025 | 11.11 $* | 11.32 $* |
| Apr-15-2025 | 9.71 $* | 9.92 $* |
| Mar-15-2025 | 11.94 $* | 11.99 $* |
| Feb-15-2025 | 11.95 $* | 11.2 $* |
| Jan-15-2025 | 11.11 $* | 11.70 $* |
Характеристики
Features
1. High performance compact single phase filter with faston/nut
2. Good performance of common mode and differential mode interference suppression
3. General purpose, compact, esay for installation and use
4. Optional medical versions (M type)
5. Different output connections
5. Approval: CQC CE RoHS
Product Description
Application
________________________________________________________________
Available for digital systems (particularly for switching power supplies) to suppress the continuity or intermittent pulse interference, white goods with frequency inverters, inverter based control system, medical equipment and medical typical applications (low current leakage).
Main Technical Characters
Rated Voltage: 125/250VAC or customized
Operation Frequency: 50/60Hz
Rated Current: 1-50A
Hi-pot Test: 1450VDC, 2 sec (Line to Line)
2250VDC, 2 sec (Line to Ground)
Climate Category: 25/85/21 (-25ºC to +85ºC)
Design corresponding to UL1283, CSA22.2 NO.8 1996, IEC/EN 60939
Operation Frequency: 50/60Hz
Rated Current: 1-50A
Hi-pot Test: 1450VDC, 2 sec (Line to Line)
2250VDC, 2 sec (Line to Ground)
Climate Category: 25/85/21 (-25ºC to +85ºC)
Design corresponding to UL1283, CSA22.2 NO.8 1996, IEC/EN 60939
Electrical Schematic
Outline and Installation dimension
Insertion Loss
Basic Parameters
Model | Rated Current (A) | L(mH) | R (MΩ) | Cx(uF) | Cy(nF) |
CW4L2-3A-R | 3 | 4 x 1.8 | 1.0 | 2 x 0.1 | 2 x 3.3 |
CW4L2-6A-R | 6 | 4 x 0.8 | 1.0 | 2 x 0.1 | 2 x 3.3 |
CW4L2-10A-R | 10 | 4 x 0.3 | 1.0 | 2 x 0.1 | 2 x 3.3 |
CW4L2-20A-R | 20 | 4 x 0.5 | 1.0 | 2 x 0.1 | 2 x 3.3 |
CW4L2-30A-R | 30 | 4 x 0.5 | 1.0 | 2 x 0.1 | 2 x 3.3 |
CW4L2-40A-R | 40 | 4 x 0.5 | 1.0 | 2 x 0.1 | 2 x 3.3 |
CW4L2-50A-R | 50 | 4 x 0.5 | 1.0 | 2 x 0.1 | 2 x 3.3 |
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: For the small quantity, it will be in carton, for big quantity, we should add strong wooden Pallet for better protection.
4.The logo: If you have good quantity, it absolute no problem to do OEM.
5.The month capacity: reach near 80000pcs/month(for small capacity) or near 7000pcs/month(for big capacity).
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
7.Warranty: in 24 months since BL date.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: For the small quantity, it will be in carton, for big quantity, we should add strong wooden Pallet for better protection.
4.The logo: If you have good quantity, it absolute no problem to do OEM.
5.The month capacity: reach near 80000pcs/month(for small capacity) or near 7000pcs/month(for big capacity).
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
7.Warranty: in 24 months since BL date.
Company Profile
REELEN company is located in Yueqing city, which known as the Chinese electrical appliances, since the inception, REELEN has been specialized in manufacturing and exporting various of electrical products, most of our products have passed CE & RoHS certifications.
Our main products include machine tool control transformers, lighting control transformers, auto voltage reducing starter transformers, three phase Isolation transformers, step up & down transformers, temperature controllers, AC-DC switching power supplies, DC-DC converter, waterproof LED driver, AC voltage stabilizer, inverter, EMI filter, regulators and so on; And our products have been exported to many countries in US, Southeast Asia, the Middle East, Europe and South America and so on.
Quality excellence and customer satisfaction is our strategic principle, we are responsible for powerful competitive price, better quality, quick shipment and developing new products. Our aim is to help our clients realize their goals and to achieve an win-win situation through our great efforts.
We are sincerely looking forward to developing long-term friendly and cooperative business relationships with friends all over the world, and hereby, we welcome customers of every country to our company and factory. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
Thanking you!
Certifications
Packing & Delivery
FAQ
1. Q: How to order?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods with in the stipulated time.
2. Q: When will make delivery?
A: Delivery Time
-Sample Order: normally 3-7 days as per different models;
-Stock Order: 3-7 days after receipt of the full payment;
-OEM Order: 10-35 days after receipt of the deposit.
3. Q: How about your After-sales Service?
A: During the warranty period, if you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
A: T/T, Western Union, Paypal, Money Gram, L/C at sight.
5. Q: What price terms is available for you to do?
A: EXW, FOB, CNF, CIF, DDU etc.
6. Q: Transportation
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Sea freight.
7. Q: What's the main business scope of Reelen?
A: We are professional manufacturer and exporter of kinds of transformers, ac reactors, EMI filters, AVRs, LED drivers, Switching Power supplies, PID Temperature Controllers etc.
8. Q: Is it available for your company to make an customized product?
A: Yes, please let us know the detail technical data, we will try the best to make for you.
9. Q: which is loading port?
A: If not specified, the loading port is Ningbo port.
10. Q: May I ask for exclusive agent right in my country?
A: We welcome you to be our long term cooperator in this field. As we have strict principle to entitle the exclusive rights, we suggest placing trial orders first to test your market. If the response is really good, we can talk more on this point.
11. Q: Is OEM welcome by your company?
A: OEM is warmly welcome by our company.
Hope we both parties will benefit a lot through the cooperation.
12. Q: What is warranty on your products?
A: AVR: in 1 year warranty
Transformer: 1 year warranty
Ac reactor: 1 year warranty
EMI filter: 1 year warranty
Switching power supply: 2-3 years warranty
Temperature controller: 1 year warranty
