Лидер продаж машина для лазерной резки металла серии HSG GT оборудование промышленного
- Категория: Industry Laser Equipment >>>
- Поставщик: HSG,Laser,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 166600.15 $* | 174930.61 $* |
| Aug-19-2025 | 165200.54 $* | 173460.37 $* |
| Jul-19-2025 | 138600.45 $* | 145530.7 $* |
| Jun-19-2025 | 162400.59 $* | 170520.57 $* |
| May-19-2025 | 141400.31 $* | 148470.78 $* |
| Apr-19-2025 | 159600.59 $* | 167580.14 $* |
| Mar-19-2025 | 158200.19 $* | 166110.51 $* |
| Feb-19-2025 | 156800.40 $* | 164640.32 $* |
| Jan-19-2025 | 155400.13 $* | 163170.51 $* |
Характеристики
Product Description

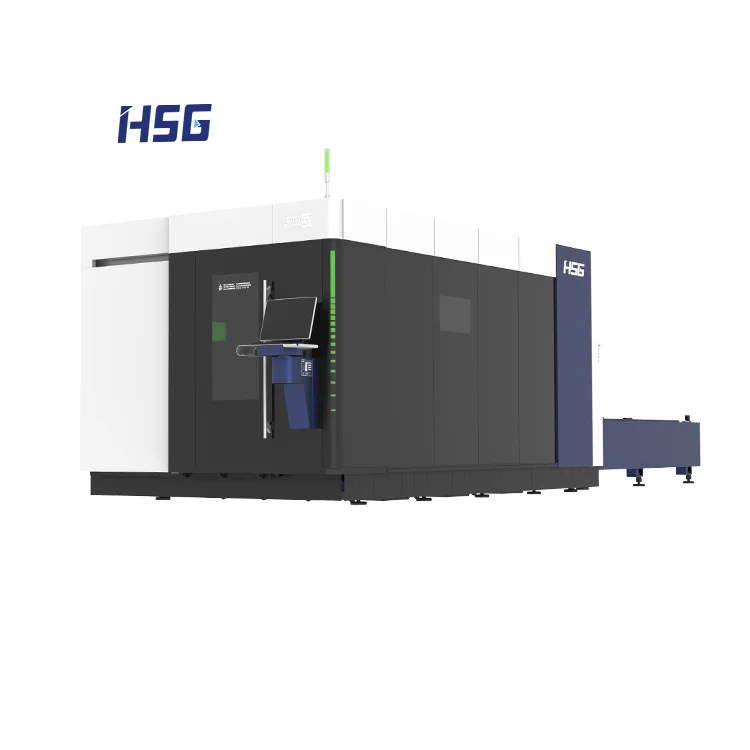

HSG GT Series Hot Sale Metal Laser Cutting Machine Lazer Cut Industrial Machinery Equipment
(3000w-6000ww)
MODEL FEATURES（Sheet Metal Laser Cutting Machine）
GT Series Medium Power Laser Cutting Machine
1. ALPHAT1.0 Bus Control System
2. European standard safety and environmental protection equipment
1. ALPHAT1.0 Bus Control System
2. European standard safety and environmental protection equipment
3.Stable mechanical system
Carbon Structure Steel Plate Welding Machine Bed
Eco-friendly Cutting Mode
Powerful ventilation system with large air volume and strong air pressure, realize strong suction and fast smoke exhaust; butterfly valve structure, smooth and quiet.

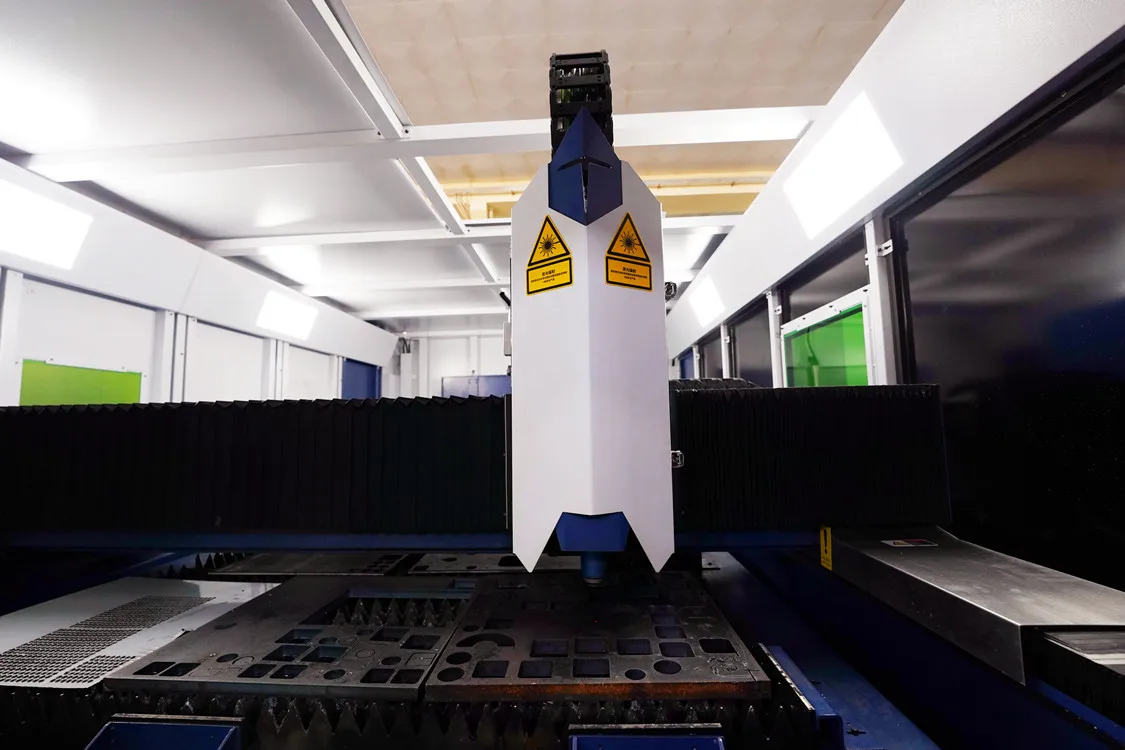

High-power Intelligent Bus Cutting Head
P10 can change its laser spot to proper size and shape according to cutting materials and thickness. Thin sheets are cut at high speed and thick sheets are cut with high quality.
Alpha T Bus CNC System
High-speed transmission, high cutting accuracy; Independent innovation, stable and flexible operation.
Alpha T, self-developed by HSG LASER, can make data transmission rapid, stable and accurate only via a network cable as a technically advanced bus system.
Conform to EU’s Three Safety Design Norms and CE Certification
24h HSG Cloud Intelligent Guardian
Industrial cloud intelligent interconnection, real-time data collection and monitoring, remote and efficient diagnosis and maintenance.
Anti-collision Protection
The cutting head keeps a safe distance from the cutting surface at any time, and has the function of touch stop function to reduce
the risk of collision.
the risk of collision.
Intelligent Stroke Protection
The system can give sensitive feedback and quickly command to stop when abnormal, so as to ensure the safety of the equipment.
Intelligent System Alarm
Equipment can conduct self-inspection, main interface can display abnormal alarm, reduce hidden dangers and improve equipment
troubleshooting efficiency.
troubleshooting efficiency.
The Latest Generation of Extruded Aviation Aluminum Beam
Light: Select 6 series aviation aluminum alloy, which is the material for manufacturing aviation flight devices. Solid: honeycomb compressive structure design, using honeycomb mesh structure which is derived from space vehicle structure design standards has strong resistance to deformation and guarantees long-term high-speed cutting.

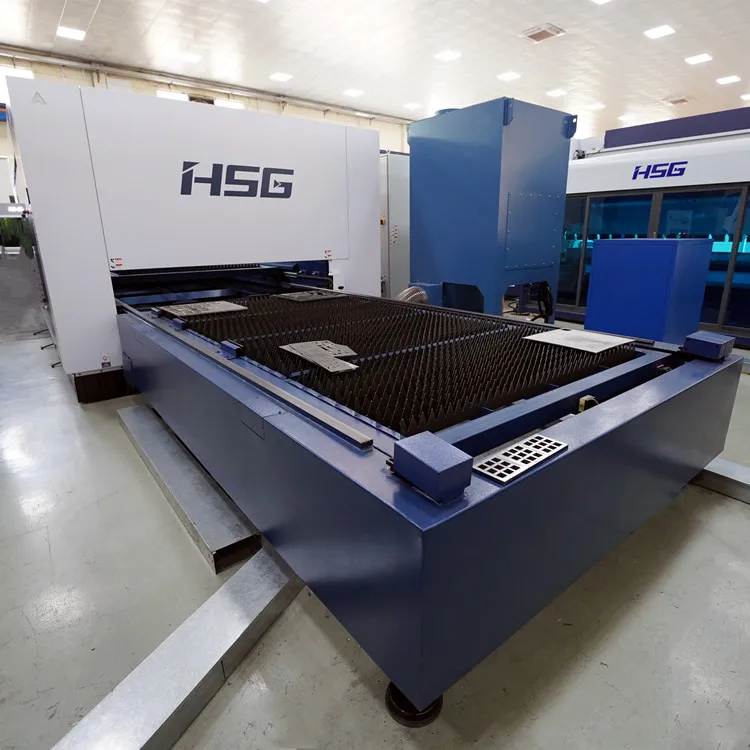

High-speed Exchange Platforms
The double exchange platforms are driven by double motors (for 6000*2500mm or larger processing formats) stably at fast speed ,which will work independently with no effect on each other. Taper pins are used for positioning the platforms to keep positioning precision within 0.5mm.
Optional Features:Pneumatic door between exchange platforms: prevent cutting smoke diffusion and keep working environment clean
Safety light curtain: halt the machine instantly while detecting any intruder to protect machine and workers
HSG Laser Design
* European Standard Protection Design
HSG Laser protection design, visual operation through laser protection window, no laser radiation; Intelligent safety monitoring system, automatically stop operation when protective door is opened.
* Advanced Appearance Design
HSG Laser follows strict European design standards, humanized control console, suspension lamp, seamless stainless steel edging with high product quality guaranteed.
Technique Parameters
Model | G4020T Pro | G6025T Pro | G8025T Pro | G12025T Pro |
Power | 12000-15000W | 12000-15000W | 12000-15000W | 12000-15000W |
Working Area (L*W) | 4000*2000mm | 6000*2500mm | 8000*2500mm | 12000*2500mm |
X/Y-axis Positioning Accuracy | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
X/Y-axis Repositioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
Max. No-load Speed | 140m/min | 120m/min | 120m/min | 120m/min |
Max. Acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
Max. Loading Weight of Platforms | 2000kg | 3500kg | 4680kg | 7020kg |
Overall Dimensions (L*W*H) | 11400*3600*2370mm | 15900*4150*2370mm | 20100*4150*2370mm | 30000*4140*2400mm |

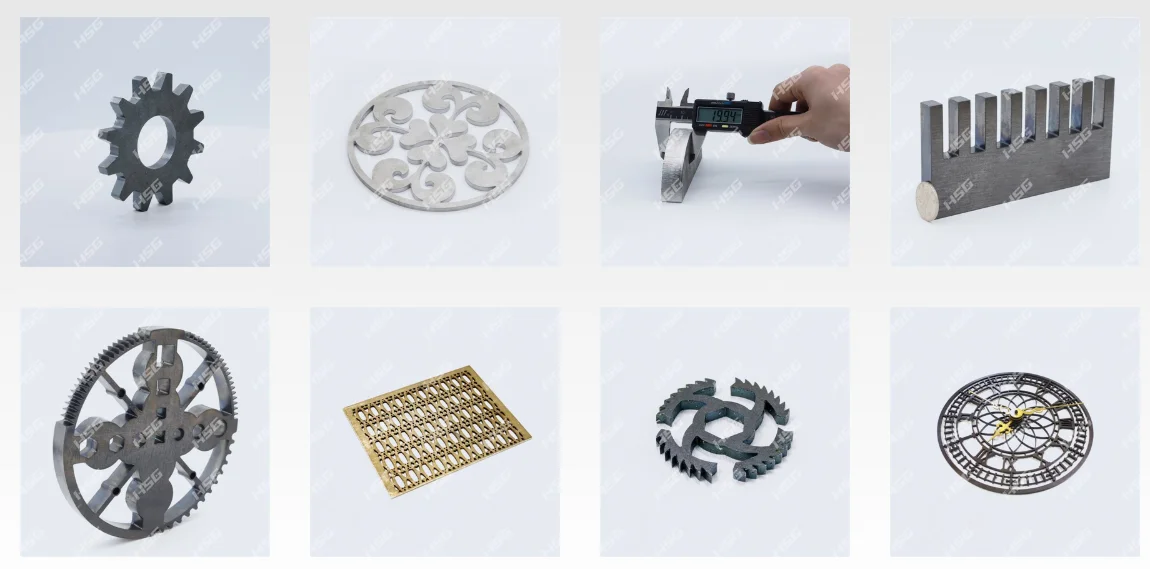

Sample Cutting Display
Certifications
Quality Inspection Process(HSG Laser Co.,ltd）
Recommend Products
Customer case
Packing & Delivery
HSG GT Series Hot Sale Metal Laser Cutting Machine Lazer Cut Industrial Machinery Equipment
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.(HSG Laser Co.,Ltd)
Company Profile
HSG Laser Co.,Ltd
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D,production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 14 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
HSG GT Series Hot Sale Metal Laser Cutting Machine Lazer Cut Industrial Machinery Equipment
Our Service
FAQ
HSG GT Series Hot Sale Metal Laser Cutting Machine Lazer Cut Industrial Machinery Equipment
1-I knew nothing about this machine, what kind of machine i should choose?
-Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
2-What can it cut? How thick can it cut at most?
-Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy. The maximum thickness is different between different models and materials. Please check in the product introduction page.
3-How long is the warranty?
-We offer 1-year warranty.
4-Where is your headquarters?
4-Where is your headquarters?
-Our headquarters is in foshan, Guangdong Province, China.
5-Can I visit your factory?
-Of course.Please contact us any time . We will arrange in advance.
6-Do you have engineer to teach me/my workers?
-Yes, we offer free training for each customer. We promise to help until everything gets right.
HSG GT Series Hot Sale Metal Laser Cutting Machine Lazer Cut Industrial Machinery Equipment
