Модуль ЖК-дисплея COB 16x2 STN
US $0.30-$1.00
8080 6800 параллельный интерфейс 30pin без винтового отверстия Cog 160160 cog FSTN графический ЖК-дисплей 160x160 для счетчика
- Категория: Графический дисплей >>>
- Поставщик: Wuxi,Siminuo,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.5 $* | 0.3 $* |
| Aug-16-2025 | 0.0 $* | 0.51 $* |
| Jul-16-2025 | 0.67 $* | 0.2 $* |
| Jun-16-2025 | 0.54 $* | 0.24 $* |
| May-16-2025 | 0.0 $* | 0.42 $* |
| Apr-16-2025 | 0.23 $* | 0.76 $* |
| Mar-16-2025 | 0.4 $* | 0.3 $* |
| Feb-16-2025 | 0.84 $* | 0.24 $* |
| Jan-16-2025 | 0.8 $* | 0.97 $* |
Характеристики
Product Category
Product Description
Friendly Reminder：
If you want to learn more about products and information, please visit the company website:www.simair-lcd.com
1.Features
Model | SMR160160A | ||||||||
Model size(mm) | 63.35(L)x69.3(W)x4.5(H)mm | ||||||||
View Area(mm) | 60.4×60.4 mm | ||||||||
View Direction | 6:00 | ||||||||
Dot Size(mm) | 0.32x0.32 | ||||||||
Dot Pitch(mm) | 0.34x0.34 | ||||||||
LCD Mode | STN(Blue) FSTN(Gray) | ||||||||
Operating voltage | 3.3V | ||||||||
Driver IC | UC1698U or Equivalent | ||||||||
Net weight（g） | 35 | ||||||||
Driving Method | 1/160 DUTY,1/10 BIAS | ||||||||
Number of chracter | 10 characters x 10 lines | ||||||||
Operating Temperature | -20℃ ~ +70℃ | ||||||||
Storage Temperature | -30℃ ~ +80℃ | ||||||||
2.Extenal Dimensions
3.Pin Description
4.Detail Display

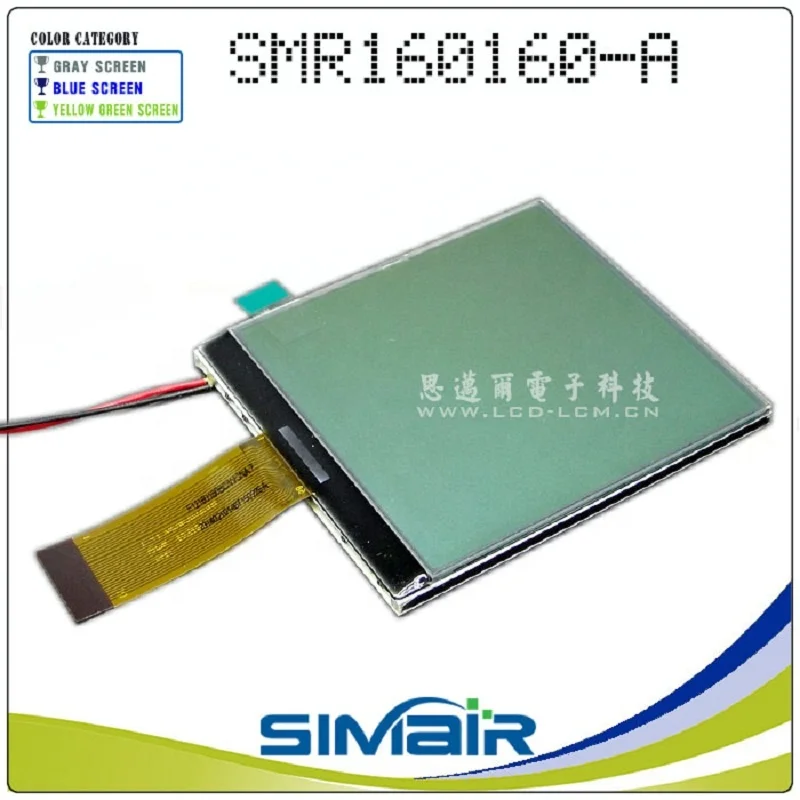

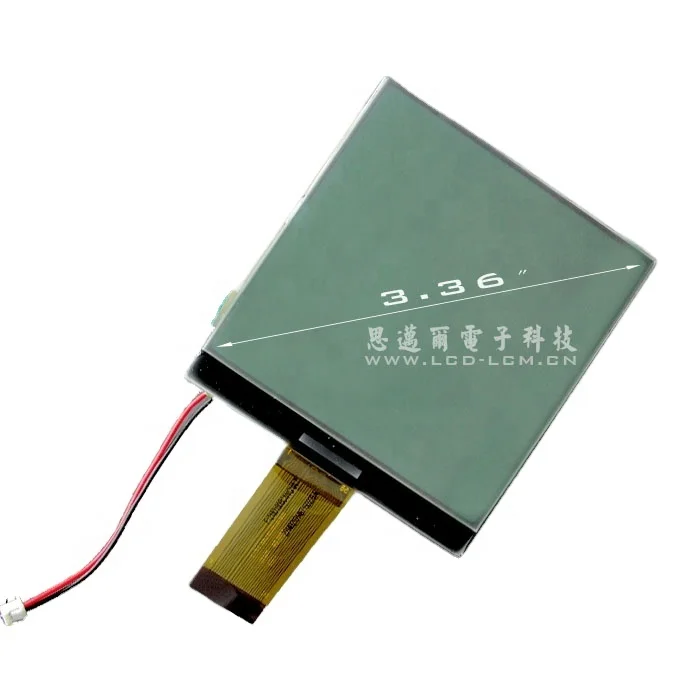

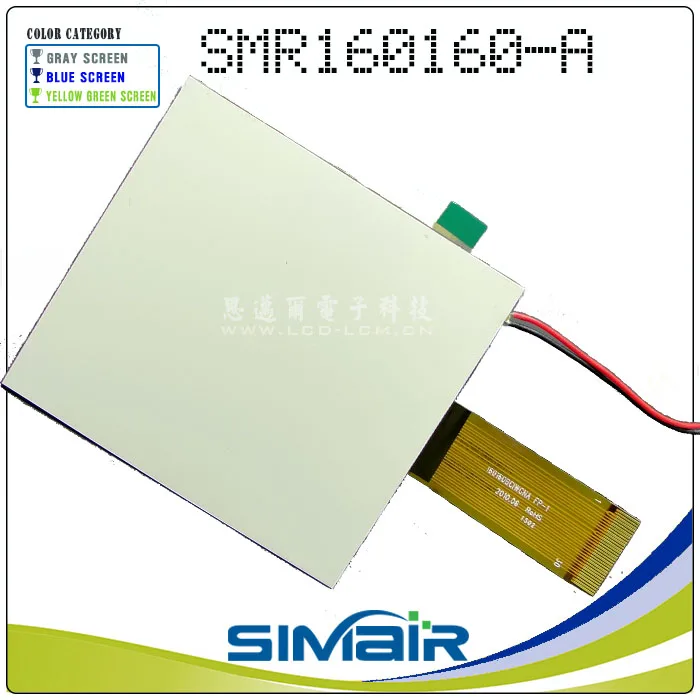

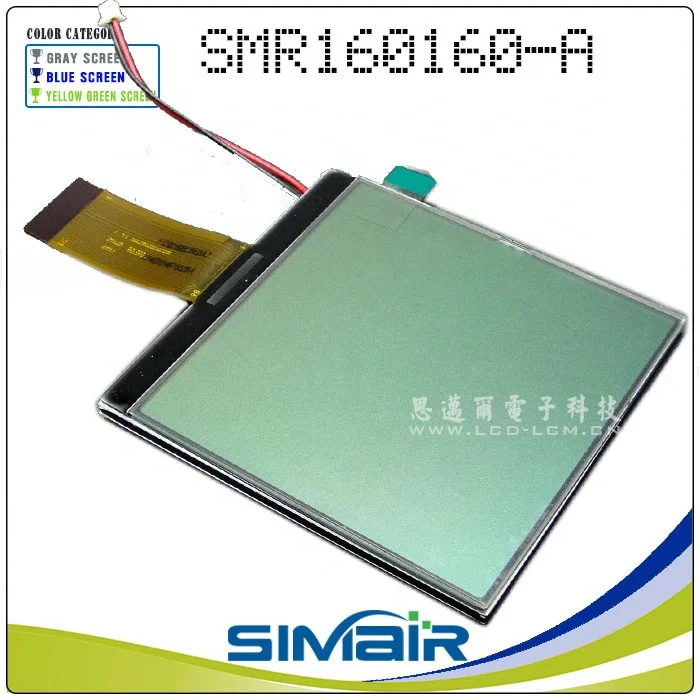

160160A LCD Display
Black on gray-white white on blue
Square lcd ,30 PINS interface,bult in UC1698U.
Communication interface:6800 8-bit parallel port,operate easy!
Raw material:Domestic famous brand, high quality and environmental protection!
1.Industrial version, Tianma glass, has been produced for more than 10 years, reliable quality.
2.The same price, please refuse domestic chip, anti-interference is not good!

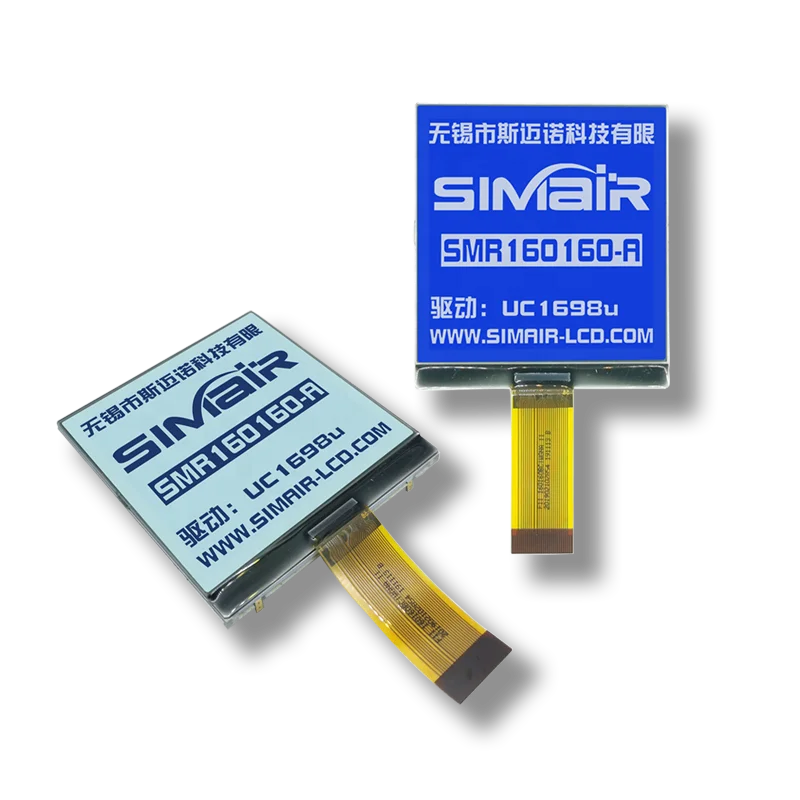

TWO colors（STN(Blue)、FSTN（Gray）
160160A LCD
Because of focus
So professional
Stable Supply
Technical Support
With LED backlight
Multiple display effects
Low power consumption
Recommend Products
Certifications
Manufacturing Technique
Company Profile
About US
Wuxi simair Technology Co., Ltd., founded in 2012, is a high-tech enterprise specializing in the production and R & D of LCD,LED, LCM, OLED, TFT and related components.
We has perfect quality management system. We have powerful LCM R&D, manufacturing and quality control team, which can quickly provide solutions according to the diversified needs of customers.
Our LCD is widely used in communication equipment, electronic products, household appliances, instrument panel, etc. it is mainly sold to European, American, Asian, Australian, Hong Kong and domestic markets.
We has perfect quality management system. We have powerful LCM R&D, manufacturing and quality control team, which can quickly provide solutions according to the diversified needs of customers.
Our LCD is widely used in communication equipment, electronic products, household appliances, instrument panel, etc. it is mainly sold to European, American, Asian, Australian, Hong Kong and domestic markets.
Contact US
Wuxi Simair Technology Co., Ltd.
Address:No. 1555, Huishan Road, Huishan District, Wuxi City, Jiangsu Province, China
Contacts:Sandy chen
Tel:+86 -18552057004
Fax:+86-755-29517347
E-mail:350006658@qq.com
Website:www.simair-lcd.com
Shipment & Payment
FAQ
Q Are you manufactory or trade company?
A We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 10 years.
