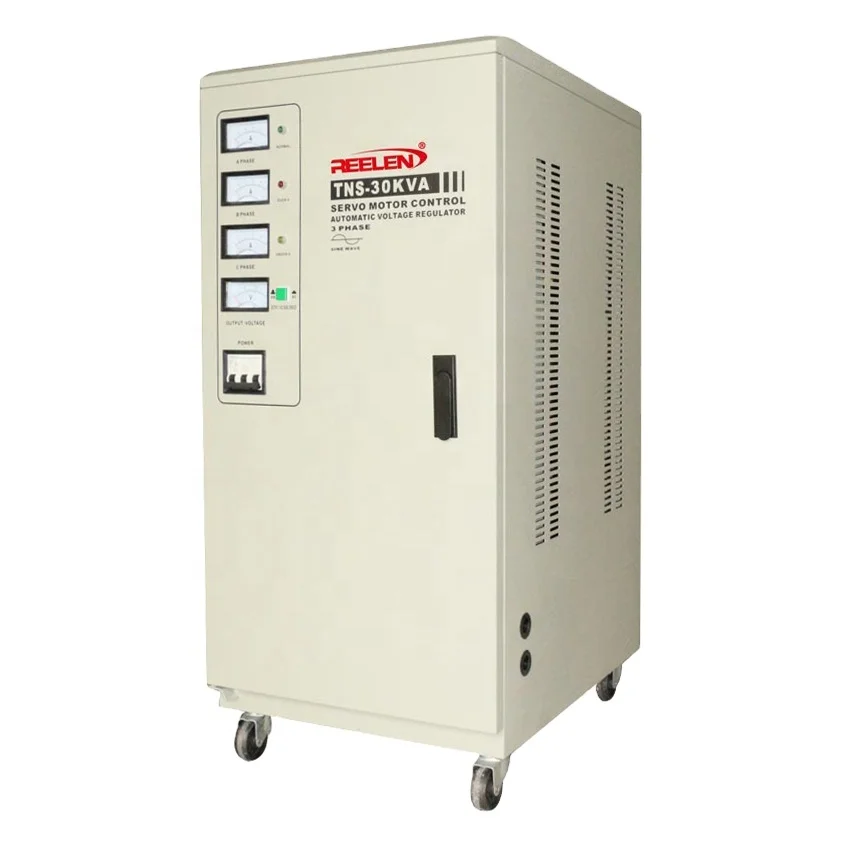

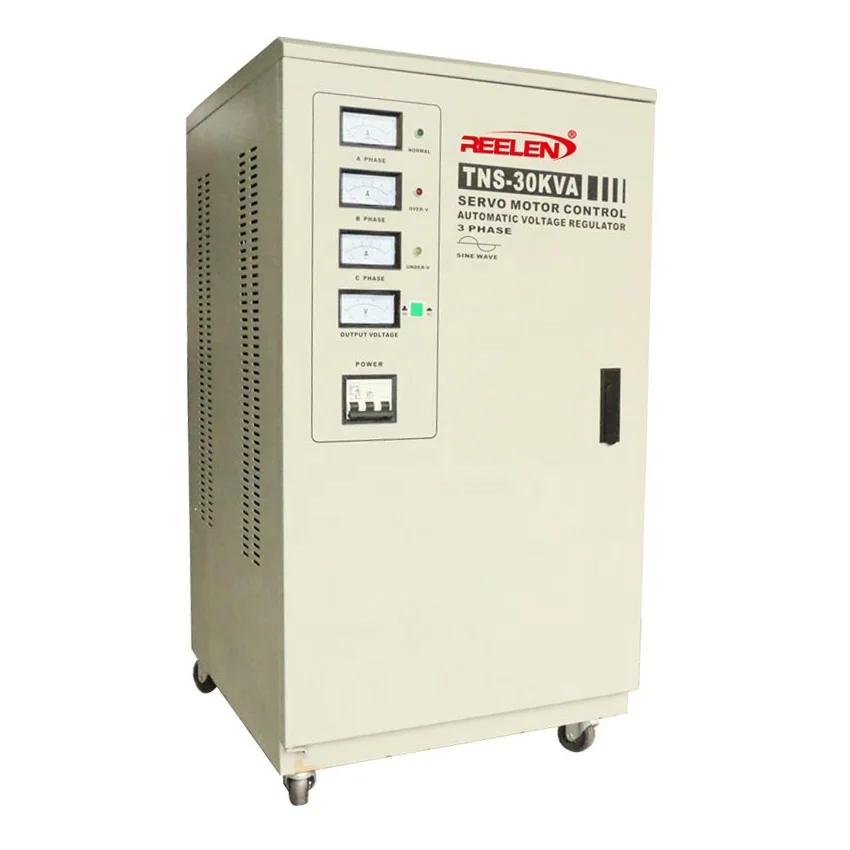

TNS series high precision automatic three phase AC power supply, single phase TND (SVC) series of high precision automatic voltage power combination, three phase phase adjustment, ensure the safety of each phase voltage, power input for three phase four wire system, star (Y) method, output three phase four wire and three phase three wire system consists of three current meter respectively indicating the output current of each phase, which is composed of a switch and a voltage meter to detect the phase shift output voltage.

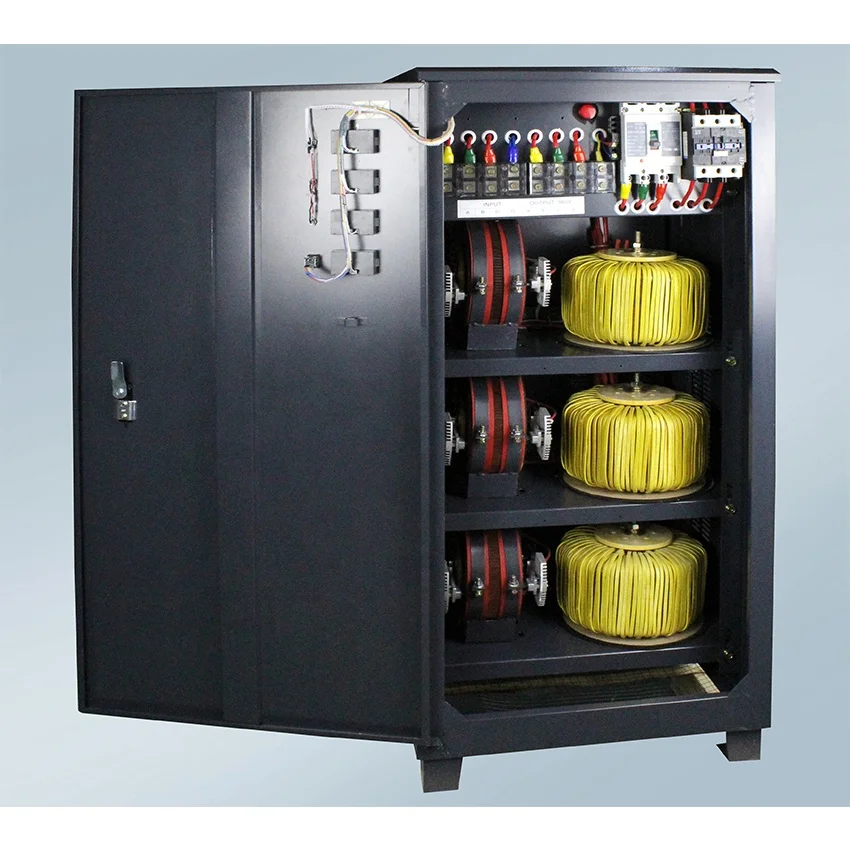

20kVA and above specifications TNS series high precision automatic three phase AC voltage regulator, which is composed of three corresponding single phase automatic voltage stabilizer, and adopts auto-coupling.
Main Technical Characters
Power Range
1.5KVA-100KVA (three phase)
Input Voltage
Ordinary 260-430V, or optional larger range
Output Voltage
380V±3% or customized
Coil Material
Ordinary aluminum and copper mixed, full copper can be customized
Display

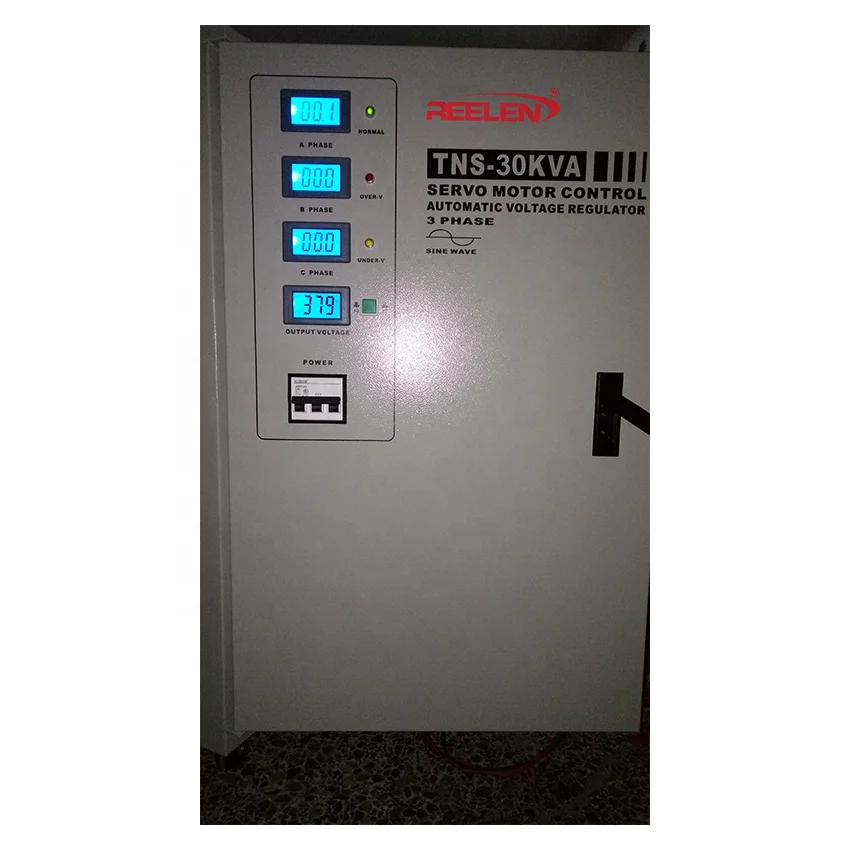

Ordinary pointer display, LED or LCD display screen can be customized
Frequency
50Hz/60Hz
Adjusting Time
<1s ( when input voltage has a change of 10%)
Adjusting Speed
>15V/s
Waveform Distortion
No additional waveform distortion
Efficiency
>95%
Ambient Temperature
-5 ~ +40°C
Relative Humidity
≤95%
Dielectric Strength
1500V/min
Insulation Resistance
≥2MΩ
Overall dimension and installation dimension diagram
Model
Rated Output Power
(kVA)
Product Dimension
LxWxH
(mm)
Packaging Dimension LxWxH
(mm)
N.W
(kg)
G.W
(kg)
TNS-3KVA
3
485
225
170
535
275
220
24
27
TNS-4.5KVA
4.5
485
225
170
535
275
220
28
31
TNS-6KVA
6
360
280
680
410
330
770
29
34
TNS-9KVA
9
380
320
780
430
370
870
43
48
TNS-15KVA
15
440
360
780
490
410
870
68
75
TNS-20KVA
20
520
400
860
570
450
950
85
93
TNS-30KVA
30
520
460
970
570
510
1060
91
100
TNS-40KVA
40
640
570
1180
690
620
1300
175
190
TNS-50KVA
50
640
570
1180
690
620
1300
185
200
TNS-60KVA
60
640
570
1180
690
620
1300
196
211
TNS-75KVA
75
670
550
1320
720
600
1500
207
227
TNS-90KVA
90
670
550
1320
720
600
1500
273
293
Attention
1.The payment term: We accept TT, 30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: For the small capacity, it will be in carton, for big capacity, we should use strong wooden case for protection.
4.The material of windings: We have two types, one is 100% copper and another one is copper with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.The month capacity: reach near 80000pcs/month(for small capacity) or near 7000pcs/month(for big capacity).
7.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
8.Warranty: in 13 months since BL date.
