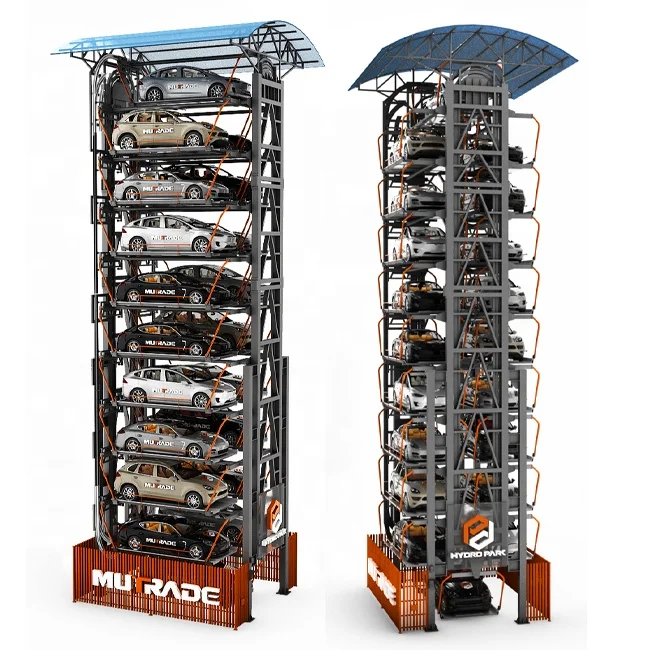

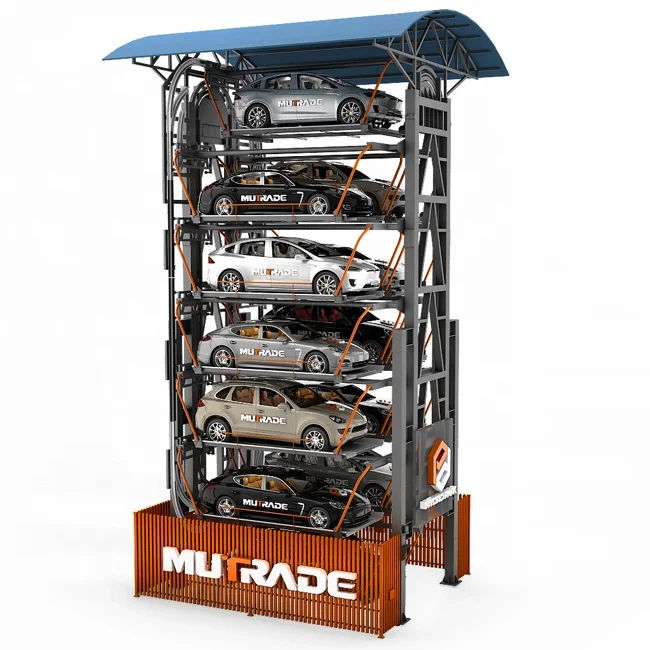

Механическое здание умный вертикальный парковочный подъемник вращающаяся система
- Категория: Parking Equipment >>>
- Поставщик: Qingdao,Mutrade,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 6545.76 $* | 6872.36 $* |
| Aug-18-2025 | 6490.60 $* | 6815.12 $* |
| Jul-18-2025 | 5445.1 $* | 5717.56 $* |
| Jun-18-2025 | 6380.24 $* | 6699.15 $* |
| May-18-2025 | 5555.73 $* | 5833.82 $* |
| Apr-18-2025 | 6270.31 $* | 6584.33 $* |
| Mar-18-2025 | 6215.86 $* | 6526.85 $* |
| Feb-18-2025 | 6160.18 $* | 6468.37 $* |
| Jan-18-2025 | 6105.1 $* | 6410.71 $* |
Характеристики
Product Description
Products Details
Model Number | ARP-8 | ARP-10 | ARP-12 | ARP-16 | ARP-20 | ||||
Car spaces | 8 | 10 | 12 | 16 | 20 | ||||
Motor power (kw) | 7.5 | 7.5 | 9.2 | 15 | 24 | ||||
System height (mm) | 9,920 | 11,760 | 13,600 | 17,300 | 20750 | ||||
Max retrieve time (s) | 100 | 120 | 140 | 160 | 140 | ||||
Rated capacity (kg) | 1800kg | ||||||||
Car size (mm) | Sedans only; L*W*H=5300*2000*1550 | ||||||||
Cover area (mm) | W*D=5,500*6,500 | ||||||||
Power supply | AC Three phases; 50/60hz | ||||||||
Operation | Button / IC Card (optional) | ||||||||
Finishing | Powder coating | ||||||||
Model Number | ARP-8S | ARP-10S | ARP-12S | ARP-16S | |||
Car spaces | 8 | 10 | 12 | 16 | |||
Motor power (kw) | 9.2 | 9.2 | 15 | 24 | |||
System height (mm) | 12,100 | 14,400 | 16,700 | 21,300 | |||
Max retrieve time (s) | 130 | 150 | 160 | 145 | |||
Rated capacity (kg) | 2300kg | ||||||
Car size (mm) | SUVs allowed; L*W*H=5300*2100*2000 | ||||||
Cover area (mm) | W*D=5,700*6500 | ||||||
Operation | Button / IC Card (optional) | ||||||
Power supply | AC Three phases; 50/60hz | ||||||
Finishing | Powder coating | ||||||

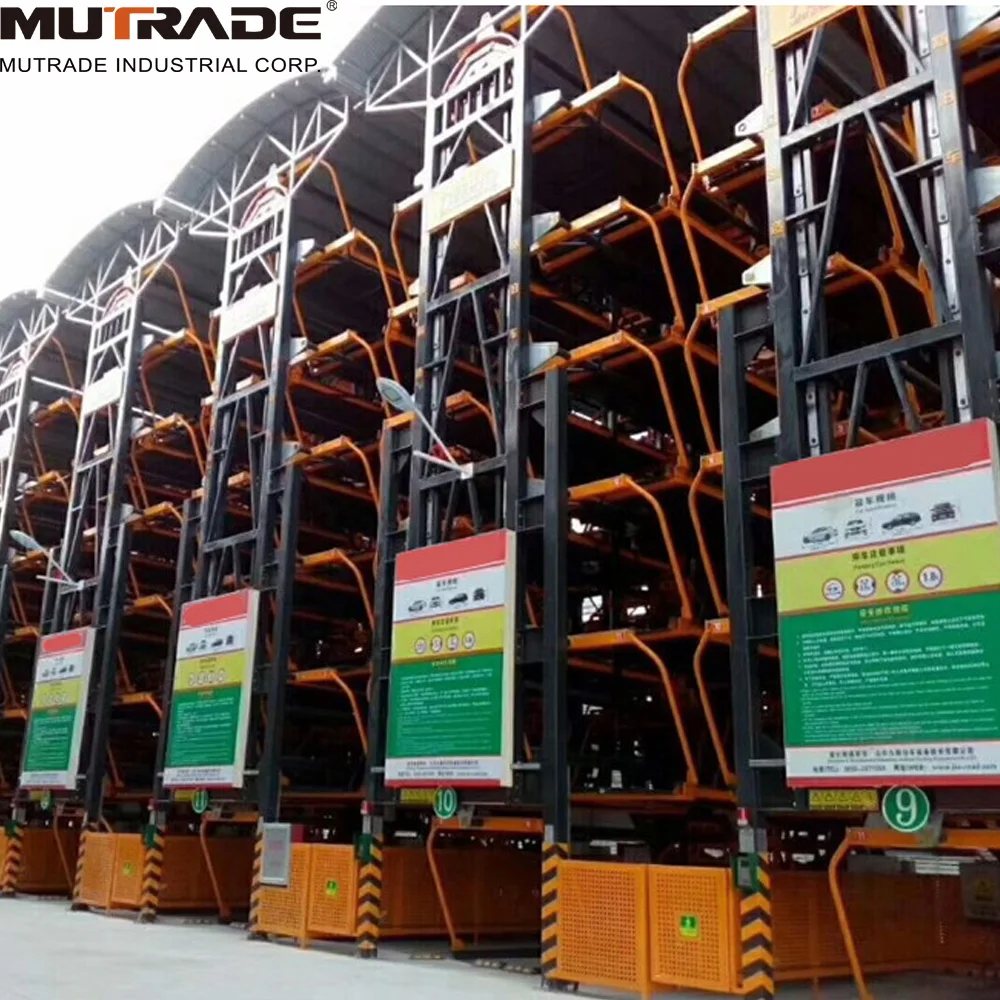

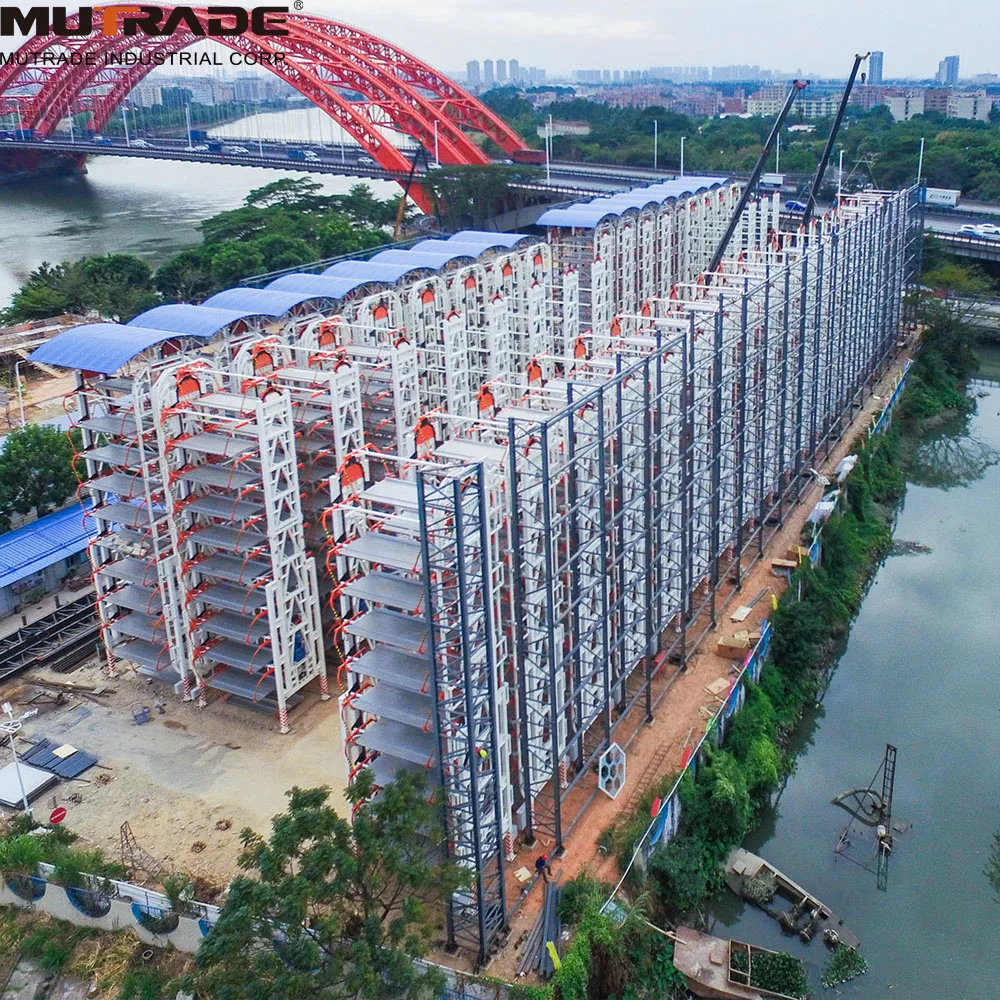

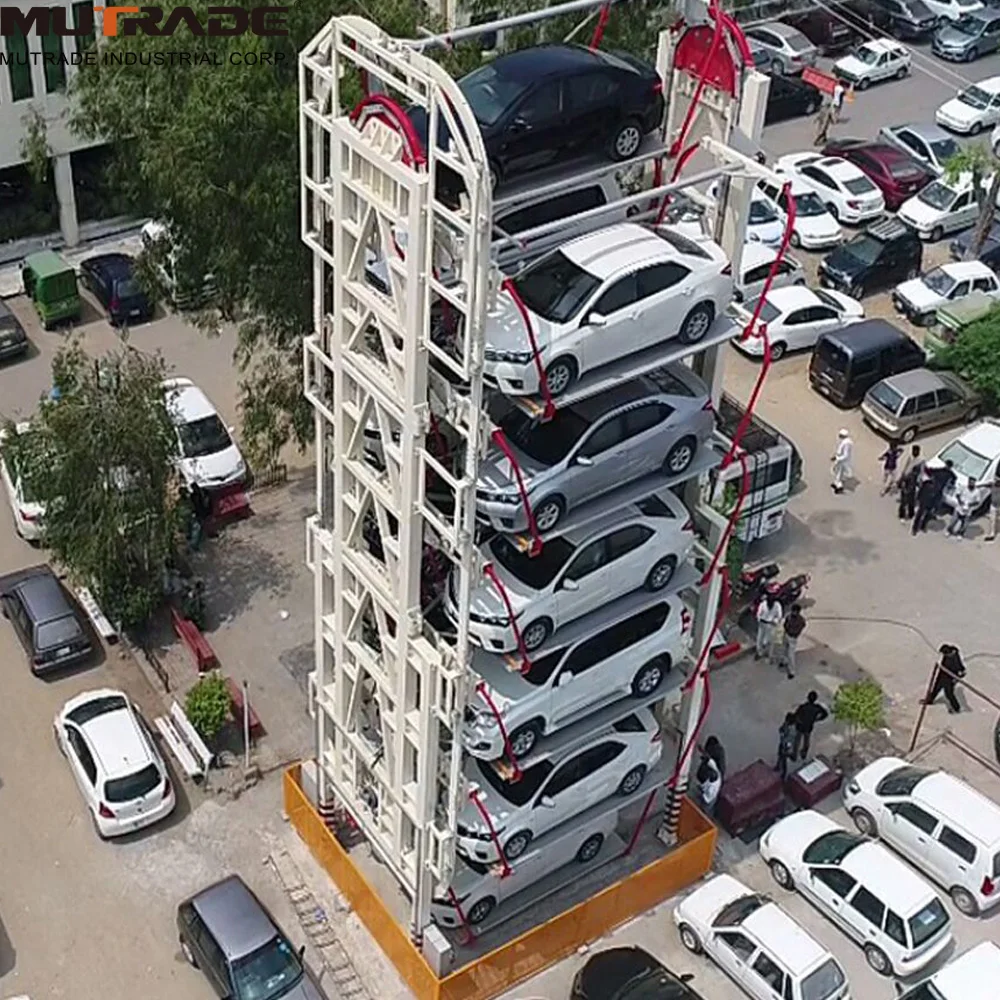

Project References
Project Case
INTRODUCTION
Our Company
Certifications
FAQ
1. How many cars could be parked for each unit?
2 cars. One is on the ground and another is on the platform.
2. Could Hydro-Park 1123 be used for parking SUV?
Yes, the rated capacity of Hydro-Park 1123 is 2300kg, and maximum capacity is 2500kg, many types can be available.
3. Can Hydro-Park 1123 be used outdoor?
Hydro-Park 1123 is capable for both indoor and outdoor use . The fnishing is powder coating and plate cover is galvanized, with
rust-proof and rain-proof. When used indoor, you need consider the ceiling height.
4. What's the supply voltage?
Standard voltage is 220v, 50/60Hz, 1Phase. Other voltages could be customized according to clients' request.
5. Is the operation easy?
Yes. Keep holding the key switch to operate the equipment, which will stop at once if your hand releases.
6. Can this product still operate if electricity failure happens?
The platform can be descended even if there is no electricity. Firstly you need manually keep two electromagnetic lock retrieve to
release the mechanical anti-falling lock, meanwhile the solenoid valve on the power unit can be opened manually to make hydraulic
oil go back to oil tank, then the platform will descend by gravity
2 cars. One is on the ground and another is on the platform.
2. Could Hydro-Park 1123 be used for parking SUV?
Yes, the rated capacity of Hydro-Park 1123 is 2300kg, and maximum capacity is 2500kg, many types can be available.
3. Can Hydro-Park 1123 be used outdoor?
Hydro-Park 1123 is capable for both indoor and outdoor use . The fnishing is powder coating and plate cover is galvanized, with
rust-proof and rain-proof. When used indoor, you need consider the ceiling height.
4. What's the supply voltage?
Standard voltage is 220v, 50/60Hz, 1Phase. Other voltages could be customized according to clients' request.
5. Is the operation easy?
Yes. Keep holding the key switch to operate the equipment, which will stop at once if your hand releases.
6. Can this product still operate if electricity failure happens?
The platform can be descended even if there is no electricity. Firstly you need manually keep two electromagnetic lock retrieve to
release the mechanical anti-falling lock, meanwhile the solenoid valve on the power unit can be opened manually to make hydraulic
oil go back to oil tank, then the platform will descend by gravity
