JDB 11KV 33KV 110KV 220KV 500KV HV Удобная эпоксидная изоляция короткого замыкания

JDB 11KV 33KV 110KV 220KV 500KV HV Удобная эпоксидная изоляция короткого замыкания

Категория: Other Electrical Equipment >>>
Поставщик: Zhejiang,Kangchuang,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.94 $*	0.28 $*
Aug-17-2025	0.84 $*	0.24 $*
Jul-17-2025	0.36 $*	0.16 $*
Jun-17-2025	0.11 $*	0.14 $*
May-17-2025	0.36 $*	0.31 $*
Apr-17-2025	0.50 $*	0.53 $*
Mar-17-2025	0.44 $*	0.1 $*
Feb-17-2025	0.64 $*	0.24 $*
Jan-17-2025	0.6 $*	0.5 $*

Характеристики

roduct overview:

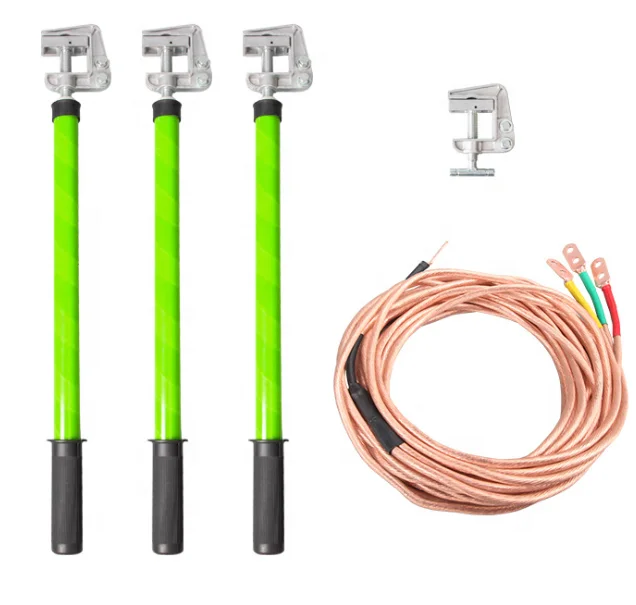

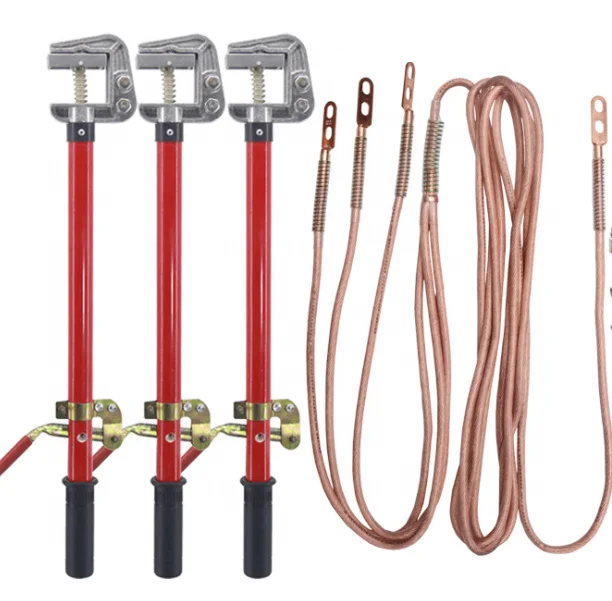

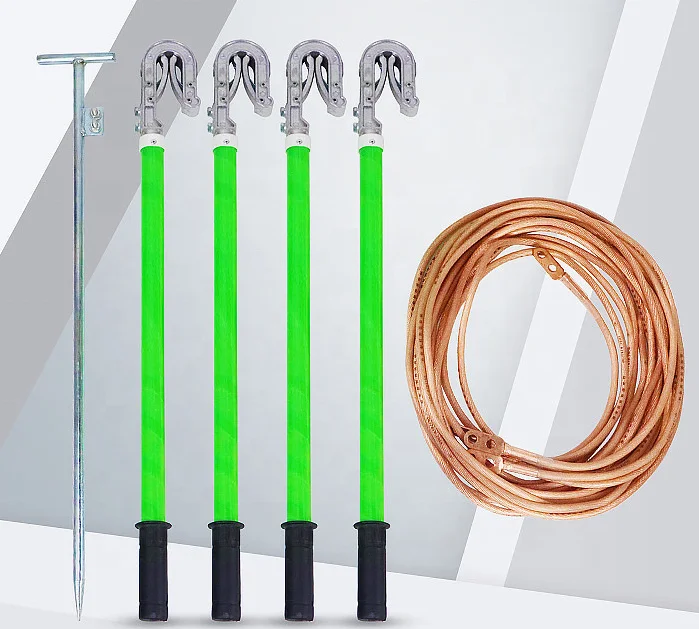

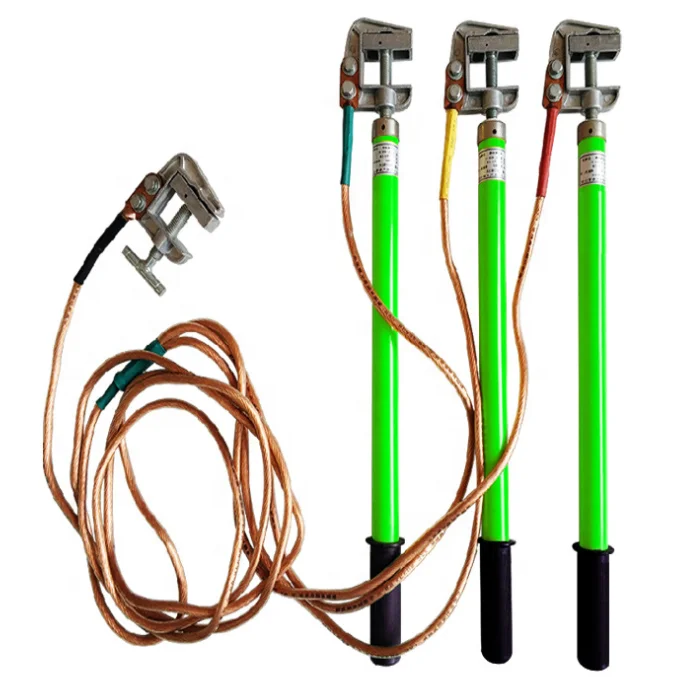

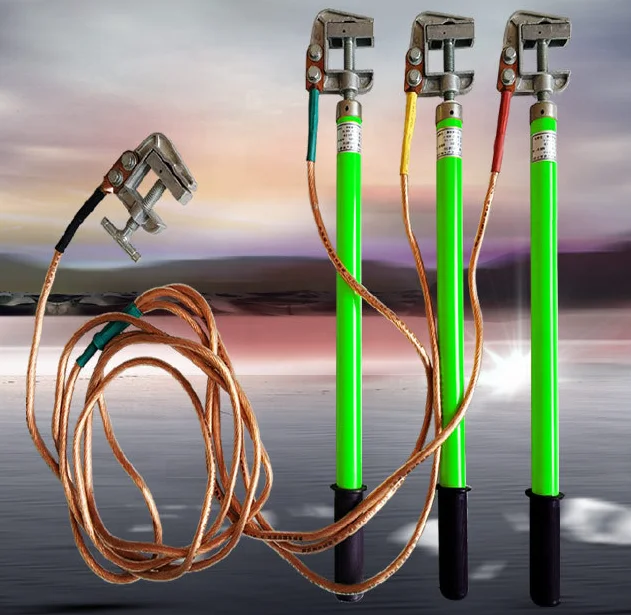

The temporary grounding equipment are designed for using to protect workers from high voltage electric shock. Suitable for making power failed equipments or temporary short-circuited lines grounded, preventing unexpected power to intrude in and do damage to personnel and equipments It mainly comprises Ground Sticks, Ground Cable, Ground Clamp or Ground Pin.

Product features:

Cooked aluminum pressing operation head clamp, corrosion resistance, oxidation resistance Insulated operating rod is made of epoxy resin glass fiber reinforced plastic, durable, good insulation, safe to use Insulated plastic handle with anti-skid stripes, comfortable grip and safe use The grounding copper wire is made of copper material with multiple strands of soft copper wire, with low resistance and large overall current carrying capacity The grounding clamp is made of die-cast aluminum, which is strong and durable

Product parameters:

Model	Ground Cable Size	Recommended Length of Cable	Length of Ground Stick	Number of Ground Stick
KCJDB-0.4KV	16mm2	3x1.5m+8m	0.5m	3 rods/set
KCJDB-10KV	25mm2	3x1.5m+10m	1.0m	3 rods/set
KCJDB-35KV	35mm2	3x1.5m+10m	1.5m	3 rods/set
KCJDB-110KV	35mm2	3x2m+12m	2.0m	3 rods/set
KCJDB-220KV	35mm2	3x2m+15m	3.0m	3 rods/set
KCJDB-500KV	50mm2	3x2m+15m	6.0m	3 rods/set
Remark: The size can be customized according to your requirements
