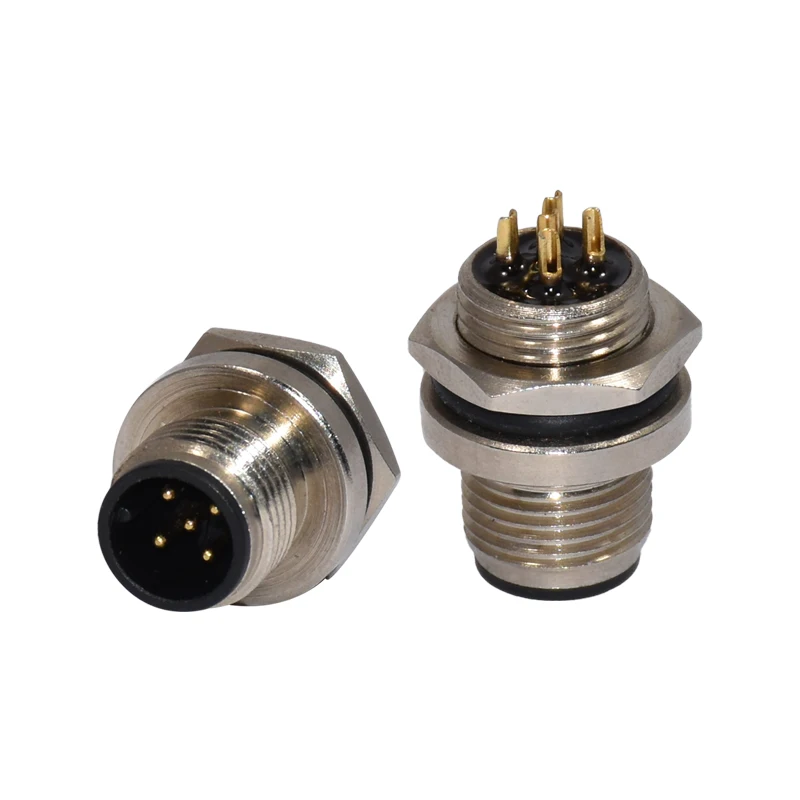

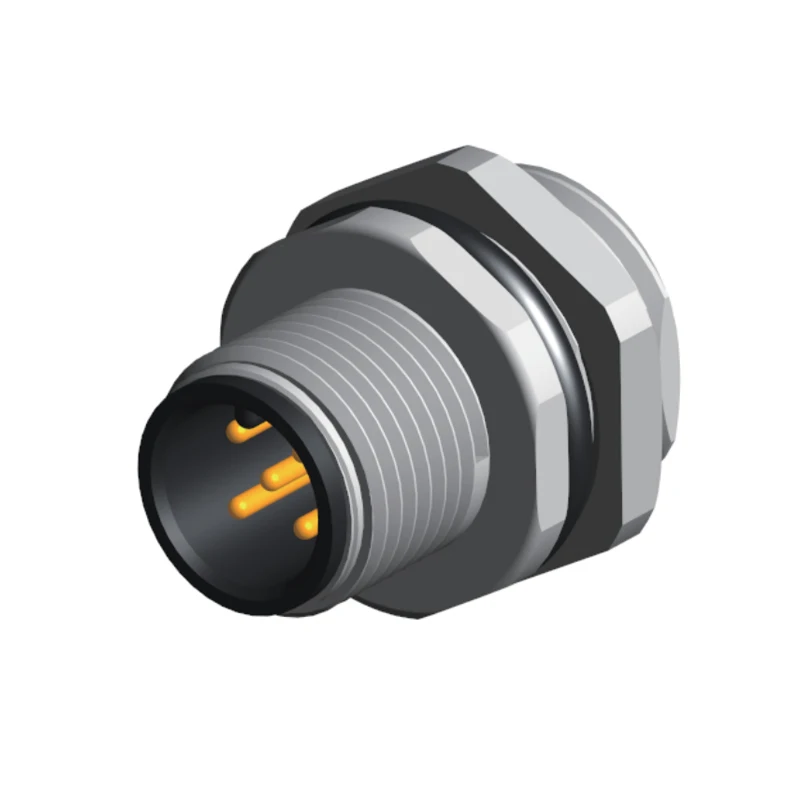

M12 A/B/D кодирование 3pin 4pin 5pin 8pin 12pin 17pin Штекерный разъем для задней панели PG9 крепежная резьба с
- Категория: Connectors & Terminals >>>
- Поставщик: Shenzhen,Rigoal,Connector,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.2 $* | 0.28 $* |
| Aug-19-2025 | 0.15 $* | 0.95 $* |
| Jul-19-2025 | 0.95 $* | 0.27 $* |
| Jun-19-2025 | 0.54 $* | 0.5 $* |
| May-19-2025 | 0.78 $* | 0.79 $* |
| Apr-19-2025 | 0.86 $* | 0.65 $* |
| Mar-19-2025 | 0.24 $* | 0.33 $* |
| Feb-19-2025 | 0.33 $* | 0.70 $* |
| Jan-19-2025 | 0.63 $* | 0.79 $* |
Характеристики
Product Description
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;

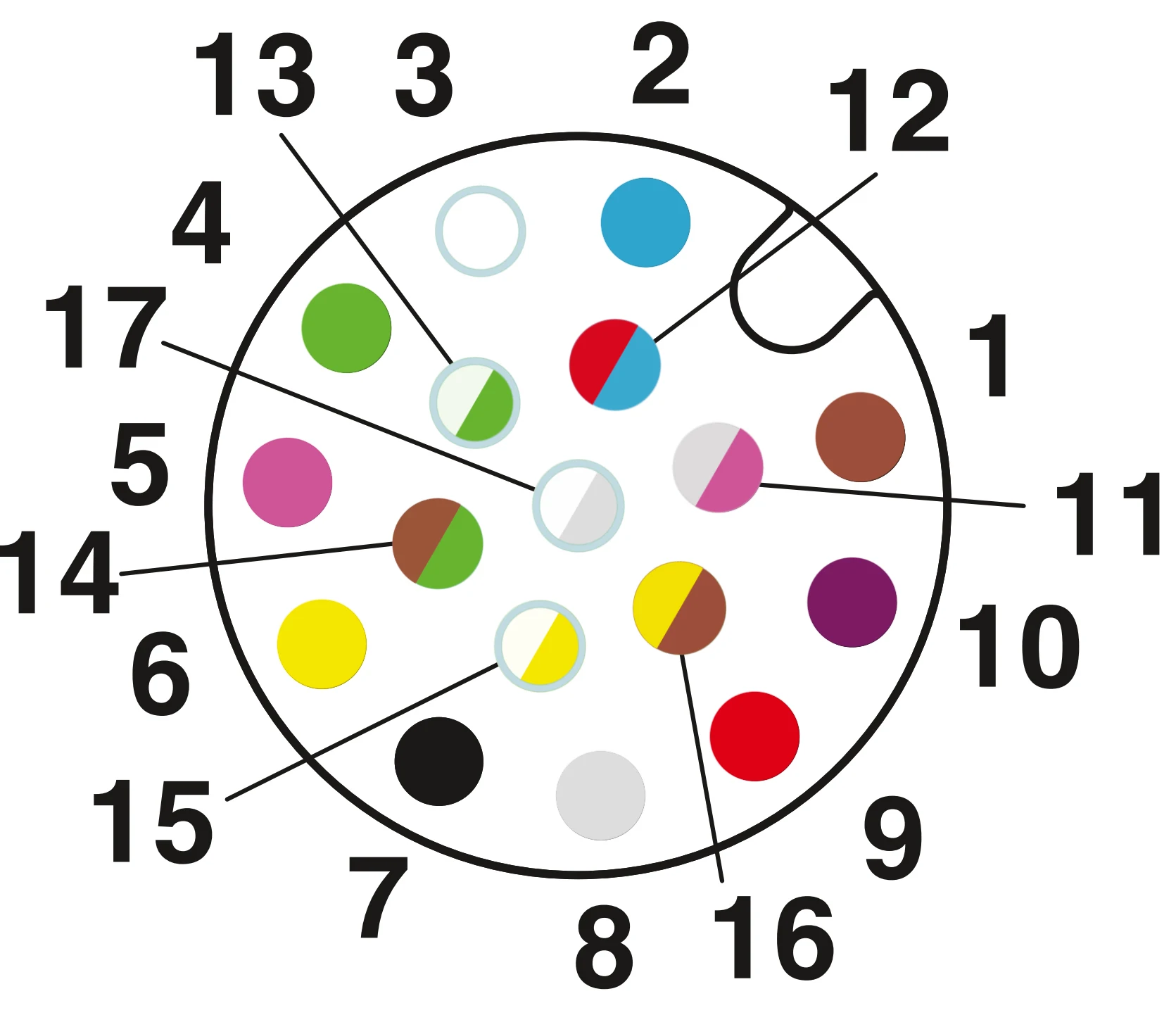

Pin configurations: 2, 3, 4, 5, 8,12 and 17 positions;
A, B, C, D, K, L, X, S, T coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Alternative mount arrangements for solder cup or PCB;
Panel Mount and distribution version available;

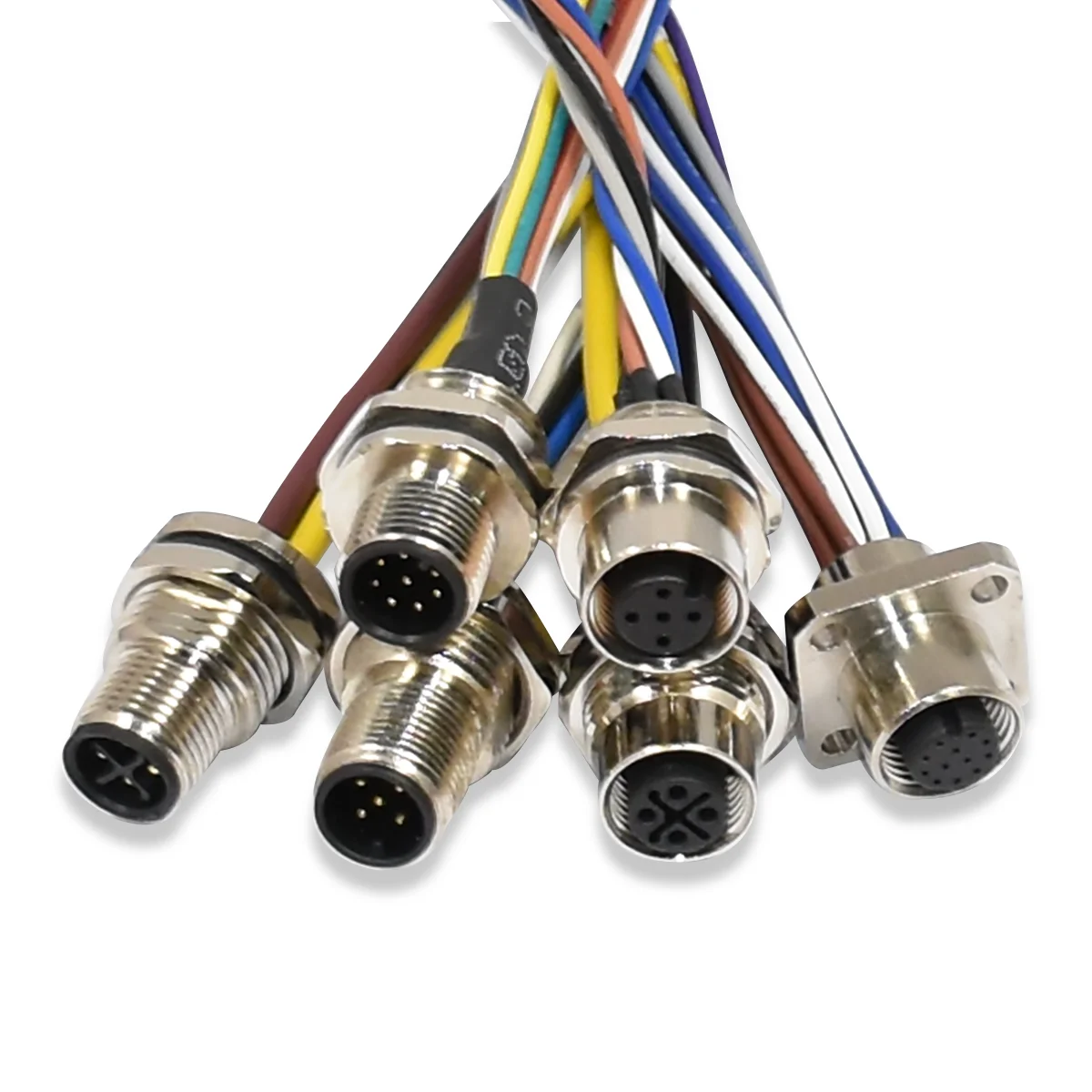

Available as a loose piece or as a pre-made M12 cables;
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 8,12 and 17 positions;
A, B, C, D, K, L, X, S, T coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Alternative mount arrangements for solder cup or PCB;
Panel Mount and distribution version available;
Available as a loose piece or as a pre-made M12 cables;
mount: Front Mount, Back Mount, 4 Hole Flange.

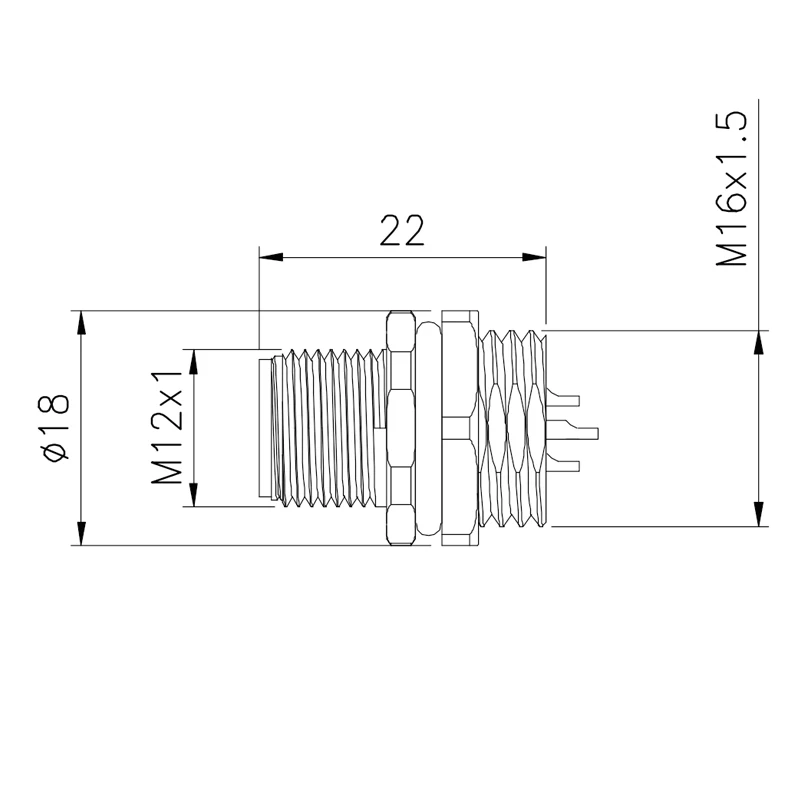

Specification
item | value |
Place of Origin | Shen zhen,China |
Brand Name | RIGOAL |
Model Number | m12 panel mount solder |
Type | ADAPTER |
Application | Electronic |
Gender | Male |
Pins | 5P, 12p, 7P, 24P, 3P, 8P, 2P, 6P |
Coding | A / B / C / D / K / L / X / S / T Code |
Temperature Range: | -25°C ~ + 85°C |
Rated Voltage: | DC60V AC50V |
Contact Material | Brass, gold plated |
Mating cycle | >100 times |
Rated Current | 0.5A |
Termination Style | Solder Type / PCB Mount |
Mounting Feature | Front Mount / Back Mount / 4 Hole Flange |
Mounting Type | PCB Mount / Panel Mount / Cable |
Number of Positions | 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN |
Packing & Delivery
M8 molded waterproof cable have two size packaging
1.Our packaging:each pcs in one PE bag, then put in a small carton.
2.According to customer request.
1.Our packaging:each pcs in one PE bag, then put in a small carton.
2.According to customer request.
Company Profile
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficience manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipments, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to Phoenix, Binder, Lumberg and Molex etc.
Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First. Quality first.
Warmly welcome you join in us, your support will be always our motivation. Let's go forward hand in hand to create a brilliant future. Rigoal----Your Best Connection!
Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First. Quality first.
Warmly welcome you join in us, your support will be always our motivation. Let's go forward hand in hand to create a brilliant future. Rigoal----Your Best Connection!
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Western Europe(18.00%),North America(13.00%),Oceania(13.00%),South America(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Central America(5.00%),Mid East(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Africa(2.00%),Southeast Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waterproof Connector,Waterproof Connector Cable
4. why should you buy from us not from other suppliers?
Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2014,sell to Western Europe(18.00%),North America(13.00%),Oceania(13.00%),South America(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Central America(5.00%),Mid East(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Africa(2.00%),Southeast Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waterproof Connector,Waterproof Connector Cable
4. why should you buy from us not from other suppliers?
Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
