Характеристики

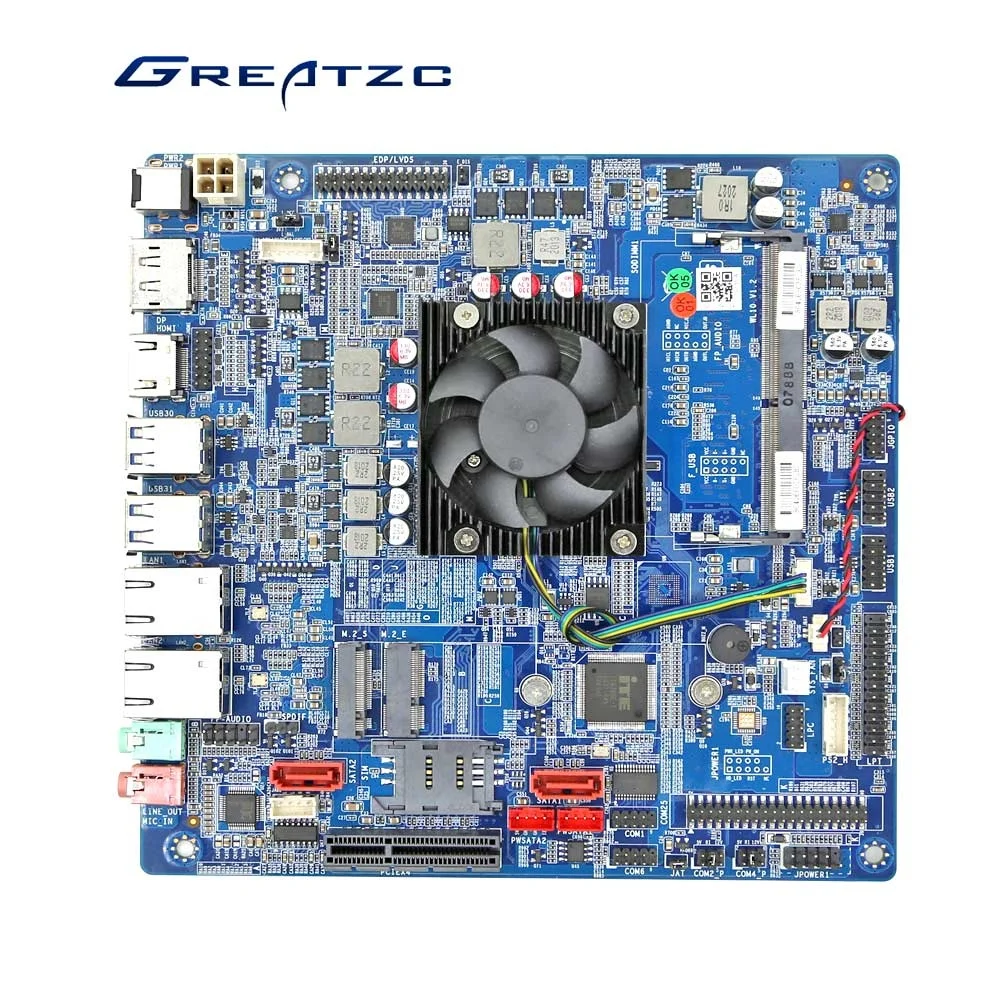

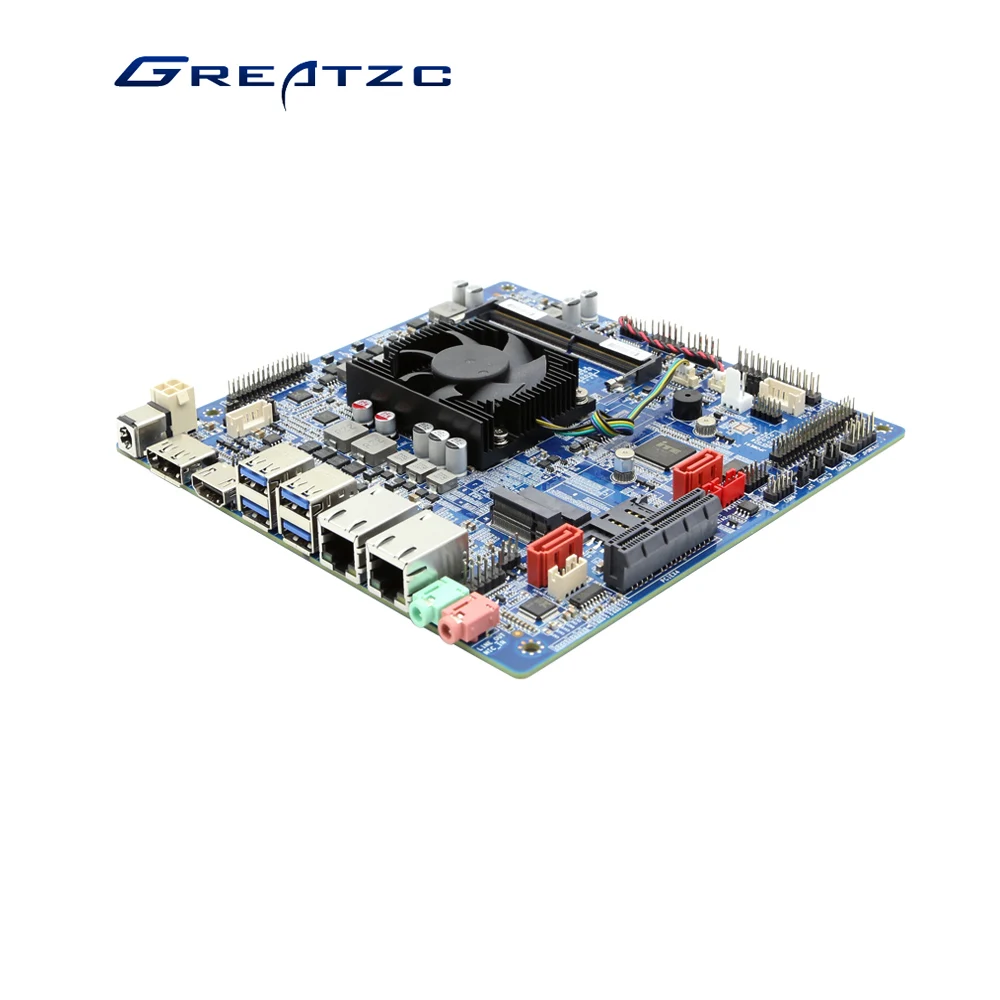

8th Generation Intel Celeron Core I3 I5 I7 CPU 2 Gigabit Ethernet Thin Mini Itx Motherboard
ZC-MI-8145DL Mini ITX Motherboard Onboard 8th Gen Whiskey Lake-U CPU Celeron 4205U/I3-8145U/I5-8265U/I7-8565U 2*DDR4 Memory Slots,1*DP+1*HDMI+1*LVDS,2*Gigabit LAN,5*RS232+1*RS485,1*LPT,1*GPIO,2*M.2 ,1*PCIE X4
Product Description
ZC-MI-8145DL is an embedded motherboard, supporting Intel latest 8th Gen Whiskey Lake-U Core i3/i5/i7 and Celeron processor, Celeron 4205U, Core i3-8145U, Core i5-8265U, Core i7-8565U.
This board features multiple display via 1xDisplay Port 1.2 and 1xHDMI 1.4 and 1xeDP or 1xLVDS. It carries 2xDDR4 SO-DIMM 2400MHz slots up to 32GB to add higher bandwidth and lower latencies for processes. It has 2x10M/100M/1000M BASE-T Gigabit LAN (Intel i211),3xUSB3.0,5xUSB2.0,5xRS232,1xRS485,1x LPT,1xJHDMI,1xPS2_H,1xGPIO.
Main Features:
1.) Intel Whiskey Lake-U processor
2.) 2*DDR4 Memory Slots,Max 32GB
3.) Multiple display: HDMI, DP, eDP/LVDS
4.) 2*Gigabit Ethernet
5.) 5*RS232+1*RS485
6.) 1*LPT,1*GPIO,PCIE X4 Slots
ZC-MI-8145DL Mini ITX Motherboard Specification
Processor | Celeron 4205u,2 Cores 1.8GHz |
i3-8145u,2 Cores 2.1GHz~3.9GHz | |
i5-8265u,4 Cores 1.6GHz~3.9GHz | |
i7-8565u,4 Cores 1.8GHz~4.6GHz | |
Chipset | Soc |
Memory | 2*DDR4 DIMM 2400MHz,Max 32GB |
Graphics | Intel UHD Graphics for 8th Generation Intel Processors |
Display | 1*DP 1.2 1*HDMI 1.4 1*LVDS or eDP |
Storage | 2*SATA 3.0 (only 1 if Celeron onboard) 1*M.2 for 4G/2280 SSD |
Audio | Realtek HD ALC662,Supports MIC in /Line-out,Loudspeakers |
Network Card | 2*Intel I211 Gigabit,Support Wake-on-LAN/PXE |
Wireless | 1*M.2 for WIFI |
Extension | 1*PCIE X4 |
Rear Panel I/O | 2*USB 2.0 3*USB 3.0 1*HDMI 1*DC Jack 2*RJ45 1*Audio In 1*Line Out |
Internal I/O Header | 4*USB 2.0 5*RS232 1*RS485 1*Front Audio 1*Speaker 1*SPDIF 1*Front panel and light 1*LPT 1*GPIO 1*4pins Power Header 1*4pins CPU Fan Header 1*3pins System Fan Header |
Watchdog | Support hardware reset function (256 levels, 0~255 seconds) |
Power Supply | DC 12V |
Operating Temp | -20℃~60℃ |
Storage Temp | -40℃~80℃ |
Operating Humidity | 5%-95% Relative humidity,non-condensing |
Dimensions | Thin Mini ITX ,170mm*170mm |
