Высокая Настройка передачи воды прямой белый Тонер цифровой принтер теплопередача ПЭТ пленка лист печатная машина для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.13 $* 0.81 $*
Aug-15-2025 0.77 $* 0.49 $*
Jul-15-2025 0.37 $* 0.98 $*
Jun-15-2025 0.70 $* 0.56 $*
May-15-2025 0.42 $* 0.26 $*
Apr-15-2025 0.46 $* 0.83 $*
Mar-15-2025 0.76 $* 0.79 $*
Feb-15-2025 0.12 $* 0.78 $*
Jan-15-2025 0.14 $* 0.82 $*

Характеристики



Heat transfer printing machine
high configuring water transfer direct white toner digital printer heat transfer pet film sheet printing machine for fabric






Nozzle model

EPSON4720 2PEICE

Print Speed
4Pass:13m2 hour
6Pass:10m2 hour
8Pass.:8 m2 hour

Printing size
Nose: 180*60*140CM
Best working
environment
Temperature:20-28 c
Body: 180*60*140CM
environment
Humidity:65%-75%
Machine weight
Nose: 130KG
SBody: 270KGS
Ink type
ink type.Water-based paint ink ink type:CMYK
Printing range
70cm
Power supply
220V/Simplex/50HZ/60HZ

Wooden box size
Nose: 185*74*51CM

Pressing temperature

160-170Celsius
Body: 220*125* 140CM


Printing accuracy
720* 1200dpiv4pass


Power


Nose:350W     Body:3400W
720* 1800dpi/6pass
720*2400dpi/8pass


Cowint New Material Technology Co.,ltd
Offset heat transfer and powder shake all-in-one machine
Machine introduction


Product profile
The coating offset white ink heat transfer process is to print water-based paint ink and white ink directly on the PET film medium. The printer is connected to a duster. After the PET film is printed, it passes through the duster and sprinkles hot melt adhesive powder on the corresponding pattern. ,Finally, dry and fix color and rewind, in one
step.Compared with the Korean heat transfer process, it has the advantages of no engraving, no hollowing, no waste discharge, and no restriction on fabrics. It has a wider range of applications, and does not fade or fall off after washing.






Cowint New Material Technology Co.,ltd
Offset heat transfer and powder shake all-in-one machine

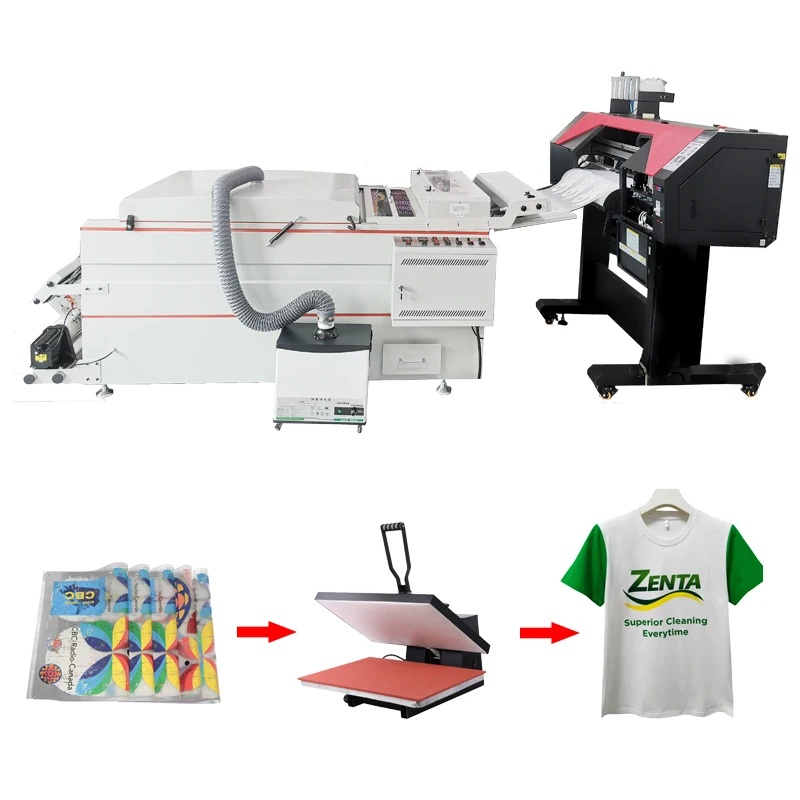

step1: Use PS or other drawing software to processthe pictures.
Step 2: Import the processed pictures into the special printing softwarefor the machine, perform typesetting, and click the print button.
Step 3: The pattern will be automatically printed and automatically rolled into a rollThe fourth part: Cut the pattern, and press the cut pattern with a pressing machine at 160 degrees Celsius, 15 seconds, and 4kg.The fifth
step is to tear off the heat transfer film, and the production is complete




Get an order Printing Heat press Packing




Cowint New Material Technology Co.,ltd

Heat transfer digital printer



KW- 602
W:1670 mm

H:1400mm

4Pass 10 m2 / hour

6Pass 6 m2/ hour


Cowint New Material Technology Co.,ltd

Shake powder machine





D650

0-600MM

2090*1090*1080,

packaging 1930*1120*1136mm

G.W 260kg N.W 180kg




Cowint New Material Technology Co.,ltd

machine





Features and methods of use
1. If you want to print T-shirts, please use a roll-to-roll printer to print patterns on the film.

2. The printed pattern enters the bottle shaker, the machine will automatically cover the hot-melt powder, and shake quickly to make the hot-melt powder evenly covered, and heat at high temperature to completely dissolve the hot-melt powder on the film.

3. The Smart PET film collector will automatically roll the film together.

4. When you need to use, cut the desired pattern and transfer the pattern to any fabric on the heat transfer machine.
1. Simple operation, printing, printing
in two steps, no plate making, printing can be done immediately.
2. The equipment occupies a small area and the investment cost is low.
3. The water-based ink is safe and environmentally friendly, and the nozzle has a long service life.
4. It can print fine lines, wash logos, precise, bright colors, no cutting waste, unlimited transfer of fabrics and colors.

5. Personalized printing customization, suitable for the characteristics of immediate order placement and rapid reversal.
6. The hand feels soft and fast, the stretch and rebound effect is good, and the fastness is as high as 4.5.




Cowint New Material Technology Co.,ltd

KW-602





Head Machine Parameter
Name Model KW-602
Number of meetings 2
4Pass 10square / hour 6Pass 6square / hour

Shake Powder Machine Parameter
Name Model Shake powder machine H650
Retractable media width 0-600mm
Applicable medium Nylon chemical fiber cotton , leather swimsuit, diving etc.
Heating and drying function Efficient and powerful drying and curing
Rewinding function Automatic induction winding
Electrical parameters Rated voltage 220V, rated current 30A
Packing size and weight Machine 1985*1090*1080, packing 1900*1140*1134mm




Cowint New Material Technology Co.,ltd

Related Products





heat transfer powder




heat transfer powder




Heat transfer film




Certificates and Quality Control
All the product we provide are eco-friendly,we got certtificates including:Okeo-tex
standard100/Eco-passport,GOTS,ZDHC,Intertek,SGS,CE and so on.

Quality Control System
1.Raw material inspection---Carry out various tests on raw materials to ensure stable quality and
environmental protection of raw materials.
2. Extreme environment test of small sample products--- Physical stability detection,
put the product in extreme environment for detection, generally for a long time, high temperature, high humidity environment detection, to ensure the wide applicability of the products to the environment.
3. Testing of bulk goods --- The sample printing test for each batch of new products includes testing the product tension,
fastness, washing, anti sticking, etc., to ensure theconsistency of the quality of each batch of products.
4.Environmental testing--- Before each batch of finished products are shipped, they will be sent to SGS or Intertex and other testing institutions for environmental protection testing, so as to ensure that the products meet the environmental protection requirements before they can be delivered and transported.




Professional team to escort you
Provide you with one-stop service Disclaim:
All trdemarks shown here are for reference purpose only.we are need authorized letter
to make such kindof loo or label

Services:
our trade manager will on line 12hrs per day .you also can click "contactsuppller""button to send Iinquiryto us.
Cowint Advantage
1.26 years experience in the Printing materials.
2. Top 10 Brand in the printing material area in China. Cowint has a strong R&D team
3.We are “China Research, Development and Manufacturing Center for Printing Chemicals”,which issued by China Dyeing and Printing
Association, can keep High &stable quality for you.
4.One stop solution technology support & service
5.Certificate available: Eco-passport (Okeotex 100 standard \\ GOTS \\ZDHC \\SGS and so on,insure all the items are eco-friendly.




FAQ
Q: Why so many customer choose you?
A: We are Top 10 brand in printing material in the field,26th years experience with stable quality and nice service. For moredetails, please contact us,you will get the general idea about us.

Q: Can you design the products I want?
A: Deifnitely. We will make artwork for your conformation,once you give us your design requirements.Free design and skilledsupport. Put your good idea into reality.

Q: How to make payment?
A:We accept Payment by T/T,L/C at sight or West Union,PayPal, Alibaba Pay Later and so on. We recommend you can choose AlibabaCredit Guarantee Service, so that the rights and Interests of both sides can be more effectively protected.

Q: What About Your MOQ? Do you accept mini order?
A: MOQ varies from different products. Normally range from 1~1000PCS. Yes, welcome mini order!

Q: Do You have any certificate of authorization?
A: Yes, Our website shows oart of certificates. Ecopassport \\GOTS\\ Intertec\\SGS\\ ZDHC\\CE etc
.
